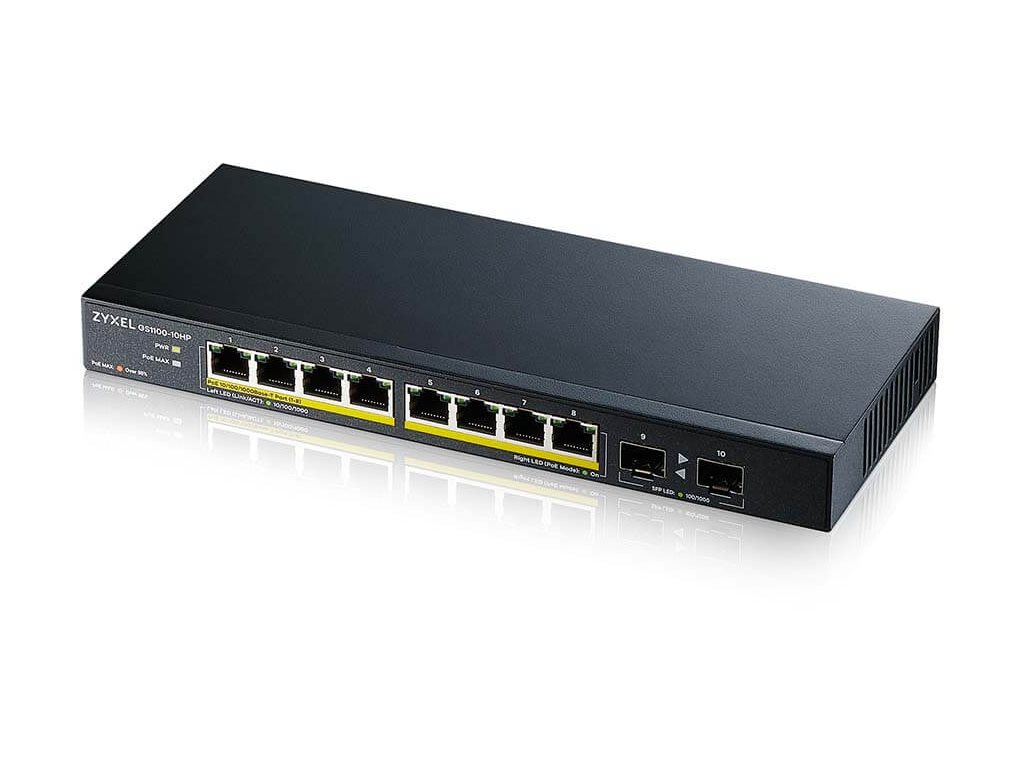

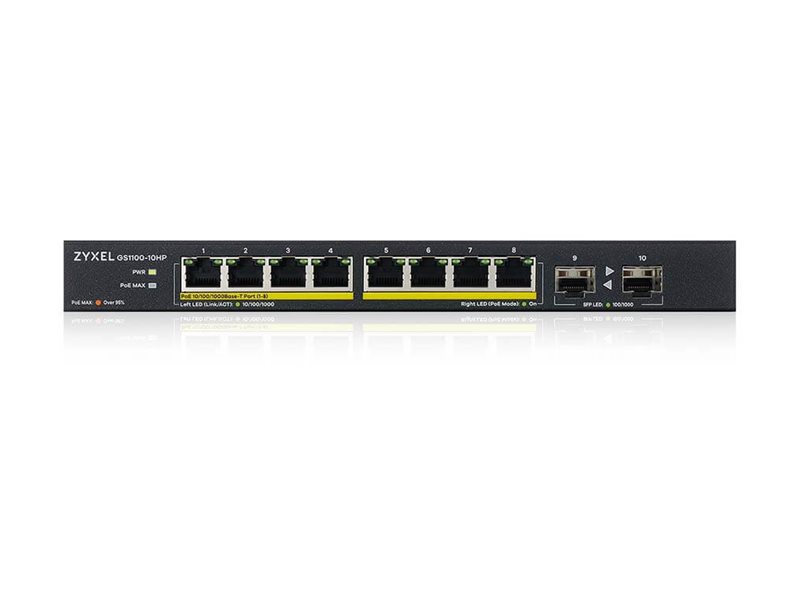

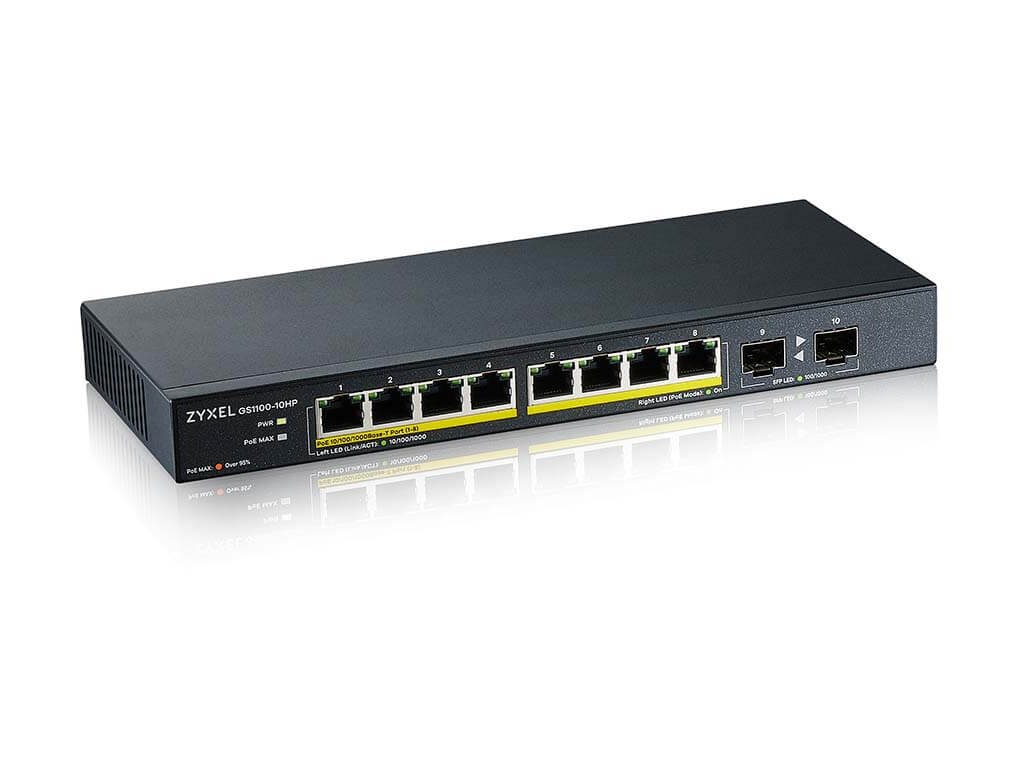

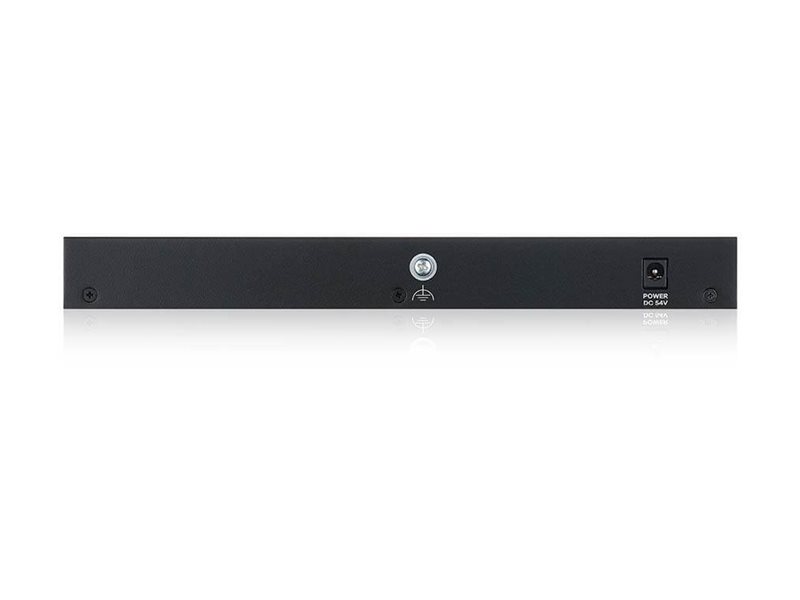

Zyxel GS1100-10HP Switch 10-porte Gigabit PoE+
Zyxel GS1100-10HP - Switch - ikke administreret - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - desktop, væg-monterbar - PoE+ (130 W)
Product no:
1000073668
Model:
GS1100-10HP-EU0102F
EAN:
4718937621187
Brand:
Weight:
1.72 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Zyxel GS1100-10HP - switch - 10 porte - ikke administreret
|
|
Enhedstype
|
Switch - 10 porte - ikke administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
130 W
|
|
Præstation
|
Omkoblingskapacitet: 20 Gbps<br>Fremsendelsespræstation: 14.88 Mpps
|
|
MAC adresse table størrelse
|
8K indtastningshukommelse
|
|
Jumborammesupport
|
9KB
|
|
Egenskaber
|
Datatransport, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, blæserløs, Energy Efficient Ethernet, 256 KB pakkebuffer, CoS
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
|
|
Effekt
|
AC 100-240 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
25 cm x 10.4 cm x 2.7 cm
|
|
Vægt
|
730 g
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
|
|
Device Type
|
Switch - 10 ports - unmanaged
|
|
Enclosure Type
|
Desktop, wall-mountable
|
|
Features
|
Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, fanless, Energy Efficient Ethernet, 256KB packet buffer, Class of Service (CoS)
|
|
Jumbo Frame Support
|
9KB
|
|
MAC Address Table Size
|
8K entries
|
|
Performance
|
Switching capacity: 20 Gbps | Forwarding performance: 14.88 Mpps
|
|
PoE Budget
|
130 W
|
|
Ports
|
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Status Indicators
|
Port status, power, PoE, link/activity
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x 1000Base-T RJ-45 PoE+ | 2 x Gigabit LAN SFP
|
|
Power
|
|
|
Power Consumption Operational
|
156.1 Watt
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
AC 100-240 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
BSMI, ICES-003, FCC, RoHS, REACH, LVD, EMC Class B, RCM
|
|
Included Accessories
|
Wall mounting kit
|
|
MTBF
|
1,000,070 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
10.4 cm
|
|
Height
|
2.7 cm
|
|
Weight
|
730 g
|
|
Width
|
25 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
