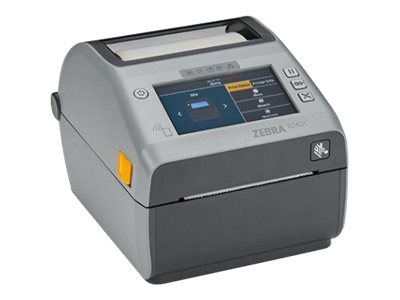

Zebra ZD621 Termisk overførsel

Zebra ZD621 - Etiketprinter - termo transfer - Rulle (10,8 cm) - 203 dpi - op til 203 mm/sek. - USB 2.0, LAN, seriel, USB vært - skærer

Varenummer: 998595308
Model: ZD6A142-32EF00EZ
EAN: 5704174944157
Brand:
Zebra Technologies
Vægt: 2.5 kg

Specifications

Produktbeskrivelse
Zebra ZD621 - etiketprinter - S/H - termo transfer
Printertype
Etiketprinter - termo transfer - S/H
Vægt
2.5 kg
Lokalisering
United Kingdom, Europa
Maks. mediestørrelse
Rulle (10,8 cm)
Minimum Medie Størrelse (Almindelig)
15 mm x 6.4 mm
Max. mediestørelse (brugerdefineret)
118 mm x 991 mm
Printerhastighed
Op til 203 mm/sek - maks. hastighed
Maks. opløsning (S og H)
203 dpi
Skærer
Ja
Grænseflade
USB 2.0, LAN, seriel, USB vært
RAM installeret (maks.)
256 MB SDRAM
Flash Hukommelse Installeret (Max)
512 MB
Sprogsimulering
ZPL II, EPL2, ZBI, EZPL, Extensible Mark-up Language (XML), PDF Direct
Stregkoder
Kode 93, Industribrug 2 af 5, Kode 39, Kode 49, CODABLOCK, ISBT 128, QR-kode, MaxiCode, Aztec-kode, LOGMARS, UPC-A, UPC-E, MicroPDF417, Coadabar, Code 128, Kode 11, 2 af 5 interfolieret, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC-2, UPC-5
Medietype
Kvitteringspapir, lagerkort, fortløbende mærkater, pressestempel skæreetikette, manchetmærkater, fanfold-mærkater, sort mærke-mærkater, mærkatrulle
Egenskaber
Realtidsur, transmissiv/hulsensor, reflektiv/sort mærke-sensor
Netværk
Udskriftsserver
Producentgaranti
2 års garanti
Dimensioner (B x D x H)
20.2 cm x 26.7 cm x 19.2 cm
Specifications

Full specifications

General
Localization
United Kingdom, Europe
Printer Type
Label printer - thermal transfer - monochrome
Printer
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-
Built-in Devices

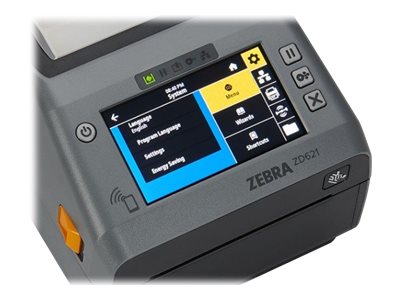

4.3 inch LCD touch screen
Connectivity Technology
Wired
Cutter
Yes
Features
Realtime clock, transmissive/gap sensor, reflective/black mark sensor
Fonts Included
16 x bitmapped ZPL II | 2 x scalable ZPL | 5 x expandable EPL2
Interface
USB 2.0, LAN, serial, USB host
Language Simulation
ZPL II, EPL2, ZBI, EZPL, Extensible Mark-up Language (XML), PDF Direct
Max Resolution (B&W)
203 dpi
Print Speed
Up to 203 mm/sec - max speed - 203 dpi
RAM
RAM Installed (Max)
256 MB
Technology / Form Factor
SDRAM
Flash Memory
Flash Memory
512 MB
Media Handling
Max Media Size
Roll (10.8 cm)
Max Media Size (Custom)
118 mm x 991 mm
Max Printing Length
991 mm
Max Printing Width
104 mm
Media Feeders
1 x manual - 1 roll - Roll (10.8 cm)
Media Sizes
Roll (1.5 - 10.8 cm)
Media Thickness Range
0.08 mm - 0.1905 mm
Media Type
Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels, black mark labels, label roll
Min Media Size (Custom)
15 mm x 6.4 mm
Roll Core Diameter
25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm
Roll Maximum Outer Diameter
127 mm
Networking
Networking
Print server
Expansion / Connectivity
Connections
1 x USB 2.0 | 1 x USB host | 1 x LAN | 1 x serial
Miscellaneous
Cables Included
1 x USB cable
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, IEC 60601-1, EN 300 328, RoHS 2011/65/EU, BIS
Features
Printer setup mobile app via BLE connection
Included Accessories
2 core adapters, 1" ribbon take-up core, 0.5" ribbon take-up core
Power
Frequency Required
50/60 Hz
Power Device
Power supply - internal
Power Factor Correction
Yes
Software / System Requirements
Software Included
Drivers & Utilities, Link-OS
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating
10 - 90% (non-condensing)
Max Operating Temperature
41 °C
Min Operating Temperature
4.4 °C
Dimensions & Weight
Depth
26.7 cm
Height
19.2 cm
Weight
2.5 kg
Width
20.2 cm
