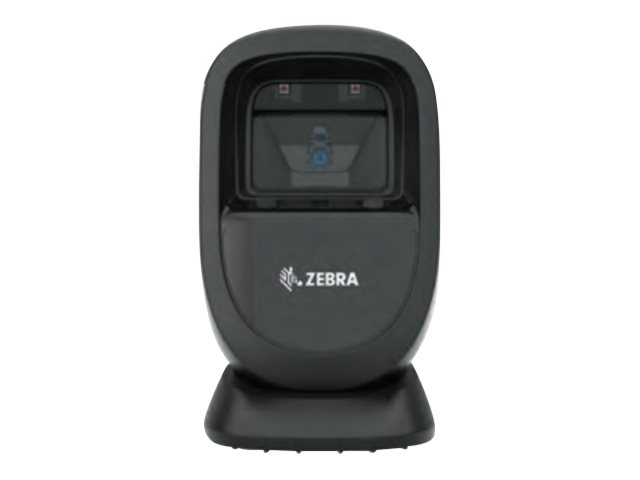

Zebra DS9300 Series DS9308 Stregkodescanner
Zebra DS9300 Series DS9308 - Standard Range (SR) - USB Kit - stregkodescanner - desktopmodel - 2D imager - 3050 mm / sek. - afkodet - USB
-
Product no 995744300
Model DS9308-SR4U2100AZE
Brand Zebra Technologies
EAN 5704174202202
Weight 0.52 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Zebra DS9300 Series DS9308 - Standard Range (SR) - USB Kit - stregkodescanner |
| Type | Stregkodescanner - desktopmodel - USB - afkodet |
| Farve | Midnat sort |
| Lokalisering | EMEA |
| Min. linjebredde | 3 mil |
| Scanningskomponenttype | 2D imager - Rød LED |
| Sensoropløsning | 1280 x 800 |
| Scanningshastighed | 3050 mm / sek. |
| Forbindelsesteknologi | Kablet |
| Dimensioner (B x D x H) | 8.6 cm x 8.3 cm x 14.5 cm |
| Vægt | 318 g |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Color | Midnight black |
| Localization | EMEA |
| Type | Barcode scanner - desktop |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | Code 93, Matrix 2 of 5, Code 39, UCC/EAN-128, ISBT 128, NW-7, IATA, ISBN, cupon code, GS1 DataBar, MaxiCode, Aztec code, Bookland, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Discrete 2 of 5, MicroPDF417, Italy Pharmacode, Codabar, Code |
| Features | ESD (electrostatic discharge) safe, deactivation of EAS tag, standard range scanning |
| Interface Type | USB |
| Light Source Wave Length | 617 nm |
| Max Working Distance | 27.9 cm |
| Minimum Bar Width | 3 mil |
| OK Notification | Beeper, LED indicator |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Scan Element Type | 2D imager - red LED |
| Scan Mode | Single-pass |
| Scan Speed | 3050 mm / sec |
| Sensor Resolution | 1280 x 800 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Miscellaneous | |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | EN 61000-4-2, IP52, EN 50581:2012, EN 62471:2008, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class B, EN 55024:2010+A1:2015, EN 62368-1, IEC 62368-1, ICES-003 issue 6 Class B, EN 55032:2012+AC:2013 Class B, EN 61000-3-2:2014 Class A, IEC 6 |
| Power | |
| Electric Current Required | 135 mA (standby), 335 mA (typical) |
| Power Device | Power adapter |
| Dimensions & Weight | |
| Depth | 8.3 cm |
| Height | 14.5 cm |
| Weight | 318 g |
| Width | 8.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Drop Specification | 1.5 m to concrete |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
