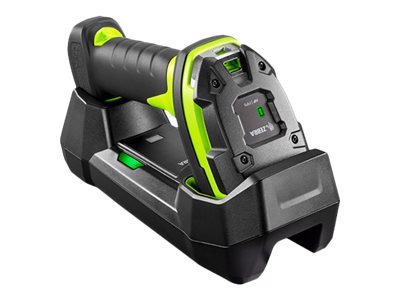

Zebra DS3678-HP Stregkodescanner Bærbar

Zebra DS3678-HP - USB Kit - stregkodescanner - bærbar - 2D imager - afkodet - Bluetooth 4.0

Varenummer: 998961653
Model: DS3678-HP3U42A2SKW
EAN: 5715063156117
Brand:
Zebra Technologies
Vægt: 0.411 kg

Specifications

Produktbeskrivelse
Zebra DS3678-HP - USB Kit - stregkodescanner
Type
Stregkodescanner - bærbar - Bluetooth 4.0 - afkodet
Farve
Industriel grøn
Min. linjebredde
5 mil
Scanningskomponenttype
2D imager - hvid LED
Sensoropløsning
1280 x 960
Forbindelsesteknologi
Trådløs
Trådløs tilslutning
Bluetooth 4.0 LE
Batteri
1 x Litiumion
Dimensioner (B x D x H)
7.6 cm x 14.2 cm x 18.5 cm
Vægt
411 g
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Color
Industrial green
Type
Barcode scanner - portable
Barcode
Connectivity Technology
Wireless
Decode Capability
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, MICR E-13B, Micro QR code, China Han Xin Code
Features
Rugged, Human Interface Device Profile (HID), Serial Port Profile (SPP), 25 kV ESD protection (air discharge), 10 kV ESD protection (direct discharge), 10 kV ESD protection (indirect discharge)
Interface Type
Bluetooth 4.0
Light Source Wave Length
655 nm
Max Working Distance
203.2 cm
Minimum Bar Width
5 mil
OK Notification
Beeper, LED indicator, vibration
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Scan Element Type
2D imager - white LED
Sensor Resolution
1280 x 960
Skew (Degrees)
60
TTL Decoding
Decoded
Networking
Wireless Connectivity
Bluetooth 4.0 LE
Expansion / Connectivity
Interfaces
1 x USB - Type A
Miscellaneous
Cables Included
1 x USB cable - external - 2.1 m
Compliant Standards
UL, VDE, Bluetooth Class 1, EN 61000-4-2, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, IP65, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 6247
Included Accessories
Cradle
Power
Battery
1 x lithium ion
Power Device
Power adapter
Dimensions & Weight
Depth
14.2 cm
Height
18.5 cm
Weight
411 g
Width
7.6 cm
Manufacturer Warranty
Service & Support
Limited warranty - parts and labor - 3 years | Limited warranty - battery - 1 year
Environmental Parameters
Drop Specification
2.4 m to concrete
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
-20 °C
