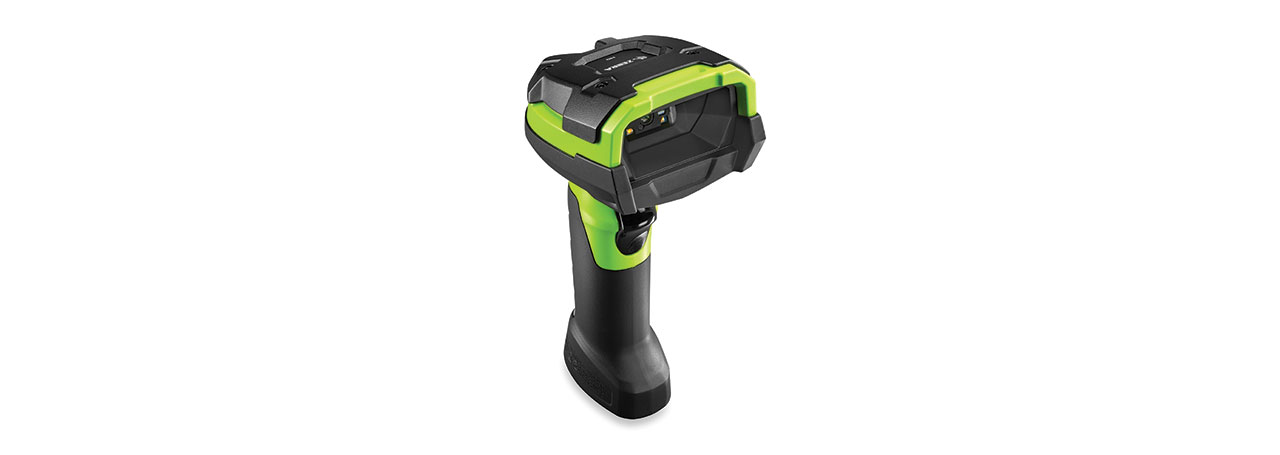

Zebra DS3678-HD Stregkodescanner
Zebra DS3678-HD - USB Kit - stregkodescanner - bærbar - afkodet - Bluetooth 4.0
-
Product no 991722318
Model DS3678-HD3U42A0SFW
Brand Zebra Technologies
EAN 8596375045033
Weight 1.62 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Type | Håndholdt stregkodelæser |
| Scanner type | 1D/2D |
| Sensortype | Laser |
| Understøtter lineær (1D) stregkoder | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| Understøtter matrix (2D) stregkoder | Aztec Code, Sammensatte koder, Data matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Forbindelsesteknologi | Kabel & trådløs |
| Standard grænseflader | RS-232, USB, Tastaturkile |
| Produktfarve | Sort, Grøn |
| Strømkilde type | Batteri |
| Vægt | 411 g |
| General | |
|---|---|
| Color | Industrial green |
| Type | Barcode scanner - portable |
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, UPC/EAN supplem |
| Features | Rugged |
| Interface Type | Bluetooth 4.0 |
| Minimum Bar Width | 3 mil |
| OK Notification | Beeper, LED indicator, vibration |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Sensor Resolution | 1280 x 960 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Networking | |
| Wireless Connectivity | Bluetooth 4.0 LE |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Miscellaneous | |
| Cables Included | 1 x USB cable - external - 2.13 m |
| Compliant Standards | UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2 |
| Included Accessories | Cradle |
| Power | |
| Battery | 1 x lithium ion |
| Power Device | Power adapter |
| Dimensions & Weight | |
| Depth | 14.2 cm |
| Height | 18.5 cm |
| Weight | 411 g |
| Width | 7.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Drop Specification | 2.4 m to concrete |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
