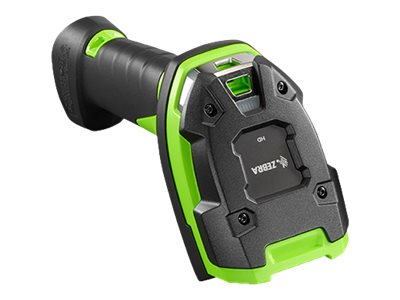

Zebra DS3608-HD Stregkodescanner Håndmodel

Zebra DS3608-HD - Stregkodescanner - håndmodel - afkodet - USB

Product no: 990850161
Model: DS3608-HD3U4602VZW
EAN: 0634360041092
Brand:
Zebra Technologies
Weight: 0.68 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Zebra DS3608-HD - stregkodescanner
Type
Stregkodescanner - håndmodel - USB - afkodet
Farve
Industriel grøn
Min. linjebredde
3 mil
Sensoropløsning
1280 x 960
Forbindelsesteknologi
Kablet
Dimensioner (B x D x H)
7.6 cm x 13.2 cm x 18.5 cm
Vægt
309 g
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Color
Industrial green
Type
Barcode scanner - handheld
Barcode
Connectivity Technology
Wired
Decode Capability
Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, UPC/EAN supplem
Features
Rugged
Interface Type
USB
Max Working Distance
35 cm
Minimum Bar Width
3 mil
OK Notification
Beeper, LED indicator, vibration
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Sensor Resolution
1280 x 960
Skew (Degrees)
60
TTL Decoding
Decoded
Expansion / Connectivity
Interfaces
1 x USB
Miscellaneous
Cables Included
1 x USB cable - external
Compliant Standards
UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2
Dimensions & Weight
Depth
13.2 cm
Height
18.5 cm
Weight
309 g
Width
7.6 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Drop Specification
2.4 m to concrete
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
-30 °C
