Dimensions (L x W x H)
|
140 x 150 x 86mm
|
|
80 Plus Rating
|
Gold
|
|
ATX Version
|
Intel ATX 12V v3.1
|
|
Protections
|
OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
|
|
PFC
|
0.99
|
|
Input Voltage
|
100-240V
|
|
Input Current
|
12A
|
|
DC Output Voltage
|
+5V | +3.3V | +12V | -12V | +5Vsb
|
|
Total Output
|
+5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
|
|
Power Excursion
|
1997W (*up to 235% of the PSU's rated power for 100μs)
|
|
Operating Temperature
|
40°C
|
|

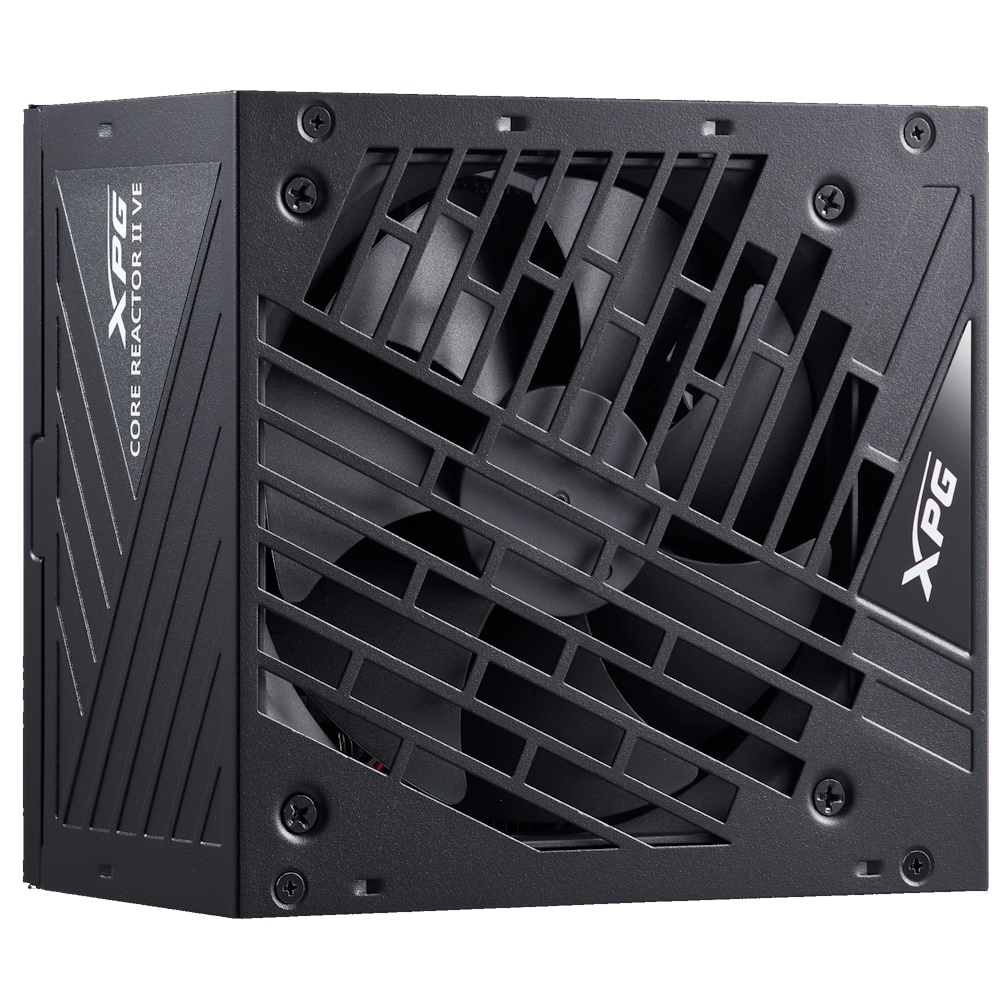

Fan Size
|
120mm FDB Fan
|
|
Fan Bearing
|
FDB (Fluid Dynamic Bearing)
|
|
Fan Speed
|
2400 RPM
|
|
MTBF
|
100K hours at full load
|
|

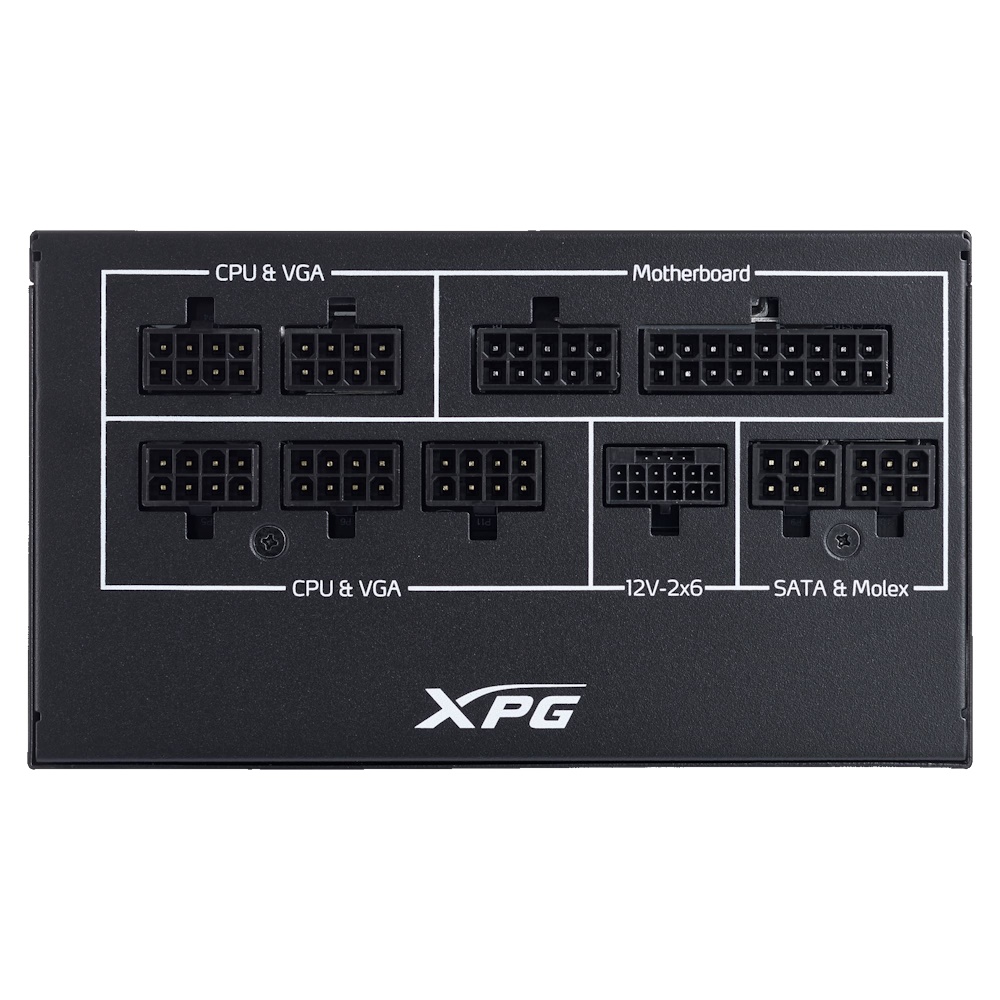

Connectors
|
1x ATX 24 Pin, 2x EPS 8 Pin, 3x PCI-E 6+2 Pin, 2x Molex 4 Pin, 1x 12V-2x6 (12+4) (600W), 6x SATA
|
|
Weight
|
1450 g
|
|
Warranty
|
7 Years
|
