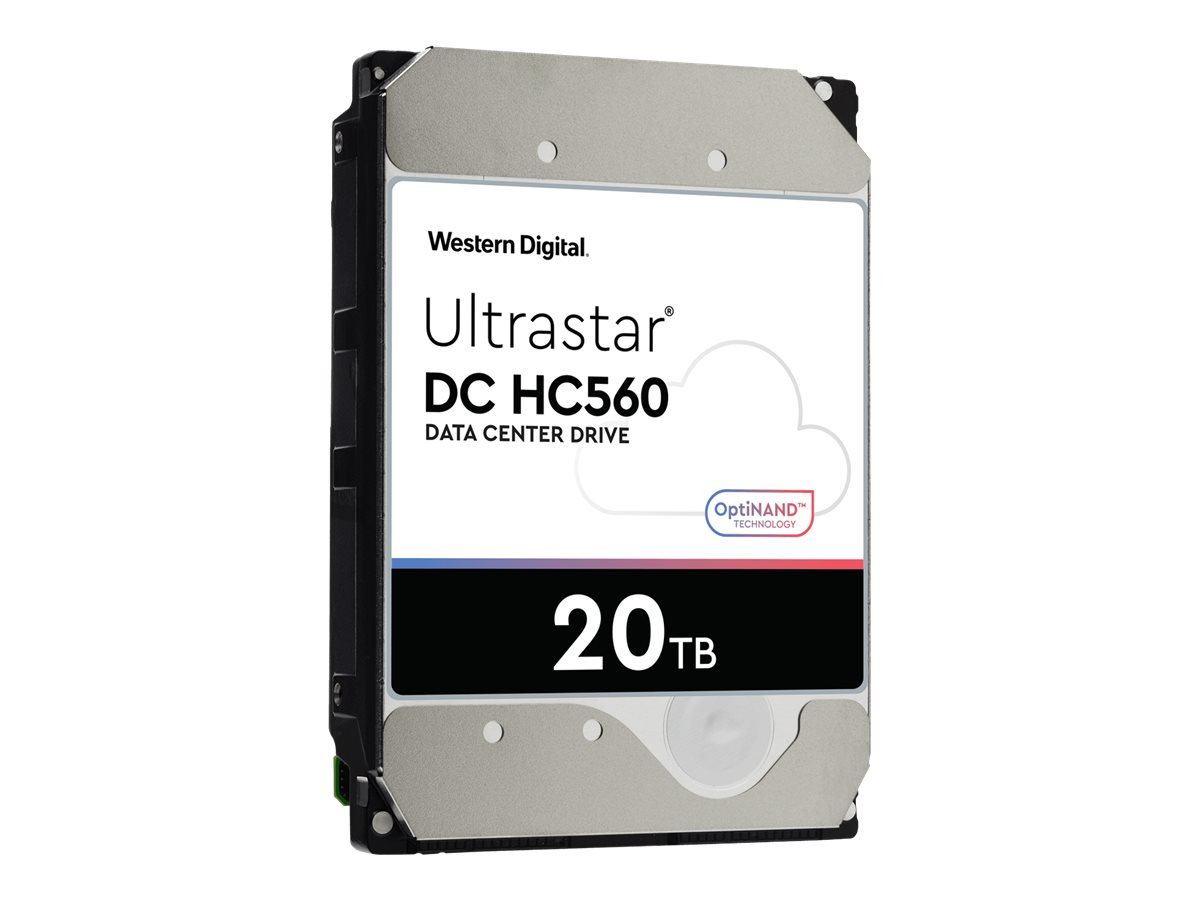

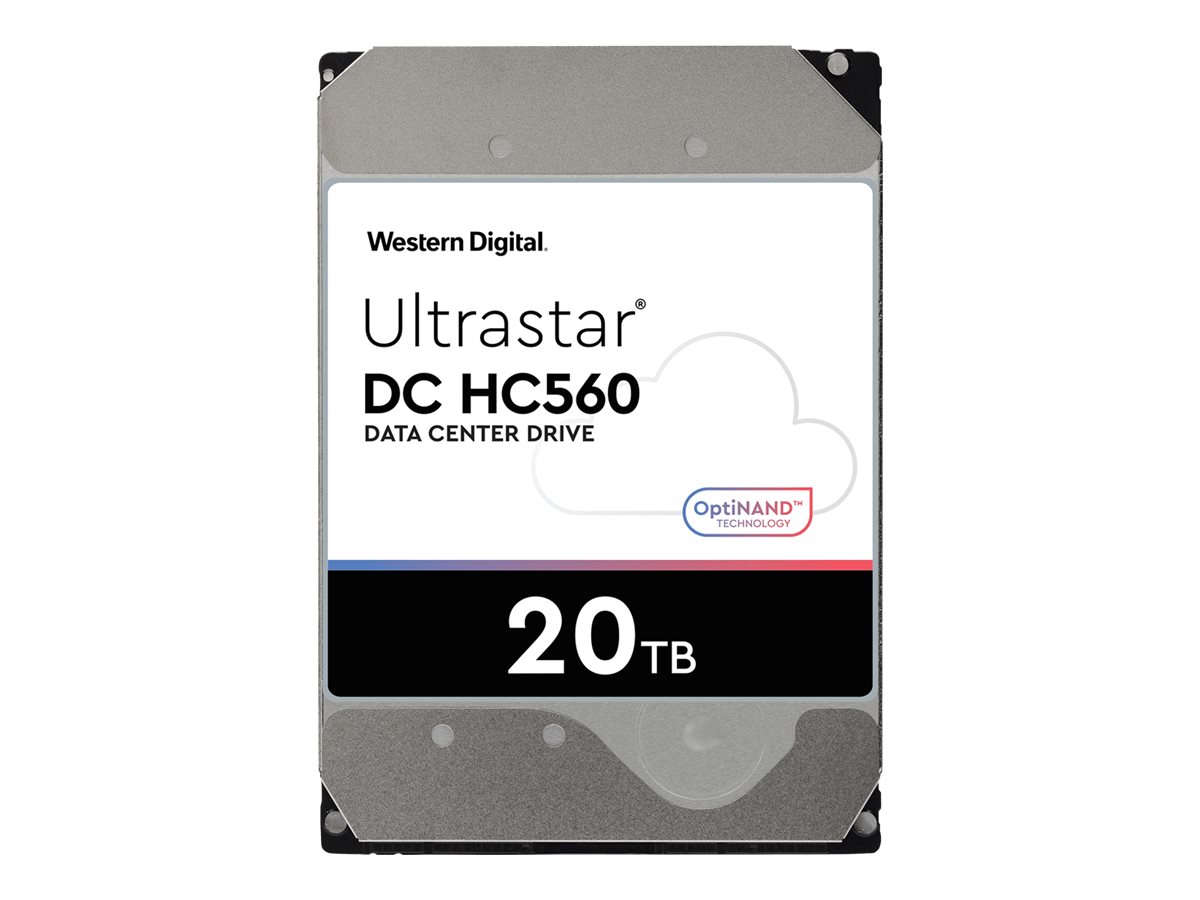

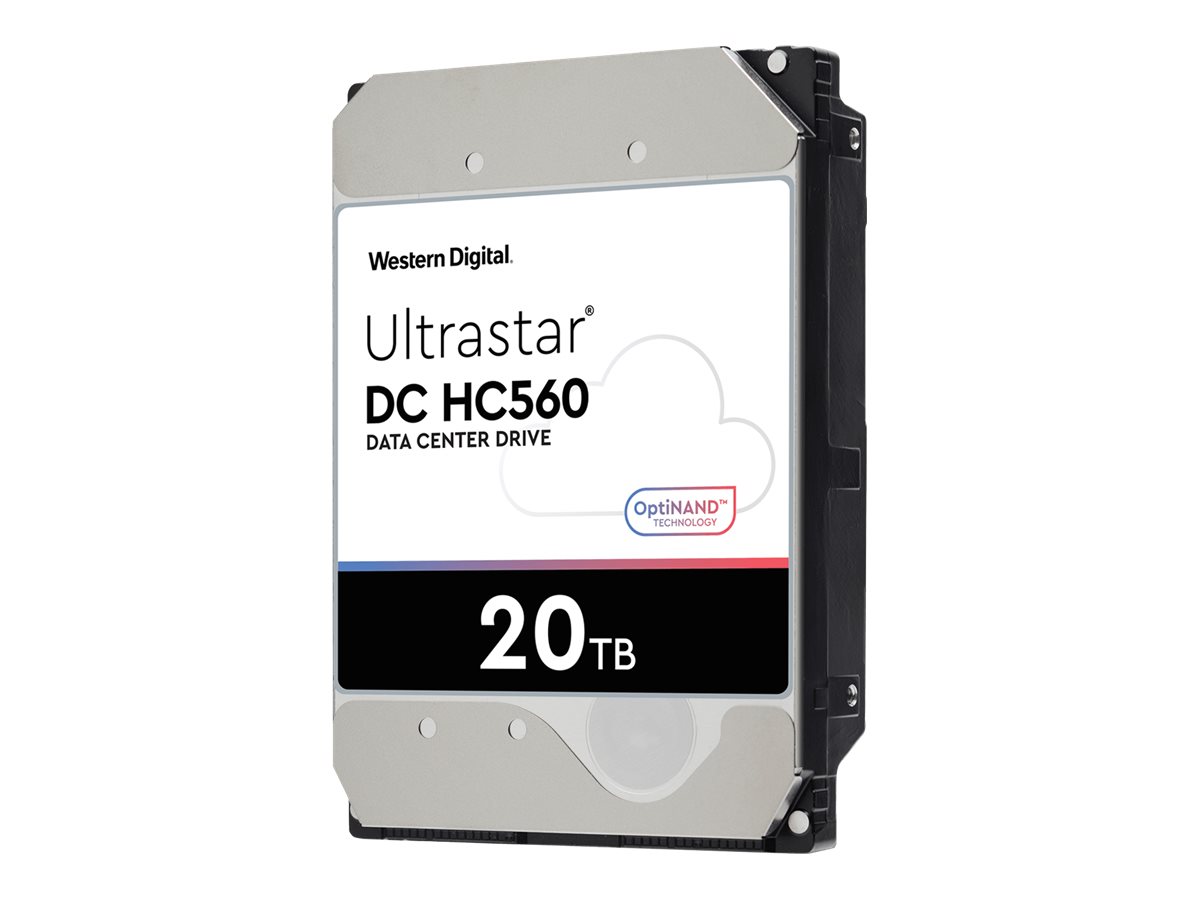

WD Ultrastar DC HC560 Harddisk 20TB 3.5" SAS 3 7200rpm

WD Ultrastar DC HC560 - Harddisk - 20 TB - intern - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 512 MB

Product no: 1000681468
Model: 0F38652
EAN: 8592978391447
Brand:
Western Digital
Weight: 0.69 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
WD Ultrastar DC HC560 - harddisk - 20 TB - SAS 12Gb/s
Type
Harddisk - intern
Kapacitet
20 TB
Model
3.5"
Grænseflade
SAS 12Gb/s
Dataoverførselshastighed
1.2 GBps
Buffer størrelse
512 MB
Spindelhastighed
7200 rpm
Egenskaber
HelioSeal, 24x7 tilgængelighed, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), OptiNAND-teknologi
Dimensioner (B x D x H)
101.6 mm x 147 mm x 26.1 mm
Vægt
690 g
Producentgaranti
5 års garanti
Specifications

Full specifications

General
Buffer Size
512 MB
Capacity
20 TB
Depth
147 mm
Device Type
Hard drive - internal
Features
HelioSeal, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), OptiNAND technology
Form Factor
3.5"
Height
26.1 mm
Interface
SAS 12Gb/s
Weight
690 g
Width
101.6 mm
Performance
Average Latency
4.16 ms
Drive Transfer Rate
1.2 GBps (external)
Internal Data Rate
269 MBps
Spindle Speed
7200 rpm
Reliability
24x7 Operation
Yes
Load / Unload Cycles
600,000
MTBF
2,500,000 hours
Non-Recoverable Errors
1 per 10^15
Expansion & Connectivity
Compatible Bay
3.5"
Interfaces
1 x SAS 12 Gb/s
Power
Power Consumption
9.3 Watt (active) | 6.1 Watt (idle)
Software & System Requirements
OS Required
Linux, Microsoft Windows Server, Microsoft Windows
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Max Operating Temperature
60 °C
Min Operating Temperature
5 °C
Shock Tolerance (non-operating)
250 g @ 2 ms half-sine wave
Shock Tolerance (operating)
50 g @ 2 ms half-sine wave
Sound Emission
32 dB
Vibration Tolerance (non-operating)
1.04 gRMS @ 2-200 Hz
Vibration Tolerance (operating)
0.7 gRMS @ 5-500 Hz
