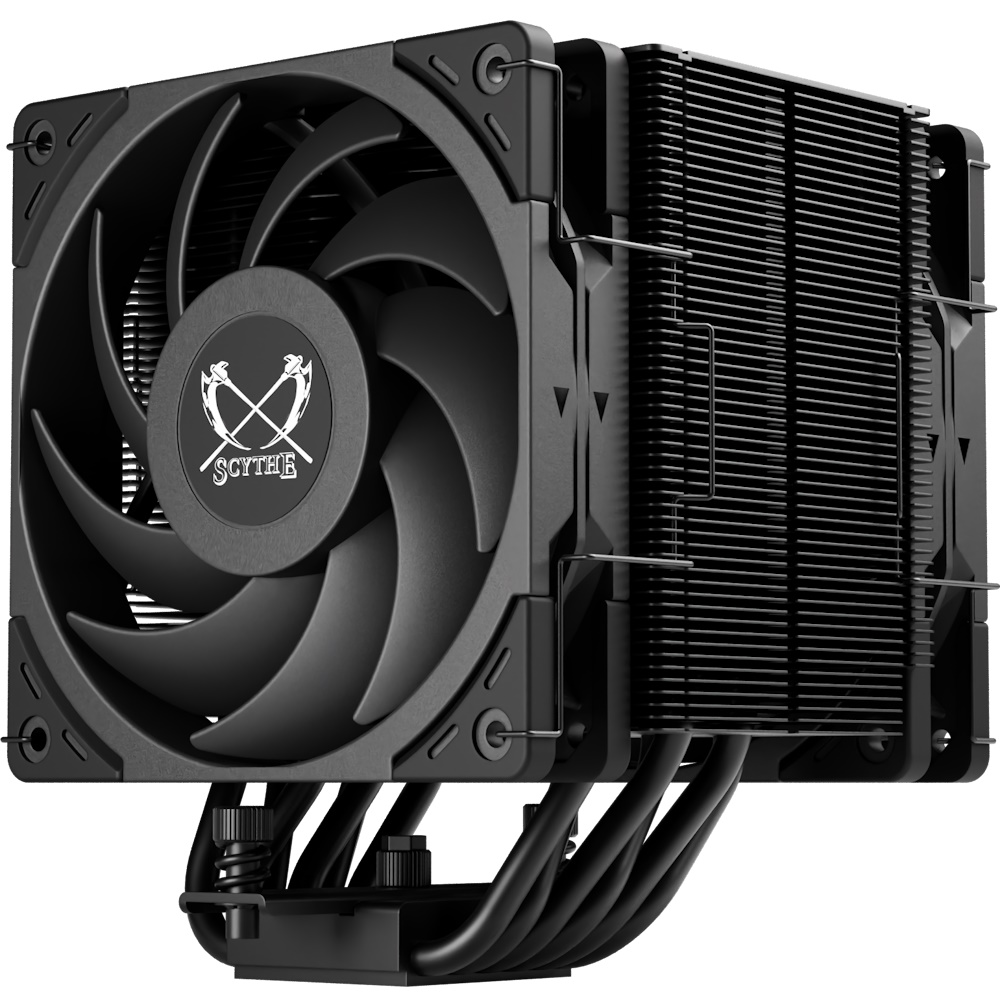

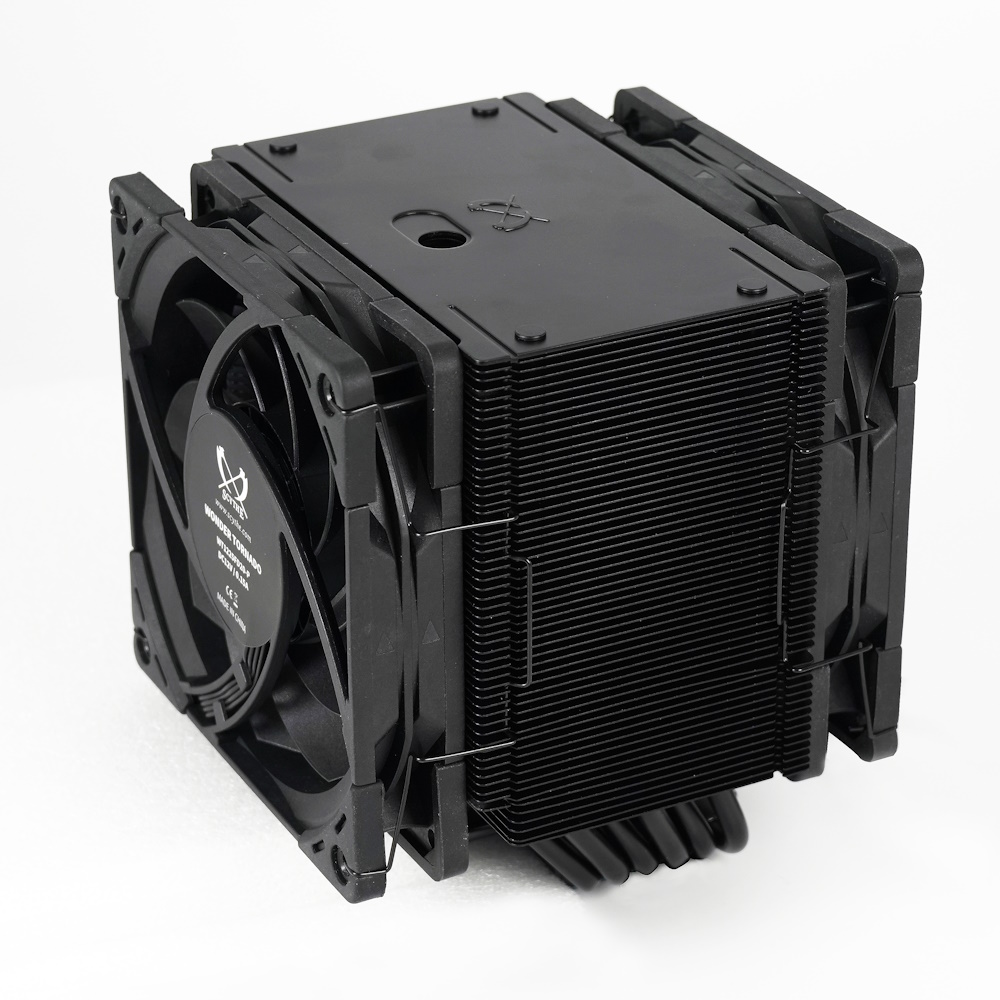

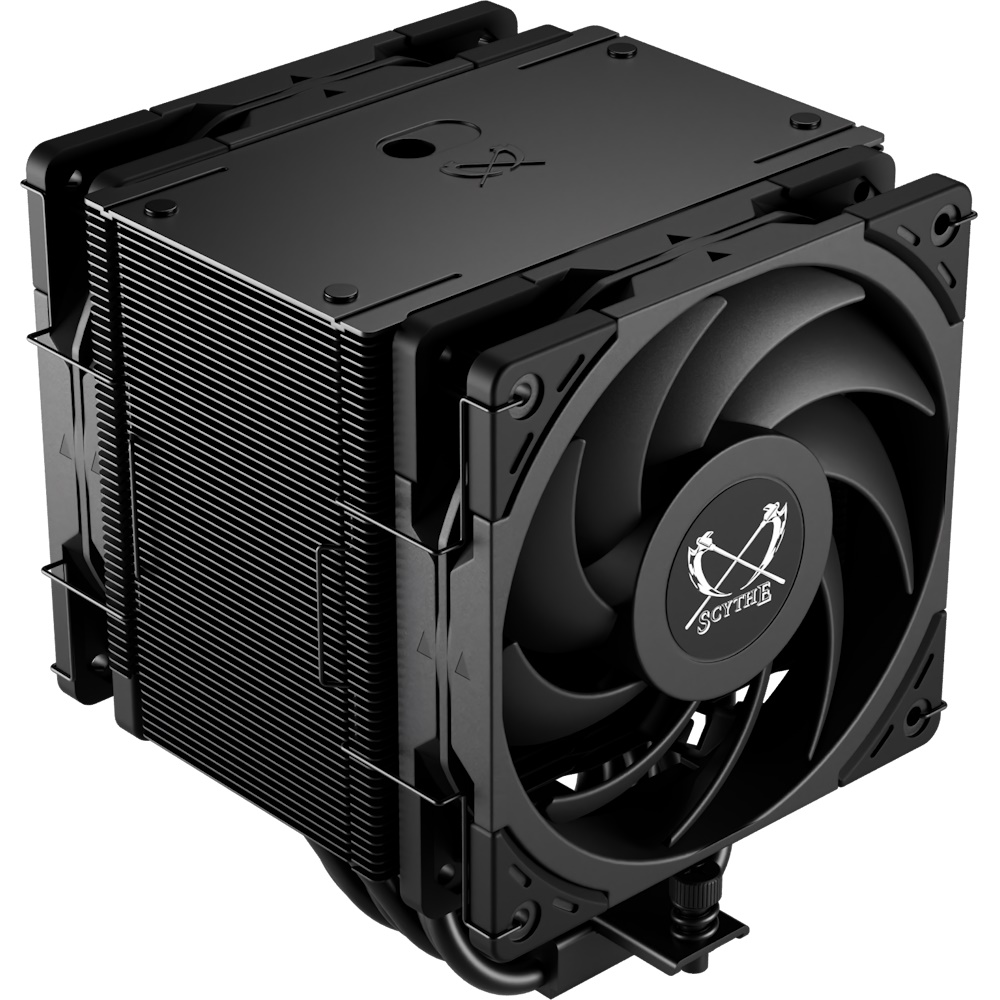

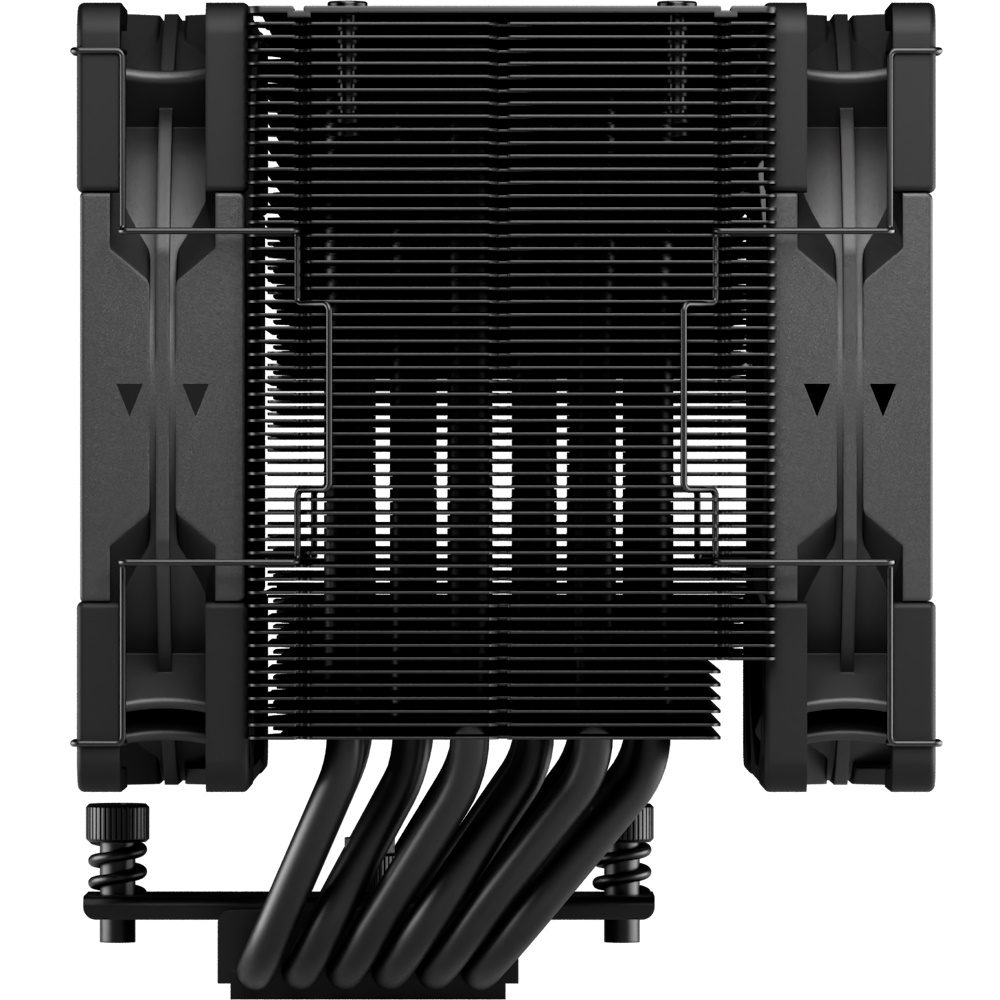

Scythe Mugen 6 Dual Fan Black Edition Processor-køler 120 mm

Scythe Mugen 6 Dual Fan Black Edition - Processor-køler - 120 mm - Intel/AMD

Varenummer: 1001957323
Model: SCMG-6000DBE
EAN: 4571225059723
Brand:
Scythe
Vægt: 1.76 kg

Specifications

Compatibility (Intel)
LGA115X, LGA1200, LGA1700, LGA2011 / 2011-v3 (Square ILM), LGA2066
Compatibility (AMD)
AM4, AM5
Dimensions (W x H x D)
132 x 154 x 132 mm (incl. Fan)
Weight
1197 g (incl. Fan)
Fan Model
Wonder Tornado 120 PWM (WT1225FD20-P)
Fan Dimensions
120 x 120 x 26 mm
Noise Level
3 ~ 26.88 dBA
Fan Speed
300 (±200 rpm) ~ 2000 rpm (±10%)
Airflow
7.68 ~ 60.29 CFM / 13.08 ~ 102.44 m³/h
Connector
4-Pin PWM
Weight
177 g
Static Pressure
0.49 ~ 24.03 Pa / 0.05 ~ 2.45 mmH²O
Bearing
Sealed Precision FDB
Voltage
12 V / 0.15 A
MTTF
120 000 hours

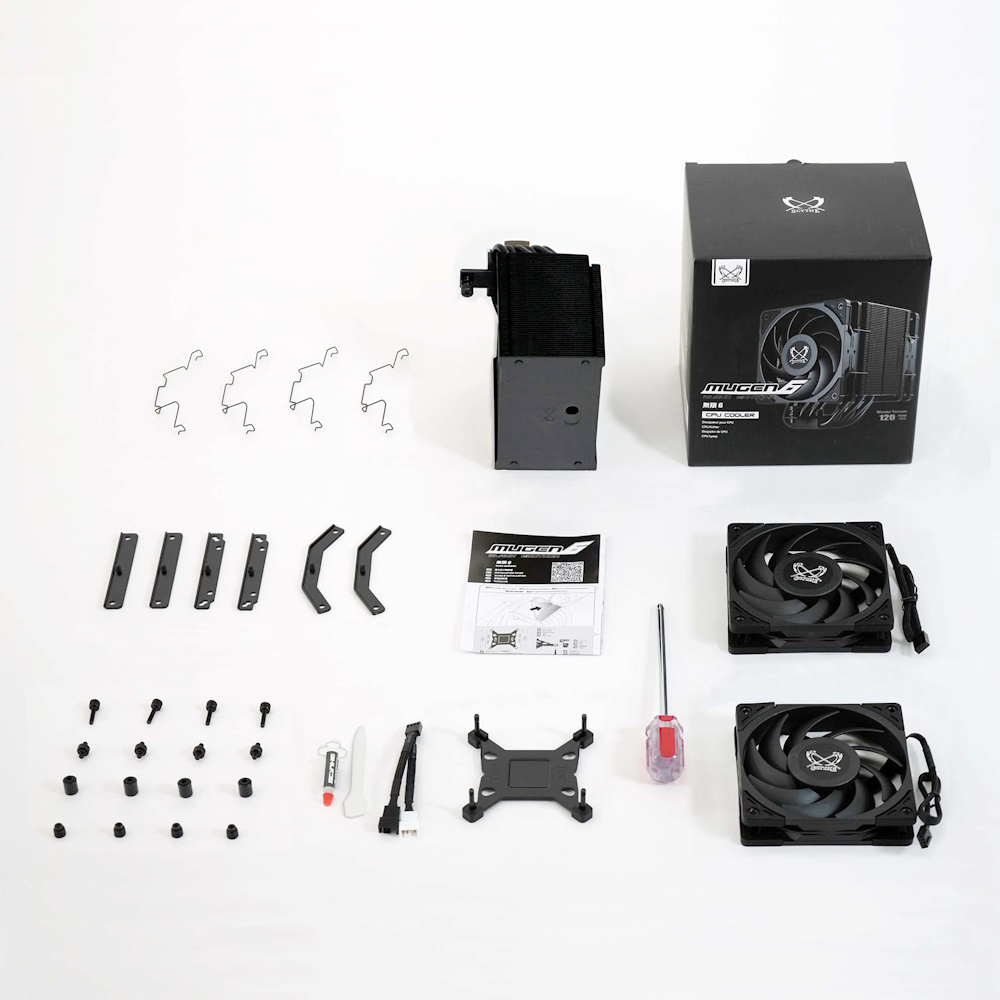

Accessories included
Mountingparts for Intel & AMD Sockets, Manual, Thermal Grease, Fan Clips, two Wonder Tornado 120mm Fan, Screwdriver
Specifications

Full specifications

Præstation
Antal pr. pakke
1 stk
Luftstrøm
102,44 m³/t
Maksimal luftstrøm
60,29 kubikfod/min.
Maksimalt lufttryk
2,45 mmH2O
Mindste luftmængde
7,68 kubikfod/min.
Minimum lufttryk
0,05 mmH2O
Omdrejningshastighed (maks.)
2000 rpm
Omdrejningshastighed (min.)
300 rpm
Passende til rumtype
Processor
Støjniveau (høj hastighed)
26,88 dB
Støjniveau (lav hastighed)
3 dB
Type
Ventilator
Understøttede procesorsokler
LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Stik AM4, Sokkel AM5
Ventilator diameter
12 cm
Ventilatorens middeltid til fejl (MTTF)
120000 t
Design
Produktfarve
Sort
Strømstyring
Spænding
12 V
Vægt & størrelser
Bredde
132 mm
Dybde
132 mm
Højde
154 mm
Vægt
1,2 kg
Ventilator dimensioner (BxDxH)
120 x 120 x 26 mm
Ventilator vægt
177 g
Emballage indhold
Monteringssæt
Ja
Pakketype
Kasse
Skruer inkluderet
Ja
