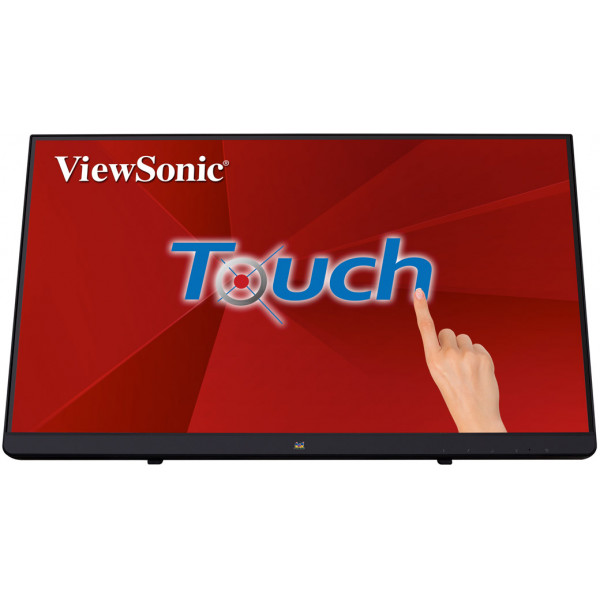

ViewSonic TD2230 22" 1920 x 1080 (Full HD) VGA (HD-15) HDMI DisplayPort
ViewSonic TD2230 - LED-skærm - 22" (21.5" til at se) - touchscreen - 1920 x 1080 Full HD (1080p) - ADS-IPS - 250 cd/m² - 1000:1 - 5 ms - HDMI, VGA, DisplayPort - højtalere
Specifications
|
Produktbeskrivelse
|
ViewSonic TD2230 - LED-skærm - Full HD (1080p) - 22"
|
|
Enhedstype
|
LED-baggrundsbelyst LCD-skærm - 22" - touchscreen
|
|
Energimærke QR-kode URL
|
Https://eprel.ec.europa.eu/qr/389769
|
|
Energiklasse
|
Klasse E
|
|
Strømforbrug (Til-modus)
|
14.5 W
|
|
Egenskaber
|
Touch-screen, USB 3.0 hub
|
|
Paneltype
|
ADS-IPS
|
|
Formatforhold
|
16:9
|
|
Standard opløsning
|
Full HD (1080p) 1920 x 1080
|
|
Lysstyrke
|
250 cd/m²
|
|
Kontrastforhold
|
1000:1 / 50000000:1 (dynamisk)
|
|
Responstid
|
5 ms (grå-til-grå)
|
|
Input-stik
|
HDMI, VGA, DisplayPort
|
|
Justeringer til display-position
|
Tilt
|
|
Skærmbelægning
|
7H Hard Coating
|
|
Spænding
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H) - med stander
|
49 cm x 4.7 cm x 29.9 cm
|
|
Vægt
|
3.58 kg
|
|
Miljømæssige standarder
|
ENERGY STAR kvalificeret EPEAT Bronze
|
|
Overensstemmelsesstandarder
|
FCC Klasse B-certificeret, UL, DDC-2B, ICES-003, CCC, DDC/CI, cULus, CEL, DisplayPort 1.2, DOE, Mexico CoC
|
|
Producentgaranti
|
3 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Aspect Ratio
|
16:9
|
|
Backlight Technology
|
LED backlight
|
|
Brightness
|
250 cd/m²
|
|
Built-in Devices
|
USB 3.0 hub
|
|
Contrast Ratio
|
1000:1 / 50000000:1 (dynamic)
|
|
Diagonal Size
|
22"
|
|
Dimensions (WxDxH)
|
49 cm x 4.7 cm x 29.9 cm - with stand
|
|
Display Type
|
LED-backlit LCD monitor / TFT active matrix
|
|
Energy Class
|
Class F
|
|
Features
|
Sync on Green, HDCP, SuperClear, frameless, scratch-resistant, Flicker Free technology, Transition Minimized Differential Signaling (TMDS) technology, Blue Light Filter technology, Composite Sync, ViewMode
|
|
Horizontal Refresh Rate
|
15 - 82 kHz
|
|
Horizontal Viewing Angle
|
178
|
|
Native Resolution
|
Full HD (1080p) 1920 x 1080
|
|
Panel Type
|
ADS-IPS
|
|
Response Time
|
5 ms (gray-to-gray)
|
|
Screen Coating
|
7H Hard Coating
|
|
Vertical Refresh Rate
|
50 - 76 Hz
|
|
Vertical Viewing Angle
|
178
|
|
Viewable Size
|
21.5"
|
|
Weight
|
3.58 kg
|
|
Audio
|
|
|
Output Power / Channel
|
3 Watt
|
|
Type
|
Speakers - stereo
|
|
Input
|
|
|
Movement Detection Technology
|
Projected capacitive
|
|
Type
|
Touchscreen - touchscreen
|
|
Connectivity
|
|
|
Interfaces
|
VGA | DisplayPort | HDMI (HDCP) | 2 x USB 3.0 downstream (Type A) | USB 3.0 upstream (Type B) | Headphones (mini-jack) | Audio line-in (mini-jack)
|
|
Mechanical
|
|
|
Display Position Adjustments
|
Tilt
|
|
Tilt Angle
|
-20/+70
|
|
VESA Mounting Interface
|
100 x 100 mm
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x HDMI cable - 1.5 m | 1 x SuperSpeed USB cable - 1.5 m | 1 x audio cable - 1.5 m
|
|
Compliant Standards
|
FCC Class B certified, UL, DDC-2B, ICES-003, CCC, DDC/CI, cULus, CEL, DisplayPort 1.2, DOE, Mexico CoC
|
|
Features
|
Security lock slot (cable lock sold separately)
|
|
Security Slot Type
|
Kensington security slot
|
|
Power
|
|
|
Input Voltage
|
AC 120/230 V (50/60 Hz)
|
|
Power Consumption (Typical)
|
25 Watt
|
|
Power Consumption SDR (On mode)
|
19 kWh/1000h
|
|
Software / System Requirements
|
|
|
OS Required
|
Android 4.0 or later, Microsoft Windows 7 / 8 / 10, Linux 2.6.38 or later
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
11.4 cm
|
|
Shipping Height
|
37.1 cm
|
|
Shipping Weight
|
4.7 kg
|
|
Shipping Width
|
55 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - pick-up and return - 3 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
20 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Sustainability Information
|
|
|
ENERGY STAR Certified
|
Yes
|
|
ENERGY STAR Version
|
7.0
|
|
EPEAT Compliant
|
EPEAT Bronze
|
