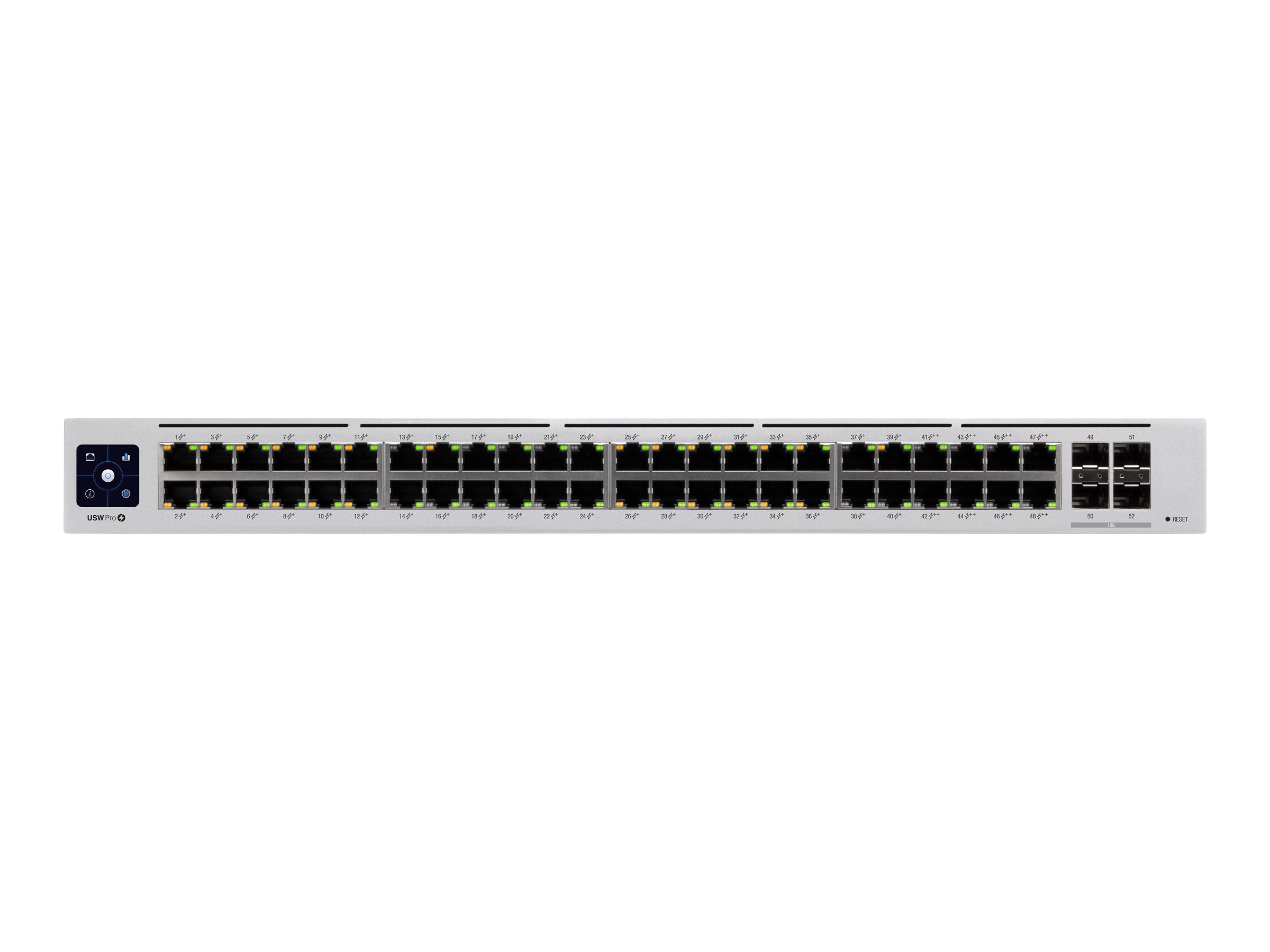

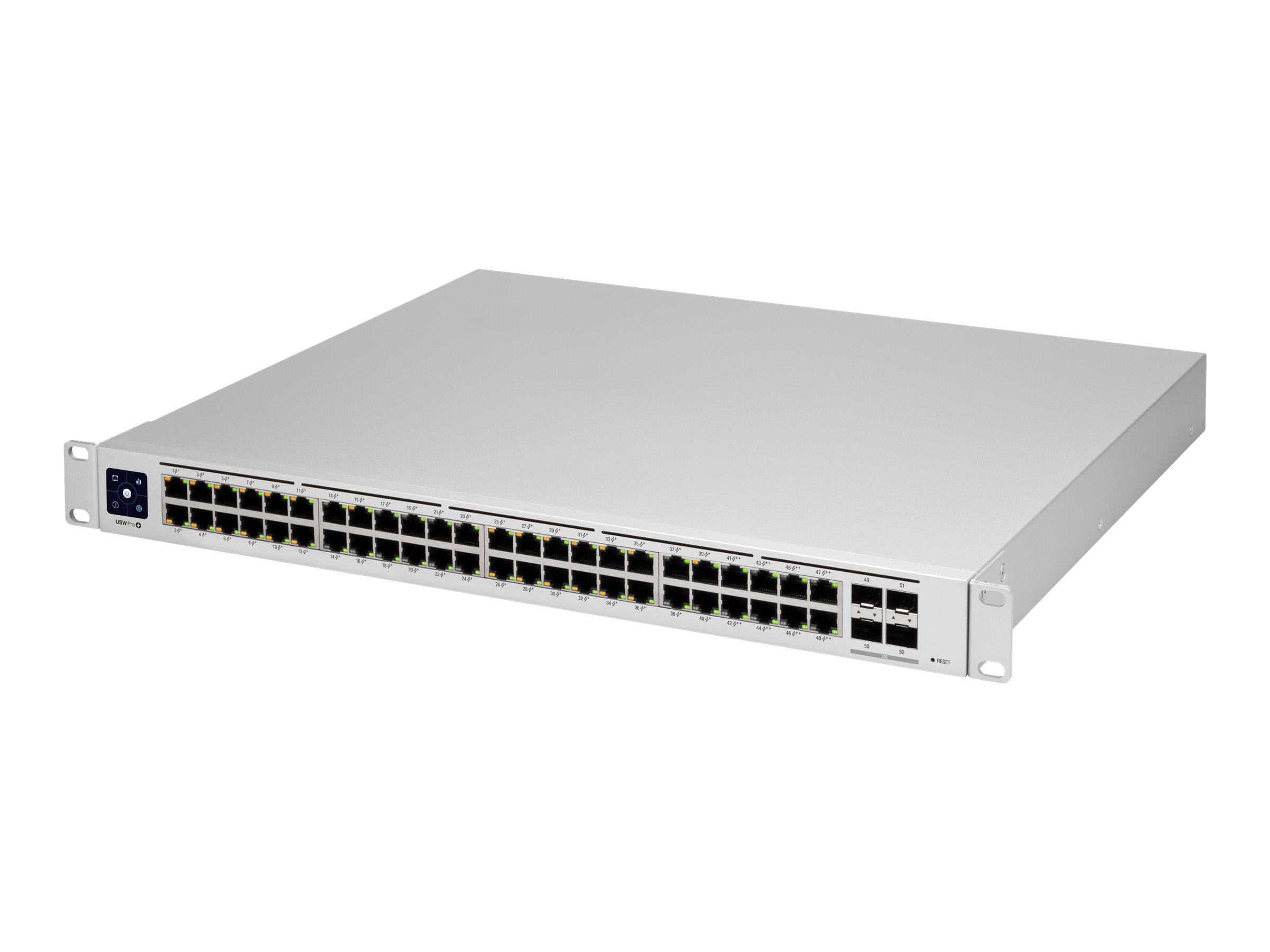

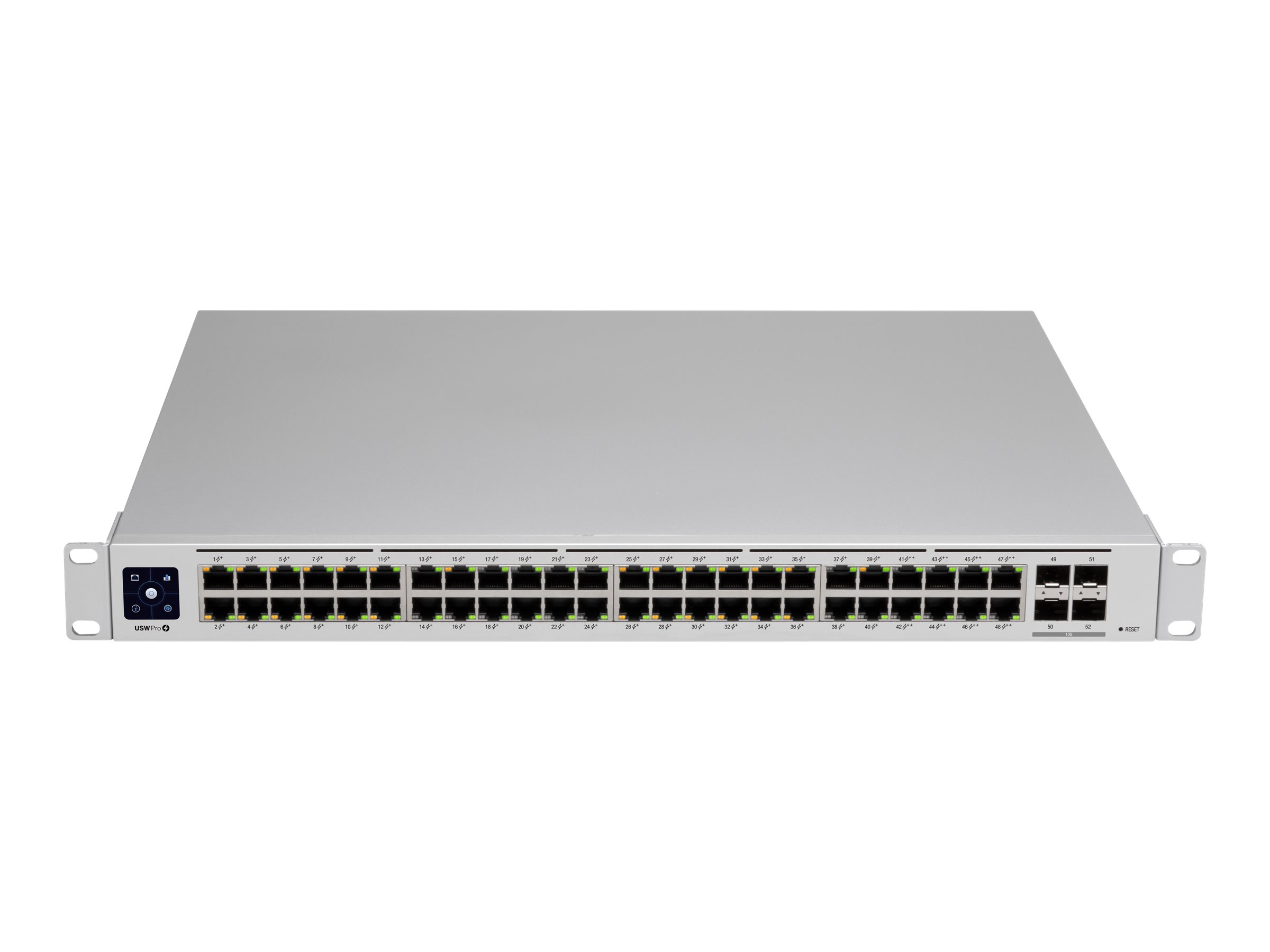

Ubiquiti UniFi Switch USW-PRO-48-POE Switch 48-porte 10 Gigabit PoE++
Ubiquiti UniFi Switch USW-PRO-48-POE - Switch - Administreret - 48 x 10/100/1000 (40 PoE+, 8 PoE++) + 4 x 10Gb Ethernet SFP+ - monterbar på stativ - PoE++ (600 W) - AC 120/230 V / DC 11,5/52 V
Udvid og strømforsy dit netværk med UniFi Pro PoE Switch, en del af Ubiquiti UniFi Enterprise System.
Product no:
995343462
Model:
USW-PRO-48-POE
EAN:
0817882027656
Brand:
Weight:
7.47 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Ubiquiti UniFi Switch USW-PRO-48-POE - switch - 48 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 48 porte - Administreret
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
10 Gigabit Ethernet
|
|
Porte
|
48 x 10/100/1000 (40 PoE+, 8 PoE++) + 4 x 10Gb Ethernet SFP+
|
|
Power Over Ethernet (PoE)
|
PoE++
|
|
PoE-budget
|
600 W
|
|
Præstation
|
Ikke-blokerende båndbredde: 88 Gbps<br>Omkoblingskapacitet: 176 Gbps<br>Videresendelseshastighed: 130,944 Mpps
|
|
Egenskaber
|
Datatransport, switching, auto-uplink (auto MDI/MDI-X), portspejling, DPI, Jumbo Frames support, DHCP server, GVRP, 12KV ESD Protector, Storm Control, Inter-VLAN Routing, sammenlægningstilstand
|
|
Overensstemmelsesstandarder
|
IEEE 802.3af, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
|
|
Effekt
|
AC 120/230 V / DC 11,5/52 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
44.24 cm x 39.96 cm x 4.37 cm
|
|
Vægt
|
6.25 kg
|
|
Producentgaranti
|
1 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
RADIUS
|
|
Built-in Devices
|
1.3" touch screen display
|
|
Compliant Standards
|
IEEE 802.3af, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
|
|
Device Type
|
Switch - 48 ports - managed
|
|
Enclosure Type
|
Rack-mountable 1U
|
|
Features
|
Flow control, switching, auto-uplink (auto MDI/MDI-X), port mirroring, Deep Packet Inspection (DPI), Jumbo Frames support, DHCP server, Dynamic VLAN Support (GVRP), 12KV ESD Protector, Storm Control, Inter-VLAN Routing, aggregation mode
|
|
Performance
|
Non-blocking bandwidth: 88 Gbps | Switching capacity: 176 Gbps | Forwarding rate: 130.944 Mpps
|
|
PoE Budget
|
600 W
|
|
Ports
|
48 x 10/100/1000 (40 PoE+, 8 PoE++) + 4 x 10Gb Ethernet SFP+
|
|
Power Over Ethernet (PoE)
|
PoE++
|
|
Status Indicators
|
Status, PoE, link/activity, link/activity/speed
|
|
Subtype
|
10 Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
40 x 1000Base-T RJ-45 PoE+ - 32 W | 8 x 1000Base-T RJ-45 PoE++ - 64 W | 4 x 1/10Gbit LAN SFP+ | 1 x management
|
|
Power
|
|
|
Power Consumption Operational
|
60 Watt
|
|
Power Device
|
Internal power supply
|
|
Power Provided
|
600 Watt
|
|
Voltage Required
|
AC 120/230 V / DC 11.5/52 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
IC, FCC, ETSI 300 019-1-4
|
|
Dimensions & Weight
|
|
|
Depth
|
39.96 cm
|
|
Height
|
4.37 cm
|
|
Weight
|
6.25 kg
|
|
Width
|
44.24 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 1 year
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
-5 °C
|
Features
Lag 3-funktioner
Ud over Layer 2-switchingprotokoller og -funktioner tilbyder UniFi Pro PoE Switch Layer 3-funktioner, såsom inter-VLAN-routing, statisk routing og DHCP-serverfunktionalitet.
Næsten lydløs køling
UniFi Pro PoE Switch kan placeres i ethvert arbejdsområde.
Fiber-forbindelse
SFP+-porte muliggør uplinks med høj kapacitet på op til 10 Gbps, så du kan oprette direkte forbindelse til en højtydende lagerserver eller installere et uplink over lange afstande til en anden switch.
