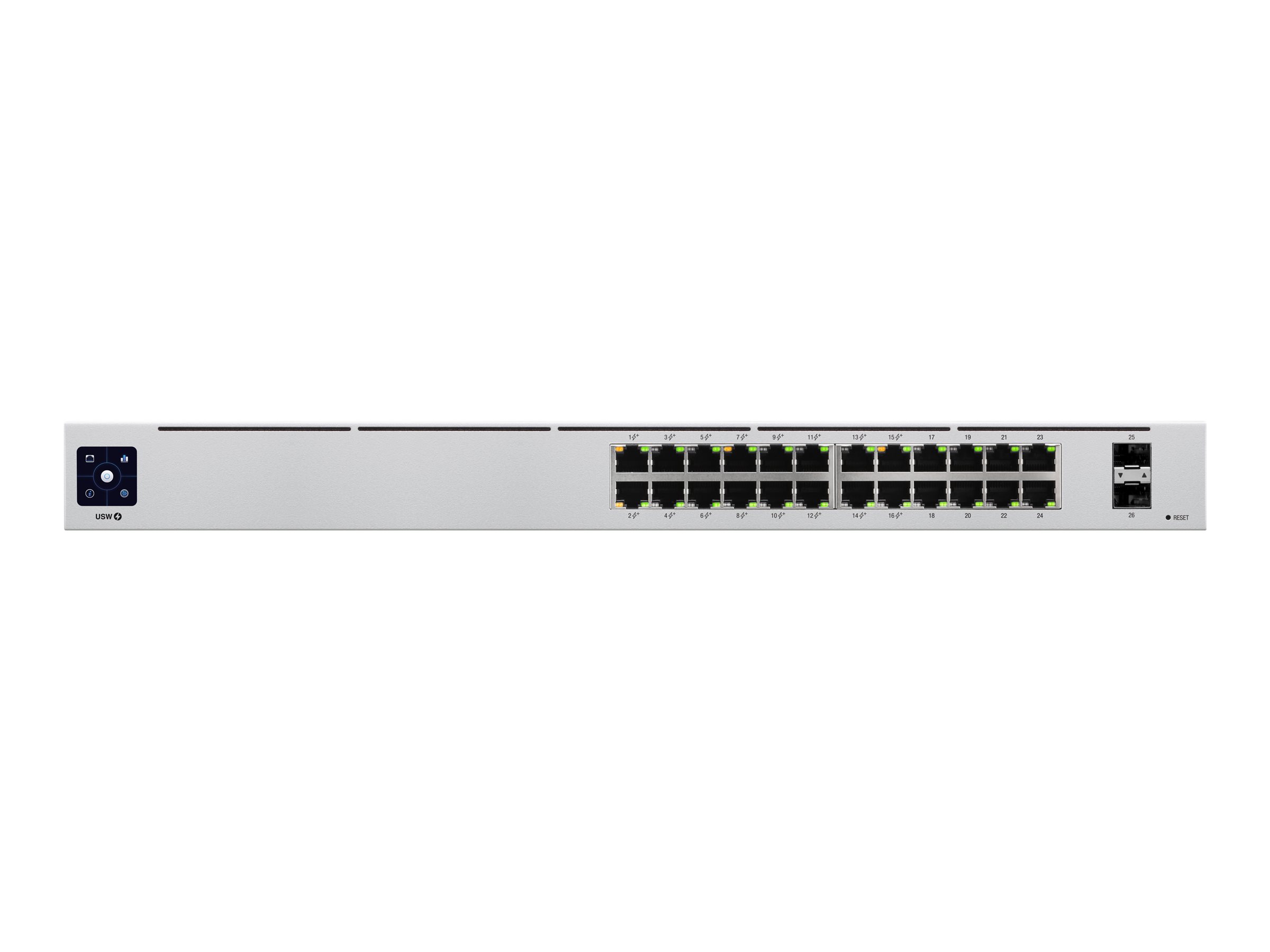

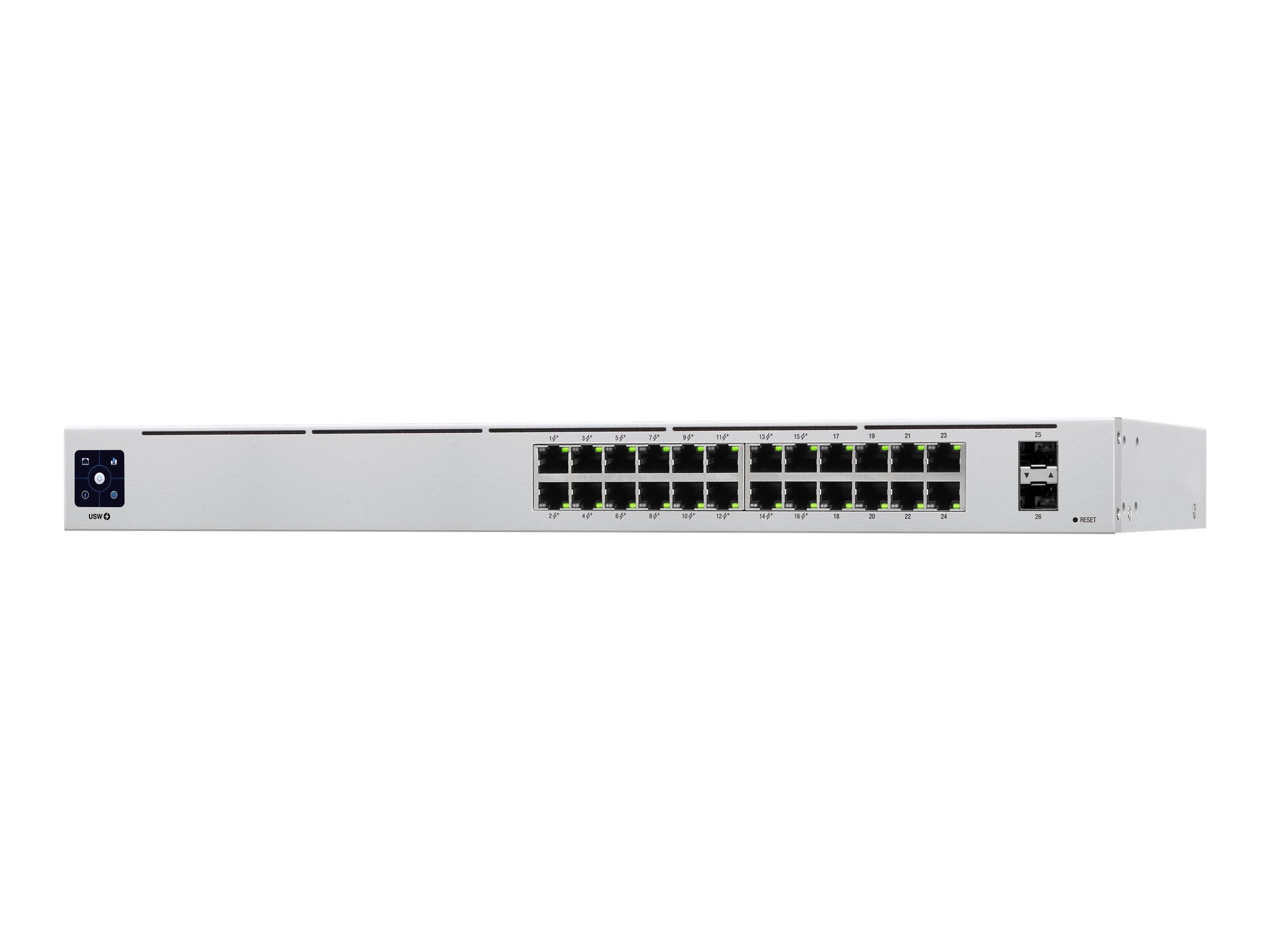

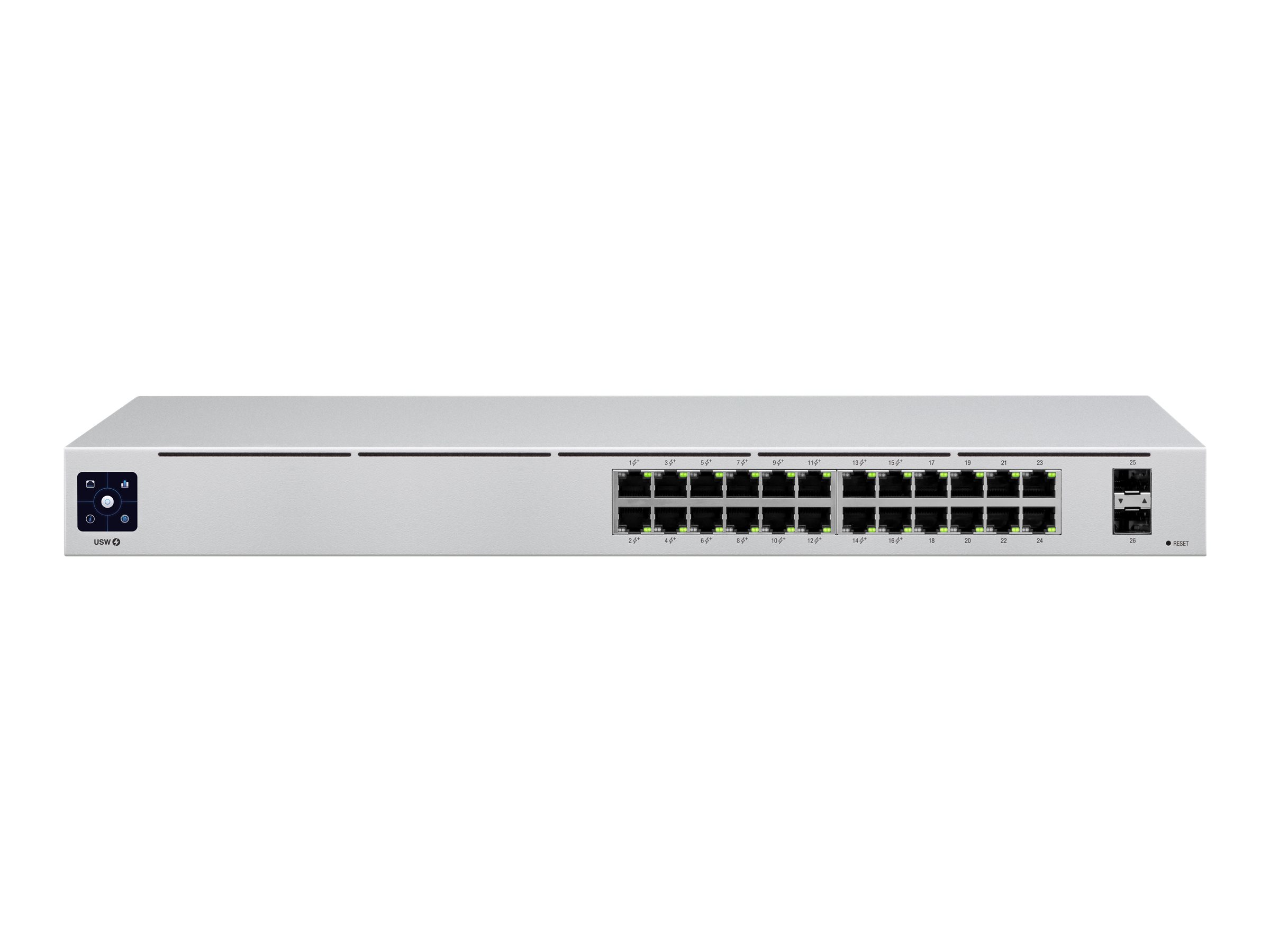

Ubiquiti UniFi Switch USW-24-POE Switch 24-porte Gigabit PoE++
Udvid og strømforsy dit netværk med UniFi PoE Switch, en del af Ubiquiti UniFi Enterprise System.
-
Product no 995343460
Model USW-24-POE
Brand
Go to brand's websiteEAN 0817882028554
Weight 4.03 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Ubiquiti UniFi Switch USW-24-POE - switch - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 (16 PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE++ |
| PoE-budget | 95 W |
| Præstation | Ikke-blokerende båndbredde: 26 Gbps<br>Omkoblingskapacitet: 52 Gbps<br>Videresendelseshastighed: 38.69 Mpps |
| Egenskaber | Datatransport, switching, auto-uplink (auto MDI/MDI-X), portspejling, DPI, Jumbo Frames support, blæserløs, GVRP, 12KV ESD Protector, Storm Control, sammenlægningstilstand |
| Overensstemmelsesstandarder | IEEE 802.3af, IEEE 802.3at, IEEE 802.11x |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.24 cm x 20 cm x 4.37 cm |
| Vægt | 3 kg |
| Producentgaranti | 1 års garanti |
| General | |
|---|---|
| Authentication Method | RADIUS |
| Built-in Devices | 1.3" touch screen display |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.11x |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Flow control, switching, auto-uplink (auto MDI/MDI-X), port mirroring, Deep Packet Inspection (DPI), Jumbo Frames support, fanless, Dynamic VLAN Support (GVRP), 12KV ESD Protector, Storm Control, aggregation mode |
| Performance | Non-blocking bandwidth: 26 Gbps | Switching capacity: 52 Gbps | Forwarding rate: 38.69 Mpps |
| PoE Budget | 95 W |
| Ports | 24 x 10/100/1000 (16 PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE++ |
| Status Indicators | Status, PoE, link/activity, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 32 W | 8 x 1000Base-T RJ-45 | 2 x Gigabit LAN SFP | 1 x management |
| Power | |
| Power Consumption Operational | 25 Watt |
| Power Device | Internal power supply |
| Power Provided | 120 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | IC, FCC, ETSI 300 019-1-4 |
| Dimensions & Weight | |
| Depth | 20 cm |
| Height | 4.37 cm |
| Weight | 3 kg |
| Width | 44.24 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -5 °C |
Fiber-forbindelse
SFP-porte muliggør netværksuplinks på op til 1 Gbps.
Blæserløs, lydløs køling
UniFi PoE-switchen har blæserløs, lydløs termisk køling, så den kan placeres i ethvert arbejdsområde.
Switching-ydeevne
UniFi PoE-switchen har videresendelseskapacitet til at behandle trafik på alle porte samtidig ved linjehastighed uden pakketab.
