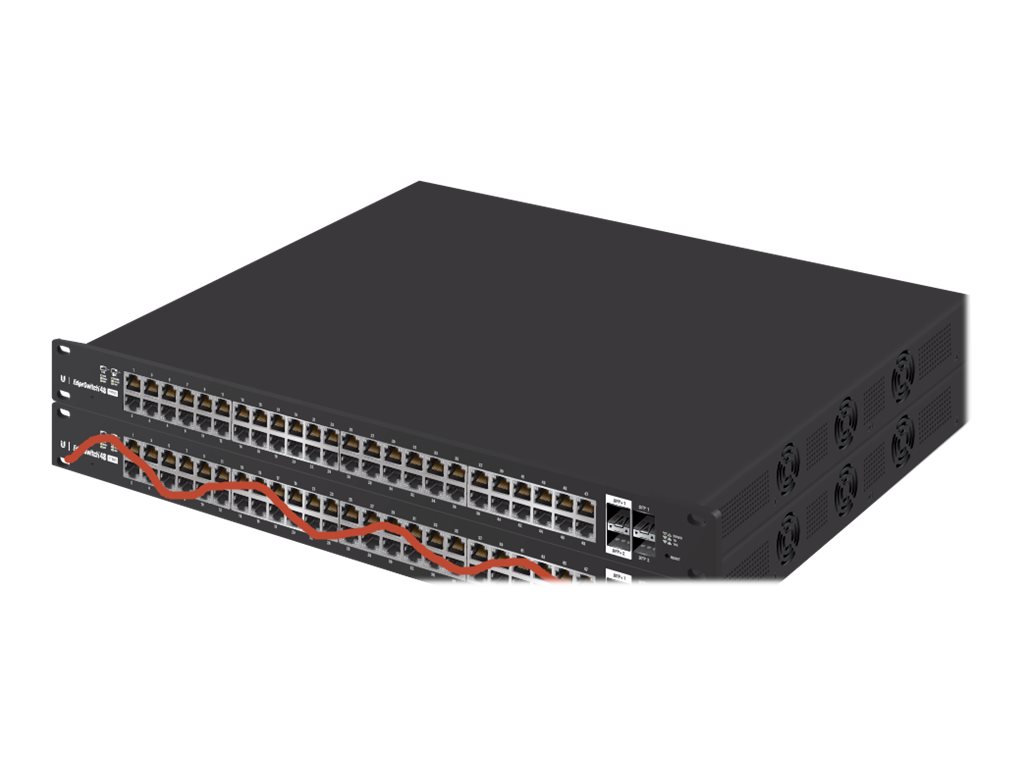

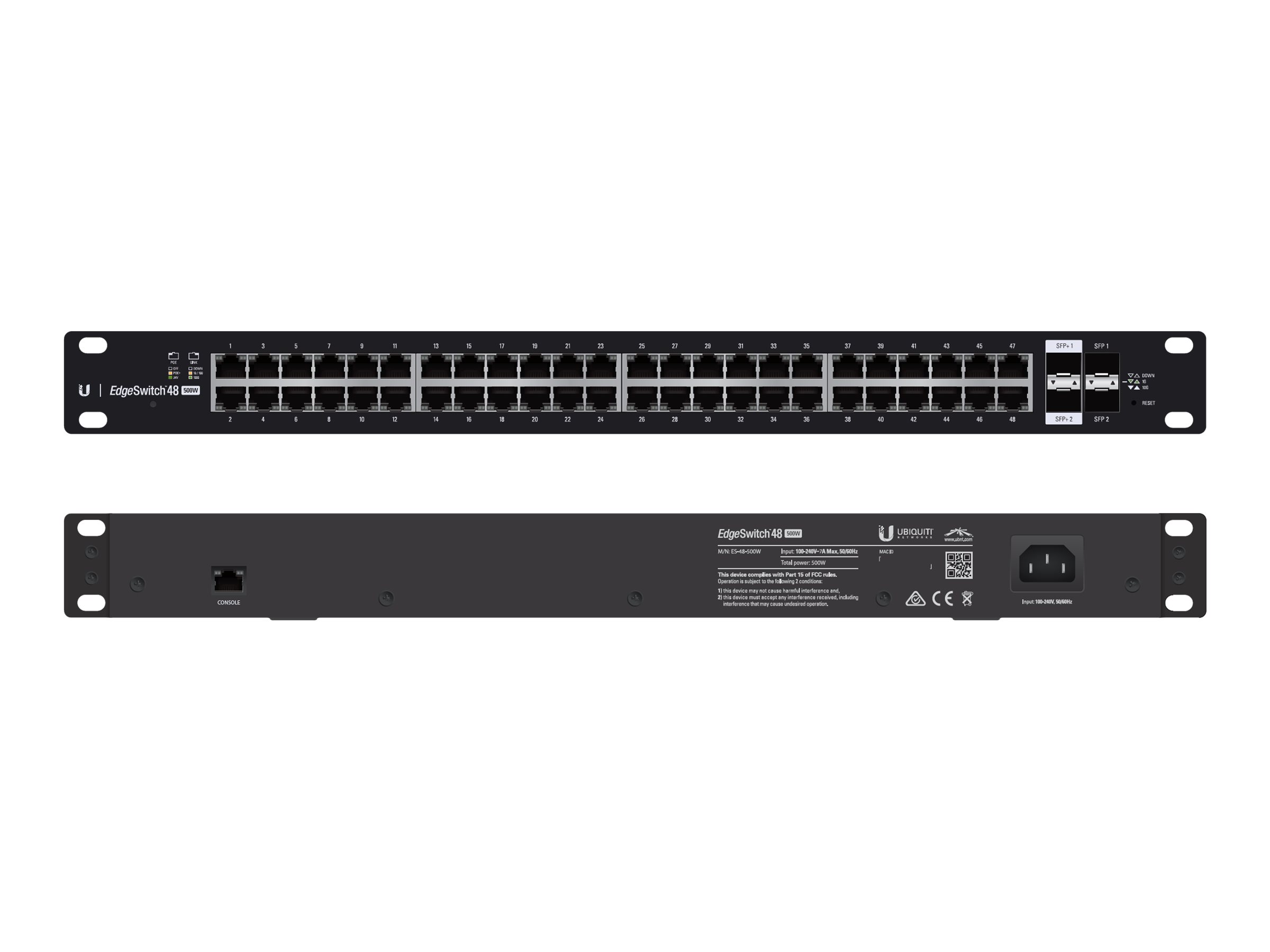

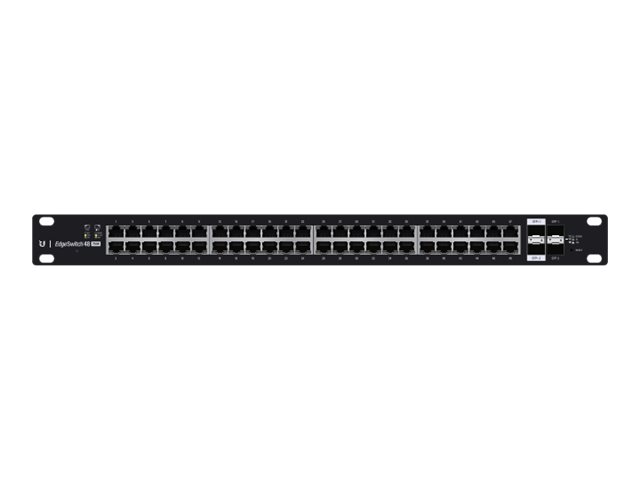

Ubiquiti EdgeSwitch 48 Switch 10 Gigabit PoE+

Ubiquiti EdgeSwitch 48 - Switch - Administreret - 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP - monterbar på stativ - PoE+

  • Product no 989071954

    Model ES-48-500W

    Brand
    Go to brand's website

    EAN 0810354022272

    Weight 5.3 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Ubiquiti EdgeSwitch 48 - switch - Administreret - monterbar på stativ
Enhedstype Switch - Administreret
Pakningstype Monterbar på stativ 1U
Undertype 10 Gigabit Ethernet
Porte 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP
Power Over Ethernet (PoE) PoE+
Præstation Non-blocking switching-kapacitet: 70 Gbps
Egenskaber VLAN-understøttet, STP support, RSTP support, Jumbo Frames support, 24KV ESD Protector
Overensstemmelsesstandarder IEEE 802.3af, IEEE 802.3at
Effekt AC 120/230 V (50 - 60 Hz)
Dimensioner (B x D x H) 48.1 cm x 34.8 cm x 4.45 cm
Vægt 5.3 kg
General
Compliant Standards IEEE 802.3af, IEEE 802.3at
Device Type Switch - managed
Enclosure Type Rack-mountable 1U
Features VLAN support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Jumbo Frames support, 24KV ESD Protector
Performance Non-blocking switching capacity: 70 Gbps
Ports 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP
Power Over Ethernet (PoE) PoE+
Status Indicators Port status, port transmission speed, PoE, link/activity
Subtype 10 Gigabit Ethernet
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ | 2 x SFP+ | 2 x SFP
Power
Power Consumption Operational 500 Watt
Power Device Internal power supply
Voltage Required AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards FCC
Dimensions & Weight
Depth 34.8 cm
Height 4.45 cm
Weight 5.3 kg
Width 48.1 cm
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature -5 °C
