Produktbeskrivelse
|
Ubiquiti airFiber 11 - trådløs bro - AirFiber
|
|
Enhedstype
|
Trådløs bro
|
|
Formfaktor
|
Ekstern
|
|
Processor
|
1 x INVICTUS 2 IC
|
|
Dataforbindelsesprotokol
|
AirFiber
|
|
Frekvensbånd
|
11 GHz
|
|
Præstation
|
Kanalbåndbredde: 3.5/5/7/10/14/20/28/30/40/50/56 Mhz<br>Forsinkelse: 200 µs
|
|
Udstyr inkluderet
|
PoE injektor, pælmontering, 2 plastikzipbindere
|
|
Power Over Ethernet (PoE) understøttet
|
Passive PoE
|
|
Dimensioner (B x D x H)
|
11.2 cm x 8.6 cm x 32.7 cm
|
|
Vægt
|
2.26 kg
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

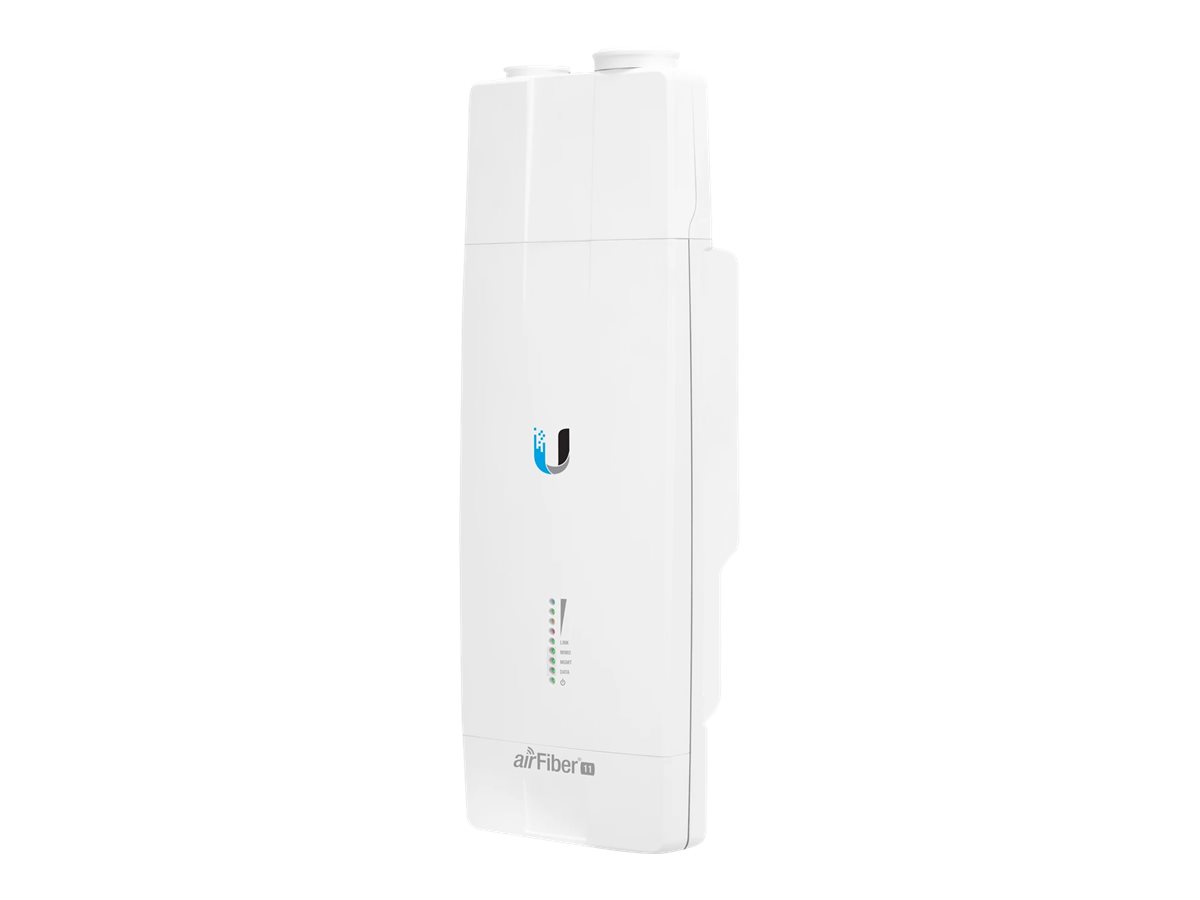

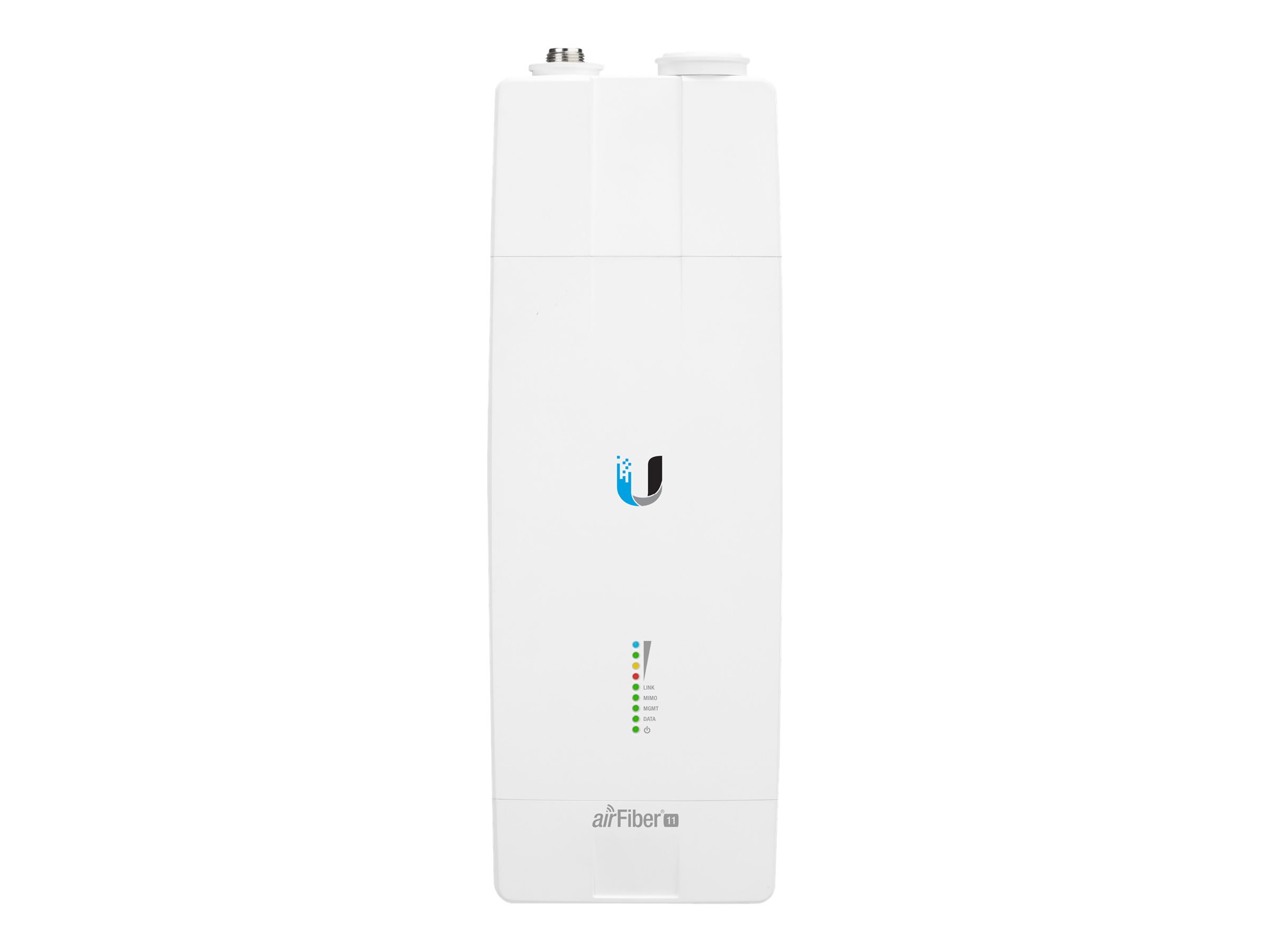

Ubiquiti airFiber 11 1.2Gbps
Ubiquiti airFiber 11 - Trådløs bro - AirFiber
Varenummer:
996618692
Model:
AF-11
EAN:
0810010071620
Brand:
Vægt:
2.26 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Depth
|
8.6 cm
|
|
Device Type
|
Wireless bridge
|
|
Height
|
32.7 cm
|
|
Weight
|
2.26 kg
|
|
Width
|
11.2 cm
|
|
Processor / Memory / Storage
|
|
|
Processors Installed
|
1 x INVICTUS 2 IC
|
|
Networking
|
|
|
Connectivity Technology
|
Wireless
|
|
Data Link Protocol
|
AirFiber
|
|
Data Transfer Rate
|
1.2 Gbps
|
|
Encryption Algorithm
|
128-bit AES
|
|
Features
|
Full duplex capability, MIMO technology, reset button, pole mountable, SISO technology
|
|
Form Factor
|
External
|
|
Frequency Band
|
11 GHz
|
|
Line Coding Format
|
64 QAM, 256 QAM, QPSK, 16 QAM, 1024 QAM, 4 QAM
|
|
Max Range Open Space
|
300 km
|
|
Performance
|
Channel bandwidth: 3.5/5/7/10/14/20/28/30/40/50/56 Mhz | Latency: 200 µs
|
|
Status Indicators
|
Link/activity, MIMO mode, RF link, autoscaling signal strength bar graph
|
|
Expansion / Connectivity
|
|
|
Interfaces
|

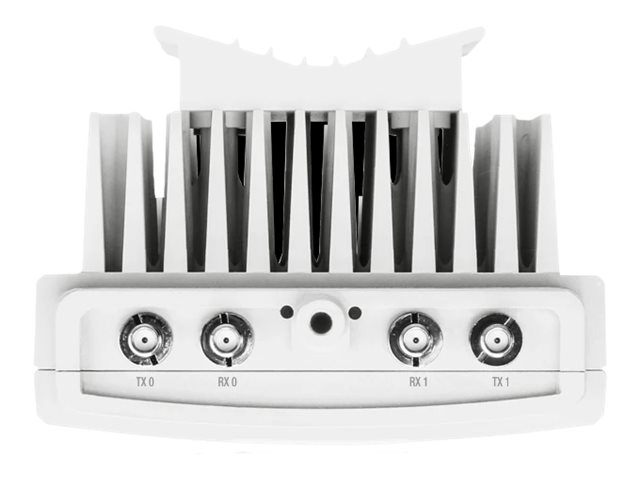

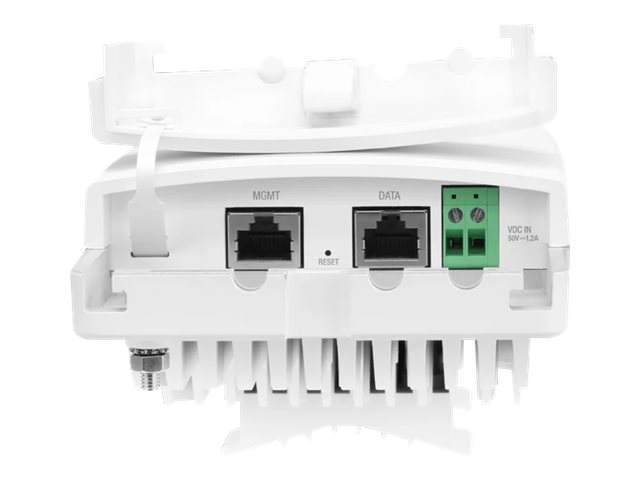

4 x antenna - SMA | 1 x 1000Base-T (PoE) - RJ-45 | 1 x 100Base-TX (management) - RJ-45
|
|
Miscellaneous
|
|
|
Compliant Standards
|
IC, FCC, ETSI EN 302 217, FCC Part 15.101
|
|
Included Accessories
|
PoE injector, pole mount, 2 plastic zip ties
|
|
Power
|
|
|
Power Consumption Operational
|
36 Watt
|
|
Power Device
|
Power injector
|
|
Power Over Ethernet (PoE) Supported
|
Passive PoE
|
|
Software / System Requirements
|
|
|
OS Provided
|
AirOS F
|
|
Environmental Parameters
|
|
|
Max Operating Temperature
|
55 °C
|
|
Min Operating Temperature
|
-40 °C
|
