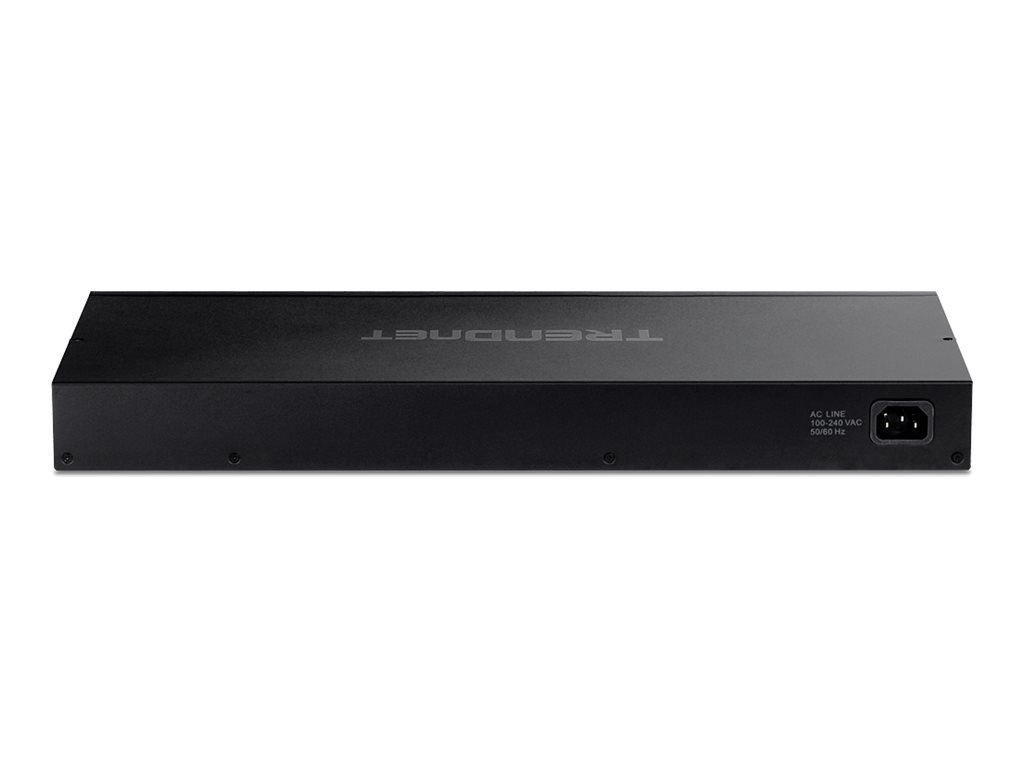

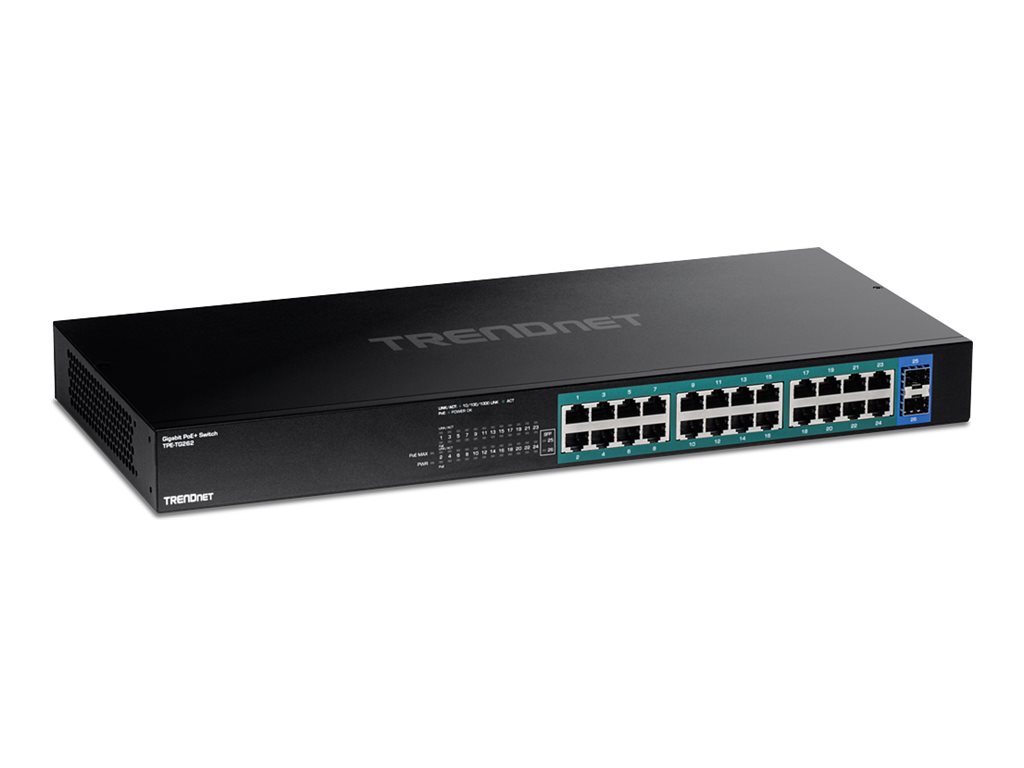

TRENDnet TPE TG262 Switch 26-porte Gigabit PoE+
TRENDnet TPE TG262 - Switch - 24 x 10/100/1000 (PoE+) + 2 x SFP - monterbar på stativ - PoE+ (380 W) - TAA-kompatibel
Product no:
999643734
Model:
TPE-TG262
EAN:
0710931162325
Brand:
Weight:
3.91 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
TRENDnet TPE TG262 - switch - 26 porte - monterbar på stativ - TAA-kompatibel
|
|
Enhedstype
|
Switch - 26 porte
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
24 x 10/100/1000 (PoE+) + 2 x SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
380 W
|
|
Præstation
|
Omkoblingskapacitet: 52 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 35.7 Mpps<br>Bufferhukommelse: 512 KB
|
|
MAC adresse table størrelse
|
8K indtastningshukommelse
|
|
Jumborammesupport
|
10KB
|
|
Egenskaber
|
Halv dupleksmodus, fuld dupleksmodus, GREENnet teknologi, overstrømsbeskyttelse, kortslutningsbeskyttelse
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Effekt
|
AC 100-240 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
43.5 cm x 19.5 cm x 4.4 cm
|
|
Vægt
|
3.04 kg
|
|
TAA kompatibel
|
Ja
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Device Type
|
Switch - 26 ports
|
|
Enclosure Type
|
Rack-mountable 1U
|
|
Features
|
Half duplex mode, full duplex mode, GREENnet technology, over-current protection, short circuit protection
|
|
Jumbo Frame Support
|
10KB
|
|
MAC Address Table Size
|
8K entries
|
|
Performance
|
Switching capacity: 52 Gbps | Forwarding performance (64-byte packet size): 35.7 Mpps | Buffer memory: 512 KB
|
|
PoE Budget
|
380 W
|
|
Ports
|
24 x 10/100/1000 (PoE+) + 2 x SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
24 x 1000Base-T RJ-45 PoE+ - 30 W | 2 x Gigabit LAN SFP
|
|
Power
|
|
|
Power Consumption Operational
|
40 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 100-240 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, ETL
|
|
MTBF
|
480,878 hours
|
|
Rack Mounting Kit
|
Included
|
|
Dimensions & Weight
|
|
|
Depth
|
19.5 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
3.04 kg
|
|
Width
|
43.5 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 3 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 90% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
