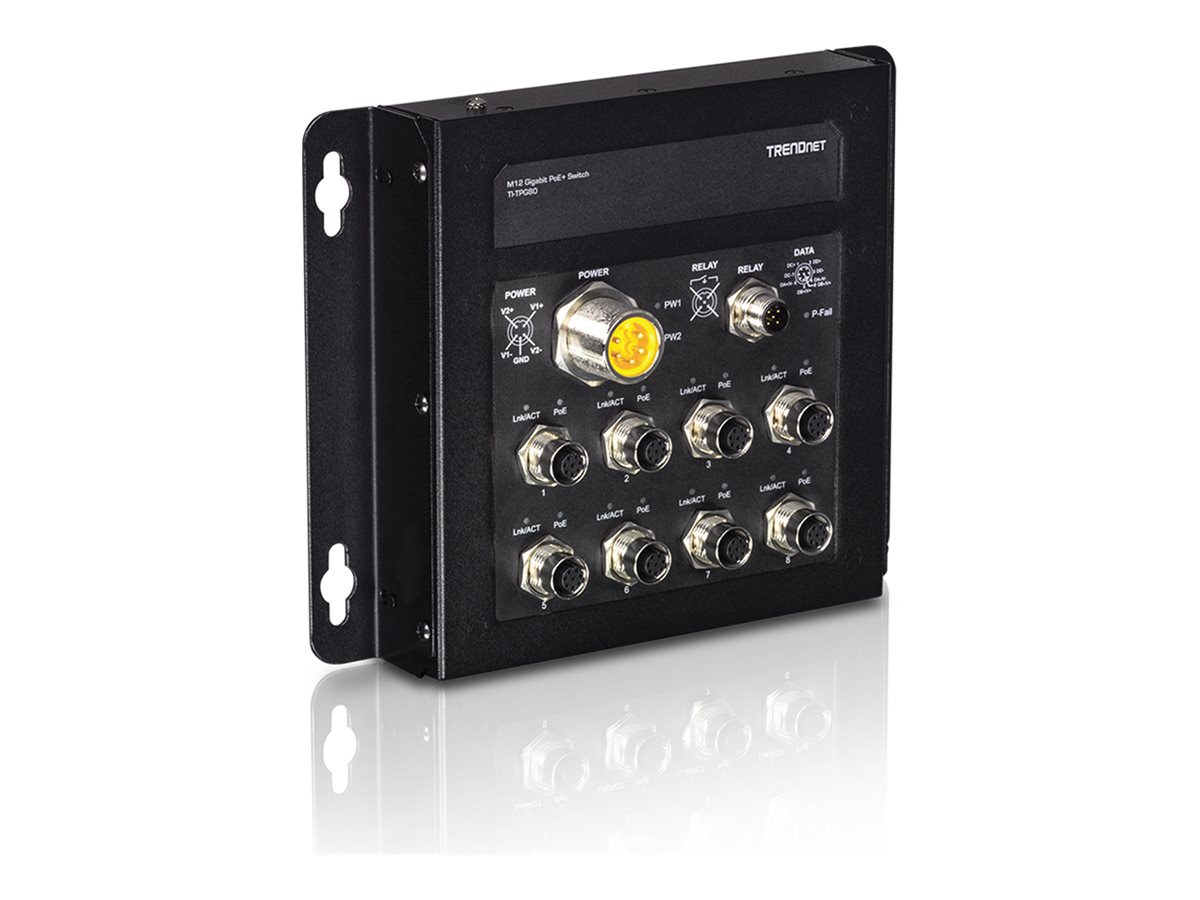

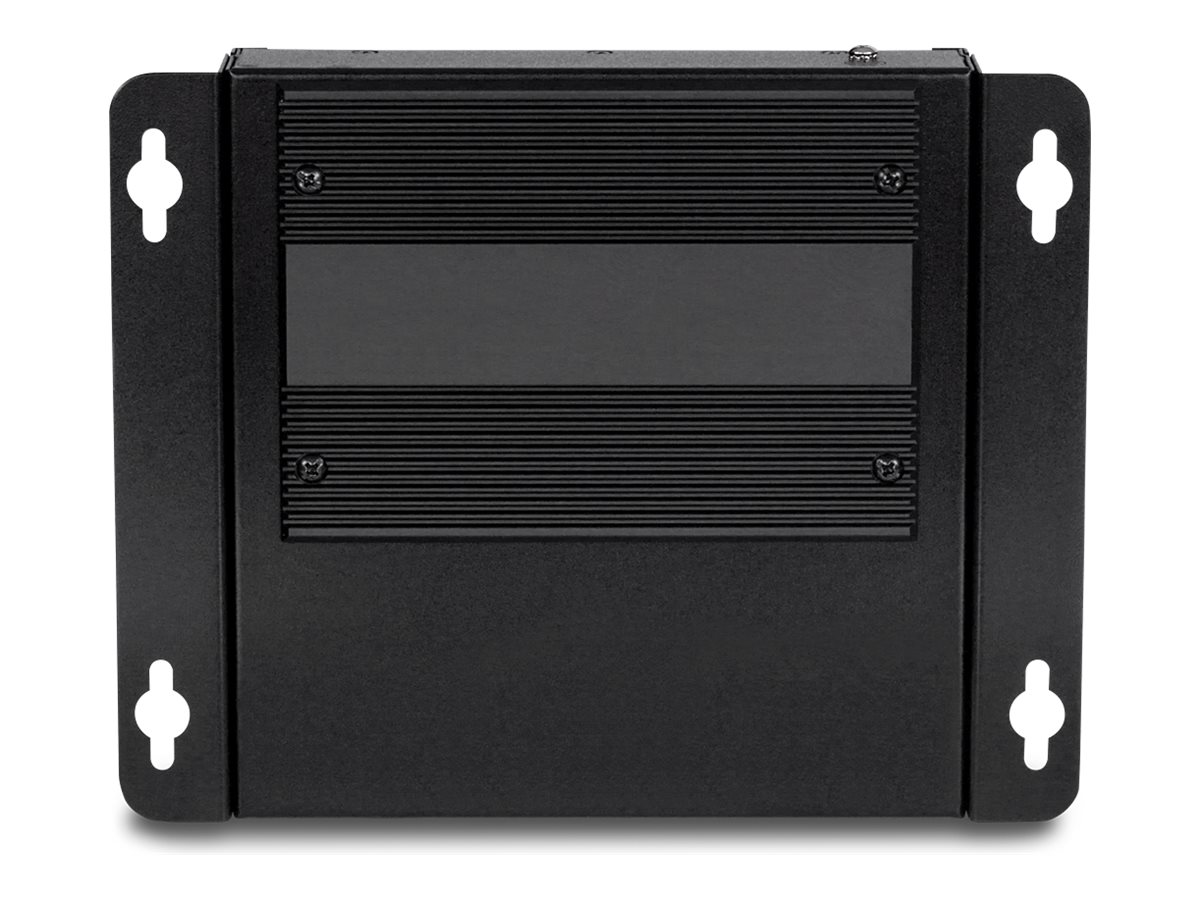

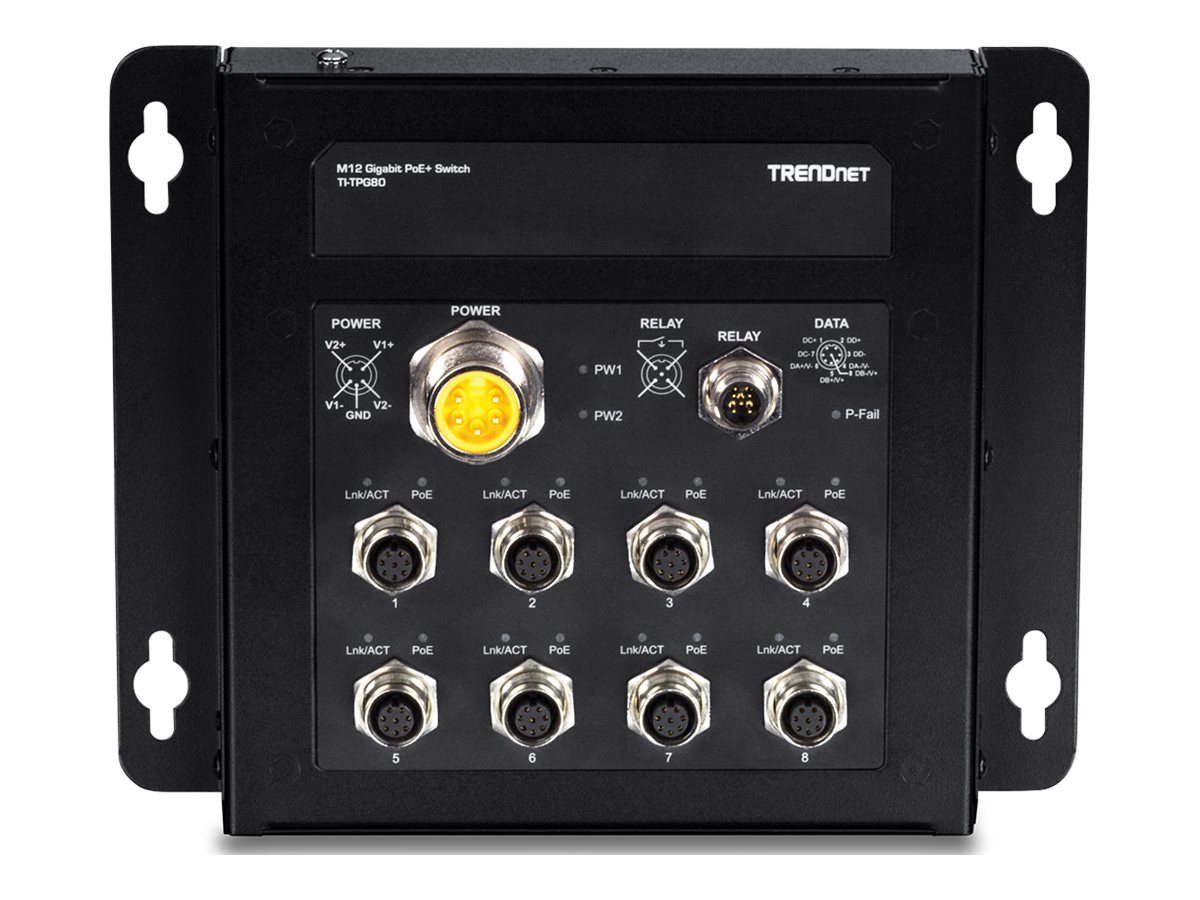

TRENDnet TI-TPG80 Switch 8-porte Gigabit
TRENDnet TI-TPG80 - Switch - ikke administreret - 8 x 100/1000/10000 + 1 x delt Gigabit SFP + 1 x SFP - væg-monterbar - DC strøm - TAA-kompatibel
-
Product no 995008159
Model TI-TPG80
Brand
Go to brand's websiteEAN 0710931161410
Weight 0.99 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TI-TPG80 - switch - 8 porte - ikke administreret - TAA-kompatibel |
| Enhedstype | Switch - 8 porte - ikke administreret |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 100/1000/10000 + 1 x delt Gigabit SFP + 1 x SFP |
| Præstation | Skift af stofbåndbredde: 16 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 11.9 Mpps |
| MAC adresse table størrelse | 11K indtastningshukommelse |
| Jumborammesupport | 10KB |
| Egenskaber | Auto-negotiation, gem og send, halv dupleksmodus, fuld dupleksmodus, indbygget DIP switch, 6 KV strømstødsbeskyttelse |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Effekt | DC 24 - 48 V |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 21.5 cm x 17 cm x 5.6 cm |
| TAA kompatibel | Ja |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Wall-mountable |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, built-in DIP switch, 6KV Surge protection |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 11K entries |
| Performance | Switching fabric bandwidth: 16 Gbps | Forwarding performance (64-byte packet size): 11.9 Mpps |
| Ports | 8 x 100/1000/10000 + 1 x shared Gigabit SFP + 1 x SFP |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 | 2 x SFP |
| Power | |
| Power Redundancy | Yes |
| Voltage Required | DC 24 - 48 V |
| Miscellaneous | |
| Compliant Standards | IP40 |
| Included Accessories | Wall mounting kit |
| MTBF | 500,000 hours |
| Dimensions & Weight | |
| Depth | 17 cm |
| Height | 5.6 cm |
| Width | 21.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
