Product no 996116479
Model TI-RP262I
Brand
Go to brand's website
EAN 0710931161700
Weight 0.99 kg

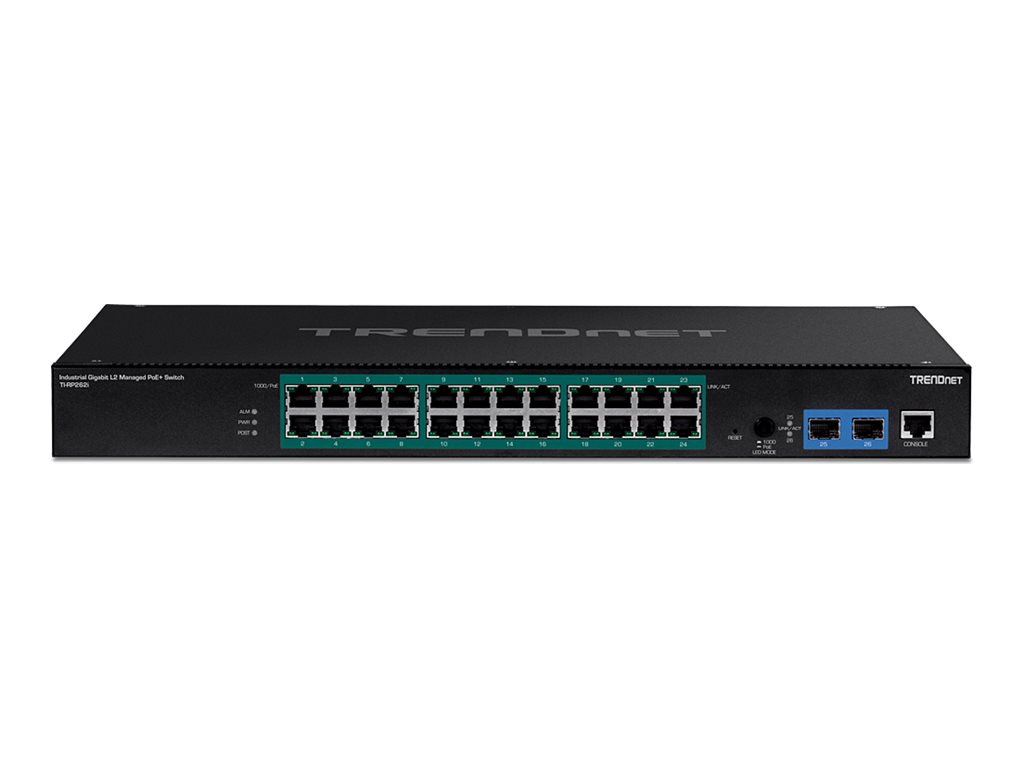

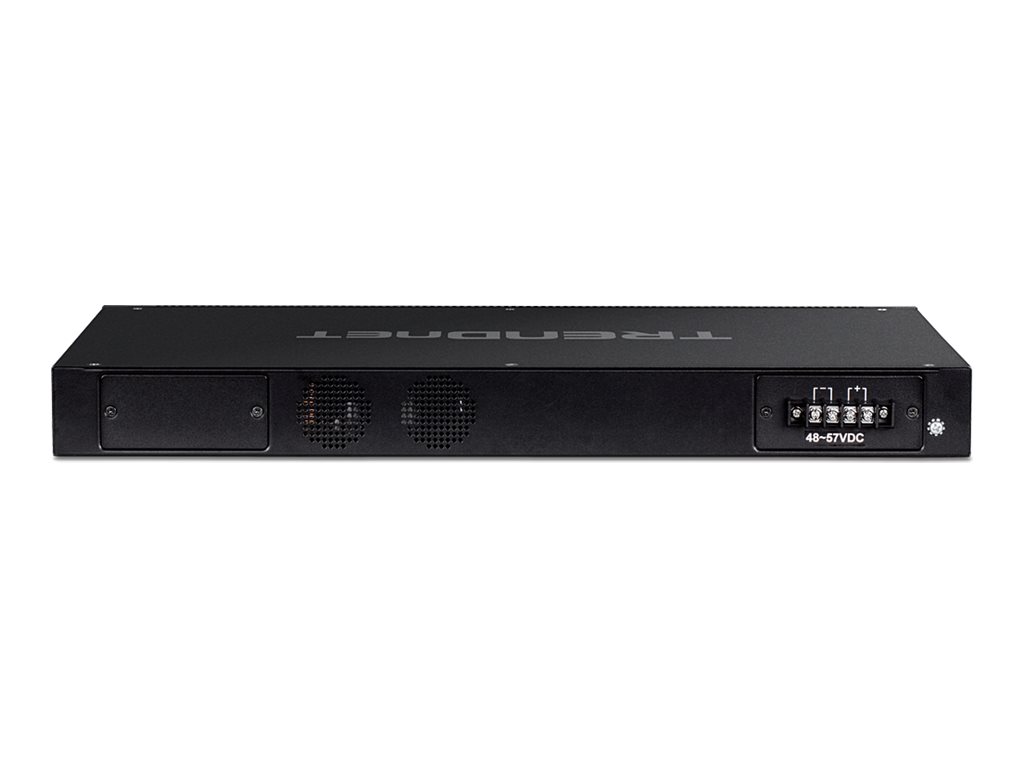

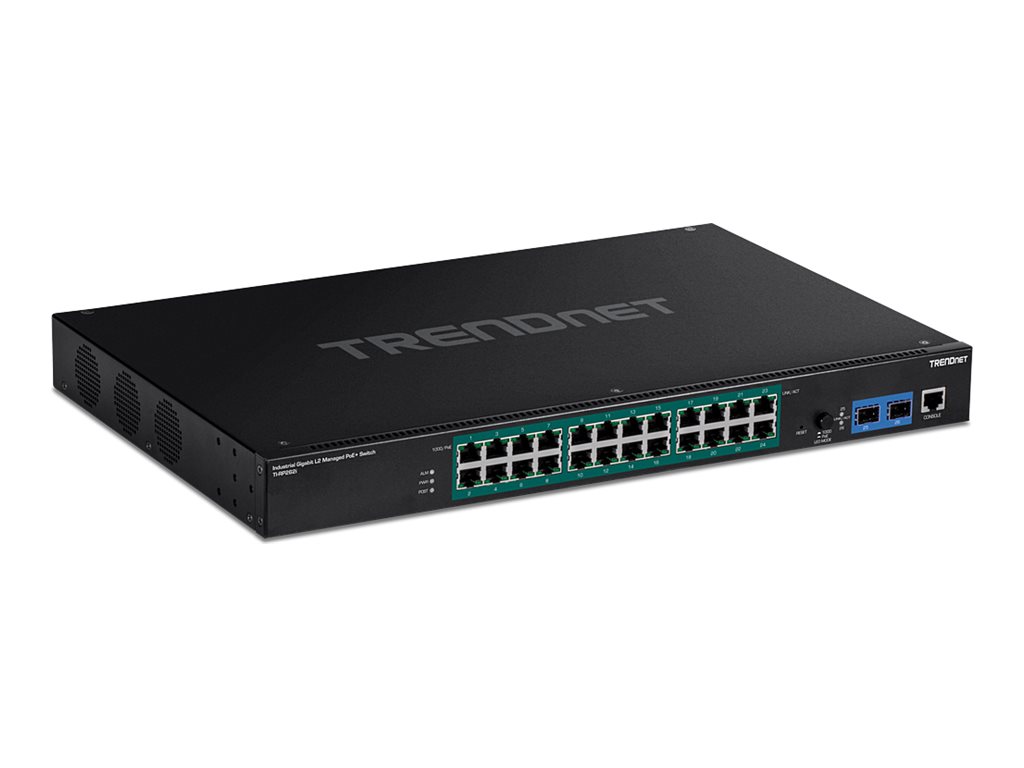

Produktbeskrivelse | TRENDnet TI-RP262I - Industrial - switch - 26 porte - Administreret - monterbar på stativ - TAA-kompatibel |
Enhedstype | Switch - 26 porte - Administreret |
Pakningstype | Monterbar på stativ 1U |
Undertype | Fast Ethernet |
Porte | 24 x 10/100/1000 (PoE+) + 2 x SFP |
Power Over Ethernet (PoE) | PoE+ |
Præstation | Omkoblingskapacitet: 52 Gbps |
MAC adresse table størrelse | 8K indtastningshukommelse |
Jumborammesupport | 10KB |
Protokol til fjernadministration | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Egenskaber | VLAN-understøttet, IGMP snooping, Syslog understøttet, gem og send, SNTP-understøttet, Spanning Tree Protocol (STP) support, Quality of Service (QoS), LLDP support, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Ethernet Ring Protection Switching (ERPS), 4KV ESD Protector (kontaktafladning), 8KV ESD Protector (lufthulsafladning), Weighted Round Robin (WRR), 1 KV strømstødsbeskyttelse, Rapid Reconfiguration of Spanning Tree (RSTP) |
Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
Dimensioner (B x D x H) | 44 cm x 31 cm x 4.4 cm |
Vægt | 3.58 kg |
TAA kompatibel | Ja |
Producentgaranti | Begrænset livtidsgaranti |
General | |
---|---|
Compliant Standards | IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
Device Type | Switch - 26 ports - managed |
Enclosure Type | Rack-mountable 1U |
Features | VLAN support, IGMP snooping, Syslog support, store and forward, SNTP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), LLDP support, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Ethernet Ring Protection Swi |
Jumbo Frame Support | 10KB |
MAC Address Table Size | 8K entries |
Performance | Switching capacity: 52 Gbps |
Ports | 24 x 10/100/1000 (PoE+) + 2 x SFP |
Power Over Ethernet (PoE) | PoE+ |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Status Indicators | Link/activity |
Subtype | Fast Ethernet |
Expansion / Connectivity | |
Expansion Slots | 2 (total) / 2 (free) x SFP (mini-GBIC) |
Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W | 1 x console RJ-45 management |
Miscellaneous | |
Cables Included | 1 x serial cable |
Compliant Standards | FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30 |
Rack Mounting Kit | Included |
Dimensions & Weight | |
Depth | 31 cm |
Height | 4.4 cm |
Weight | 3.58 kg |
Width | 44 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% (non-condensing) |
Max Operating Temperature | 70 °C |
Min Operating Temperature | -40 °C |
