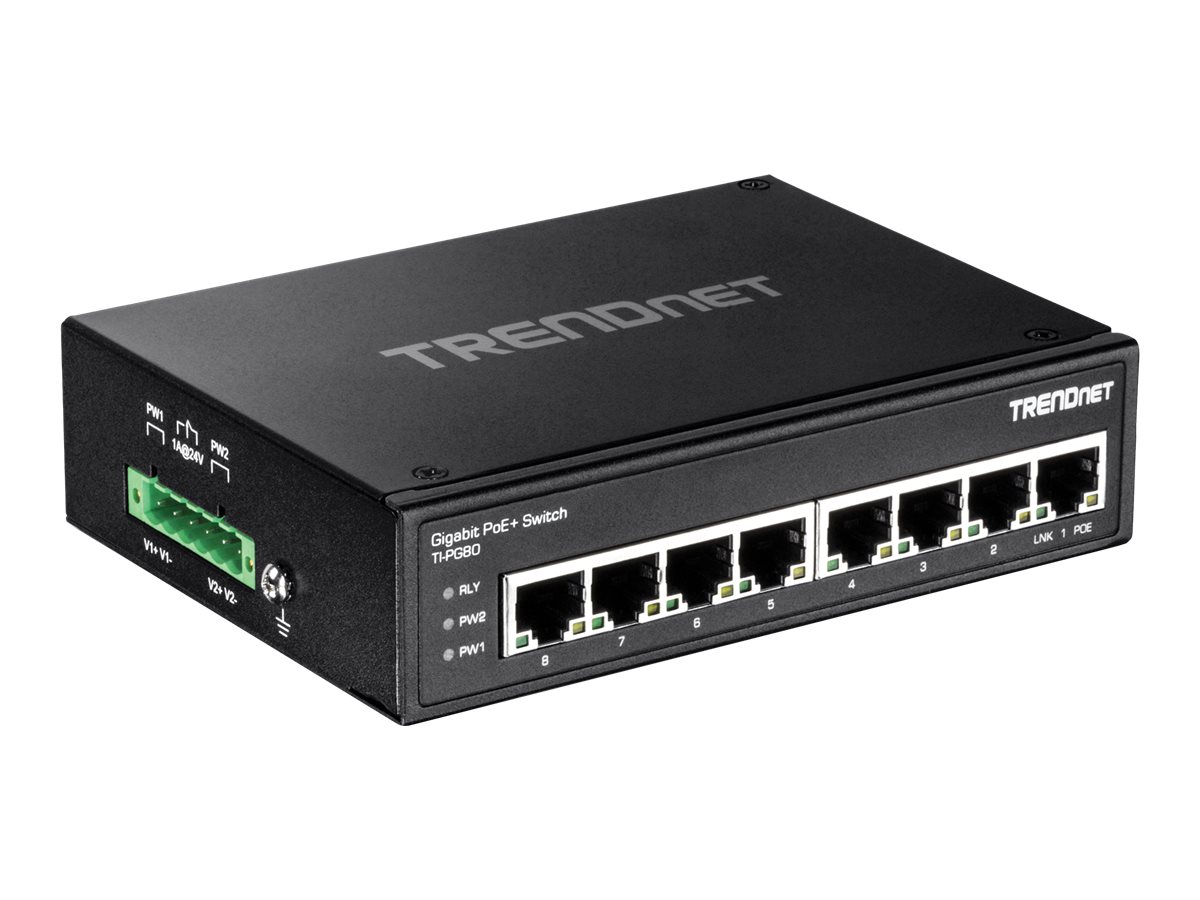

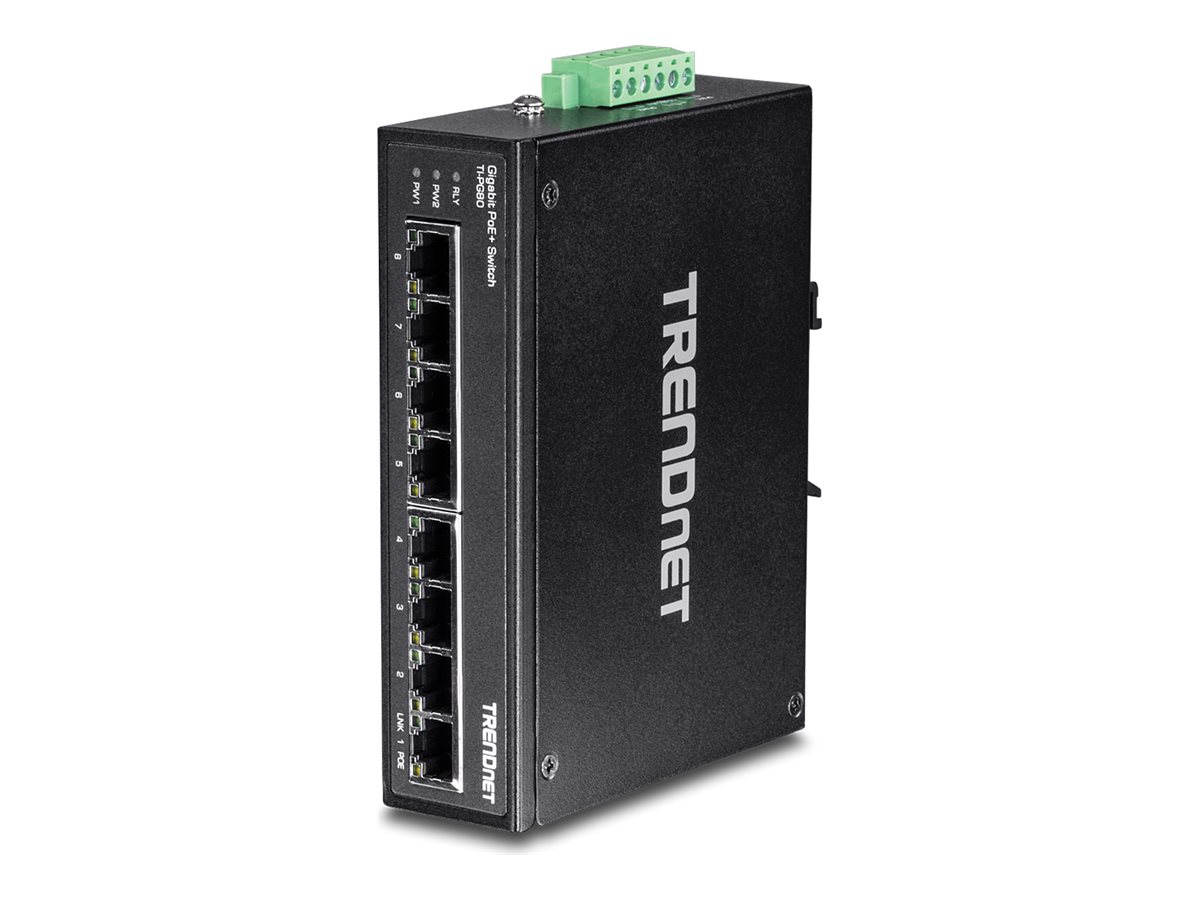

TRENDnet TI-PG80 Switch 8-porte Gigabit PoE+

TRENDnet TI-PG80 - Switch - ikke administreret - 8 x 100/1000/10000 - DIN monterbar på skinne, væg-monterbar - PoE+ (200 W) - DC strøm - TAA-kompatibel

Varenummer: 989882585
Model: TI-PG80
EAN: 0710931160352
Brand:
Vægt: 0.84 kg

Specifications

Produktbeskrivelse
TRENDnet TI-PG80 - switch - 8 porte - ikke administreret - TAA-kompatibel
Enhedstype
Switch - 8 porte - ikke administreret
Undertype
Gigabit Ethernet
Porte
8 x 100/1000/10000
Power Over Ethernet (PoE)
PoE+
PoE-budget
200 W
Præstation
Skift af stofbåndbredde: 16 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 11.9 Mpps
MAC adresse table størrelse
8K indtastningshukommelse
Jumborammesupport
9KB
Egenskaber
Auto-negotiation, gem og send, halv dupleksmodus, fuld dupleksmodus, 8KV ESD Protector, 6 KV strømstødsbeskyttelse
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Effekt
DC 48 - 56 V - strømadapter ikke inkluderet
Overskudsspænding
Ja
Dimensioner (B x D x H)
14.3 cm x 3.6 cm x 10.4 cm
Vægt
554 g
TAA kompatibel
Ja
Producentgaranti
Begrænset livtidsgaranti
Specifications

Full specifications

General
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Device Type
Switch - 8 ports - unmanaged
Enclosure Type
DIN rail mountable, wall-mountable
Features
Auto-negotiation, store and forward, half duplex mode, full duplex mode, 8KV ESD Protector, 6KV Surge protection
Jumbo Frame Support
9KB
MAC Address Table Size
8K entries
Performance
Switching fabric bandwidth: 16 Gbps | Forwarding performance (64-byte packet size): 11.9 Mpps
PoE Budget
200 W
Ports
8 x 100/1000/10000
Power Over Ethernet (PoE)
PoE+
RAM
1024 KB
Subtype
Gigabit Ethernet
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 PoE+ - 30 W
Power
Max Supported Qty
2
Power Consumption Operational
5.76 Watt
Power Device
External power adapter (not included)
Power Redundancy
Yes
Voltage Required
DC 48 - 56 V
Miscellaneous
Compliant Standards
EN55022, EN55024, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30
Included Accessories

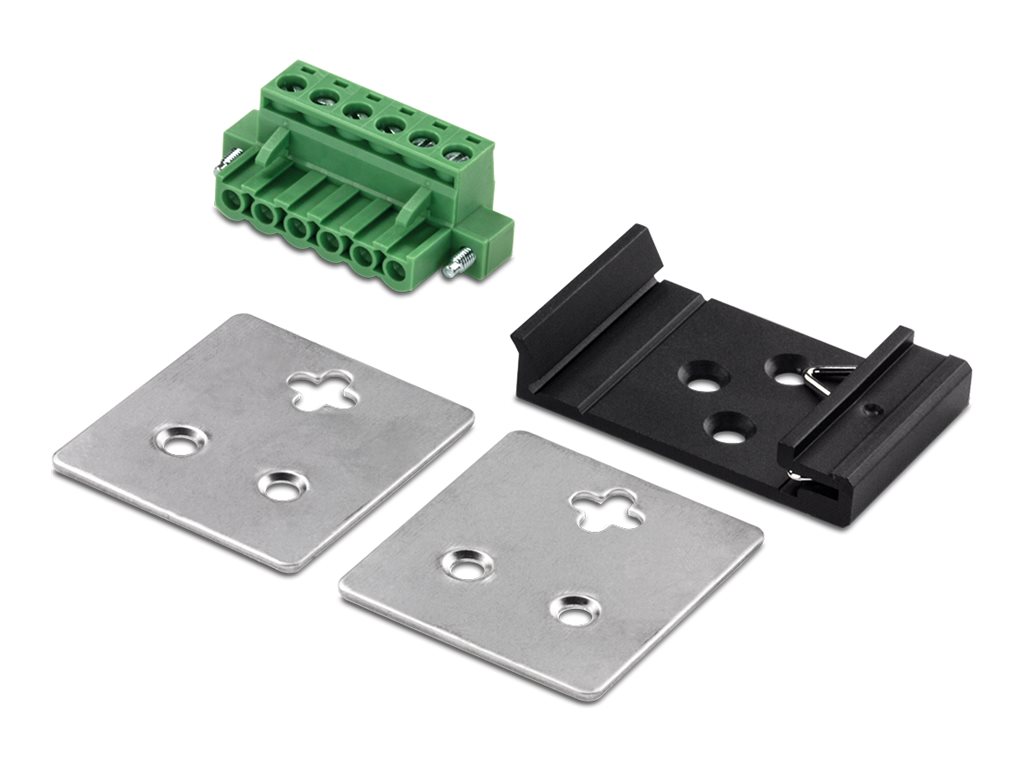

DIN-rail mounting kit, wall mounting kit, removable terminal block
MTBF
510,304 hours
Dimensions & Weight
Depth
3.6 cm
Height
10.4 cm
Weight
554 g
Width
14.3 cm
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating
0 - 95% (non-condensing)
Max Operating Temperature
75 °C
Min Operating Temperature
-40 °C
