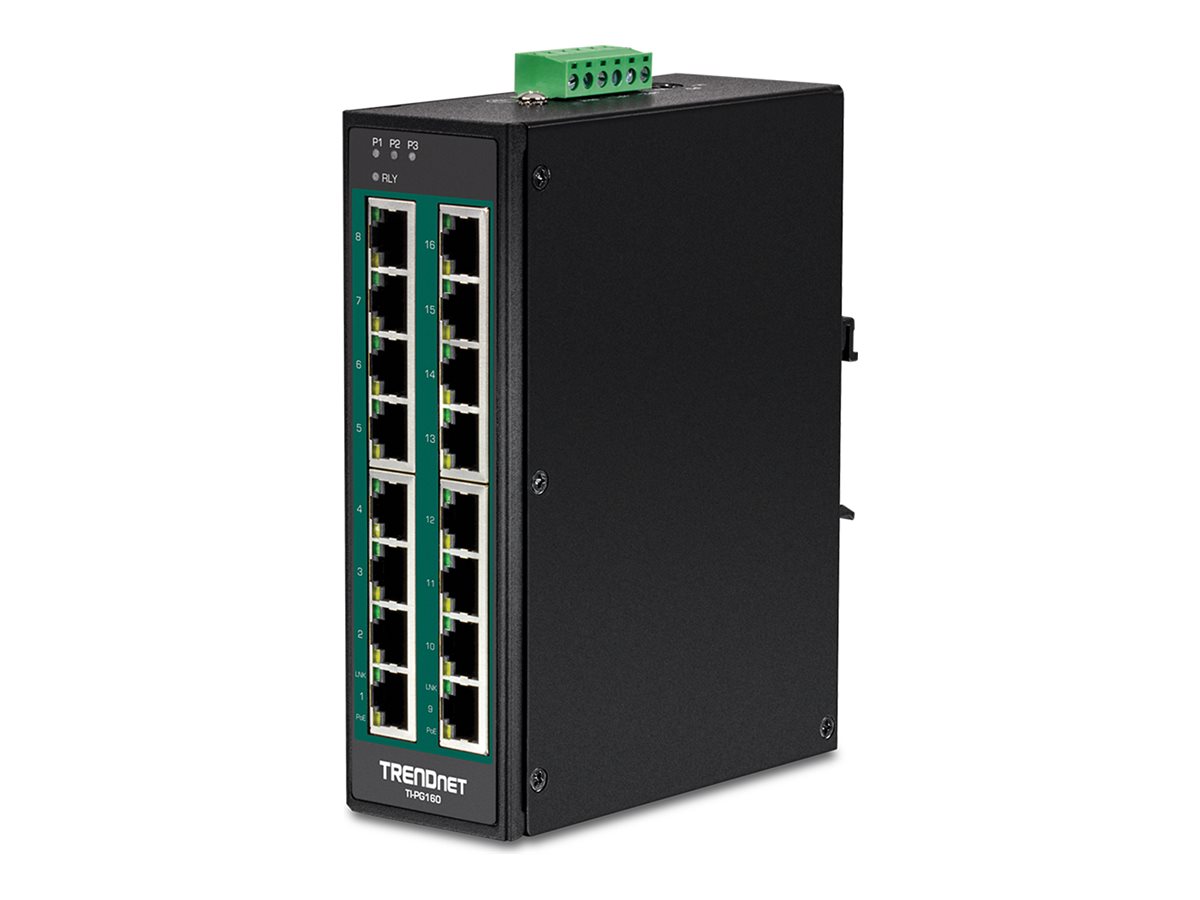

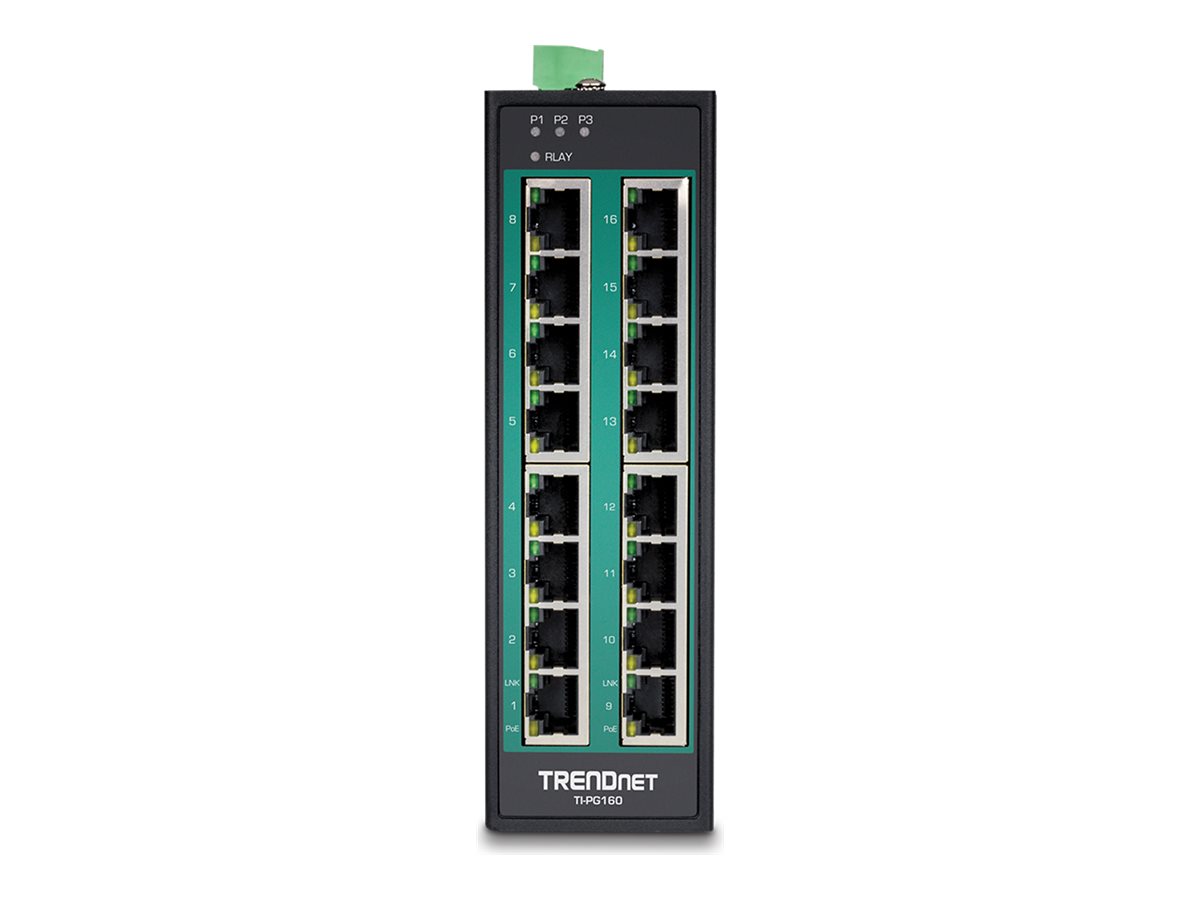

TRENDnet TI-PG160 Switch 16-porte Gigabit PoE+
TRENDnet TI-PG160 - Switch - ikke administreret - 16 x 10/100/1000 (PoE+) - DIN monterbar på skinne, væg-monterbar - PoE+ (240 W) - TAA-kompatibel
Varenummer:
994884241
Model:
TI-PG160
EAN:
0710931161618
Brand:
Vægt:
0.84 kg
Specifications
|
Produktbeskrivelse
|
TRENDnet TI-PG160 - switch - 16 porte - ikke administreret - TAA-kompatibel
|
|
Enhedstype
|
Switch - 16 porte - ikke administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
16 x 10/100/1000 (PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
240 W
|
|
Præstation
|
Omkoblingskapacitet: 32 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 23.8 Mpps
|
|
MAC adresse table størrelse
|
8K indtastningshukommelse
|
|
Jumborammesupport
|
9KB
|
|
Egenskaber
|
Halv dupleksmodus, fuld dupleksmodus, 512 KB pakkebuffer, metalkabinet, 8KV ESD Protector (lufthulsafladning)
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Effekt
|
AC 120/230 V (50/60 Hz) - strømadapter ikke inkluderet
|
|
Overskudsspænding
|
Ja
|
|
Dimensioner (B x D x H)
|
4.8 cm x 12 cm x 15.5 cm
|
|
Vægt
|
500 g
|
|
TAA kompatibel
|
Ja
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Device Type
|
Switch - 16 ports - unmanaged
|
|
Enclosure Type
|

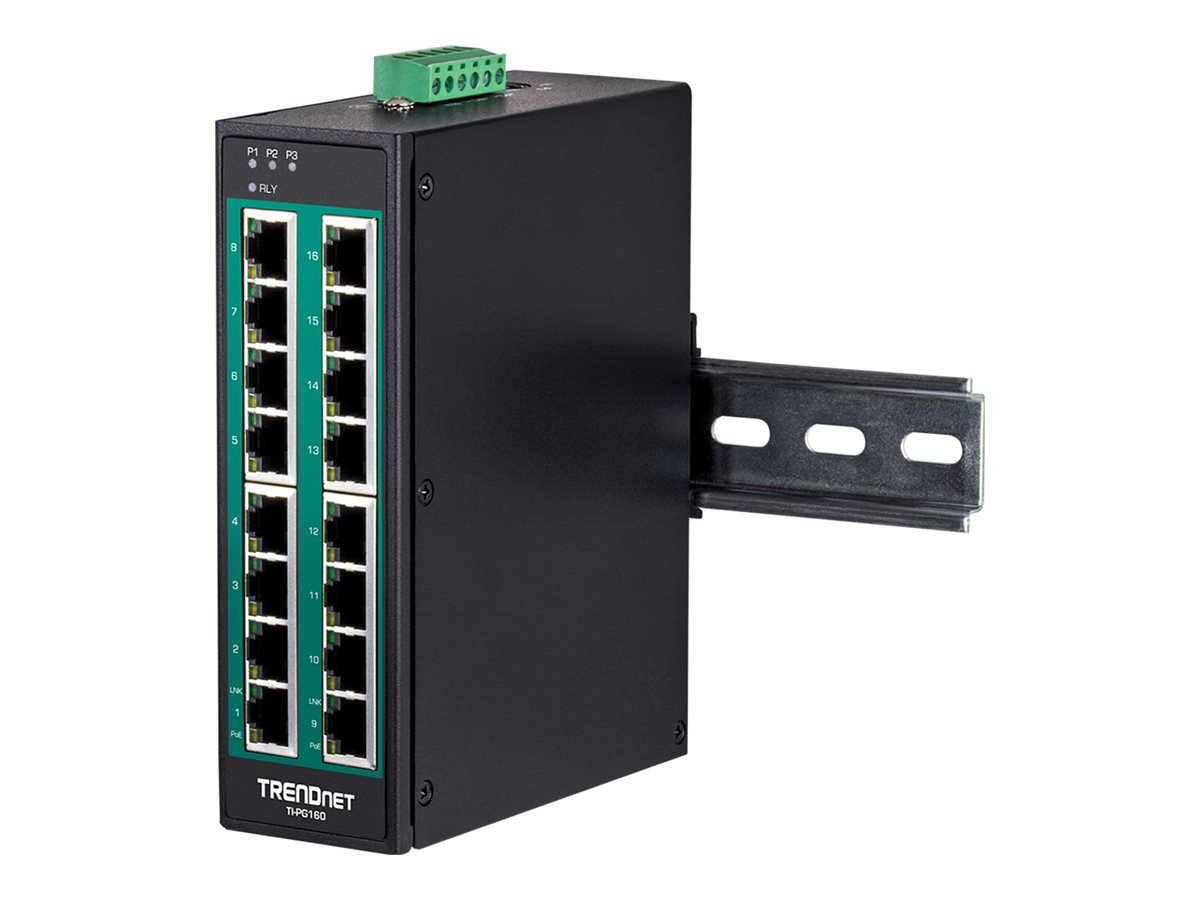

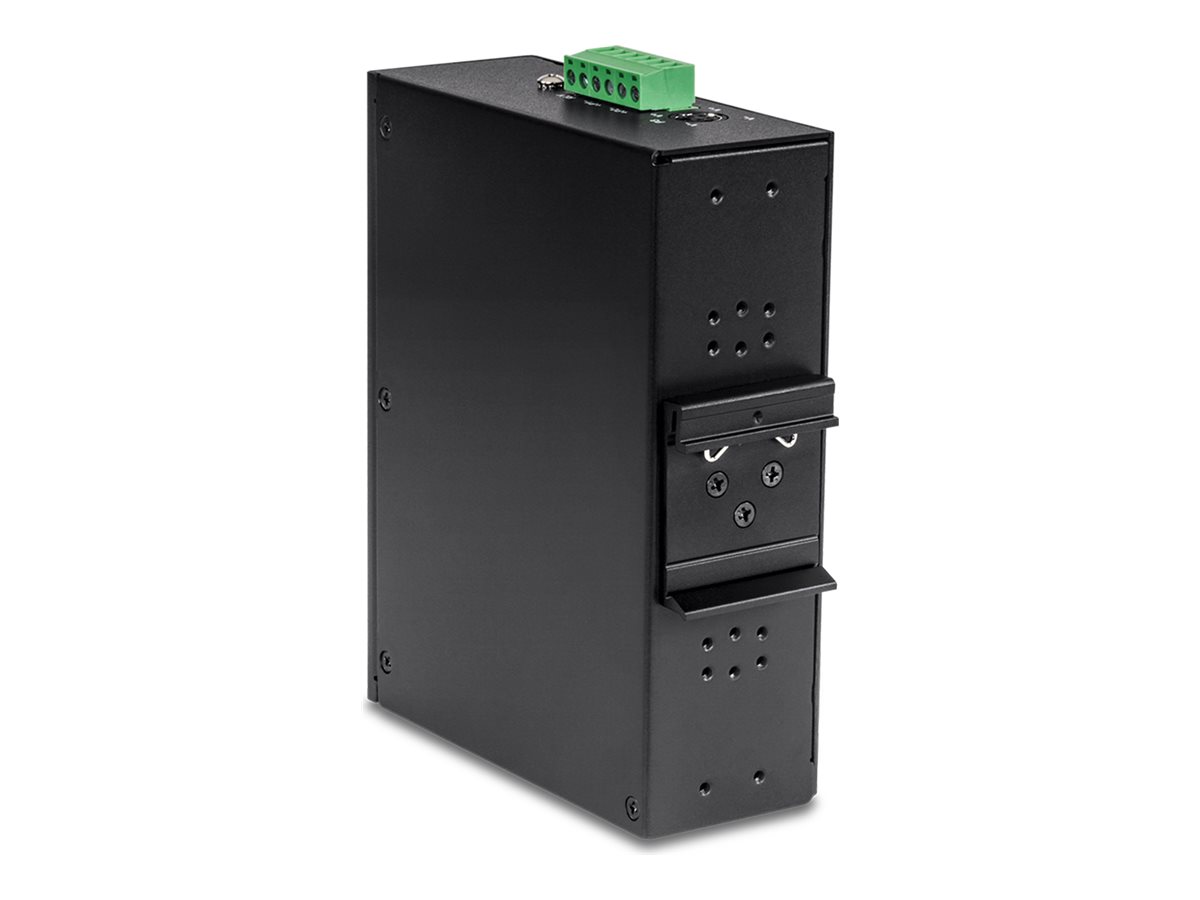

DIN rail mountable, wall-mountable
|
|
Features
|
Half duplex mode, full duplex mode, 512KB packet buffer, metal housing, 8KV ESD Protector (air-gap discharge)
|
|
Jumbo Frame Support
|
9KB
|
|
MAC Address Table Size
|
8K entries
|
|
Performance
|
Switching capacity: 32 Gbps | Forwarding performance (64-byte packet size): 23.8 Mpps
|
|
PoE Budget
|
240 W
|
|
Ports
|
16 x 10/100/1000 (PoE+)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x 1000Base-T RJ-45 PoE+ - 30 W
|
|
Power
|
|
|
Max Supported Qty
|
2
|
|
Power Consumption Operational
|
5.76 Watt
|
|
Power Device
|
External power adapter (not included)
|
|
Power Redundancy
|
Yes
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
UL, FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
|
|
Included Accessories
|

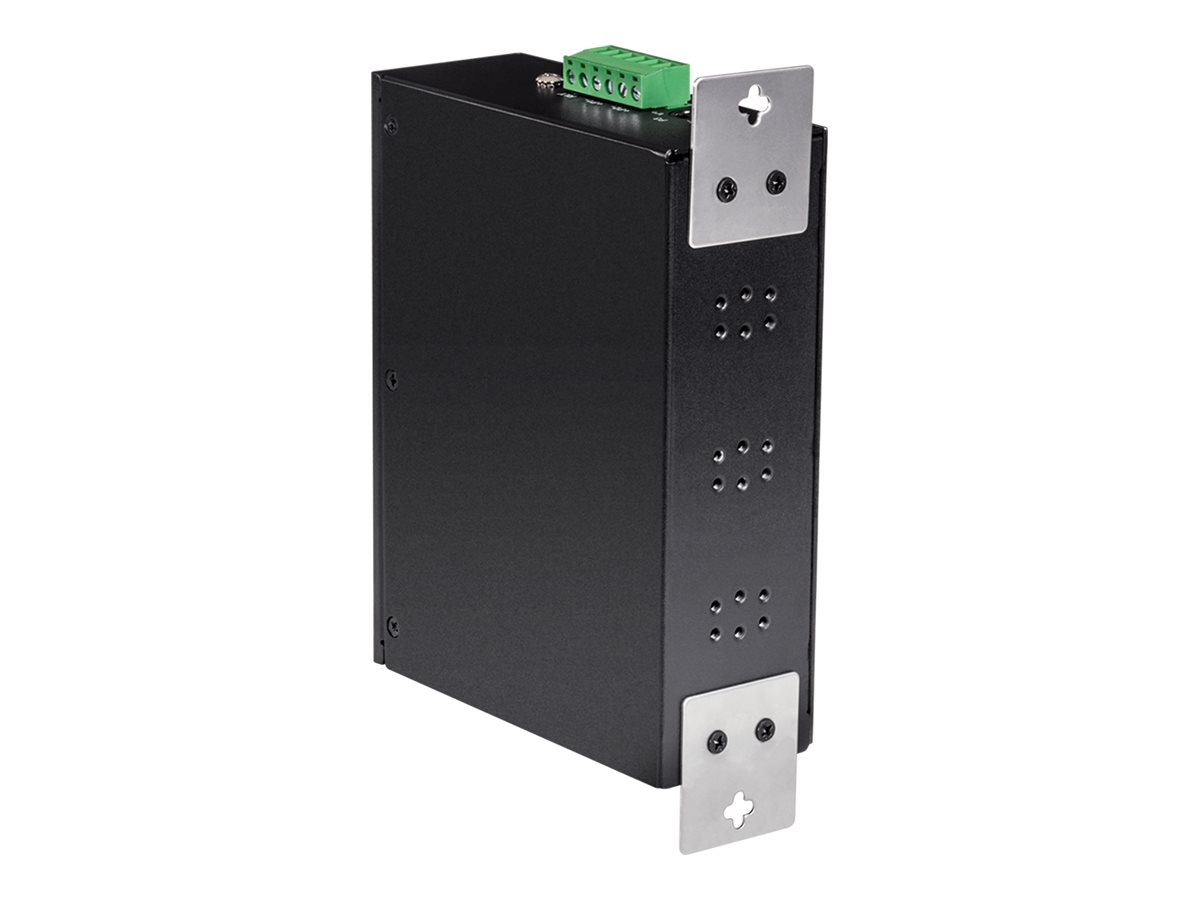

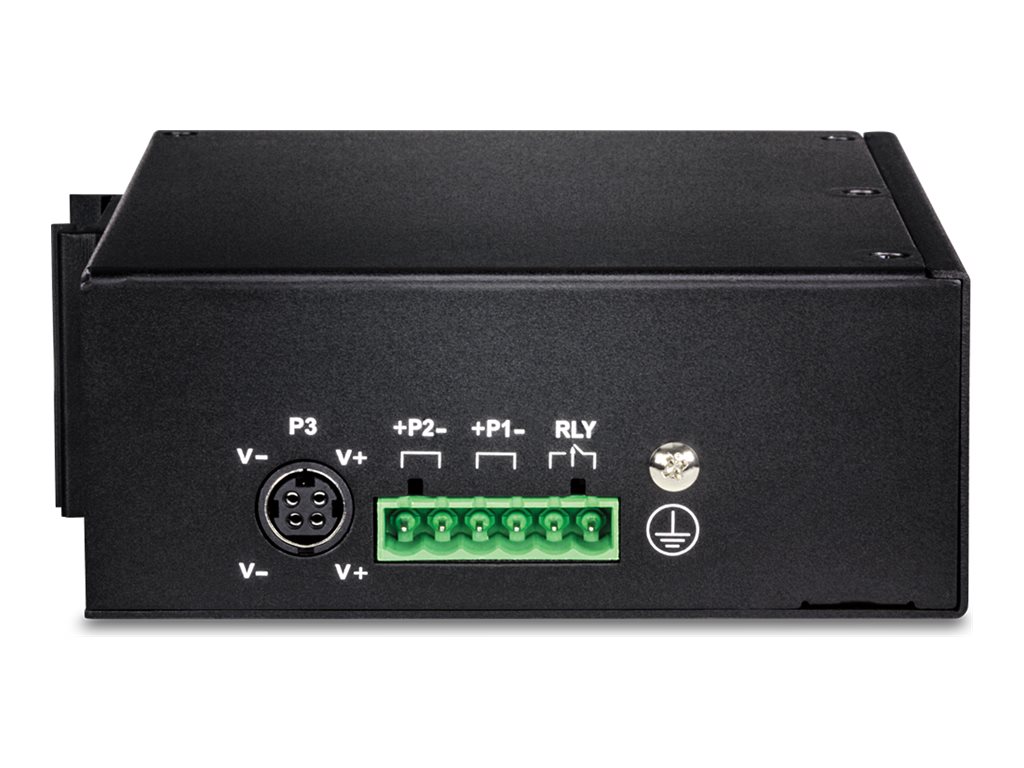

DIN-rail mounting kit, wall mounting kit, removable terminal block
|
|
MTBF
|
699,103 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
12 cm
|
|
Height
|
15.5 cm
|
|
Weight
|
500 g
|
|
Width
|
4.8 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
95% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
