TRENDnet TI-PG102 Switch 10-porte Gigabit PoE+

TRENDnet TI-PG102 - Switch - ikke administreret - 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP - DIN monterbar på skinne, væg-monterbar - PoE+ (240 W) - DC strøm - TAA-kompatibel

  • Product no 992135767

    Model TI-PG102

    Brand
    Go to brand's website

    EAN 0710931160932

    Weight 0.71 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse TRENDnet TI-PG102 - switch - 10 porte - ikke administreret - TAA-kompatibel
Enhedstype Switch - 10 porte - ikke administreret
Undertype Gigabit Ethernet
Porte 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE-budget 240 W
Præstation Omkoblingskapacitet: 20 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 14,8 Mpps
MAC adresse table størrelse 16K indtastningshukommelse
Jumborammesupport 10KB
Egenskaber Auto-negotiation, gem og send, halv dupleksmodus, fuld dupleksmodus, 2 MB pakke-buffer, 6KV ESD Protector, metalkabinet
Overensstemmelsesstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Effekt DC 48 - 56 V - strømadapter ikke inkluderet
Overskudsspænding Ja
Dimensioner (B x D x H) 15.5 cm x 12 cm x 4.8 cm
Vægt 445 g
TAA kompatibel Ja
Producentgaranti Begrænset livtidsgaranti
General
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Device Type Switch - 10 ports - unmanaged
Enclosure Type DIN rail mountable, wall-mountable
Features Auto-negotiation, store and forward, half duplex mode, full duplex mode, 2MB packet buffer, 6KV ESD Protector, metal housing
Jumbo Frame Support 10KB
MAC Address Table Size 16K entries
Performance Switching capacity: 20 Gbps | Forwarding performance (64-byte packet size): 14.8 Mpps
PoE Budget 240 W
Ports 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE) PoE+
Subtype Gigabit Ethernet
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45 PoE+ | 2 x SFP | 2 x 1000Base-T RJ-45
Power
Max Supported Qty 2
Power Consumption Operational 5.67 Watt
Power Device External power adapter (not included)
Power Redundancy Yes
Voltage Required DC 48 - 56 V
Miscellaneous
Compliant Standards FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6

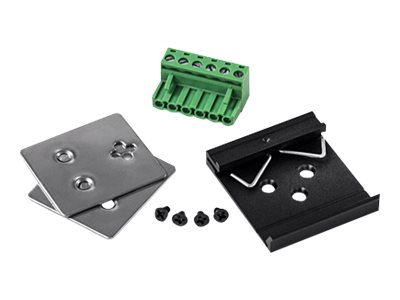

Included Accessories DIN-rail mounting kit, wall mounting kit, removable terminal block
MTBF 510,400 hours
Dimensions & Weight
Depth 12 cm
Height 4.8 cm
Weight 445 g
Width 15.5 cm
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating 95% (non-condensing)
Max Operating Temperature 75 °C
Min Operating Temperature -40 °C
