TRENDnet TI-PE50 Switch 5-porte 10/100 PoE+
TRENDnet TI-PE50 - Switch - ikke administreret - 4 x 10/100 (PoE+) + 1 x 10/100 - DIN monterbar på skinne, væg-monterbar - PoE+ (90 W) - DC strøm - TAA-kompatibel
Varenummer:
994884240
Model:
TI-PE50
EAN:
0710931161601
Brand:
Vægt:
0.45 kg
Specifications
|
Produktbeskrivelse
|
TRENDnet TI-PE50 - switch - 5 porte - ikke administreret - TAA-kompatibel
|
|
Enhedstype
|
Switch - 5 porte - ikke administreret
|
|
Undertype
|
Fast Ethernet
|
|
Porte
|
4 x 10/100 (PoE+) + 1 x 10/100
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
90 W
|
|
Præstation
|
Skift af stofbåndbredde: 1 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 0,744 Mpps
|
|
MAC adresse table størrelse
|
1 K indtastningshukommelse
|
|
Egenskaber
|
Auto-negotiation, gem og send, halv dupleksmodus, fuld dupleksmodus, 56 KB pakkebuffer, 6KV ESD Protector
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Effekt
|
DC 48 - 56 V - strømadapter ikke inkluderet
|
|
Dimensioner (B x D x H)
|
8.2 cm x 10.3 cm x 3.1 cm
|
|
Vægt
|
160 g
|
|
TAA kompatibel
|
Ja
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
|
Device Type
|
Switch - 5 ports - unmanaged
|
|
Enclosure Type
|

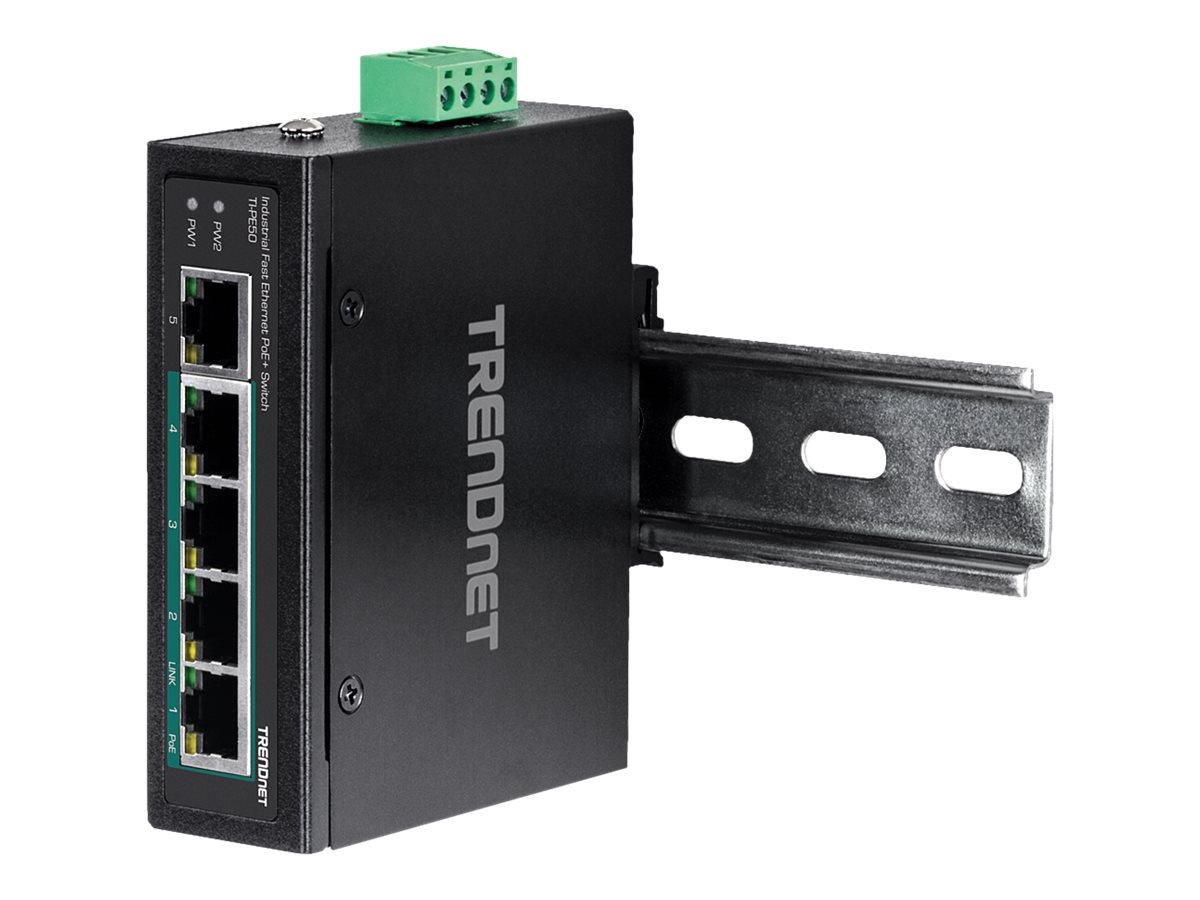

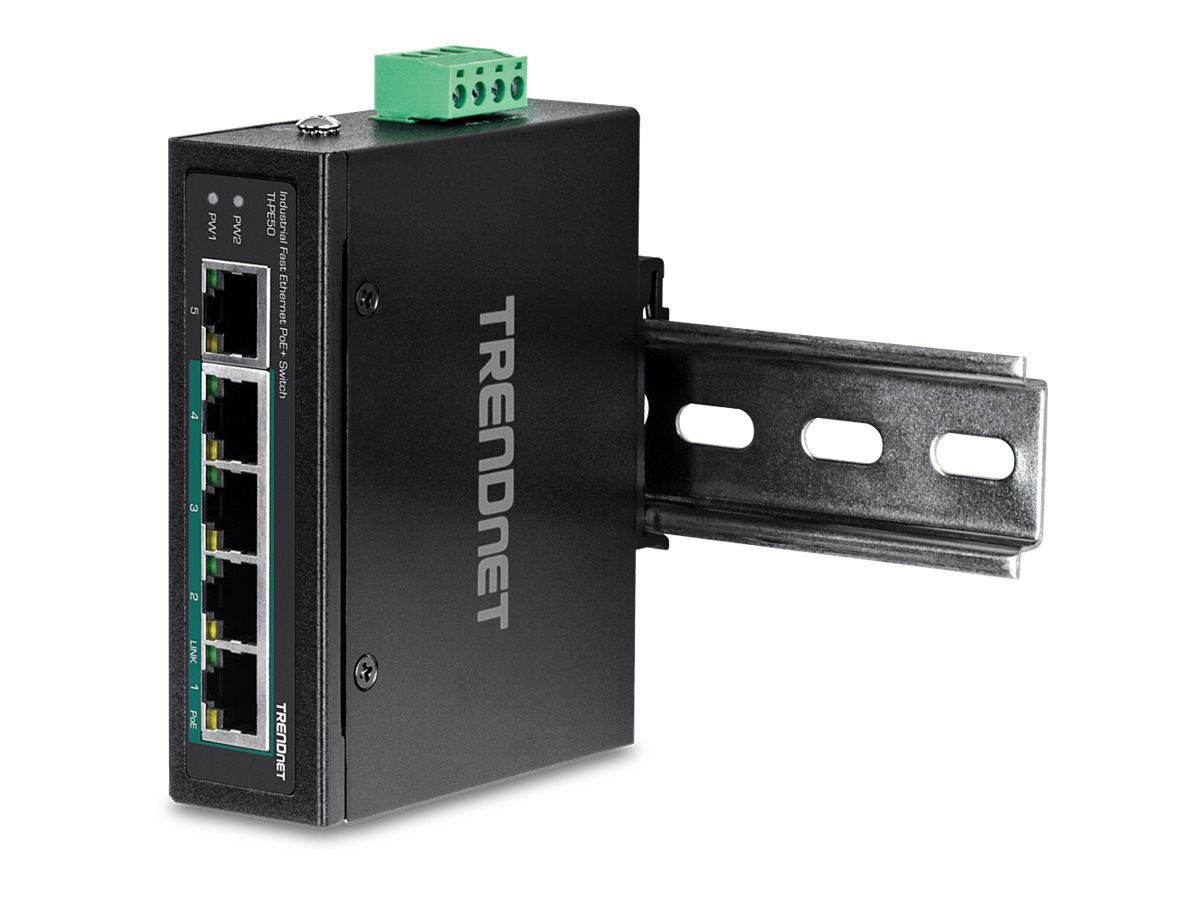

DIN rail mountable, wall-mountable
|
|
Features
|
Auto-negotiation, store and forward, half duplex mode, full duplex mode, 56KB packet buffer, 6KV ESD Protector
|
|
MAC Address Table Size
|
1K entries
|
|
Performance
|
Switching fabric bandwidth: 1 Gbps | Forwarding performance (64-byte packet size): 0.744 Mpps
|
|
PoE Budget
|
90 W
|
|
Ports
|
4 x 10/100 (PoE+) + 1 x 10/100
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Subtype
|
Fast Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
4 x 1000Base-T RJ-45 | 1 x 1000Base-T RJ-45
|
|
Power
|
|
|
Power Consumption Operational
|
2.76 Watt
|
|
Power Device
|
External power adapter (not included)
|
|
Voltage Required
|
DC 48 - 56 V
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
|
|
Included Accessories
|
DIN-rail mounting kit, wall mounting kit, removable terminal block
|
|
MTBF
|
708,903 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
10.3 cm
|
|
Height
|
3.1 cm
|
|
Weight
|
160 g
|
|
Width
|
8.2 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
95% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
