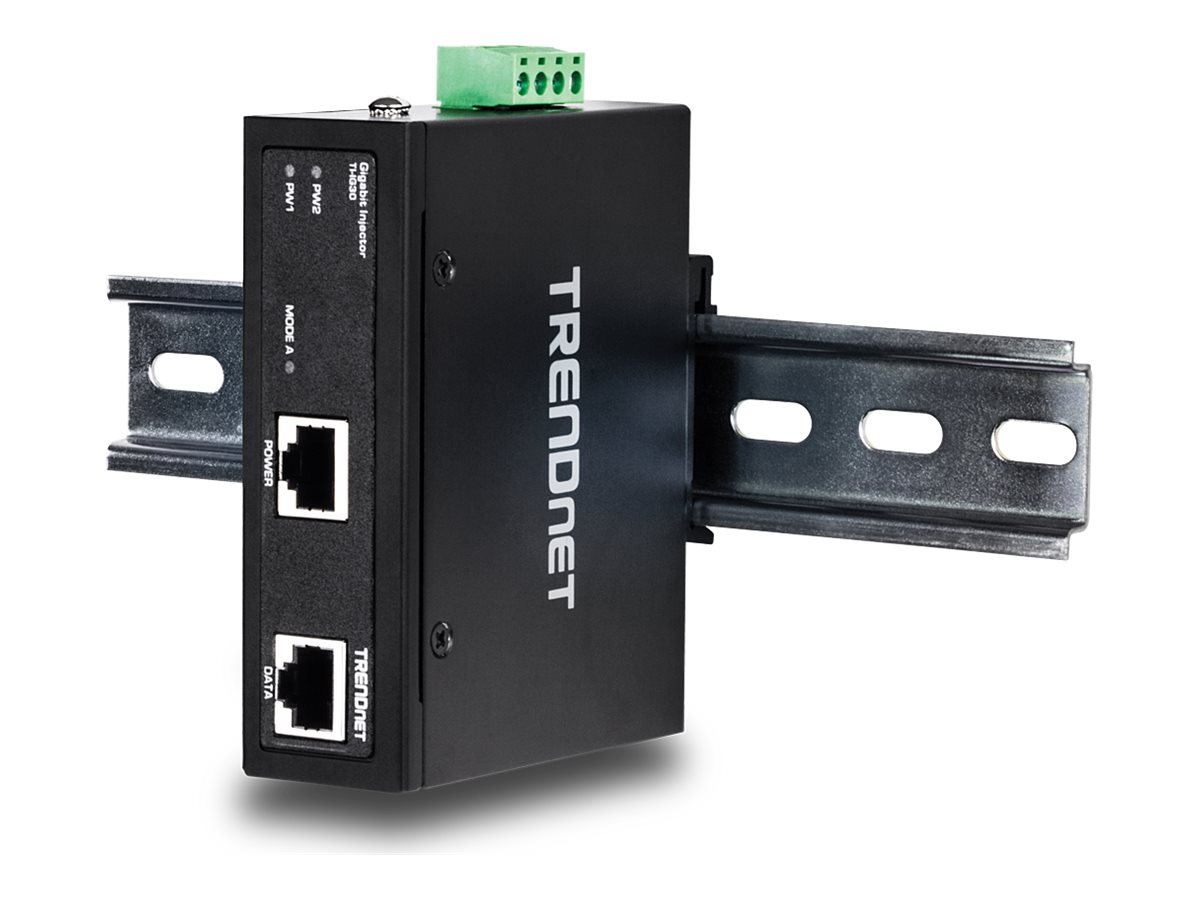

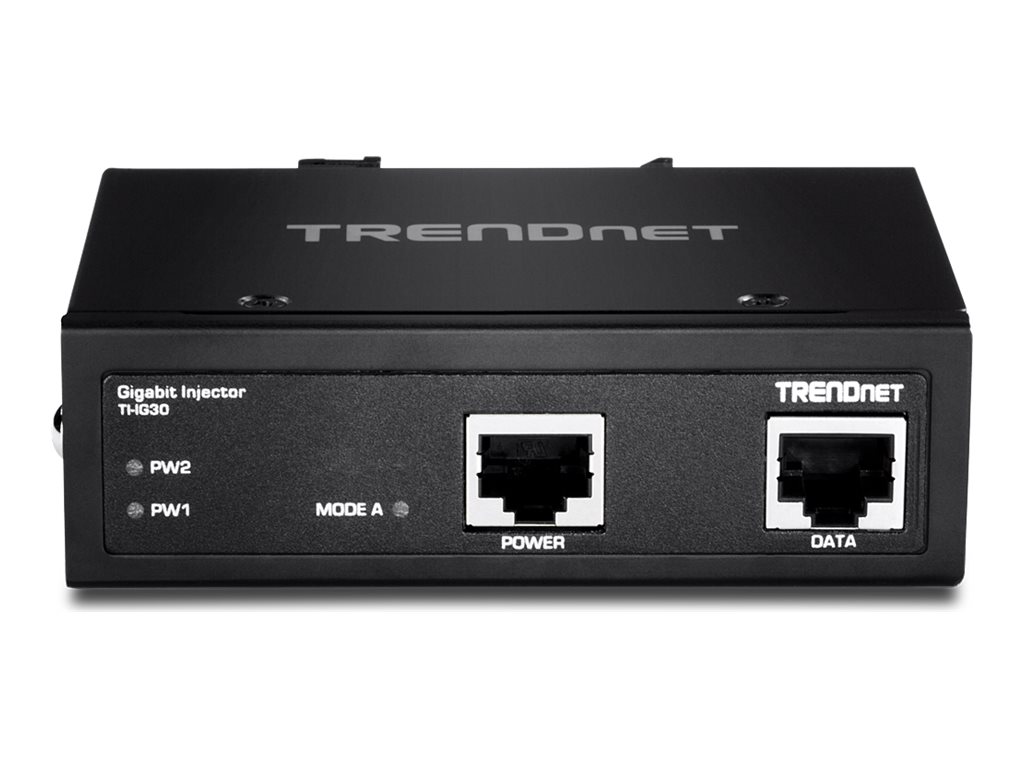

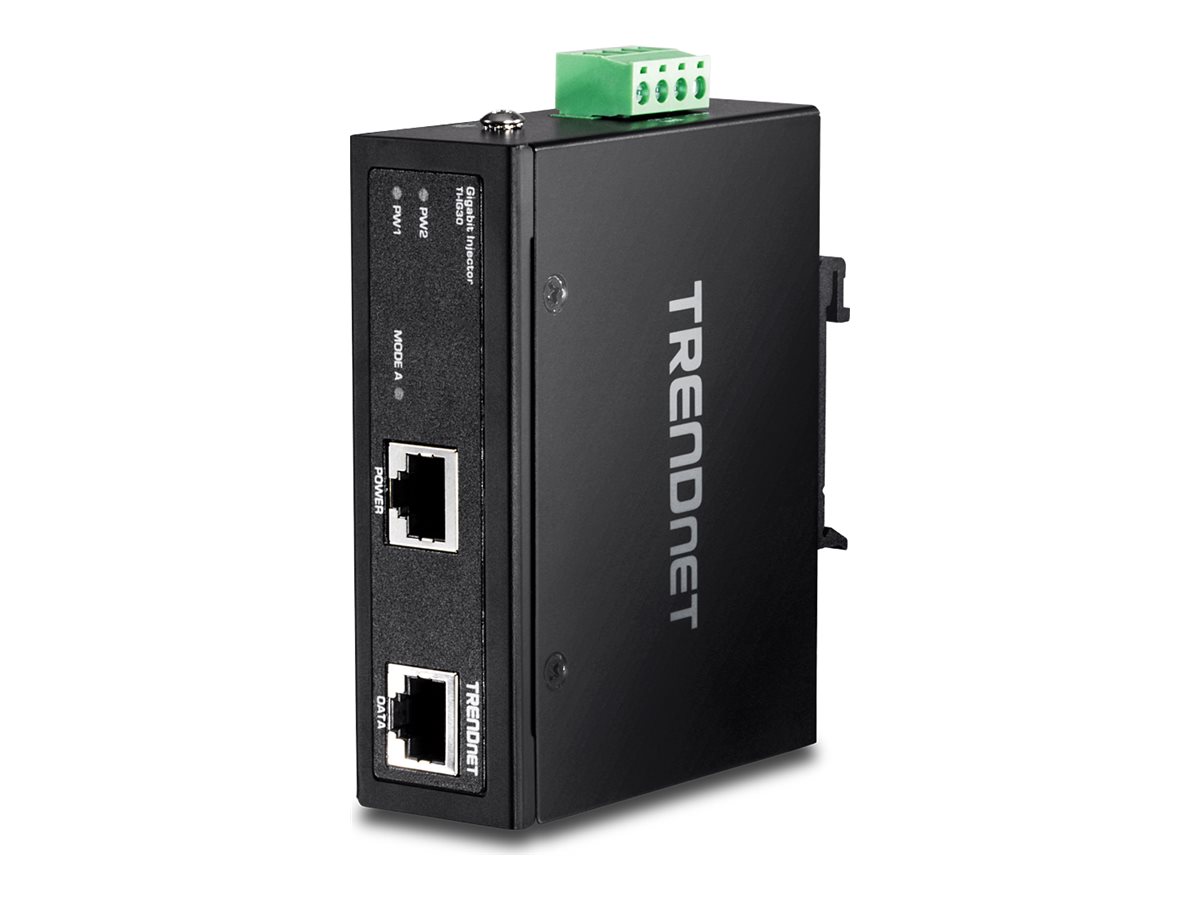

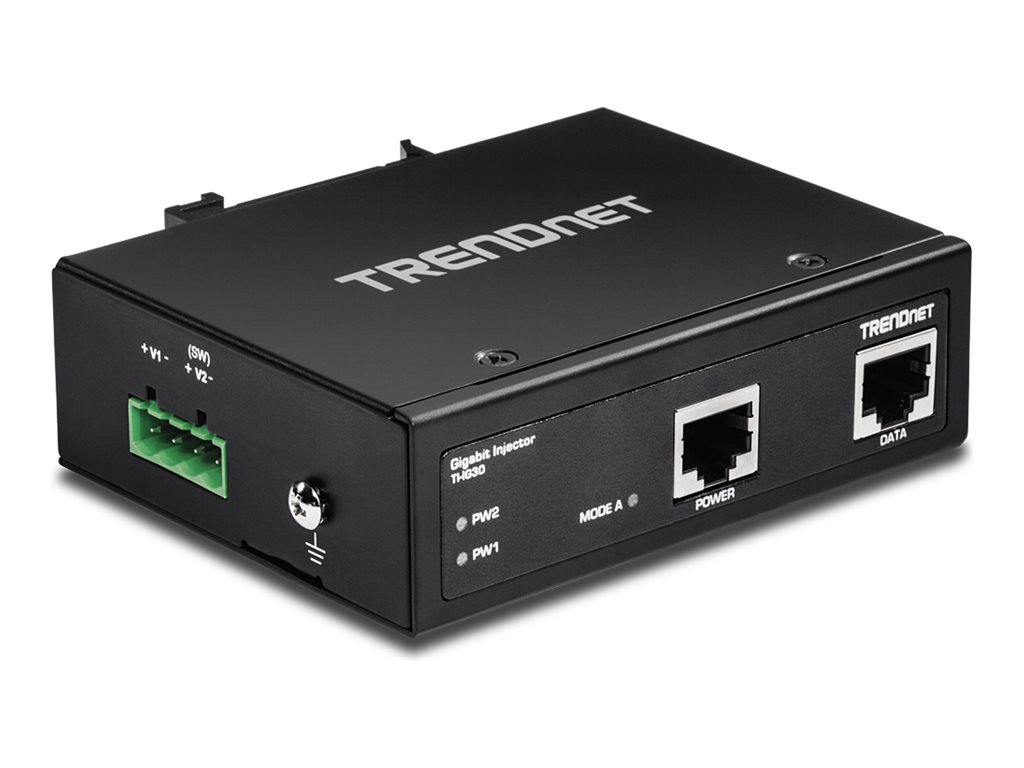

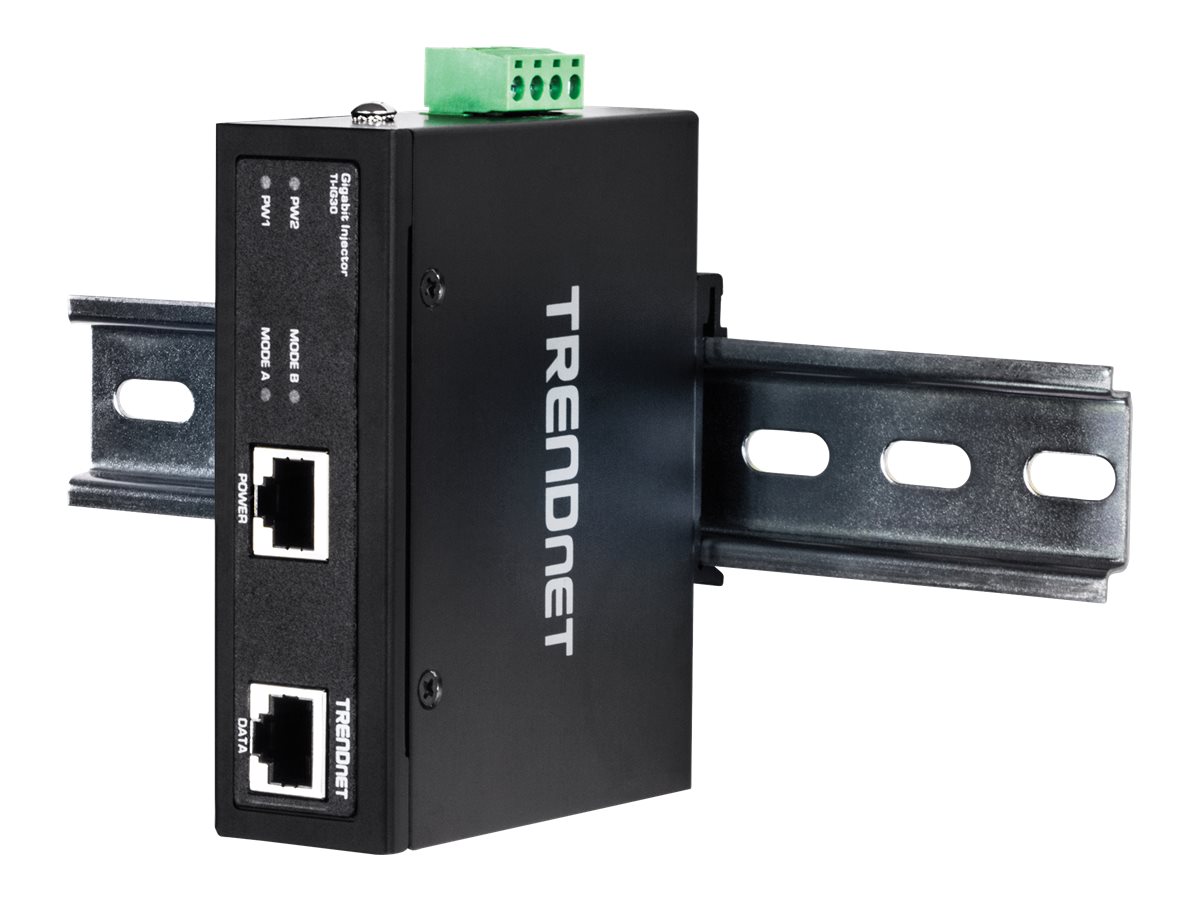

TRENDnet TI-IG30 30Watt

TRENDnet TI-IG30 - Strøminjektor (monterbar på DIN rail) - 30 watt - output-stikforbindelser: 1 - TAA-kompatibel

Varenummer: 990065801
Model: TI-IG30
EAN: 0710931160437
Brand:
Vægt: 0.43 kg

Specifications

Produktbeskrivelse
TRENDnet TI-IG30 - strøminjektor - 30 watt - TAA-kompatibel
Enhedstype
Strøminjektor - monterbar på DIN rail
Power Over Ethernet (PoE)
PoE+
Vægt
134 g
Strømkapacitet
30 watt
Input-stik
1 x 4-pin terminalblok
Output-stikforbindelser
1 x RJ-45
Udstyr inkluderet
Vægmonteringsbøjle
TAA kompatibel
Ja
Dimensioner (B x D x H)
10.4 cm x 8.2 cm x 3.2 cm
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Device Type
PoE injector - DIN rail mountable
Power Over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Power Device
Input Connectors
1 x 4 pin terminal block
Input Voltage Range
DC 48 - 56 V
Power Capacity
30 Watt
Power Consumption Operational
36 Watt
Power Output Connectors Details
1 x RJ-45
Expansion / Connectivity
Interfaces
1 x Gigabit LAN - RJ-45
Miscellaneous
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, EN55024, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30, EN 55022 Class A
Features
Wall mountable, full duplex support, overcurrent protection

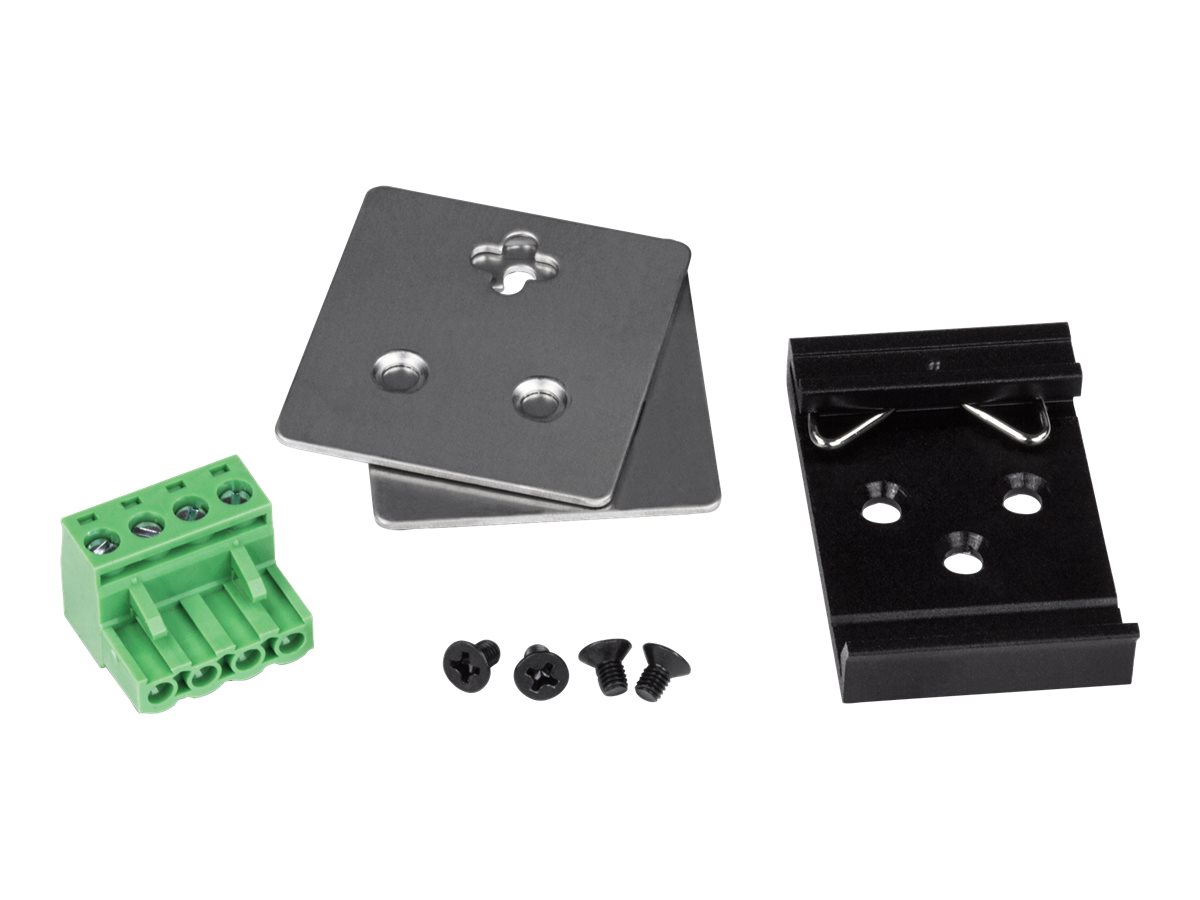

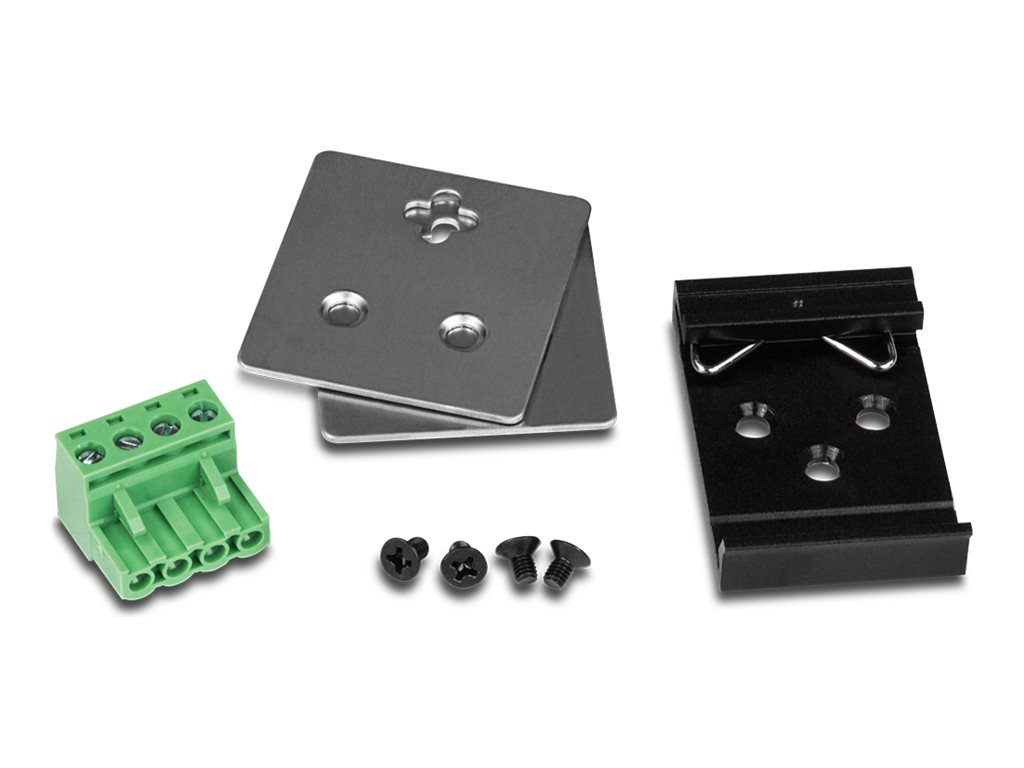

Included Accessories
Wall mounting bracket
MTBF
510,304 hours
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating
0 - 95% (non-condensing)
Max Operating Temperature
75 °C
Min Operating Temperature
-40 °C
Dimensions & Weight
Depth
8.2 cm
Height
3.2 cm
Weight
134 g
Width
10.4 cm

Media
