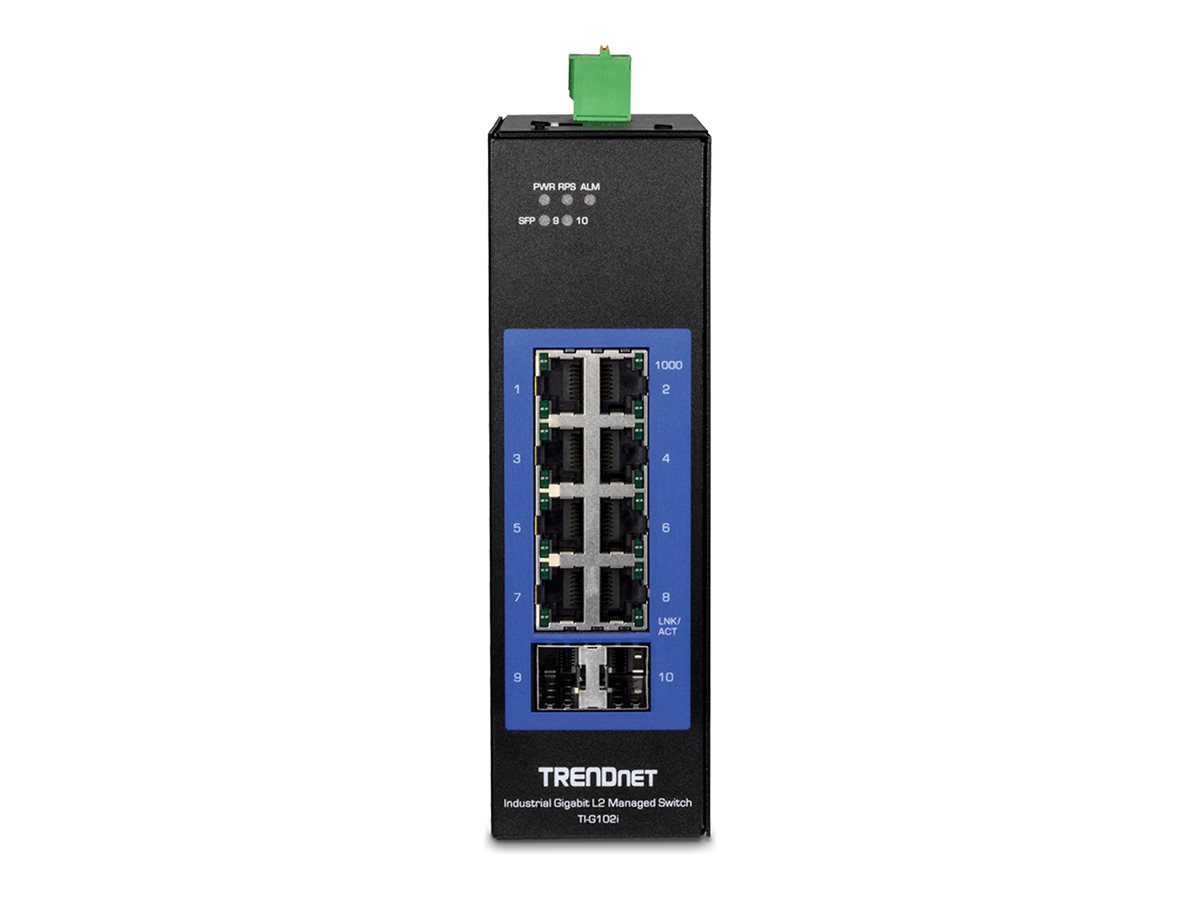

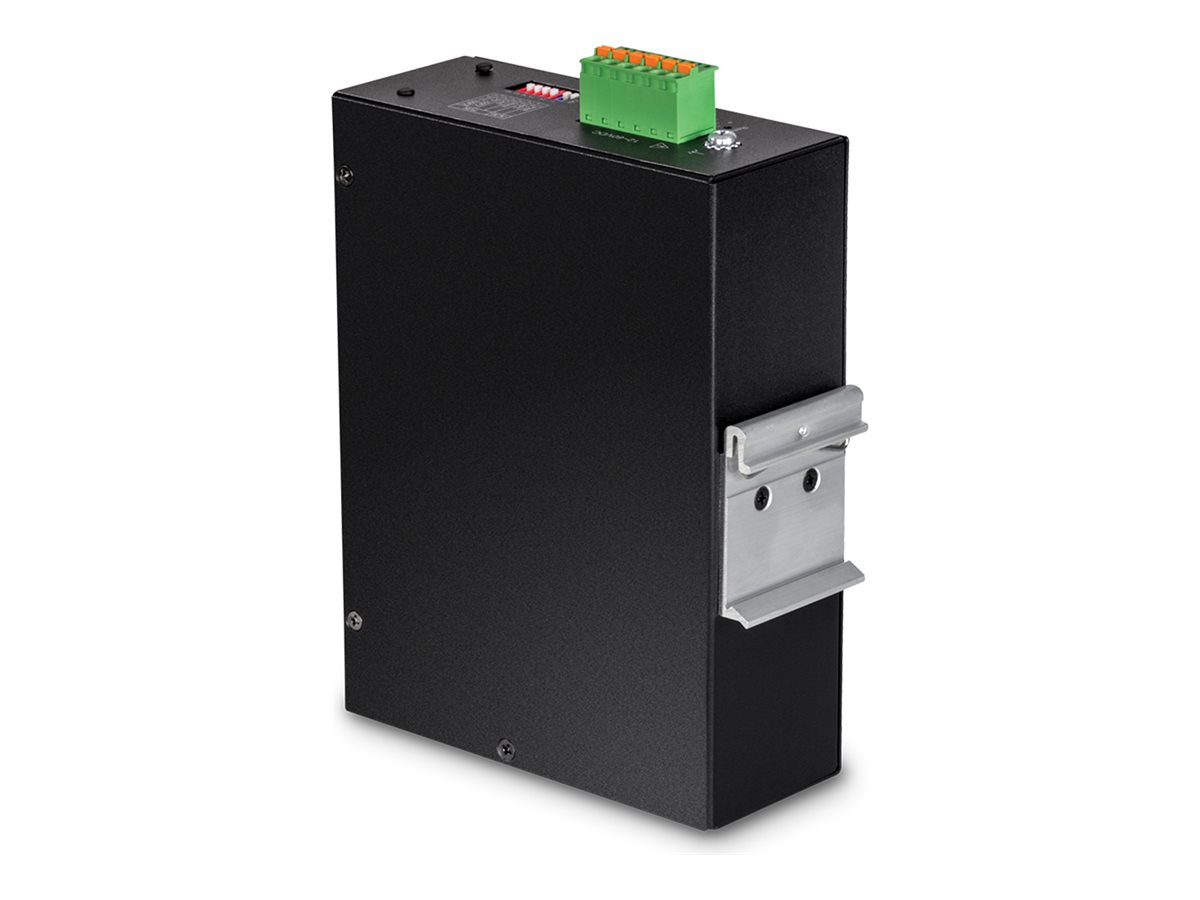

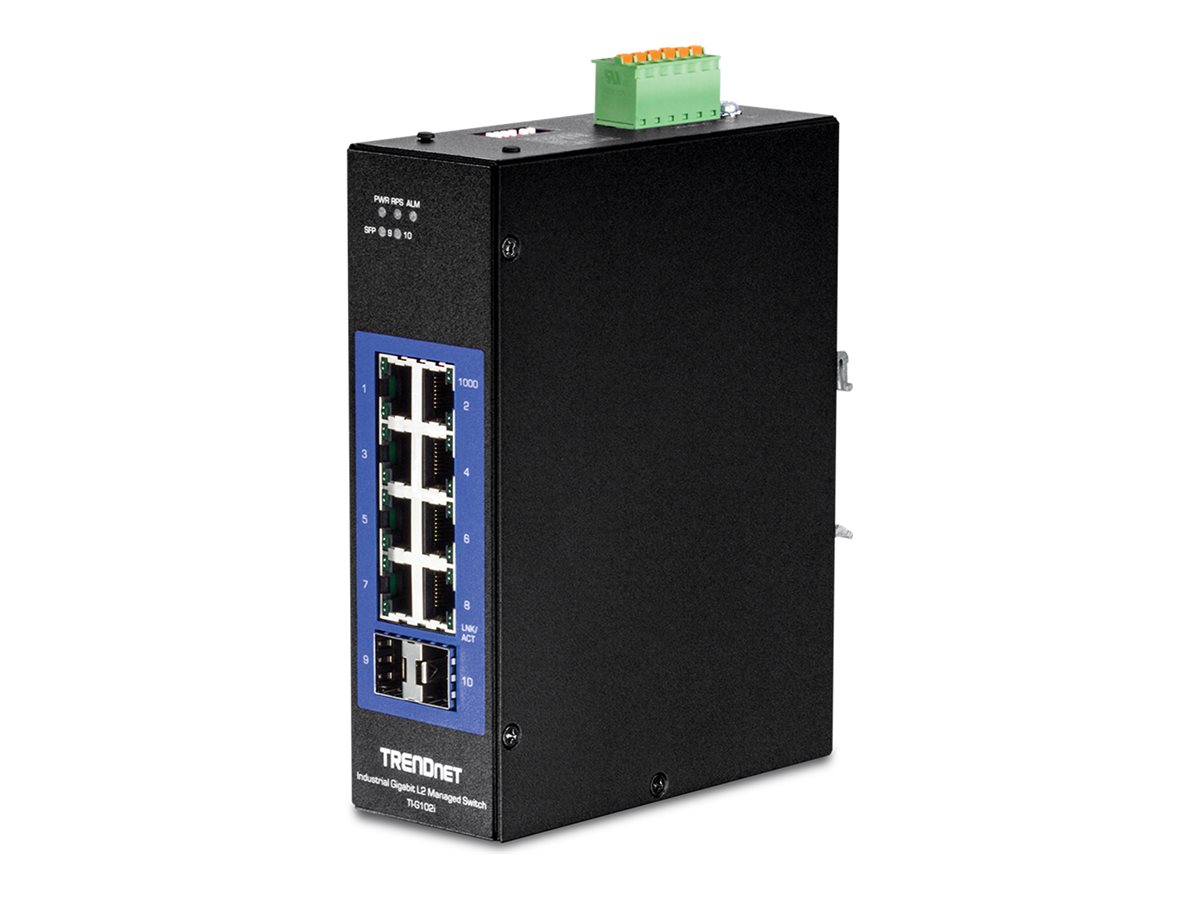

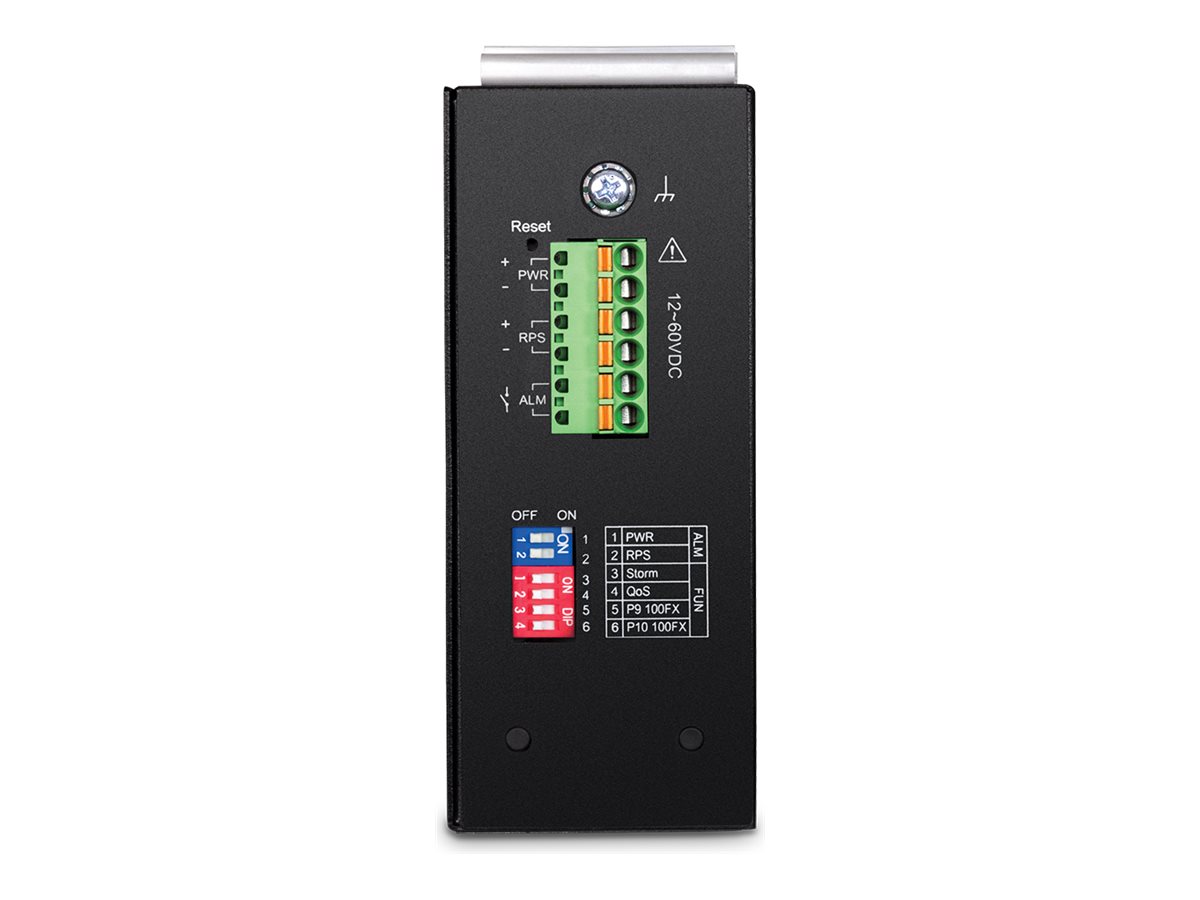

TRENDnet TI-G102i Switch 10-porte Gigabit
TRENDnet TI-G102i - Industrial - switch - Administreret - 8 x 10/100/1000 + 2 x Gigabit SFP - DIN monterbar på skinne - DC strøm - TAA-kompatibel
-
Product no 994884231
Model TI-G102I
Brand
Go to brand's websiteEAN 0710931161557
Weight 1.12 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TI-G102i - Industrial - switch - 10 porte - Administreret - TAA-kompatibel |
| Enhedstype | Switch - 10 porte - Administreret |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Præstation | Skift af stofbåndbredde: 20 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 14.88 Mpps |
| Kapacitet | VLAN-grupper: 256 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 10KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3 |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, SMTP, Modbus |
| Egenskaber | Layer 2 switching, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, Weighted Round Robin (WRR) kø, gem og send, MAC-adresse-filtrering, Broadcast Storm Control, halv dupleksmodus, fuld dupleksmodus, Multicast Storm Control, firmware kan opgraderes, SNTP-understøttet, Digital Diagnostics Monitoring Interface (DDMI), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), nulstillingsknap, båndbreddekontrol, blæserløs, LLDP support, DHCP videresendelse, Link Aggregation Control Protocol (LACP), SNMP fælde, Management Information Base (MIB), Strict Priority Queuing (SPQ), indbygget DIP switch, portisolering, Class of Service (CoS), mærket VLAN, 8KV ESD Protector, ONVIF support, metalkabinet, DiffServ Code Point (DSCP) support, IP-kildebekyttelse, ARP-inspektion, Management Information Base (MIB) II, MAC-adresselæring, Ethernet Ring Protection Switching (ERPS) v2, 2 KV strømstødsbeskyttelse, BPDU Filter, MAC based VLAN, tilbageløkke-detektion, IGMP omgående forlad, køplanlægningssupport, MAC-adresse til portbinding |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX |
| Effekt | DC 12 - 60 V - strømadapter ikke inkluderet |
| Overskudsspænding | Valgfri |
| Dimensioner (B x D x H) | 5 cm x 12 cm x 16 cm |
| Vægt | 884 g |
| TAA kompatibel | Ja |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | RADIUS, internal user database |
| Built-in Devices | LED panel |
| Capacity | VLAN groups: 256 |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable |
| Features | Layer 2 switching, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmwa |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching fabric bandwidth: 20 Gbps | Forwarding performance (64-byte packet size): 14.88 Mpps |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| RAM | 128 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, SMTP, Modbus |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Status Indicators | Power, alarm, RPS (Redundant Power Supply), link/activity, SFP |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 | 2 x Gigabit LAN SFP |
| Power | |
| Features | Overload Current Protection |
| Max Supported Qty | 2 |
| Power Consumption Operational | 13 Watt |
| Power Device | External power adapter (not included) |
| Power Redundancy | Optional |
| Voltage Required | DC 12 - 60 V |
| Miscellaneous | |
| Compliant Standards | FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Included Accessories | DIN-rail mounting kit, removable terminal block |
| MTBF | 617,085 hours |
| Dimensions & Weight | |
| Depth | 12 cm |
| Height | 16 cm |
| Weight | 884 g |
| Width | 5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
