TRENDnet TI-G102 Switch 10-porte Gigabit

TRENDnet TI-G102 - Switch - ikke administreret - 8 x 10/100/1000 + 2 x combo Gigabit SFP - DIN monterbar på skinne, væg-monterbar - DC strøm - TAA-kompatibel

Varenummer: 992135760
Model: TI-G102
EAN: 0710931160925
Brand:
Vægt: 0.7 kg

Specifications

Produktbeskrivelse
TRENDnet TI-G102 - switch - 10 porte - ikke administreret - TAA-kompatibel
Enhedstype
Switch - 10 porte - ikke administreret
Undertype
Gigabit Ethernet
Porte
8 x 10/100/1000 + 2 x combo Gigabit SFP
Præstation
Omkoblingskapacitet: 20 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 14,8 Mpps
MAC adresse table størrelse
16K indtastningshukommelse
Jumborammesupport
10KB
Egenskaber
Auto-negotiation, gem og send, halv dupleksmodus, fuld dupleksmodus, 2 MB pakke-buffer, 6KV ESD Protector, metalkabinet
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Effekt
DC 12 - 56 V - strømadapter ikke inkluderet
Overskudsspænding
Ja
Dimensioner (B x D x H)
15.5 cm x 12 cm x 4.8 cm
Vægt
415 g
TAA kompatibel
Ja
Producentgaranti
Begrænset livtidsgaranti
Specifications

Full specifications

General
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Device Type
Switch - 10 ports - unmanaged
Enclosure Type
DIN rail mountable, wall-mountable
Features
Auto-negotiation, store and forward, half duplex mode, full duplex mode, 2MB packet buffer, 6KV ESD Protector, metal housing
Jumbo Frame Support
10KB
MAC Address Table Size
16K entries
Performance
Switching capacity: 20 Gbps | Forwarding performance (64-byte packet size): 14.8 Mpps
Ports
8 x 10/100/1000 + 2 x combo Gigabit SFP
Subtype
Gigabit Ethernet
Expansion / Connectivity
Interfaces
10 x 1000Base-T RJ-45 | 2 x SFP
Power
Max Supported Qty
2
Power Consumption Operational
5.76 Watt
Power Device
External power adapter (not included)
Power Redundancy
Yes
Voltage Required
DC 12 - 56 V
Miscellaneous
Compliant Standards
FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
Included Accessories

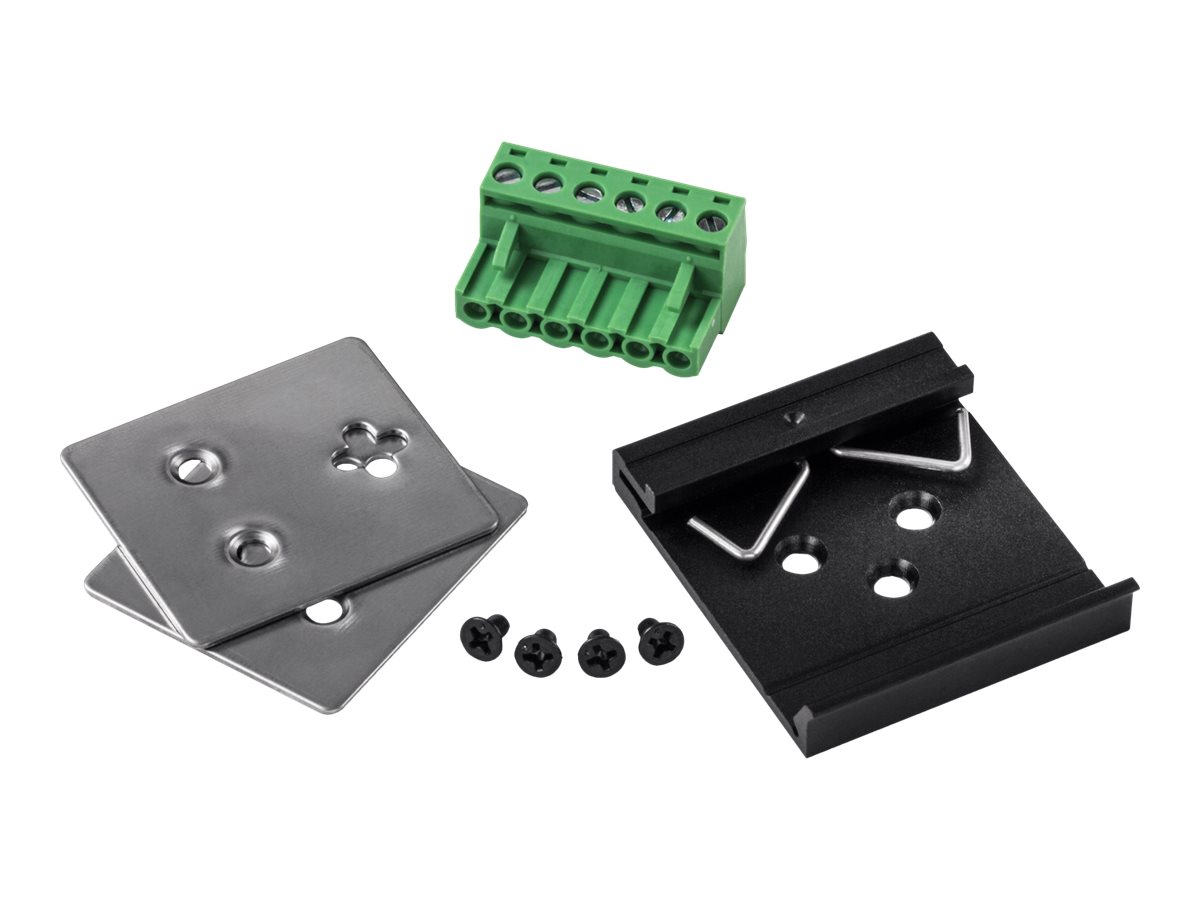

DIN-rail mounting kit, wall mounting kit, removable terminal block
MTBF
510,400 hours
Dimensions & Weight
Depth
12 cm
Height
4.8 cm
Weight
415 g
Width
15.5 cm
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Humidity Range Operating
95% (non-condensing)
Max Operating Temperature
75 °C
Min Operating Temperature
-40 °C
