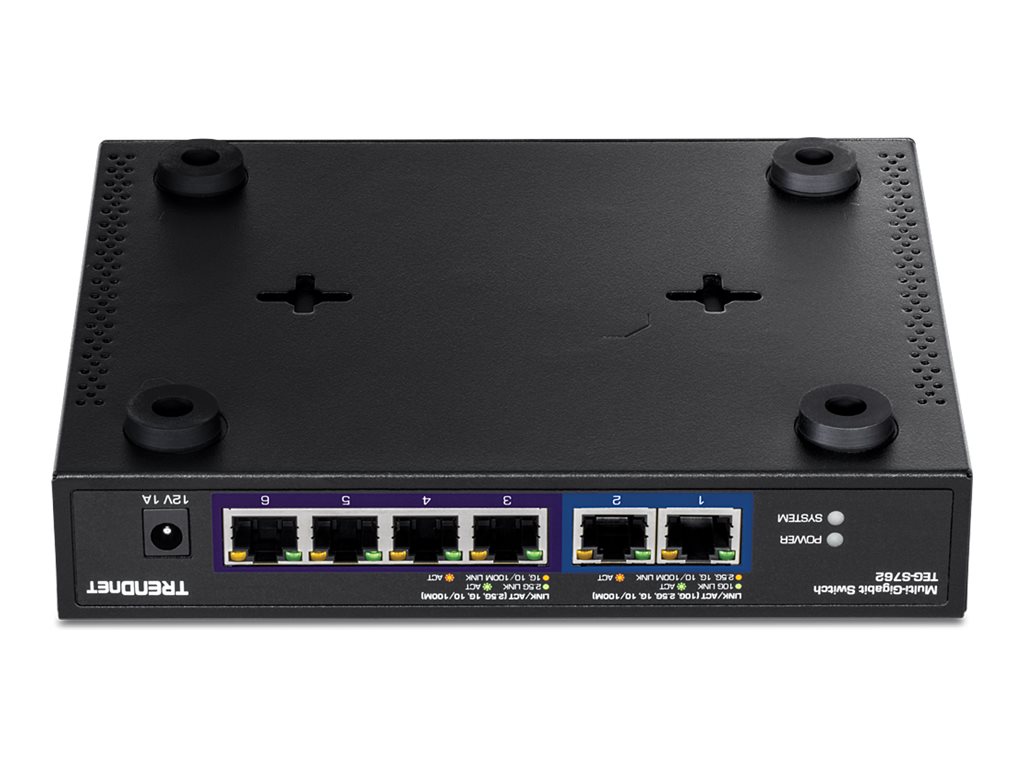

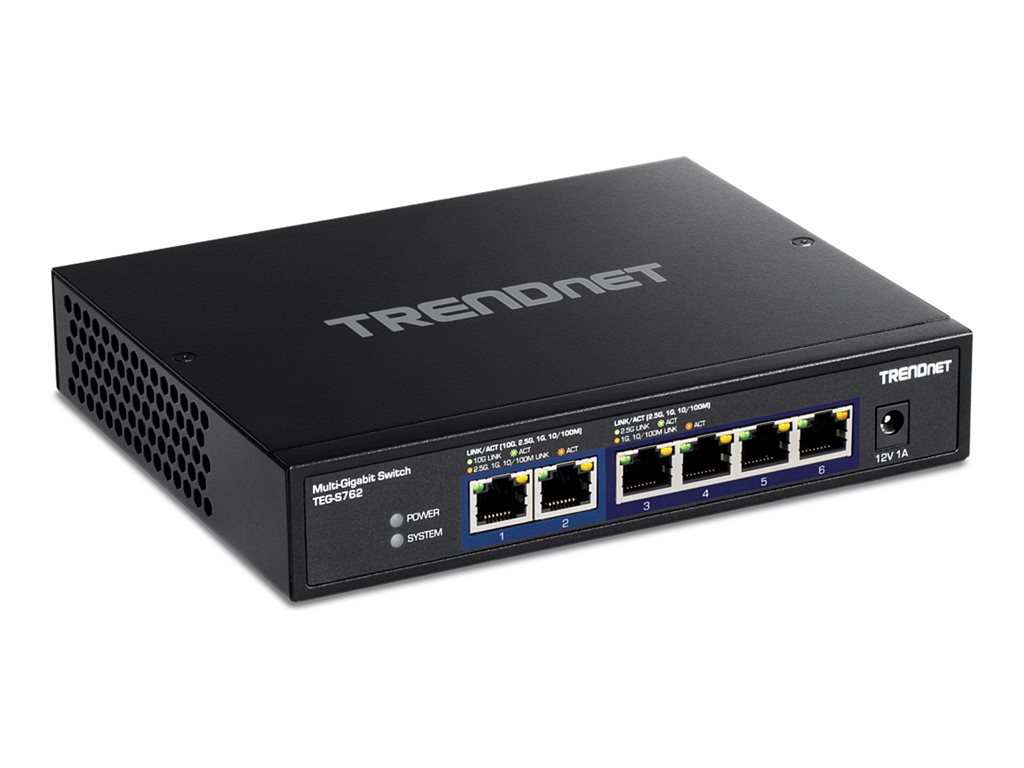

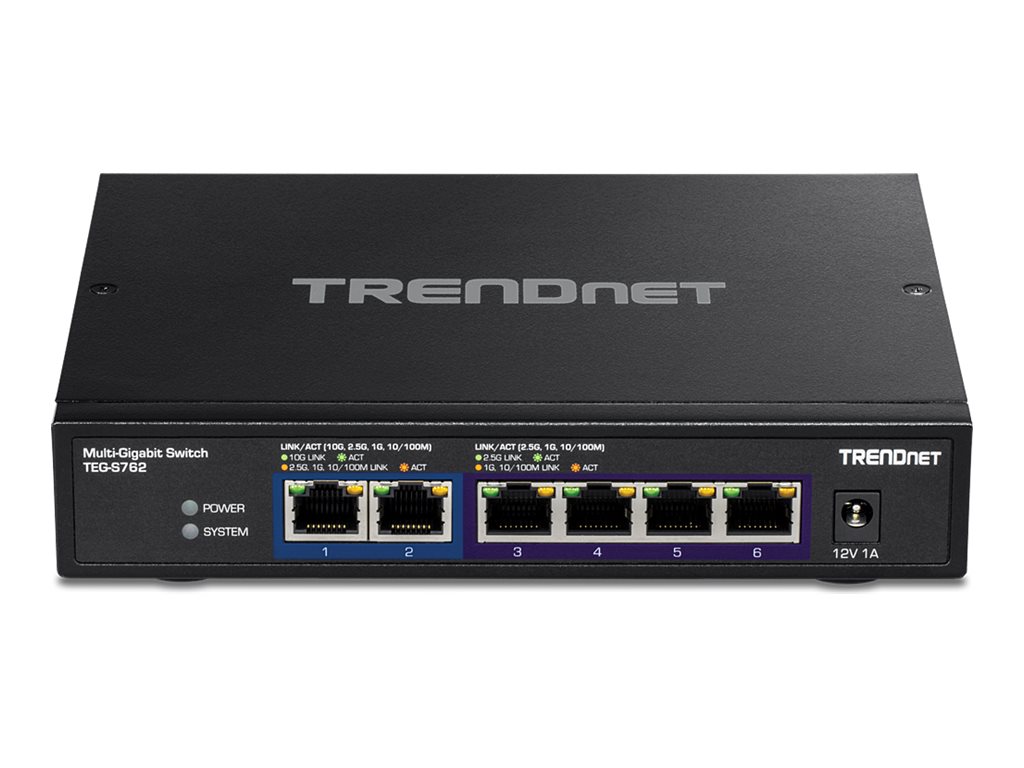

TRENDnet TEG-S762 Switch 6-porte 2x 10 Gigabit 4x 2.5 Gigabit
TRENDnet TEG-S762 - Switch - ikke administreret - 2 x 10GBase-T + 4 x 2.5GBase-T - desktop, væg-monterbar - TAA-kompatibel
-
Product no 998932101
Model TEG-S762
Brand
Go to brand's websiteEAN 0710931140729
Weight 0.81 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TEG-S762 - switch - 6 porte - ikke administreret - TAA-kompatibel |
| Enhedstype | Switch - 6 porte - ikke administreret |
| Undertype | 10 Gigabit Ethernet |
| Porte | 2 x 10GBase-T + 4 x 2.5GBase-T |
| Præstation | Omkoblingskapacitet: 60 Gbps<br>Videresendelsesrate (64‑byte pakker): 44.64 Mpps |
| Kapacitet | Bufferkapacitet (MB): 2 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Egenskaber | Gem og send, halv dupleksmodus, fuld dupleksmodus, Jumbo Frames support, blæserløs |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 18 cm x 14.5 cm x 3.3 cm |
| Vægt | 2.33 kg |
| TAA kompatibel | Ja |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Capacity | Buffer capacity (MB): 2 |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Device Type | Switch - 6 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Features | Store and forward, half duplex mode, full duplex mode, Jumbo Frames support, fanless |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 60 Gbps | Forwarding rate (64‑byte packets): 44.64 Mpps |
| Ports | 2 x 10GBase-T + 4 x 2.5GBase-T |
| Subtype | 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 2 x 10GBase-T RJ-45 | 4 x 2.5GBase-T RJ-45 |
| Power | |
| Power Consumption Operational | 11.9 Watt |
| Power Device | External power adapter |
| Power Provided | 12 V - 1 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | IC, FCC |
| MTBF | 379,884 hours |
| Dimensions & Weight | |
| Depth | 14.5 cm |
| Height | 3.3 cm |
| Weight | 2.33 kg |
| Width | 18 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | Up to 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
