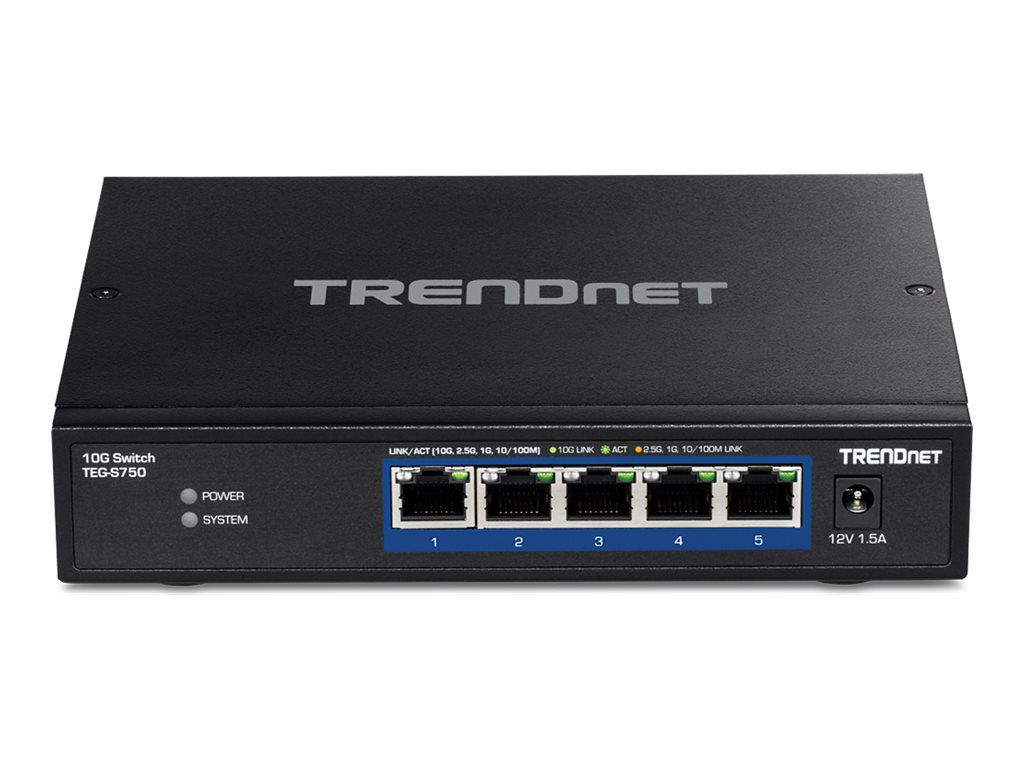

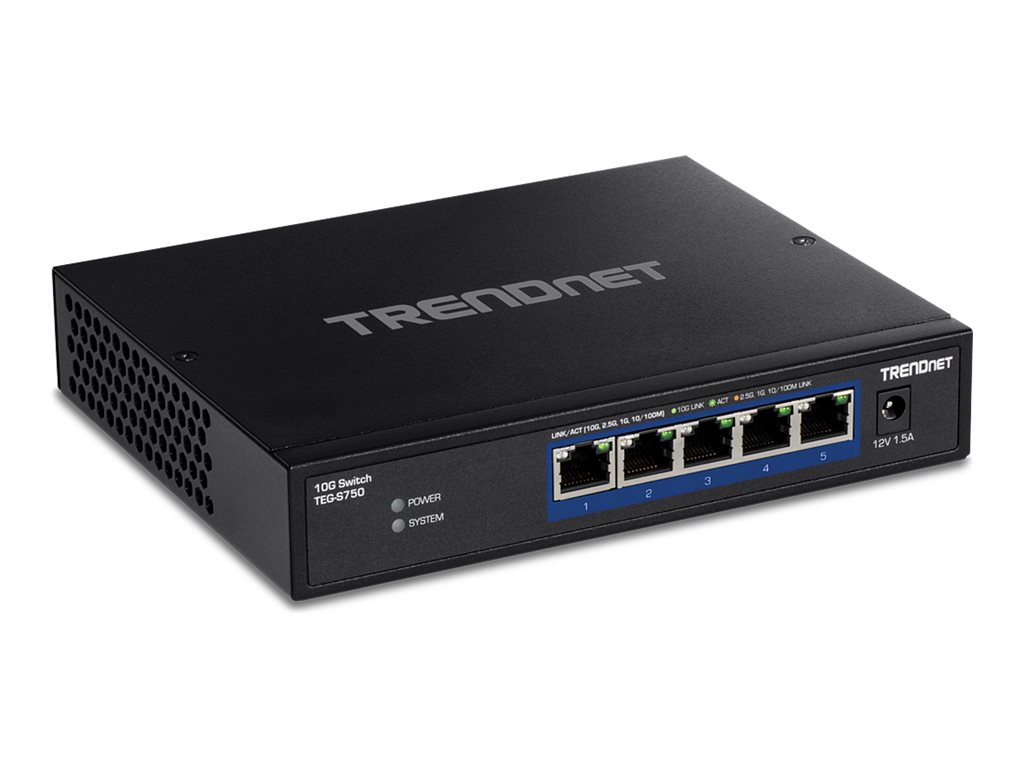

TRENDnet TEG-S750 Switch 5-porte 10 Gigabit
TRENDnet TEG-S750 - Switch - ikke administreret - 5 x 10GBase-T - desktop, væg-monterbar - TAA-kompatibel
Product no:
998932098
Model:
TEG-S750
EAN:
0710931140705
Brand:
Weight:
1.34 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
TRENDnet TEG-S750 - switch - 5 porte - ikke administreret - TAA-kompatibel
|
|
Enhedstype
|
Switch - 5 porte - ikke administreret
|
|
Undertype
|
10 Gigabit Ethernet
|
|
Porte
|
5 x 10GBase-T
|
|
Præstation
|
Omkoblingskapacitet: 60 Gbps<br>Videresendelsesrate (64‑byte pakker): 44.64 Mpps
|
|
Kapacitet
|
Bufferkapacitet (MB): 2
|
|
MAC adresse table størrelse
|
16K indtastningshukommelse
|
|
Jumborammesupport
|
9KB
|
|
Egenskaber
|
Gem og send, halv dupleksmodus, fuld dupleksmodus, Jumbo Frames support, blæserløs
|
|
Overensstemmelsesstandarder
|
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
|
|
Effekt
|
AC 100-240 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
18 cm x 14.5 cm x 3.3 cm
|
|
Vægt
|
2.33 kg
|
|
TAA kompatibel
|
Ja
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
Buffer capacity (MB): 2
|
|
Compliant Standards
|
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
|
|
Device Type
|
Switch - 5 ports - unmanaged
|
|
Enclosure Type
|
Desktop, wall-mountable
|
|
Features
|
Store and forward, half duplex mode, full duplex mode, Jumbo Frames support, fanless
|
|
Jumbo Frame Support
|
9KB
|
|
MAC Address Table Size
|
16K entries
|
|
Performance
|
Switching capacity: 60 Gbps | Forwarding rate (64‑byte packets): 44.64 Mpps
|
|
Ports
|
5 x 10GBase-T
|
|
Subtype
|
10 Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
5 x 10GBase-T RJ-45
|
|
Power
|
|
|
Power Consumption Operational
|
11.9 Watt
|
|
Power Device
|
External power adapter
|
|
Power Provided
|
12 V - 1 A
|
|
Voltage Required
|
AC 100-240 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
IC, FCC
|
|
MTBF
|
379,884 hours
|
|
Dimensions & Weight
|
|
|
Depth
|
14.5 cm
|
|
Height
|
3.3 cm
|
|
Weight
|
2.33 kg
|
|
Width
|
18 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
Up to 95% (non-condensing)
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
