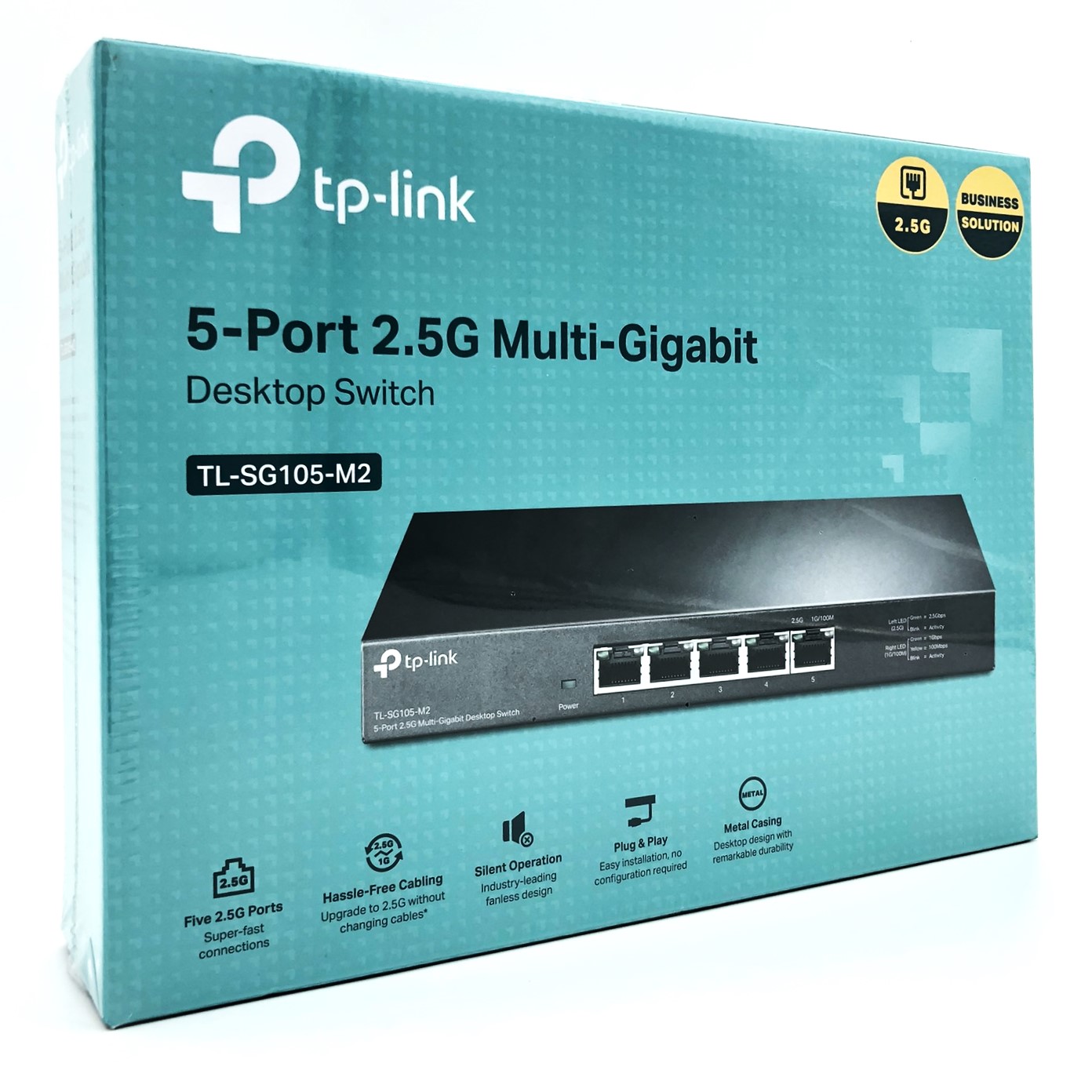

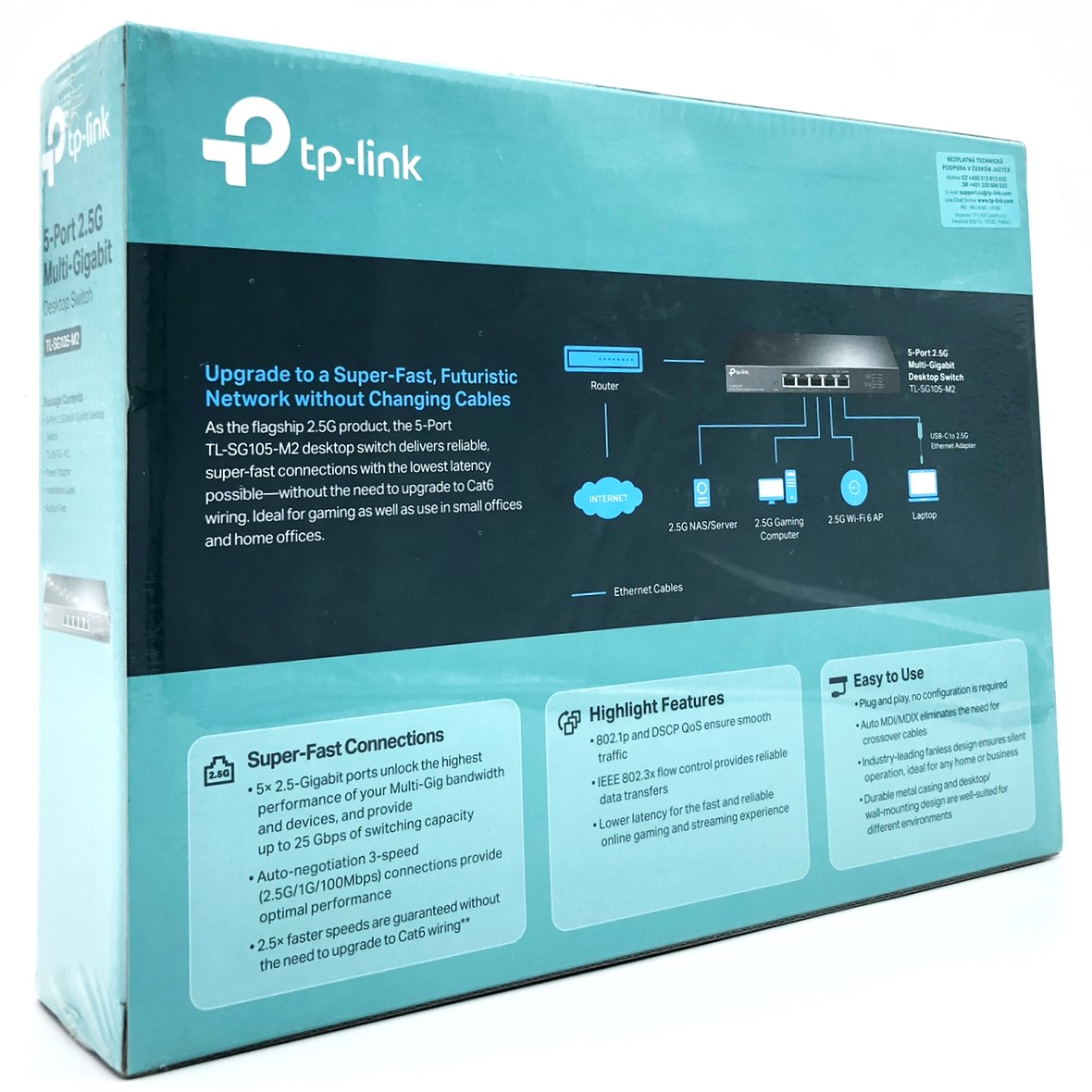

TP-Link TL-SG105-M2 Switch 5-porte 2.5 Gigabit
TP-Link TL-SG105-M2 - V1 - switch - ikke administreret - 5 x 100/1000/2.5G - desktop, væg-monterbar
-
Product no 998089002
Model TL-SG105-M2
Brand TP-LINK Technologies
EAN 6935364052881
Weight 0.98 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TP-Link TL-SG105-M2 - V1 - switch - 5 porte - ikke administreret |
| Enhedstype | Switch - 5 porte - ikke administreret |
| Undertype | 2.5 Gigabit Ethernet |
| Porte | 5 x 100/1000/2.5G |
| Præstation | Omkoblingskapacitet: 25 Gbps<br>Pakkevideresendelseshastighed: 18,6 Mpps |
| Kapacitet | Pakkebufferstørrelse: 1,5 MB |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 10.000 byte |
| Egenskaber | Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, QoS, blæserløs, metalkabinet, DSCP support |
| Overensstemmelsesstandarder | IEEE 802.1p, IEEE 802.3x |
| Dimensioner (B x D x H) | 20.9 cm x 12.6 cm x 2.6 cm |
| General | |
|---|---|
| Capacity | Packet buffer size: 1.5 MB |
| Compliant Standards | IEEE 802.1p, IEEE 802.3x |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), fanless, metal housing, DiffServ Code Point (DSCP) support |
| Jumbo Frame Support | 10000 bytes |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 25 Gbps | Packet forwarding rate: 18.6 Mpps |
| Ports | 5 x 100/1000/2.5G |
| Status Indicators | Power, status |
| Subtype | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 5 x 100/1000/2.5G RJ-45 |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 12 V - 1 A |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Dimensions & Weight | |
| Depth | 12.6 cm |
| Height | 2.6 cm |
| Width | 20.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
