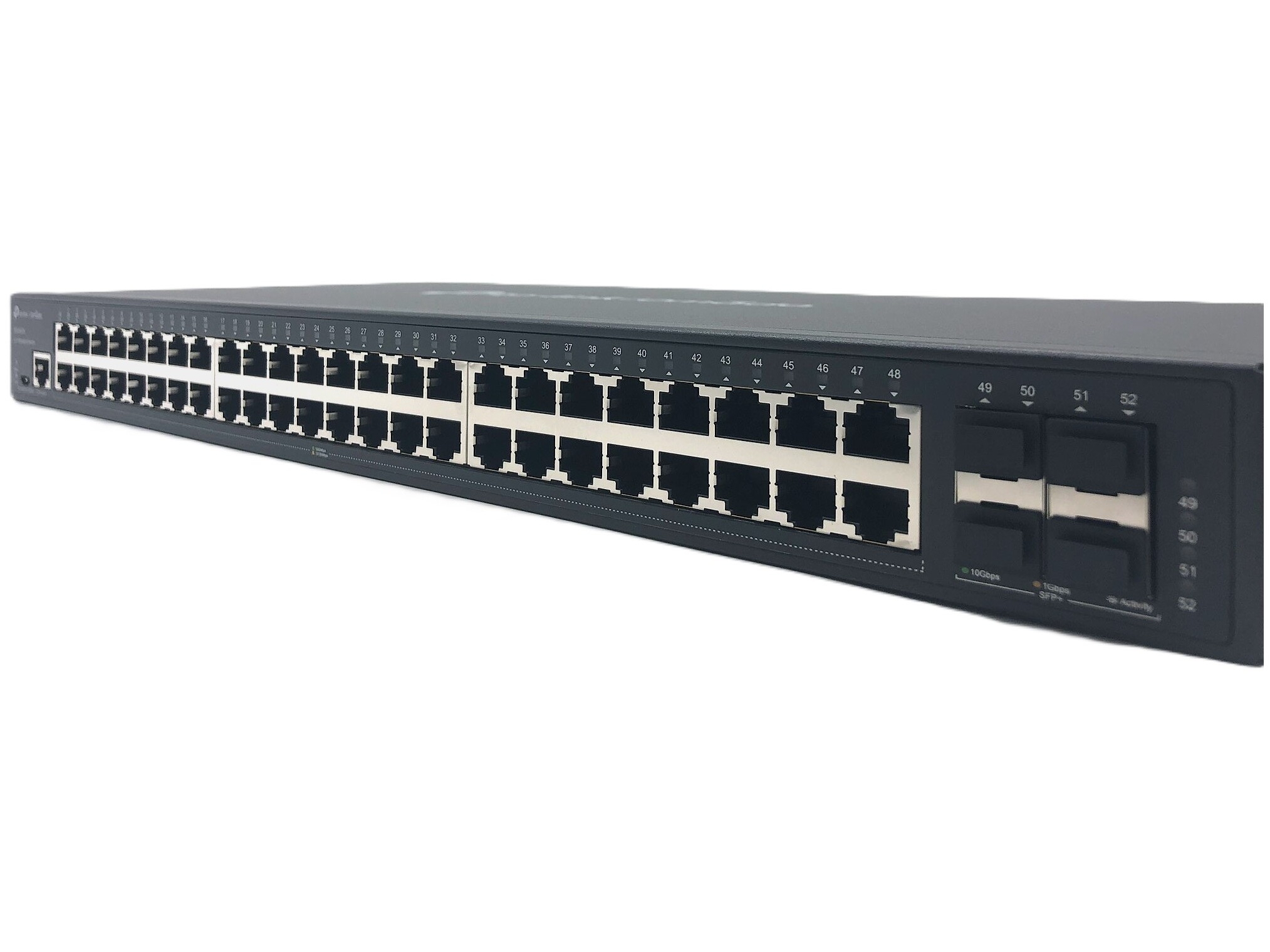

TP-Link JetStream TL-SG3452X V1 Switch 52-porte Gigabit
TP-Link JetStream TL-SG3452X V1 - Switch - Administreret - 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ - monterbar på stativ
-
Product no 1000542873
Model TL-SG3452X
Brand TP-LINK Technologies
EAN 6935364006471
Weight 4.15 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TP-Link JetStream TL-SG3452X V1 - switch - 52 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 52 porte - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Præstation | Omkoblingskapacitet: 176 Gbps<br>Pakkevideresendelseshastighed: 130,94 Mpps |
| Kapacitet | Antal interfacer: 16<br>VLAN-grupper: 4000<br>Prioritetskøer: 8 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, ICMP, DHCP, RSTP |
| Egenskaber | Datatransport, VPN support, understøttet af BOOTP, understøttet af ARP, IGMP snooping, Syslog understøttet, DoS attack beskyttelse, portspejling, gem og send, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MDL snooping, Cable Diagnostics Function, båndbreddekontrol, DLDP support, blæserløs, LLDP support, DHCP videresendelse, LACP, Port Security, MVR, NDP, portisolering, 12 MB pakkebuffer, CoS, SP, GVRP, 802.1x autentificering, sky-administreret, DSCP support, IP-kildebekyttelse, ARP-inspektion, BPDU, dobbelt billedsupport, SDN, AAA, LLDP-MED, VLAN-gruppe, gæsteadgang, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, tilbageløkke-detektion, Advanced QoS, MAB, sikkerhedsåbning (Kensington-sikkerhedslåskompatibel) |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44 cm x 22 cm x 4.4 cm |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | Number of interfaces: 16 | VLAN groups: 4000 | Priority queues: 8 |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 52 ports - managed |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Features | Flow control, VPN support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable |
| Flash Memory | 32 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 176 Gbps | Packet forwarding rate: 130.94 Mpps |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, ICMP, DHCP, RSTP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Status Indicators | Status |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 | 4 x 10GBase-X SFP | 1 x console RJ-45 | 1 x micro-USB console |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 22 cm |
| Height | 4.4 cm |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
