Thermaltake ToughPower GF2 ARGB TTP-850AH3FSG-A Strømforsyning 850Watt

Thermaltake ToughPower GF2 ARGB TTP-850AH3FSG-A - TT Premium Edition - strømforsyning (intern) - ATX12V - 80 PLUS Gold - 850 watt - aktiv PFC - sort

Varenummer: 998154375
Model: PS-TPD-0850F3FAGE-2
EAN: 4713227527262
Brand:
Thermaltake Technolo
Vægt: 3.43 kg

Specifications

Produktbeskrivelse
Thermaltake ToughPower GF2 ARGB TTP-850AH3FSG-A - TT Premium Edition - strømforsyning - 850 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V
80 PLUS certificering
80 PLUS Gold
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 watt
Output Current
+3.3V - 22 A<br>+5V - 22 A<br>+12V - 70.9 A<br>-12V - 0.3 A<br>+5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>12 x 15 pin Serial ATA strøm<br>6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 4-PIN intern strøm<br>1 x effekt 8 pins +12V
Modulær Kabel Administration
Ja
Kølesystem
140 mm ventilator
Udstyr inkluderet
150 mm floppy-adapter
Farve
Sort
Dimensioner (B x D x H)
15 cm x 16 cm x 8.6 cm
Producentgaranti
10-års garanti
Specifications

Full specifications

General
Color
Black
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V
Power Device
80 PLUS Certification
80 PLUS Gold
Frequency Required
50 - 60 Hz
Input Voltage Range
AC 100 - 240 V
Modular Cable Management
Yes
Output Current
+3.3V - 22 A | +5V - 22 A | +12V - 70.9 A | -12V - 0.3 A | +5VSB - 3 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
850 Watt

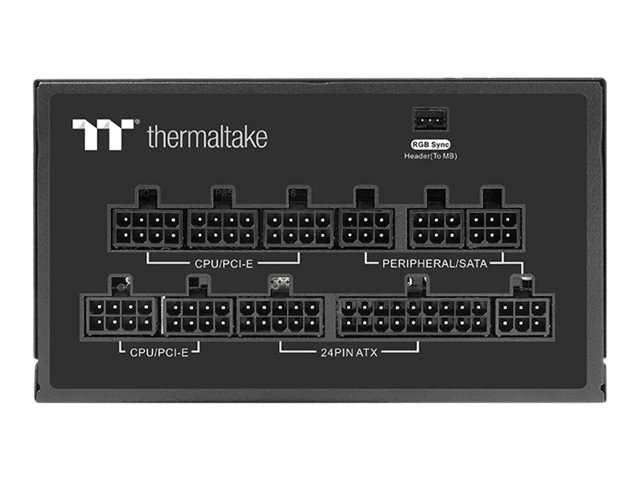

Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 12 x 15 pin Serial ATA power | 6 x 8 pin PCI Express power with detachable 2 pin section | 4 x 4 pin internal power | 1 x power 8 pin +12V
Miscellaneous
Compliant Standards
TUV, C-Tick, BSMI, FCC, S Mark, cTUVus, EAC

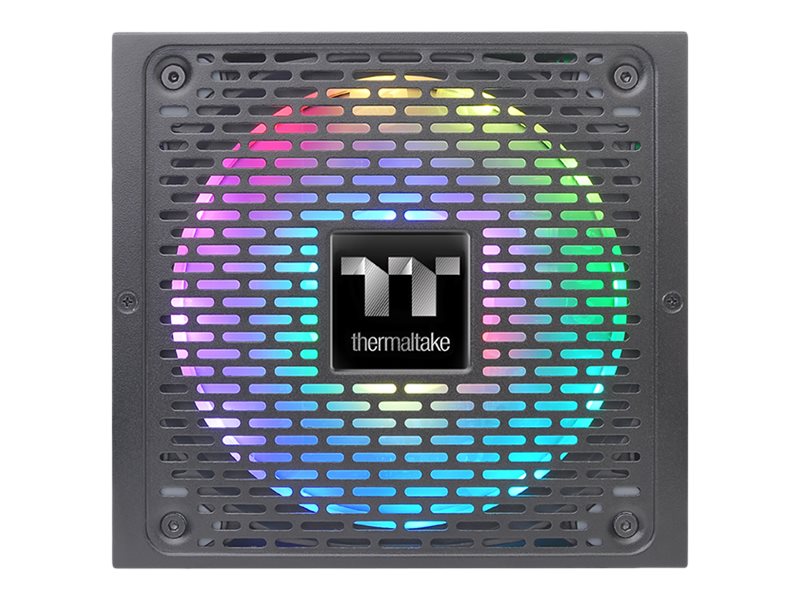

Cooling System
140 mm fan
Features
Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, single 12V rail, hydraulic bearing cooling fan, fully modular, Smart Zero Fan, 16.8 million colors RGB fan, undervoltage correction,

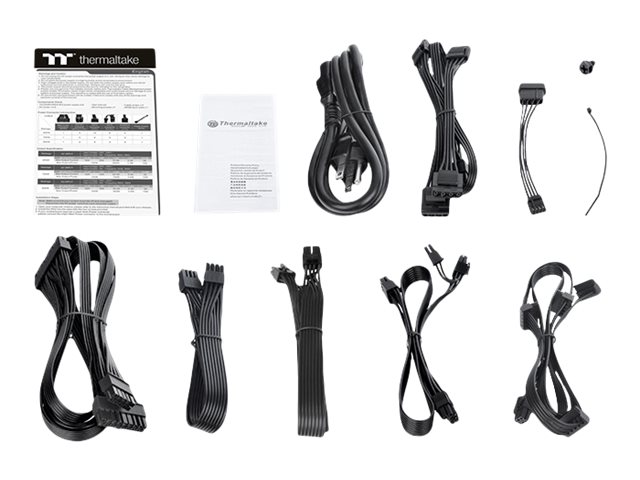

Included Accessories
150mm floppy adapter
MTBF
100,000 hours
Manufacturer Warranty
Service & Support
Limited warranty - 10 years
Environmental Parameters
Humidity Range Operating
20 - 90% (non-condensing)
Max Operating Temperature
40 °C
Min Operating Temperature
0 °C
Dimensions & Weight
Depth
16 cm
Height
8.6 cm
Width
15 cm
