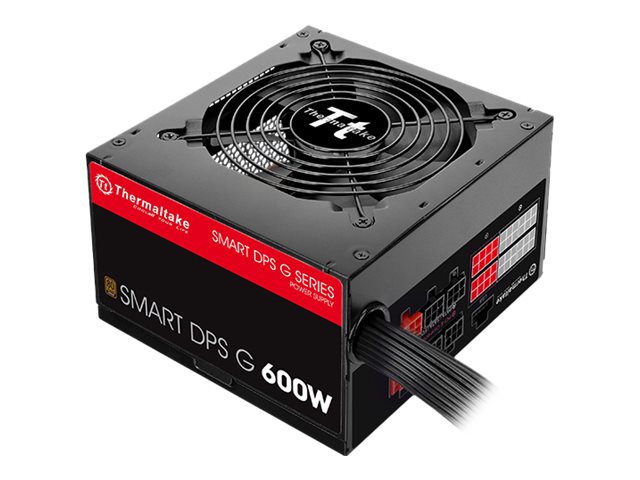

Thermaltake SMART DPS G 600W Strømforsyning 600Watt

Thermaltake SMART DPS G 600W - Strømforsyning (intern) - ATX12V 2.31/ EPS12V 2.92 - 80 PLUS Bronze - AC 100-240 V - 600 Watt - aktiv PFC - Europa - sort

  • Product no 989925322

    Model PS-SPG-0600DPCBEU-B

    Brand Thermaltake Technolo

    EAN 4717964402622

    Weight 2.36 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse Thermaltake SMART DPS G 600W - strømforsyning - 600 Watt
Enhedstype Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse ATX12V 2.31/ EPS12V 2.92
80 PLUS certificering 80 PLUS Bronze
Lokalisering Europa
Indgangspænding AC 100-240 V
Udgangspænding +3.3, +5, ±12 V
Strømkapacitet 600 Watt
Output Current +3.3V - 20 A<br>+5V - 17 A<br>+12V - 46 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A
Output-stikforbindelser 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 4-PIN intern strøm<br>6 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration Ja
Kølesystem 120 mm ventilator
Farve Sort
Dimensioner (B x D x H) 15 cm x 14 cm x 8.6 cm
General
Color Black
Device Type Power supply - active Power Factor Correction (PFC) - internal
Localization Europe
PSU Form Factor ATX
Specification Compliance ATX12V 2.31/ EPS12V 2.92
Power Device
80 PLUS Certification 80 PLUS Bronze
Frequency Required 47 - 63 Hz
Input Voltage AC 100-240 V
Modular Cable Management Yes
Output Current +3.3V - 20 A | +5V - 17 A | +12V - 46 A | -12V - 0.3 A | +5VSB - 2.5 A
Output Voltage +3.3, +5, ±12 V
Power Capacity 600 Watt
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power | 6 x 15 pin Serial ATA power | 1 x 4 pin mini-pow
Miscellaneous
Cables Included Power cable
Compliant Standards UL, TUV, BSMI, CB, FCC, EAC
Cooling System 120 mm fan
Features Overheat protection, overvoltage protection, overpower protection, short-circuit protection, dual ball bearing cooling fan, Smart Power Management (SPM), semi-modular
MTBF 120,000 hours
Environmental Parameters
Humidity Range Operating 20 - 90% (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Dimensions & Weight
Depth 14 cm
Height 8.6 cm
Width 15 cm
