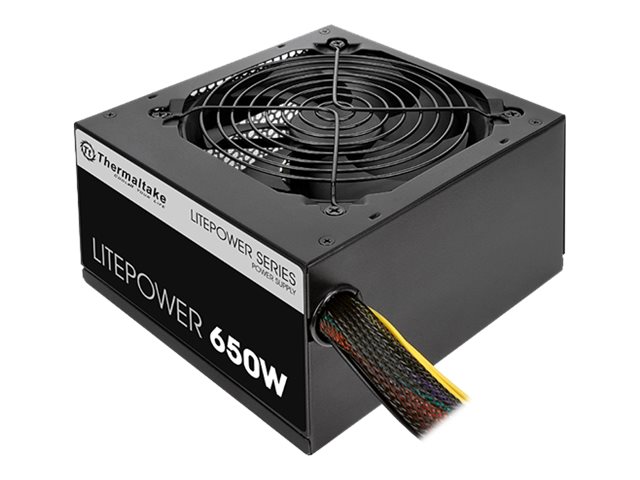

Thermaltake Litepower LTP-650AL2NK Strømforsyning 650Watt

Thermaltake Litepower LTP-650AL2NK - Strømforsyning (intern) - ATX12V 2.3 - AC 230 V - 650 watt - aktiv PFC - sort

Varenummer: 992762934
Model: PS-LTP-0650NPCNEU-2
EAN: 4717964404251
Brand:
Thermaltake Technolo
Vægt: 1.79 kg

Specifications

Produktbeskrivelse
Thermaltake Litepower LTP-650AL2NK - strømforsyning - 650 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
650 watt
Output Current
+3.3V - 23 A<br>+5V - 17 A<br>+12V - 48 A<br>+5VSB - 2.5 A<br>-12V - 0.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>6 x 4-PIN intern strøm<br>5 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
Kølesystem
120 mm ventilator
Farve
Sort
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Color
Black
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V 2.3
Power Device
Frequency Required
50 - 60 Hz
Input Voltage
AC 230 V
Output Current
+3.3V - 23 A | +5V - 17 A | +12V - 48 A | +5VSB - 2.5 A | -12V - 0.5 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
650 Watt
Power Output Connectors Details
1 x power 24 pin ATX | 1 x power 8 pin +12V with detachable 4 pin section | 6 x 4 pin internal power | 5 x 15 pin Serial ATA power | 1 x 4 pin mini-power connector | 2 x 8 pin PCI Express power with detachable 2 pin section
Miscellaneous
Compliant Standards
CB, TUV SUD, EAC, RCM
Cooling System
120 mm fan
Features
Non-modular
MTBF
100,000 hours
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating
20 - 85% (non-condensing)
Max Operating Temperature
35 °C
Min Operating Temperature
5 °C
Dimensions & Weight
Depth
14 cm
Height
8.6 cm
Width
15 cm
