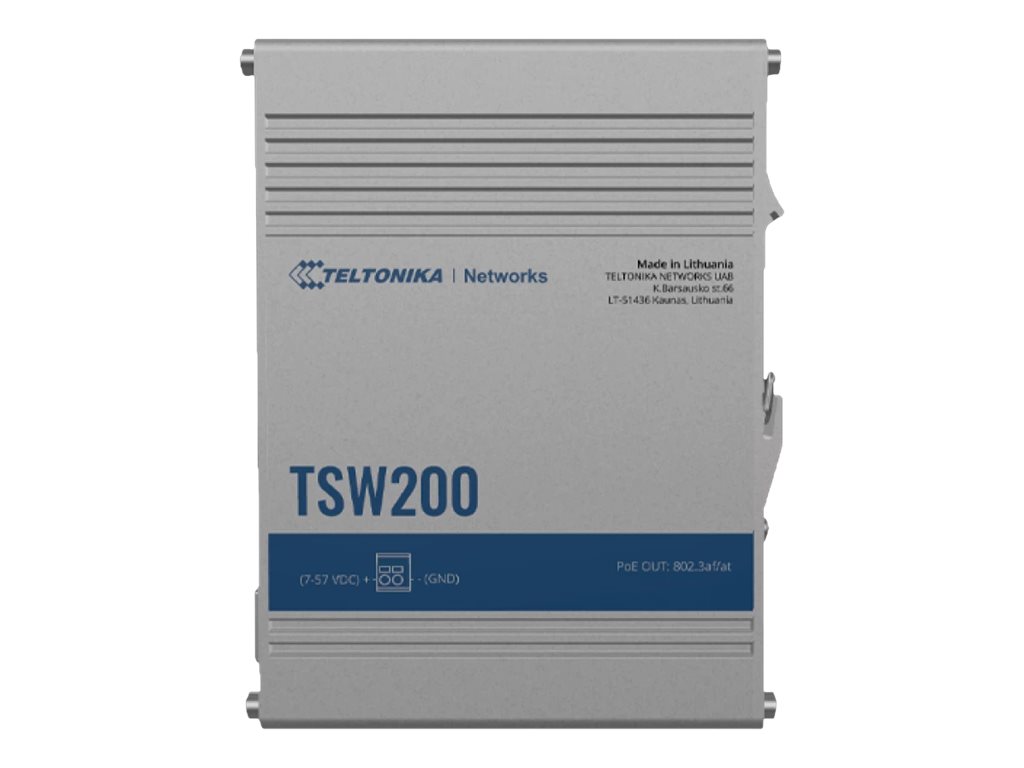

Teltonika TSW200 Switch 8-porte Gigabit PoE+
Teltonika TSW200 - Switch - ikke administreret - 8 x 10/100/1000 + 2 x Gigabit SFP - DIN monterbar på skinne, væg-monterbar - PoE+ - DC
TSW200 er en unmanaged industriswitch med 2 SFP-porte til fiberoptisk kommunikation med lang rækkevidde og 8 Gigabit Ethernet-porte, der understøtter IEEE802.af og IEE802.3at Power-over-Ethernet-standarder. Den er klassificeret som strømkildeudstyr (PSE) og muliggør centralisering af strømforsyningen, hvilket giver op til 30 watt pr. port og reducerer indsatsen for at installere strøm.
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Teltonika TSW200 - switch - 8 porte - ikke administreret
|
|
Enhedstype
|
Switch - 8 porte - ikke administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
8 x 10/100/1000 + 2 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
MAC adresse table størrelse
|
2K indtastningshukommelse
|
|
Egenskaber
|
Aluminiumskabinet
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3az
|
|
Effekt
|
DC DC 7 - 57 V
|
|
Dimensioner (B x D x H)
|
13.2 cm x 9.51 cm x 4.42 cm
|
|
Vægt
|
146.5 g
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3az
|
|
Device Type
|
Switch - 8 ports - unmanaged
|
|
Enclosure Type
|
DIN rail mountable, wall-mountable
|
|
Features
|
Aluminum housing
|
|
MAC Address Table Size
|
2K entries
|
|
Ports
|
8 x 10/100/1000 + 2 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Status Indicators
|
Power, status
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x RJ-45
|
|
Power
|
|
|
Voltage Required
|
DC DC 7 - 57 V
|
|
Miscellaneous
|
|
|
Compliant Standards
|
IP30
|
|
Dimensions & Weight
|
|
|
Depth
|
9.51 cm
|
|
Height
|
4.42 cm
|
|
Weight
|
146.5 g
|
|
Width
|
13.2 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
