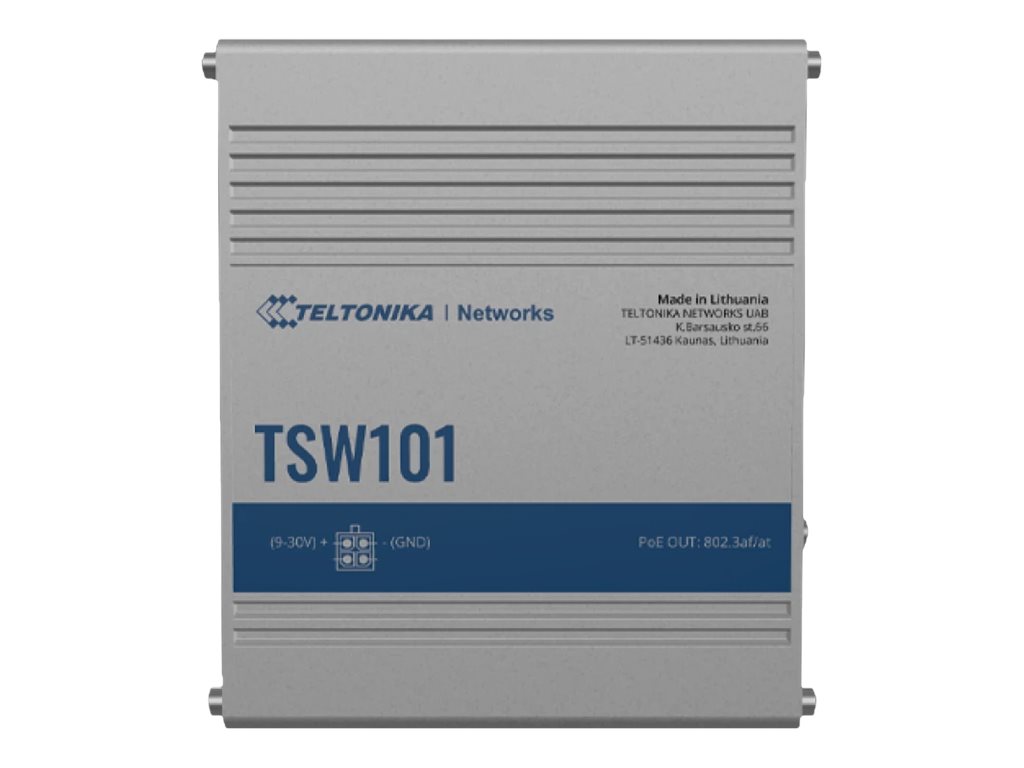

Teltonika TSW101 Switch 5-porte Gigabit PoE+
Teltonika TSW101 - Switch - 5 x 10/100/1000 - DIN monterbar på skinne, væg-monterbar - PoE+ - DC
Den første switch nogensinde til bilindustrien har fem Gigabit Ethernet-porte med PoE+-understøttelse, så du kan tilslutte flere enheder til netværket og give dem strøm via de samme grænseflader. Nyd pålidelige forbindelser med høj båndbredde i en enkel, økonomisk løsning, der er nem at installere.
Specifications
|
Produktbeskrivelse
|
Teltonika TSW101 - switch - 5 porte
|
|
Enhedstype
|
Switch - 5 porte
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
5 x 10/100/1000
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
MAC adresse table størrelse
|
2K indtastningshukommelse
|
|
Jumborammesupport
|
9216 byte
|
|
Egenskaber
|
Aluminiumskabinet
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3az
|
|
Effekt
|
DC 9 - 30 V
|
|
Dimensioner (B x D x H)
|
11.5 cm x 3.2 cm x 9.5 cm
|
|
Vægt
|
384 g
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3az
|
|
Device Type
|
Switch - 5 ports
|
|
Enclosure Type
|
DIN rail mountable, wall-mountable
|
|
Features
|
Aluminum housing
|
|
Jumbo Frame Support
|
9216 bytes
|
|
MAC Address Table Size
|
2K entries
|
|
Ports
|
5 x 10/100/1000
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Status Indicators
|
Power, status
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
5 x RJ-45
|
|
Power
|
|
|
Power Consumption Operational
|
2.31 Watt
|
|
Power Consumption Stand by
|
0.64 Watt
|
|
Voltage Required
|
DC 9 - 30 V
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, RoHS, WEEE, REACH, IP30, UKCA
|
|
Dimensions & Weight
|
|
|
Depth
|
3.2 cm
|
|
Height
|
9.5 cm
|
|
Weight
|
384 g
|
|
Width
|
11.5 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
