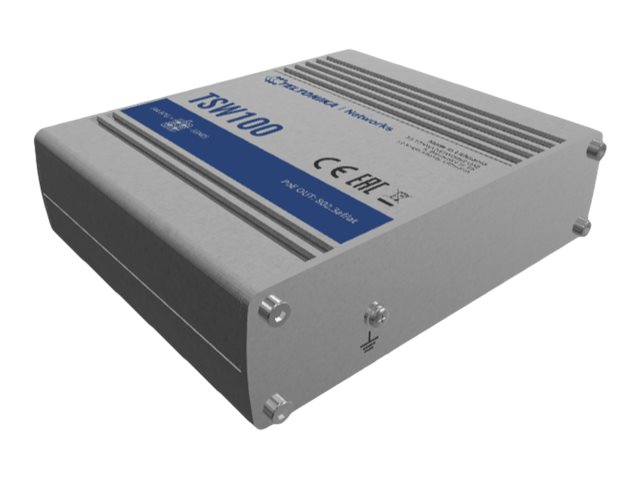

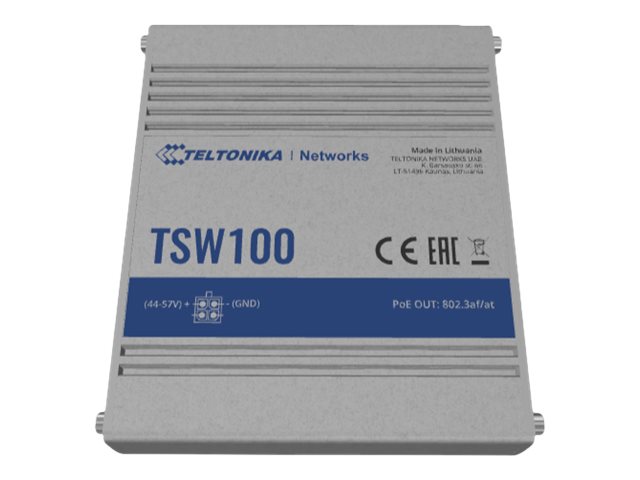

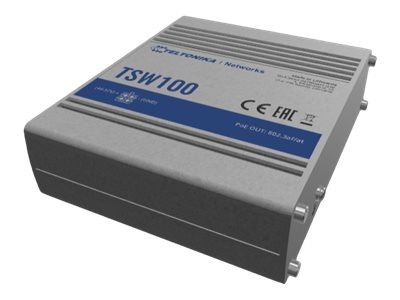

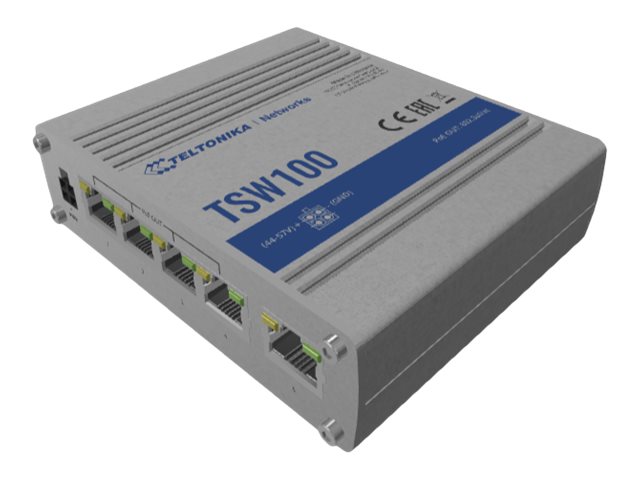

Teltonika TSW100 Switch 5-porte Gigabit PoE
Teltonika TSW100 - Switch - ikke administreret - 5 x 10/100/1000 (1 PoE) - desktop - PoE (120 W) - DC strøm
Specifications
|
Produktbeskrivelse
|
Teltonika TSW100 - switch - 5 porte - ikke administreret
|
|
Enhedstype
|
Switch - 5 porte - ikke administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
5 x 10/100/1000 (1 PoE)
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
PoE-budget
|
120 W
|
|
Præstation
|
Ikke-blokerende båndbredde: 10 Gbps
|
|
Kapacitet
|
Pakkebufferstørrelse: 128 KB
|
|
MAC adresse table størrelse
|
2K indtastningshukommelse
|
|
Jumborammesupport
|
9216 byte
|
|
Egenskaber
|
Auto-uplink (auto MDI/MDI-X), grov, aluminiumskabinet
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
|
|
Effekt
|
DC 7 - 58 V
|
|
Dimensioner (B x D x H)
|
13.2 cm x 9.5 cm x 4.4 cm
|
|
Vægt
|
340 g
|
Full specifications
|
General
|
|
|---|---|
|
Capacity
|
Packet buffer size: 128 KB
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
|
|
Device Type
|
Switch - 5 ports - unmanaged
|
|
Enclosure Type
|
Desktop
|
|
Features
|
Auto-uplink (auto MDI/MDI-X), rugged, aluminum housing
|
|
Jumbo Frame Support
|
9216 bytes
|
|
MAC Address Table Size
|
2K entries
|
|
Performance
|
Non-blocking bandwidth: 10 Gbps
|
|
PoE Budget
|
120 W
|
|
Ports
|
5 x 10/100/1000 (1 PoE)
|
|
Power Over Ethernet (PoE)
|
PoE
|
|
Status Indicators
|
Power, status
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|

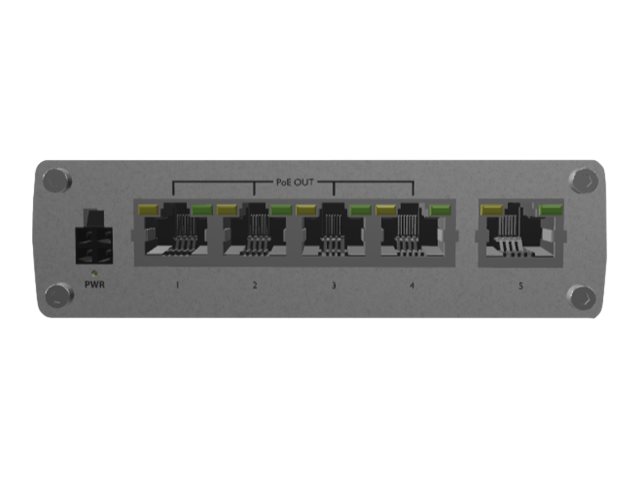

4 x 1000Base-T RJ-45 | 1 x 1000Base-T RJ-45 PoE
|
|
Power
|
|
|
Power Consumption Operational
|
129 Watt
|
|
Voltage Required
|
DC 7 - 58 V
|
|
Miscellaneous
|
|
|
Compliant Standards
|
Plug and Play, IP30
|
|
Dimensions & Weight
|
|
|
Depth
|
9.5 cm
|
|
Height
|
4.4 cm
|
|
Weight
|
340 g
|
|
Width
|
13.2 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
