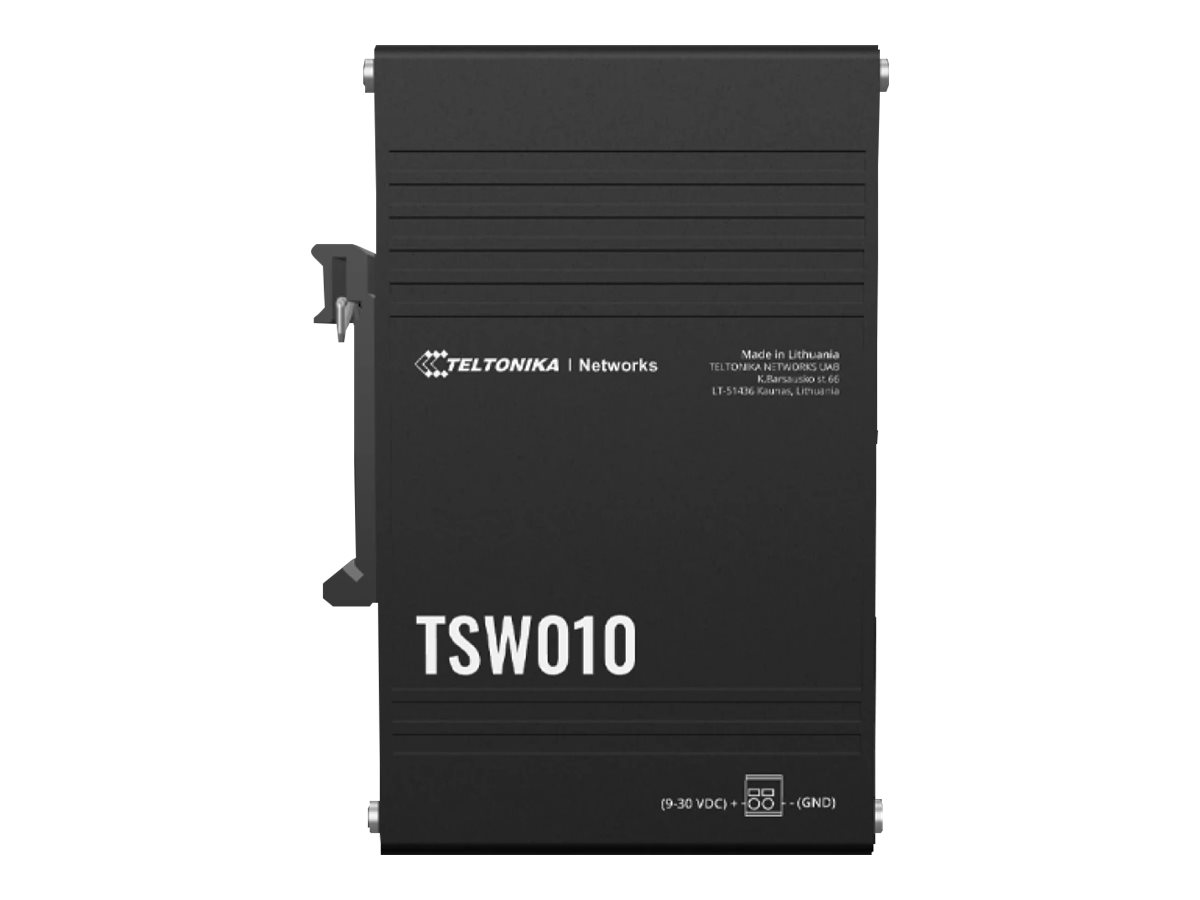

Teltonika TSW010 Switch 5-porte Gigabit Passive PoE
Teltonika TSW010 - Switch - 5 x 10/100 - DIN monterbar på skinne - Passive PoE
TSW010 er den mest prisvenlige måde at udvide netværksforbindelsen til flere Ethernet-enheder. Fem 10/100 Mbps Ethernet-porte sikrer en stabil og pålidelig forbindelse, der er tilstrækkelig til de fleste industrielle anvendelser, hvor der ikke er behov for høj kapacitet.
Specifications
|
Produktbeskrivelse
|
Teltonika TSW010 - switch - 5 porte
|
|
Enhedstype
|
Switch - 5 porte
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
5 x 10/100
|
|
Power Over Ethernet (PoE)
|
Passive PoE
|
|
MAC adresse table størrelse
|
2K indtastningshukommelse
|
|
Jumborammesupport
|
2048 byte
|
|
Egenskaber
|
Aluminiumskabinet
|
|
Overensstemmelsesstandarder
|
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
|
|
Dimensioner (B x D x H)
|
11.31 cm x 8.05 cm x 2.74 cm
|
|
Vægt
|
146.5 g
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
|
|
Device Type
|
Switch - 5 ports
|
|
Enclosure Type
|
DIN rail mountable
|
|
Features
|
Aluminum housing
|
|
Jumbo Frame Support
|
2048 bytes
|
|
MAC Address Table Size
|
2K entries
|
|
Ports
|
5 x 10/100
|
|
Power Over Ethernet (PoE)
|
Passive PoE
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
5 x RJ-45
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, RoHS, WEEE, REACH, IP30, UKCA, EN IEC 62368-1:2020
|
|
Dimensions & Weight
|
|
|
Depth
|
8.05 cm
|
|
Height
|
2.74 cm
|
|
Weight
|
146.5 g
|
|
Width
|
11.31 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
