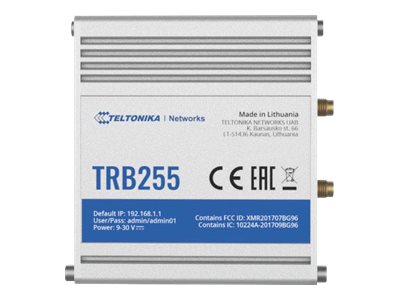

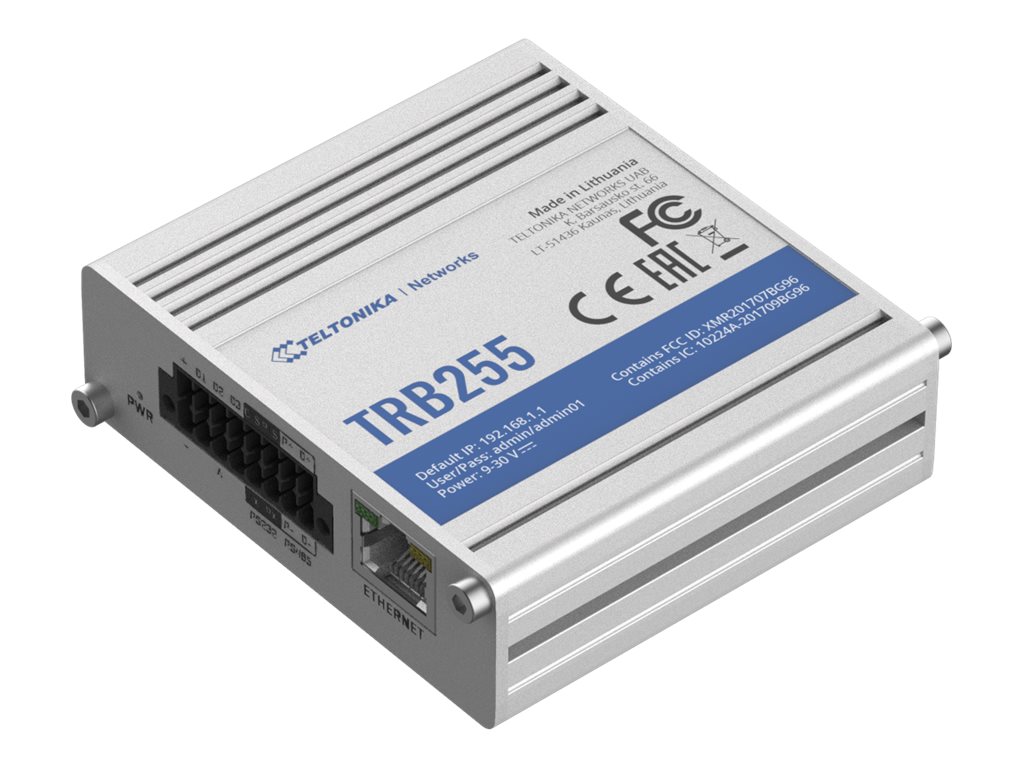

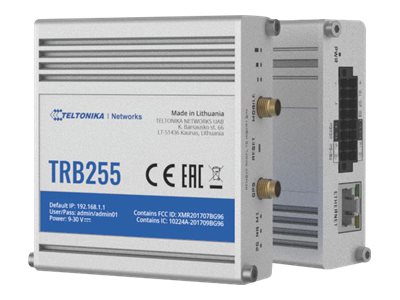

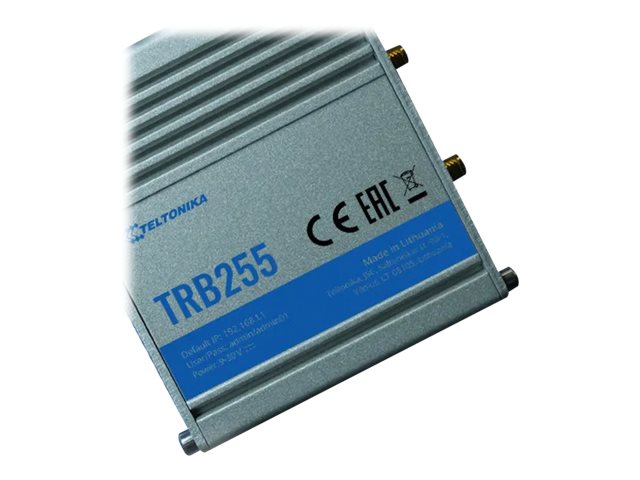

Teltonika TRB255 Gateway Ekstern
TRB255 kan bruges til at integrere moderne og ældre industrielt udstyr i én løsning via RS232-, RS485- og Ethernet-grænseflader. Denne industrielle LTE Cat M1- og NB-IoT-gateway er bagudkompatibel med EGPRS-netværk (2G). Den kan stadig bruges med 2G-netværk, men hvis det bliver lukket ned, er der mulighed for at skifte til LPWAN-tilslutningsmuligheder.
-
Product no 996064929
Model TRB255000000
Brand Teltonika
EAN 4779027312767
Weight 0.165 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Teltonika TRB255 - gateway - LTE |
| Enhedstype | Gateway |
| Formfaktor | Ekstern |
| Processor | 1 x Qualcomm QCA9531 - 650 MHz |
| RAM | 64 MB |
| Flashhukommelse | 16 MB |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, RS-232, RS-485 |
| Mobilt bredbåndsadgang | Ja |
| Generation | 4G |
| Mobilprotokol | LTE |
| Udstyr inkluderet | GNSS-antenne, LTE-antenne, hex-nøgle |
| Effekt | DC 9 - 30 V |
| Dimensioner (B x D x H) | 8.3 cm x 7.42 cm x 2.5 cm |
| Vægt | 165 g |
| General | |
|---|---|
| Built-in Devices | Beidou, QZSS, GPS / GLOSNASS / Galileo |
| Depth | 7.42 cm |
| Device Type | Gateway |
| Height | 2.5 cm |
| Weight | 165 g |
| Width | 8.3 cm |
| Processor / Memory / Storage | |
| Flash Memory | 16 MB |
| Max Supported Qty | 1 |
| Processors Installed | 1 x Qualcomm QCA9531 650 MHz |
| RAM | 64 MB |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, X.509 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-485 |
| Encryption Algorithm | DES, Triple DES, TLS, SSL 3.0, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1 |
| Features | Flow control, firewall protection, DHCP support, NAT support, VPN support, auto-uplink (auto MDI/MDI-X), MAC address filtering, firmware upgradable, IPSec NAT-Traversal (NAT-T), port forwarding, reset button, DHCP relay, DIN rail mountable, static ro |
| Form Factor | External |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, ARP, SMTP, FTP, DHCP, DNS, HTTP, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | Telnet, HTTP, HTTPS, SSH, SSH-2, CLI, JSON-RPC, Modbus, DHCP, MQTT |
| Routing Protocol | Static IP routing |
| Status Indicators | Power, 4G, 2G, signal, data |
| Antenna | |

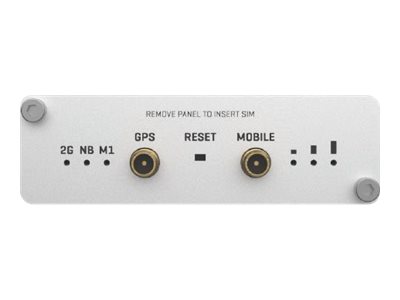

| Antenna | External detachable |
| Antenna Qty | 2 |
| Communications | |
| Cellular Protocol | LTE |
| Generation | 4G |
| Mobile Broadband Access | Yes |
| Internet of Things (IoT) | |
| Communications Technology | LTE Cat M1 |
| Internet of Things (IoT) Compatible | Yes |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SIM card |

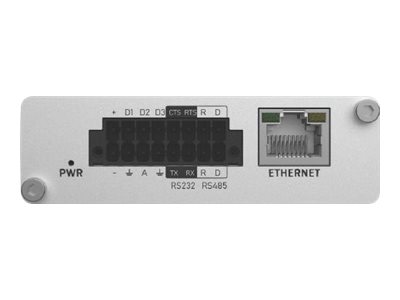

| Interfaces | 1 x RS-485 - terminal block | 2 x antenna - SMA | 1 x RS-232 - terminal block | 1 x network - RJ-45 |
| Miscellaneous | |
| Cables Included | 1 x network cable - 1.5 m |
| Compliant Standards | RoHS, X.509 |
| Included Accessories | GNSS antenna, LTE antenna, hex key |
| Power | |
| Power Consumption Operational | 5 Watt |
| Power Device | External power adapter |
| Voltage Required | DC 9 - 30 V |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
