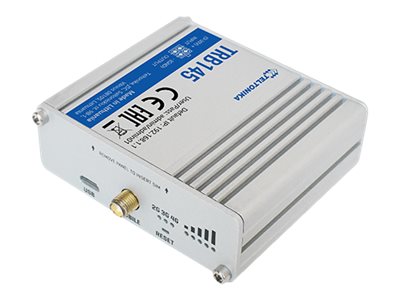

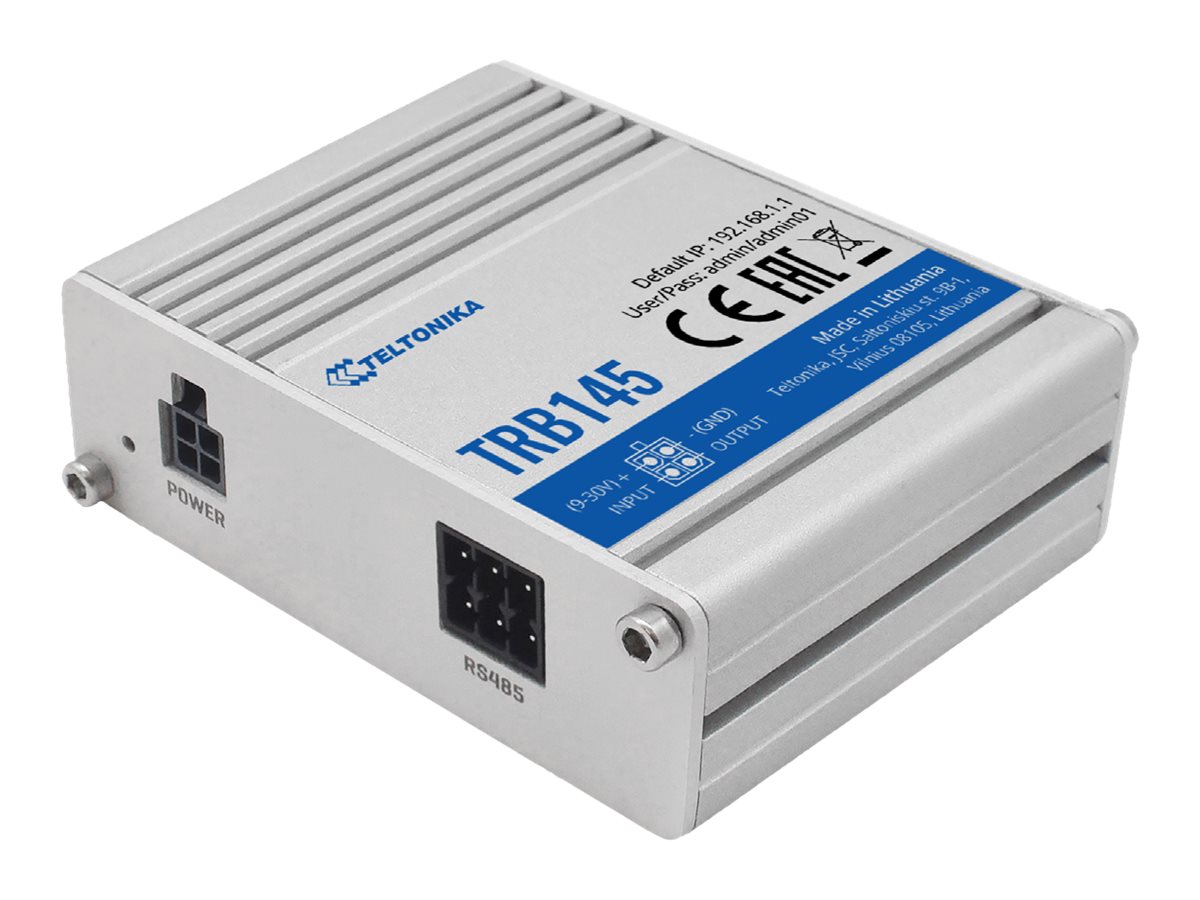

TRB145 er en missionskritisk LTE Cat 1-gateway, der er udstyret med RS485-interface.
|
General
|
|
|---|---|
|
Depth
|
1.8 cm
|
|
Device Type
|
Gateway
|
|
Height
|
6 cm
|
|
Weight
|
130 g
|
|
Width
|
7 cm
|
|
Processor / Memory / Storage
|
|
|
Flash Memory
|
512 MB
|
|
Max Supported Qty
|
1
|
|
Processors Installed
|
1 x ARM Cortex-A7 1.2 GHz
|
|
RAM
|
128 MB
|
|
Networking
|
|
|
Capacity
|
VPN tunnels: 5
|
|
Connectivity Technology
|
Wired
|
|
Encryption Algorithm
|
DES, Triple DES, RC2, CAST5, IKE, SSL, TLS, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2
|
|
Features
|
Firewall protection, NAT support, interrupt status port (ISP), firmware upgradable, port forwarding, GRE tunneling, static routing, Teltonika Remote Management System (RMS)
|
|
Form Factor
|
External
|
|
Network / Transport Protocol
|
TCP/IP, UDP/IP, NTP, ICMP/IP, DHCP, DNS, DDNS, IPv4, IPv6
|
|
Remote Management Protocol
|
SNMP, HTTP, HTTPS, SSH, SSH-2, CLI, Modbus, MQTT
|
|
Routing Protocol
|
GRE
|
|
Status Indicators
|
Power, status, connection status
|
|
Communications
|
|
|
Cellular Protocol
|
LTE
|
|
Mobile Broadband Access
|
Yes
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 (total) / 1 (free) x SIM card
|
|
Interfaces
|
1 x RS-485 | 2 x digital input/output | 1 x USB | 1 x antenna - SMA
|
|
Miscellaneous
|
|
|
Compliant Standards
|
RoHS, WEEE, X.509, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, ETSI EN 301-489-1 V2.2.0, RED, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, ETSI EN 301 908-1
|
|
Power
|
|
|
Power Consumption Operational
|
5 Watt
|
|
Voltage Required
|
DC 9 - 30 V
|
|
Software / System Requirements
|
|
|
OS Provided
|
RutOS
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
