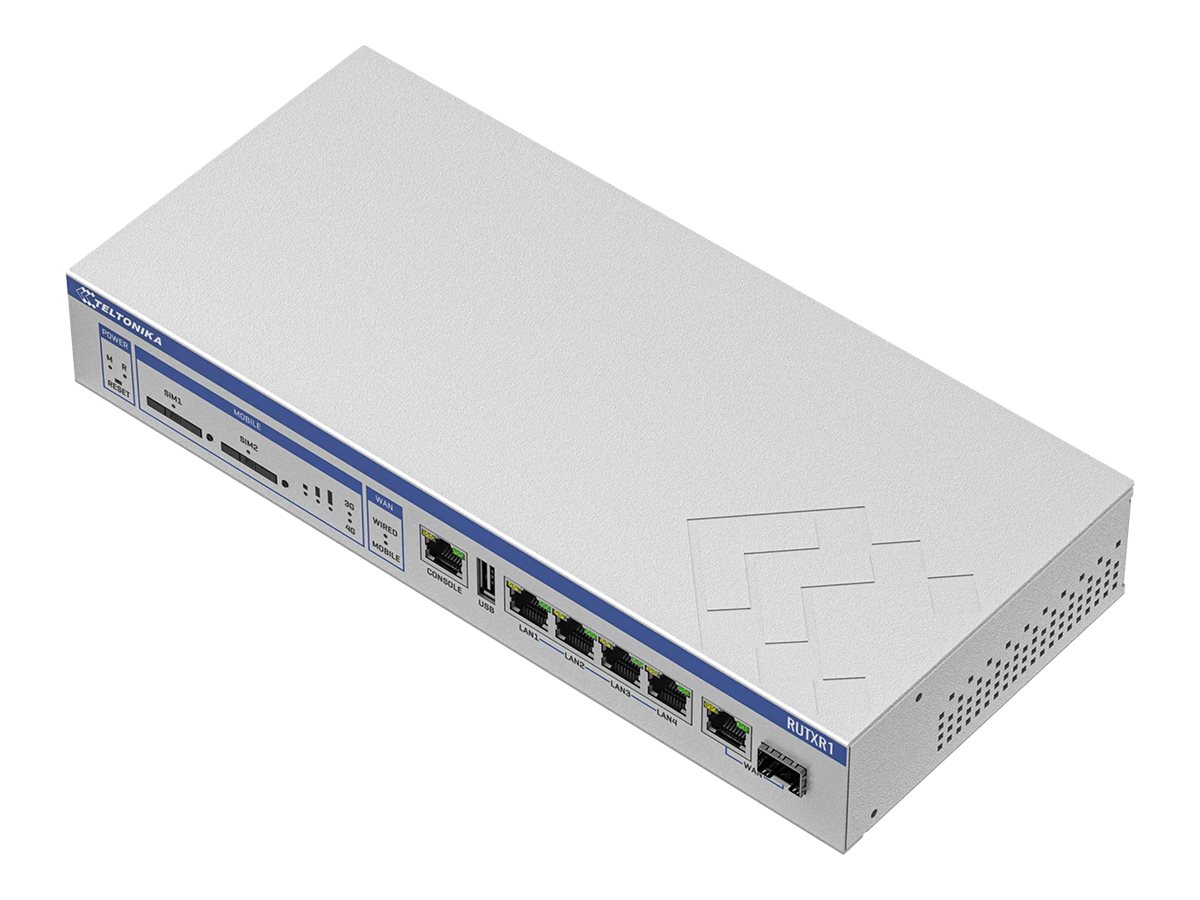

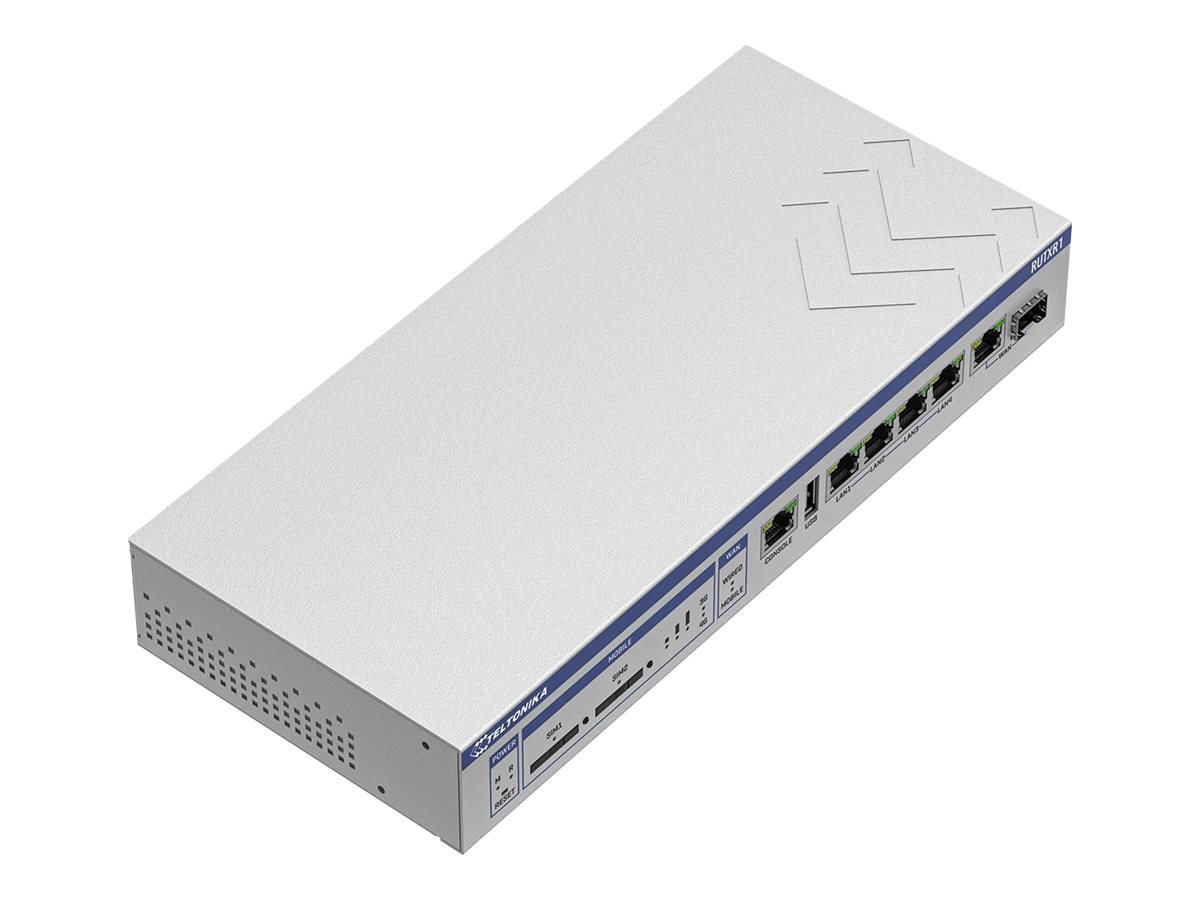

Teltonika RUTXR1 Trådløs router
Teltonika RUTXR1 - Trådløs router - WWAN 4-port switch - 1GbE - Wi-Fi 5 - monterbar på stativ
-
Product no 997125846
Model RUTXR1000000
Brand Teltonika
EAN 4779027312613
Weight 1.82 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Teltonika RUTXR1 - trådløs router - WWAN - Wi-Fi 5 - desktop, monterbar på stativ |
| Enhedstype | Trådløs router - trådløs mobilmodem - 4-port switch (integreret) |
| Pakningstype | Desktop, monterbar på stativ - 1U |
| Protokol for digital signaltransmission | H.323 |
| Mobilprotokol | LTE |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Netværks/overføselsprotokol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, ARP, SMTP, FTP, DHCP, DNS, L2TPv3, DDNS, HTTP, HTTPs, IPv4, IPv6 |
| Routingprotokol | RIP-1, RIP-2, BGP, EIGRP, VRRP, NHRP, OSPFv2, statisk IP routing, GRE |
| Protokol til fjernadministration | SNMP 1, SNMP 2, SNMP, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, TR-069, JSON-RPC, Modbus, NTP, DHCP, MQTT |
| VoIP-protokoller | H.323, SIP |
| Egenskaber | Firewallbeskyttelse, DHCP-understøttelse, NAT-understøtning, VPN support, aktivitet, WOL, auto-uplink (auto MDI/MDI-X), E-mail advarsel, MAC-adresse-filtrering, Tilgangspunkt, drift, firmware kan opgraderes, DDos attack beskyttelse, WMM support, QoS, IPSec NAT-T, DMVPN, roaming funktion, SMS alarmer, port fremsendelse, nulstillingsknap, DHCP videresendelse, SNMP fælde, GRE tunneling, mærket VLAN, SYN Flooding, MU-MIMO teknologi, systemlog, Hotspot Access Point Capability, DLNA support, TR-069 Remote Management, DMZ-support, Modbus-kompatibel, portbaseret VLAN, sort liste, hvidliste, brotilstand, PPP, DDoS Protection, oversvømningsdetektion, Teltonika RMS, MQTT-support |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.11e, IEEE 802.3az, UPnP, IEEE 802.11ac, IEEE 802.11r |
| Dimensioner (B x D x H) | 27.2 cm x 12.26 cm x 4.26 cm |
| Vægt | 1.05 kg |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), X.509 certificates, Extended Service Set ID (ESSID), Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11e, IEEE 802.3az, UPnP, IEEE 802.11ac, IEEE 802.11r |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Encryption Algorithm | DES, Triple DES, RC2, TLS, TKIP, WPA-PSK, AES-CCMP, 128-bit AES, 192-bit AES, 256-bit AES, WPA2-PSK, WPA2-Enterprise, IKEv2, WEP, 256-bit AES-CBC, 128-bit AES-CBC, 192-bit AES-CBC, IKEv1 |
| Features | Firewall protection, DHCP support, NAT support, VPN support, load balancing, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), E-mail alert, MAC address filtering, Access Point operational mode, firmware upgradable, DDos attack prevention, Wi-Fi Multi |
| Flash Memory | 256 MB |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, ARP, SMTP, FTP, DHCP, DNS, L2TPv3, DDNS, HTTP, HTTPs, IPv4, IPv6 |
| Processor | 1 x ARM Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, TR-069, JSON-RPC, Modbus, NTP, DHCP, MQTT |
| Routing Protocol | RIP-1, RIP-2, BGP, EIGRP, VRRP, NHRP, OSPFv2, static IP routing, GRE |
| Status Indicators | Power, signal strength, WAN, LAN, SIM status |
| Communications | |
| Cellular Protocol | LTE |
| Digital Signaling Protocol | H.323 |
| Max Transfer Rate | 300 Mbps |
| Type | Wireless cellular modem |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SIM |

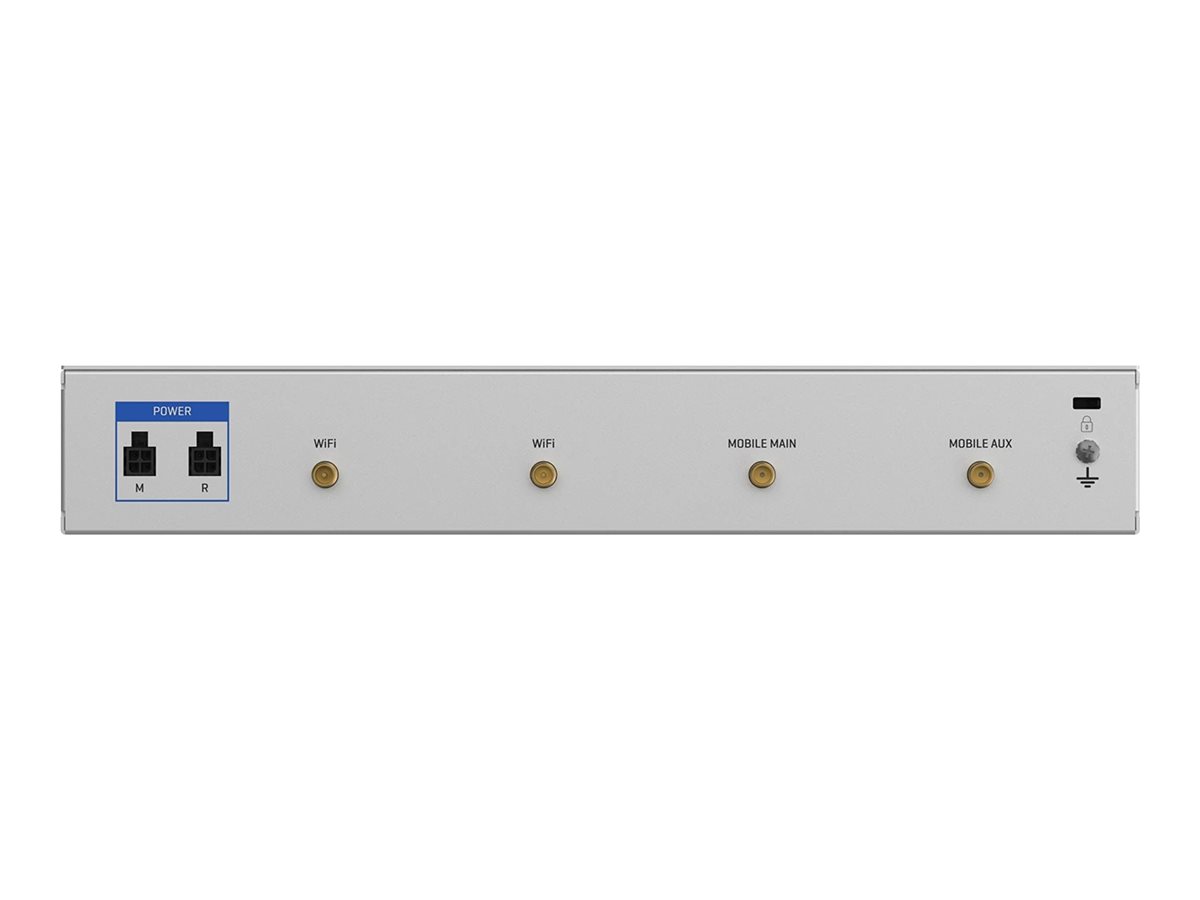

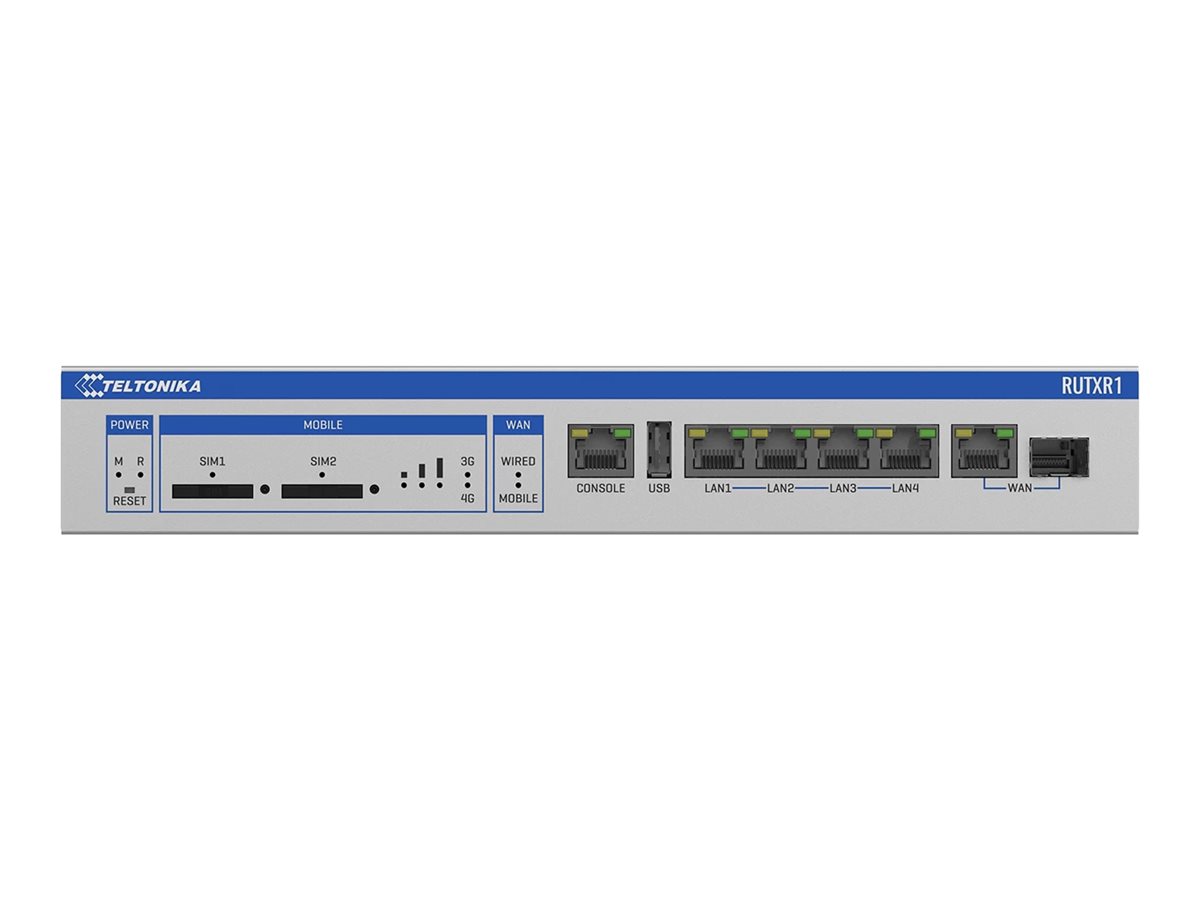

| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | USB 2.0: 1 x 4 pin USB Type A | Antenna: 2 x RP-SMA | Antenna: 2 x SMA | WAN: 1 x SFP (mini-GBIC) | Console: 1 x RJ-45 |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Power | |
| Power Consumption Operational | 18 Watt |
| Power Device | External power adapter |
| Miscellaneous | |
| Cables Included | 1 x network cable - 1.5 m |
| Included Accessories | 4 foot pads, 2 x Wi-Fi antennas, SIM card ejector, 8 x screws, 2 x LTE antennas |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | RutOS |
| Dimensions & Weight | |
| Depth | 12.26 cm |
| Height | 4.26 cm |
| Weight | 1.05 kg |
| Width | 27.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
