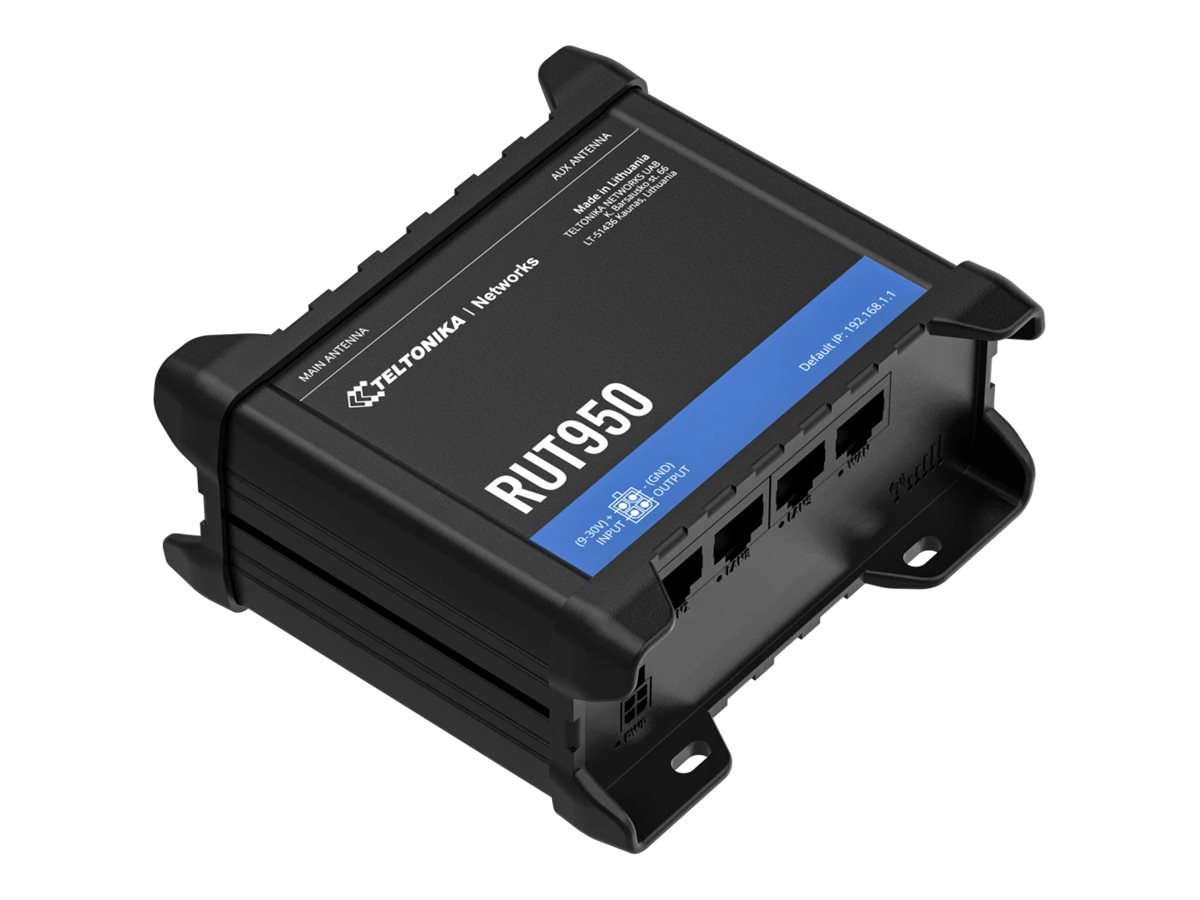

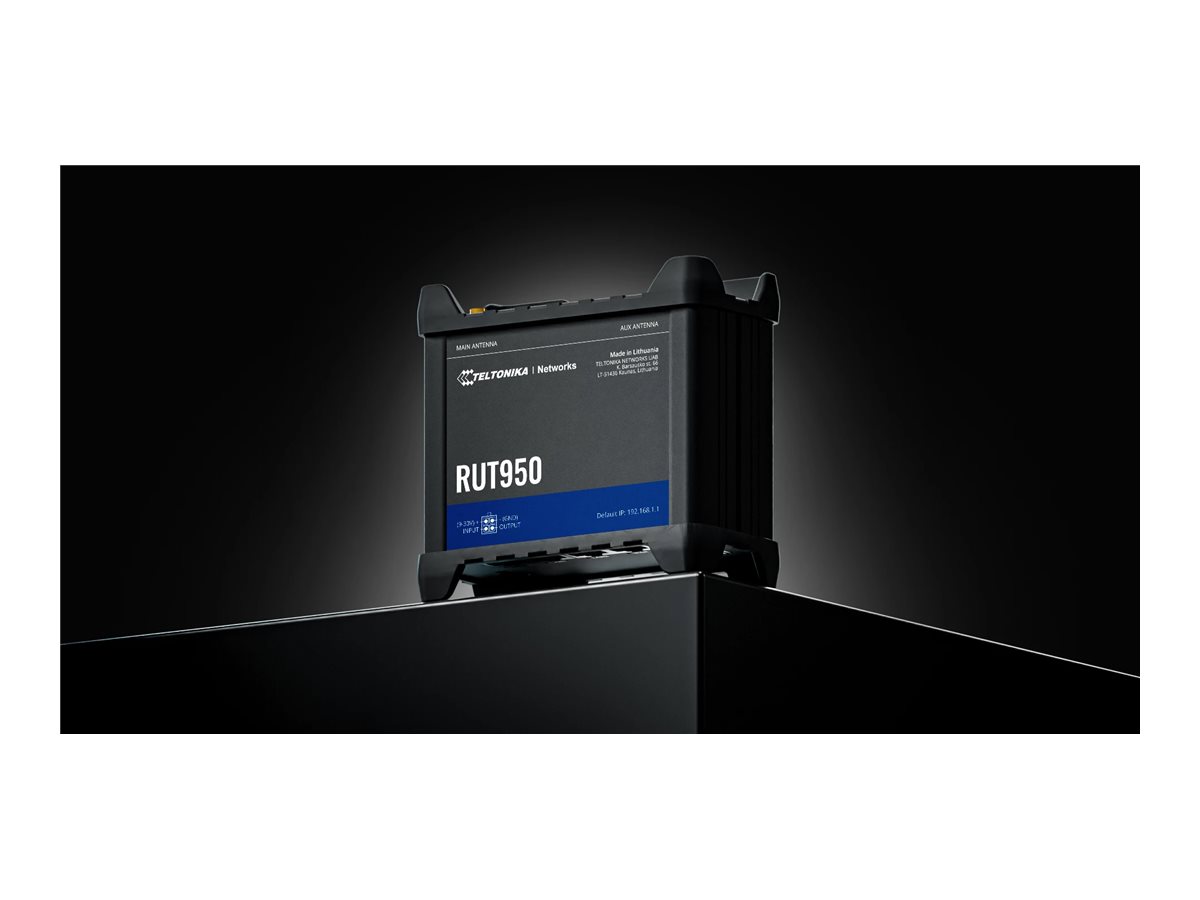

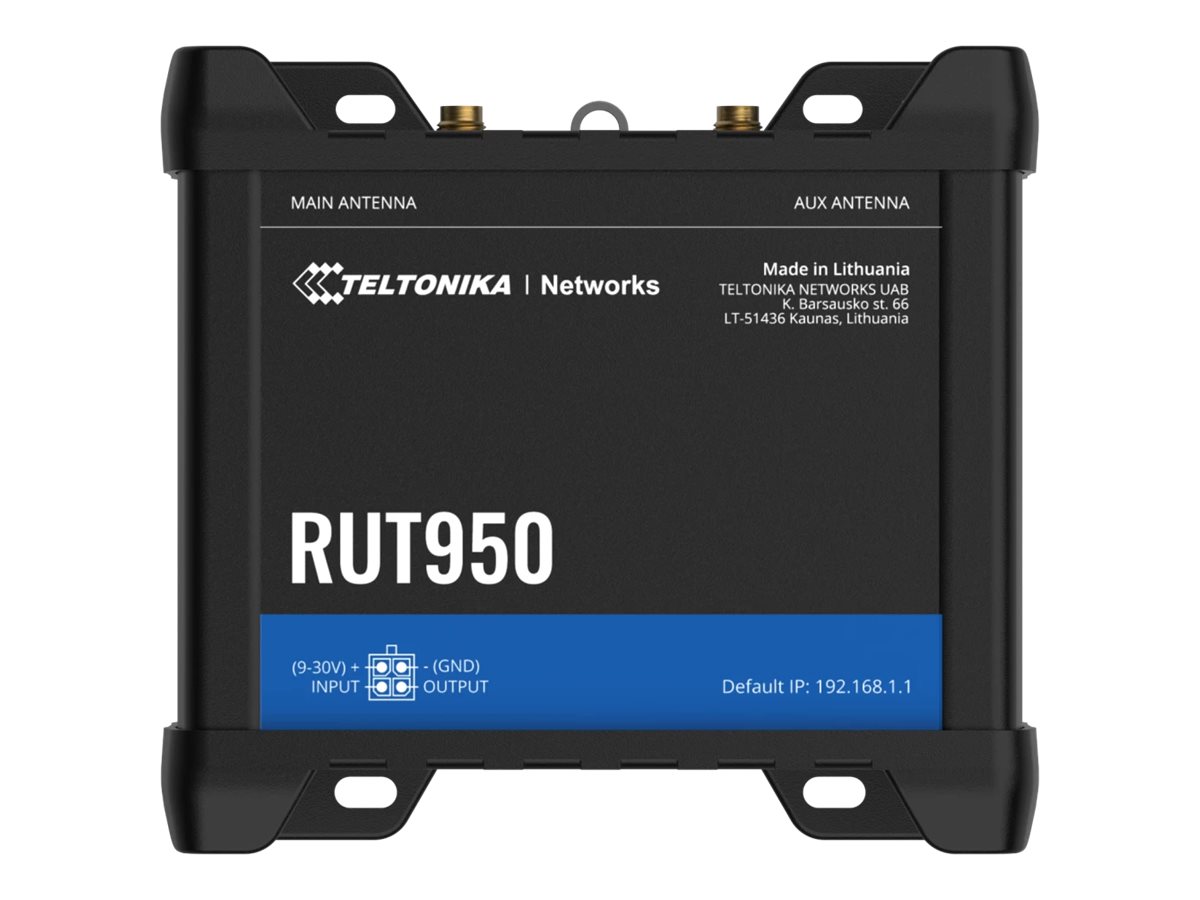

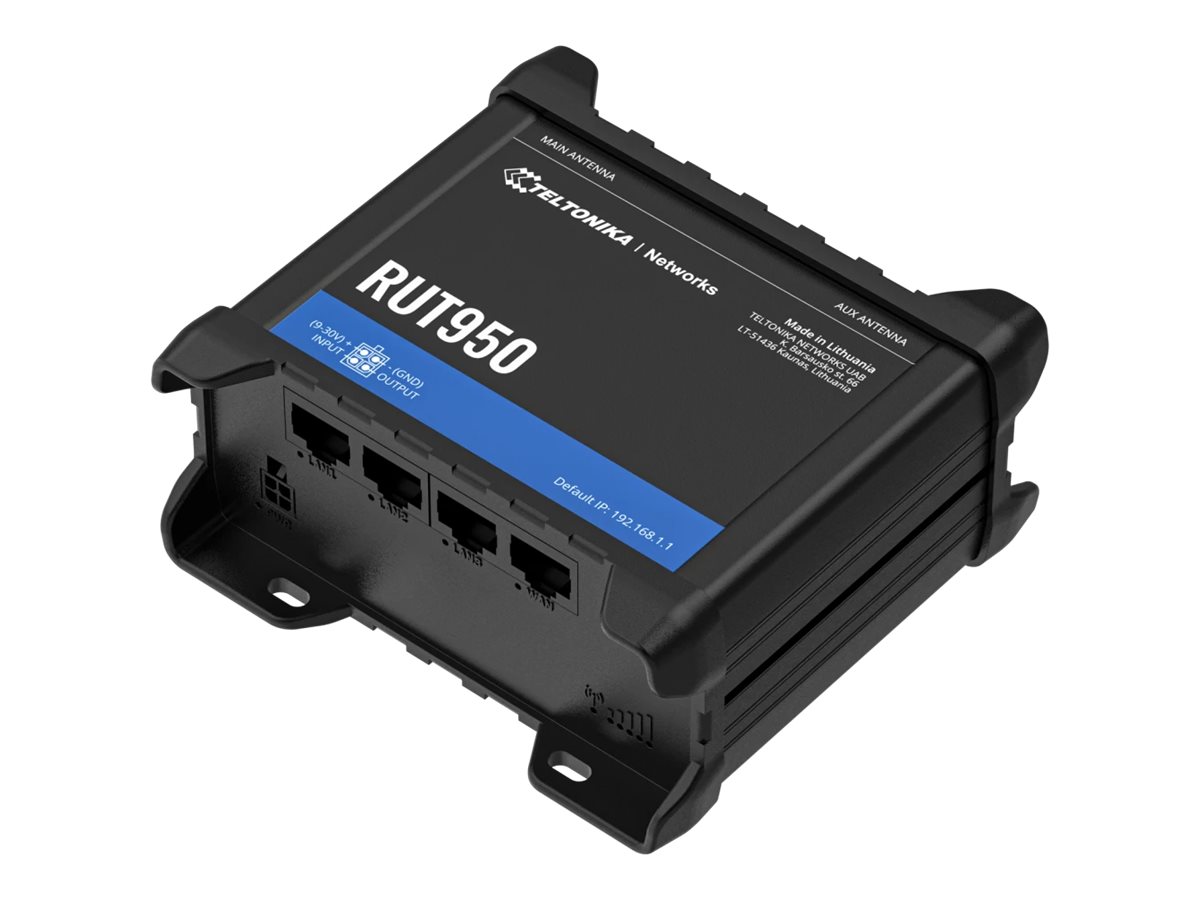

Teltonika RUT950 Trådløs router Desktop DIN monterbar på skinne
Teltonika RUT950 - Trådløs router - WWAN 4-port switch 2,4 GHz - DIN monterbar på skinne
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Teltonika RUT950 - trådløs router - WWAN - Wi-Fi - desktop, DIN monterbar på skinne
|
|
Enhedstype
|
Trådløs router - trådløs mobilmodem - 4-port switch (integreret)
|
|
Pakningstype
|
Desktop, DIN monterbar på skinne
|
|
Mobilprotokol
|
GSM, UMTS, LTE, DC-HSPA+
|
|
Antal WAN porte
|
1
|
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
|
Frekvensbånd
|
2,4 GHz
|
|
Dataoverførselshastighed
|
300 Mbps
|
|
Netværks/overføselsprotokol
|
PPTP, L2TP, PPPoE
|
|
Routingprotokol
|
VRRP
|
|
Protokol til fjernadministration
|
SNMP, TR-069
|
|
Egenskaber
|
Auto-uplink (auto MDI/MDI-X), Tilgangspunkt, drift, firmware kan opgraderes, QoS, skjult SSID, 2T2R MIMO teknologi, systemlog
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
|
Effekt
|
AC 120/230 V
|
|
Dimensioner (B x D x H)
|
10.6 cm x 4.6 cm x 8 cm
|
|
Vægt
|
250 g
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, RoHS
|
|
Connectivity Technology
|
Wireless, wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
|
Data Transfer Rate
|
300 Mbps
|
|
Device Type
|
Wireless router - 4-port switch (integrated)
|
|
Enclosure Type
|
Desktop, DIN rail mountable
|
|
Encryption Algorithm
|
WPA, WPA2, WEP
|
|
Features
|
Auto-uplink (auto MDI/MDI-X), Access Point operational mode, firmware upgradable, Quality of Service (QoS), hidden SSID, 2T2R MIMO technology, system log
|
|
Frequency Band
|
2.4 GHz
|
|
Network / Transport Protocol
|
PPTP, L2TP, PPPoE
|
|
Processor
|
560 MHz
|
|
RAM
|
128 MB DDR2 SDRAM
|
|
Remote Management Protocol
|
SNMP, TR-069
|
|
Routing Protocol
|
VRRP
|
|
Status Indicators
|
Power, LAN
|
|
Communications
|
|
|
Cellular Protocol
|
GSM, UMTS, LTE, DC-HSPA+
|
|
Max Transfer Rate
|
100 Mbps
|
|
Type
|
Wireless cellular modem
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
2 (total) / 2 (free) x SIM
|
|
Interfaces
|

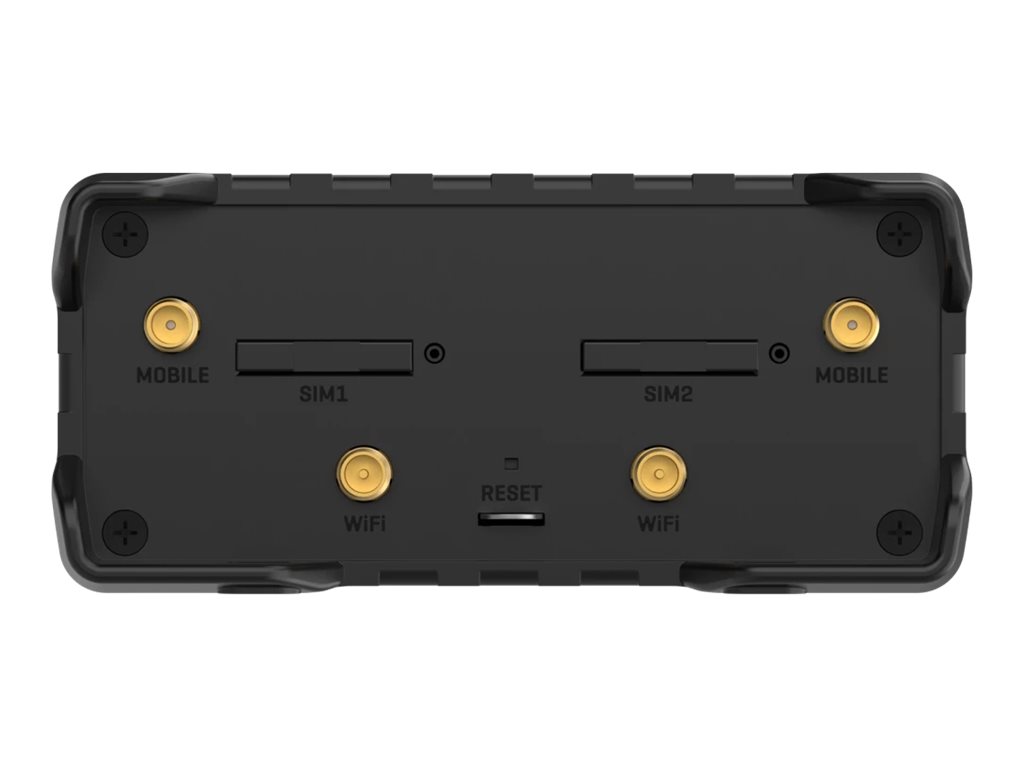

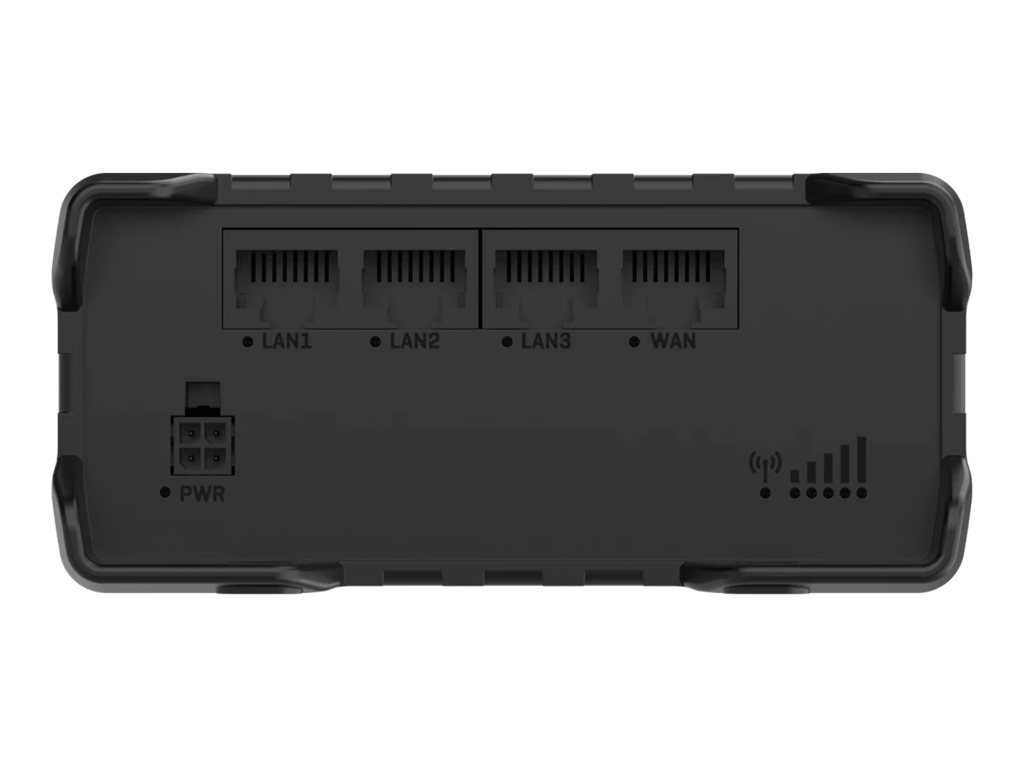

LAN: 4 x 10Base-T/100Base-TX - RJ-45 | WAN: 1 x 10Base-T/100Base-TX - RJ-45 | Antenna: 2 x SMA | Antenna: 2 x RP-SMA
|
|
Antenna
|
|
|
Antenna
|
External detachable
|
|
Antenna Qty
|
4
|
|
Power
|
|
|
Power Consumption Operational
|
7 Watt
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
AC 120/230 V
|
|
Software / System Requirements
|
|
|
OS Provided
|
Linux
|
|
Dimensions & Weight
|
|
|
Depth
|
4.6 cm
|
|
Height
|
8 cm
|
|
Weight
|
250 g
|
|
Width
|
10.6 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
