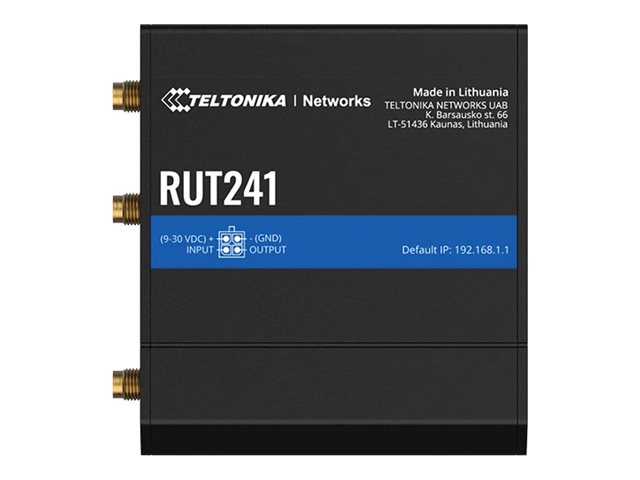

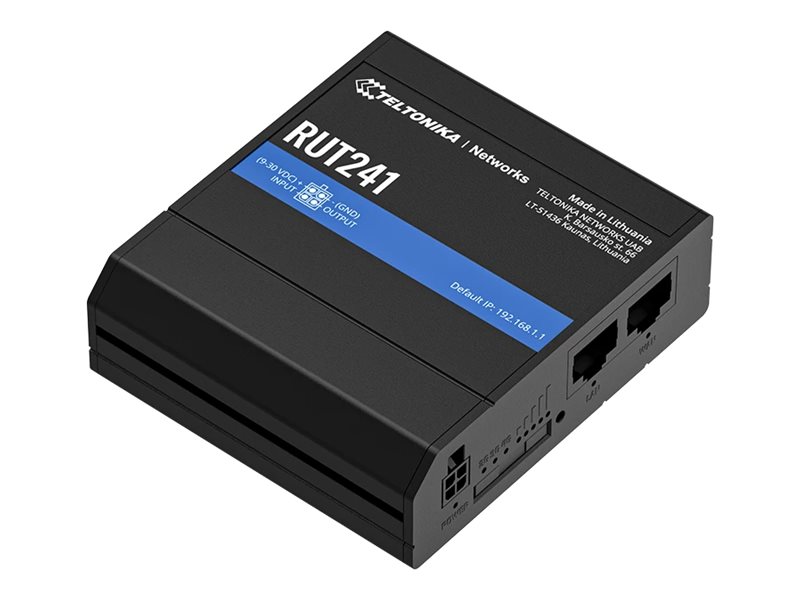

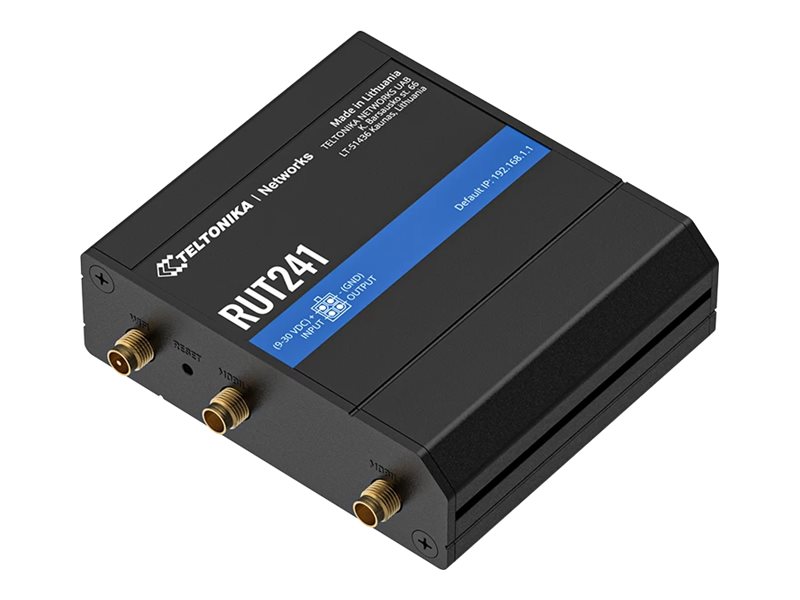

Teltonika RUT241 Trådløs router
Teltonika RUT241 - Trådløs router - WWAN 2,4 GHz - 3G, 4G, 2G - DIN monterbar på skinne
RUT241 er udstyret med 4G LTE, Wi-Fi og to Ethernet-porte og tilbyder ustoppelig forbindelseskontinuitet med automatisk WAN-failover. Industrielt design, kompakt størrelse, flere forbindelsesgrænseflader og kompatibilitet med RMS gør denne enhed til en fremragende pasform i mange IoT- og M2M-løsninger.
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Teltonika RUT241 - trådløs router - WWAN - Wi-Fi - 3G, 4G, 2G - DIN monterbar på skinne
|
|
Enhedstype
|
Trådløs router - trådløs mobilmodem
|
|
Pakningstype
|
DIN monterbar på skinne
|
|
Mobilprotokol
|
FDD LTE, TDD LTE
|
|
Generation
|
3G, 4G, 2G
|
|
Mobilbånd
|
LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B8, LTE B40
|
|
Antal WAN porte
|
1
|
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
|
Frekvensbånd
|
2,4 GHz
|
|
Kapacitet
|
Samtidige tilslutninger: 50
|
|
Netværks/overføselsprotokol
|
TCP/IP, PPTP, UDP/IP, NTP, PPPoE, ARP, FTP, DHCP, DNS, L2TPv3, DDNS, IPv4, IPv6, Telnet, WireGuard, OpenVPN
|
|
Routingprotokol
|
RIP-1, RIP-2, BGP, VRRP, NHRP, OSPFv2, statisk IP routing
|
|
Platform
|
Azure, Clouds of Things, ThingWorx, Cumulocity
|
|
Protokol til fjernadministration
|
SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, TR-069, SMTP, Modbus, ICMP, MQTT
|
|
VoIP-protokoller
|
H.323, SIP
|
|
Egenskaber
|
NAT-understøtning, aktivitet, VLAN-understøttet, WOL, auto-uplink (auto MDI/MDI-X), MAC-adresse-filtrering, Tilgangspunkt, drift, DDos attack beskyttelse, WMM support, QoS, IPSec NAT-T, DMVPN, port fremsendelse, DHCP videresendelse, SNMP fælde, GRE tunneling, FOTA, Captive Portal, passiv PoE-understøttet, Web Filtering, PSK, sort liste, hvidliste, brotilstand, Teltonika RMS, aluminiumskabinet, MQTT-support, Stealth Mode, VoIP-gennemløbssupport, RADIUS Server, SSHFS support, båndadministration, auto APN, klientadskillelse, Auto Cipher-tilstande, mobil kvotekontrol, fler-PDN, port scan prevention, SSTP-klient instanssupport, USSD support, SQM
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, UPnP
|
|
Dimensioner (B x D x H)
|
8.3 cm x 7.4 cm x 2.5 cm
|
|
Vægt
|
125 g
|
|
Lokalisering
|
Mellemøsten, Afrika, Europa (eksklusive Belarus, Rusland)
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
RADIUS, X.509 certificates, Radio Service Set ID (SSID)
|
|
Capacity
|
Simultaneous connections: 50
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, UPnP, CB, IP30, EN 61000-4-2:2009, EN 61000-4-6:2014, RED, EN 301 511 V12.5.1, EN 300 328 V2.2.2, EN 61000-4-4:2012, EN 50665:2017, EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4, EN 61000-3-3:2013+A1:2019, UKCA, IEC 62368-1:
|
|
Connectivity Technology
|
Wireless, wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
|
Device Type
|
Wireless router
|
|
Enclosure Type
|
DIN rail mountable
|
|
Encryption Algorithm
|
DES, RC2, CAST5, TLS, SSL 3.0, PEAP, TKIP, WPA-PSK, AES-CCMP, WPA2-PSK, WPA2-Enterprise, IKEv2, WEP, 256-bit AES-CBC, 128-bit AES-CBC, 192-bit AES-CBC, IKEv1, WPA-EAP, DESX
|
|
Features
|
NAT support, load balancing, VLAN support, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), MAC address filtering, Access Point operational mode, DDos attack prevention, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPSec NAT-Traversal (N
|
|
Flash Memory
|
16 MB
|
|
Frequency Band
|
2.4 GHz
|
|
Network / Transport Protocol
|
TCP/IP, PPTP, UDP/IP, NTP, PPPoE, ARP, FTP, DHCP, DNS, L2TPv3, DDNS, IPv4, IPv6, Telnet, WireGuard, OpenVPN
|
|
Processor
|
1 x MediaTek MIPS 24KC 580 MHz
|
|
RAM
|
128 MB DDR2 SDRAM
|
|
Remote Management Protocol
|
SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, TR-069, SMTP, Modbus, ICMP, MQTT
|
|
Routing Protocol
|
RIP-1, RIP-2, BGP, VRRP, NHRP, OSPFv2, static IP routing
|
|
Status Indicators
|
Power, signal strength, LAN, connection status
|
|
Communications
|
|
|
Cellular Band
|
LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B8, LTE B40
|
|
Cellular Protocol
|
FDD LTE, TDD LTE
|
|
Generation
|
3G, 4G, 2G
|
|
Max Transfer Rate
|
150 Mbps
|
|
Type
|
Wireless cellular modem
|
|
IP Telephony
|
|
|
VoIP Protocols
|
H.323, SIP
|
|
Internet of Things (IoT)
|
|
|
Internet of Things (IoT) Compatible
|
Yes
|
|
Platform
|
Azure, Clouds of Things, ThingWorx, Cumulocity
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 (total) / 1 (free) x Mini-SIM
|
|
Interfaces
|
LAN: 1 x 10Base-T/100Base-TX - RJ-45 | WAN: 1 x 10Base-T/100Base-TX - RJ-45 | Antenna: 2 x SMA - LTE | Antenna: 1 x RP-SMA - Wi-Fi | 1 x DI | 1 x DO
|
|
Antenna
|
|
|
Antenna
|
External detachable
|
|
Antenna Qty
|
3
|
|
Power
|
|
|
Power Device
|
External power adapter - 9 Watt
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x network cable - 1.5 m
|
|
Included Accessories
|
Wi-Fi antenna, 2 x LTE antennas, SIM card adapter kit
|
|
Localization
|
Middle East, Africa, Europe (excluding Belarus, Russia)
|
|
Software / System Requirements
|
|
|
OS Provided
|
RutOS
|
|
Dimensions & Weight
|
|
|
Depth
|
7.4 cm
|
|
Height
|
2.5 cm
|
|
Weight
|
125 g
|
|
Width
|
8.3 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Min Operating Temperature
|
-40 °C
|
