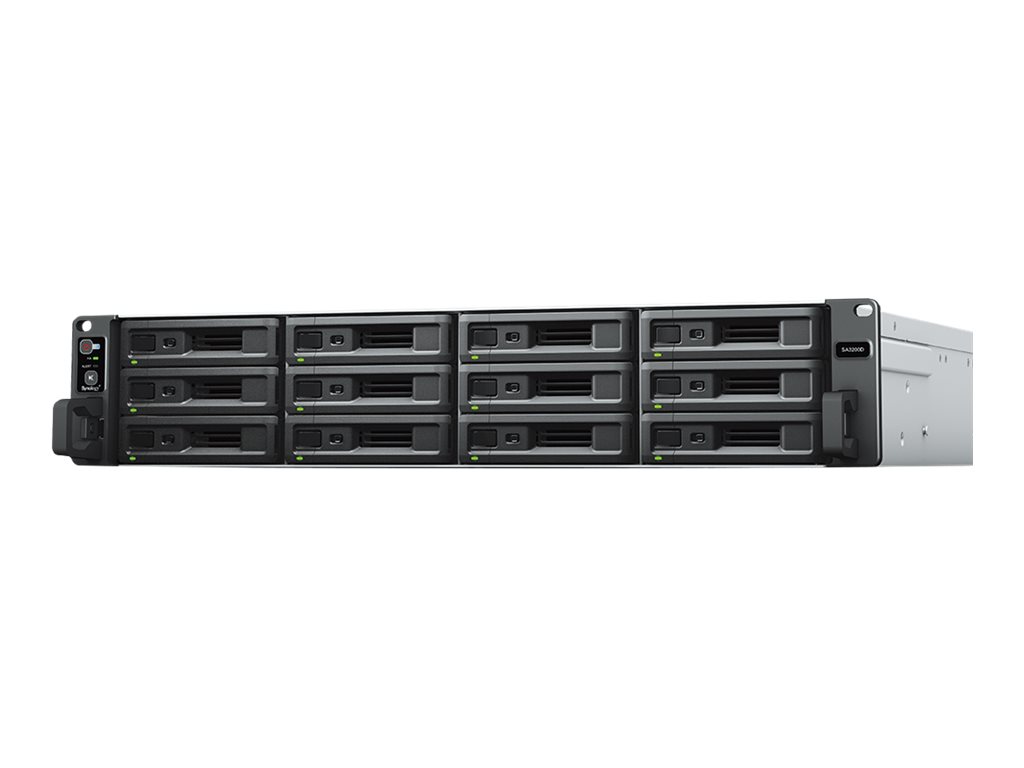

Synology SA3200D 12Moduler

Synology SA3200D - NAS-server - 12 bays - rackversion - RAID 0, 1, 5, 6, 10, JBOD, RAID F1 - RAM 16 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U

Synology SA3200D har en arkitektur med to controllere, der sikrer, at drift og centrale forretningsfunktioner ikke påvirkes af en katastrofe eller uplanlagt hændelse, der sætter kritiske systemer offline. Redundansmekanismen for hardware udnytter controllere, strømforsyninger og blæsere til at forhindre en enkelt fejl. SA3200D, der drives af det intuitive og funktionsrige operativsystem DiskStation Manager (DSM), leverer omfattende beskyttelse af netværk, filtjenester og applikationer.

Product no: 995649797
Model: SA3200D
EAN: 4711174723713
Brand:
Synology
Weight: 25 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Synology SA3200D - NAS-server
Enhedstype
NAS-server
Vært Tilslutning
Gigabit Ethernet / 10 Gigabit Ethernet
Pakningstype
Rackversion - 2U
Maks. antal understøttet
192 TB
Installeret udstyr/antal moduler
0 (installeret) / 12 (maks.)
Dimensioner (B x D x H)
48.2 cm x 72.4 cm x 8.8 cm
Vægt
19.7 kg ()
Processor
2 x Intel Xeon D-1521 2.4 GHz (Quad-Core)
Controller for lagring
RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
Netværk
10Mb LAN, 100Mb LAN, 1GbE, 10GbE
Understøttede IP Kameraer
100
RAM
16 GB
Effekt
AC 120/230 V (50/60 Hz)
Systemkrav
Microsoft Windows 7 eller senere, Apple MacOS X 10.11 eller nyere
Producentgaranti
5 års garanti
Specifications

Full specifications

General
Depth
72.4 cm
Device Type
NAS server
Enclosure Type
Rack-mountable - 2U
Height
8.8 cm
Host Connectivity
Gigabit Ethernet / 10 Gigabit Ethernet
Installed Devices / Modules Qty
0 (installed) / 12 (max)
Max Supported Capacity
192 TB
Total Storage Capacity
0 GB
Weight
19.7 kg ()
Width
48.2 cm
Processor / Memory
Features
ECC
Max Supported Qty
2
Max Turbo Speed
2.7 GHz
Number of Cores
Quad-Core
Processors Installed
2 x Intel Xeon D-1521 2.4 GHz
RAM
16 GB (installed) / 128 GB (supported) - DDR4
Storage Controller
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1
Type
RAID
Networking
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE, 10 GigE
Encryption Algorithm
AES-NI
Features
Firewall protection, VPN support, LDAP support, wake on LAN (WOL), antivirus analysis, High Availability, download client, anti-malware protection, Access Control List (ACL) support, e-mail server, reset button, bandwidth control, surveillance statio
Network / Transport Protocol
PPTP, L2TP, iSCSI, SMTP, FTP, SMB, NFS, HTTPs
Network Services Compatibility
Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
Remote Management Protocol
SNMP, Telnet, HTTPS, SSH, SMTP, LDAP
Security DVR
Compression Format
H.264
IP Cameras Supported
100
Expansion / Connectivity
Expansion Bays
12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
2 x PCI Express 3.0 x8
Interfaces
4 x Ethernet 1000Base-T - RJ-45 | 2 x serial - DB-9 | 2 x Ethernet 10Gb - RJ-45
Miscellaneous
Compliant Standards
VCCI, BSMI, CCC, FCC, RoHS, EAC, RCM
Features
Built-in 4 cooling fans
Included Accessories
Accessory pack
Power
Installed Qty
2
Max Supported Qty
2
Power Consumption Operational
417.48 Watt
Power Device
Internal power supply
Power Provided
500 Watt
Voltage Required
AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Required
Microsoft Windows 7 or later, Apple MacOS X 10.11 or later
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Humidity Range Operating
5 - 95%
Max Operating Temperature
35 °C
Min Operating Temperature
0 °C
Sound Emission
51.3 dBA
