Produktbeskrivelse
|

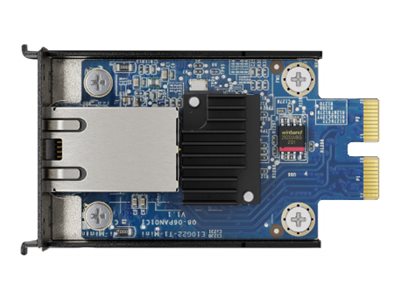

Synology E10G22-T1-Mini - ekspansionsmodul - 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1
|
|
Enhedstype
|
Ekspansionsmodul
|
|
Model
|
Indstiksmodul
|
|
Porte
|
100M/1G/2.5G/5G/10 Gigabit Ethernet x 1
|
|
Dimensioner (B x D x H)
|
4.538 cm x 7.57 cm x 2.637 cm
|
|
Kabeltype
|
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T
|
|
Dataforbindelsesprotokol
|
100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE
|
|
Dataoverførselshastighed
|
10 Gbps
|
|
Netværks/overføselsprotokol
|
TCP/IP, UDP/IP
|
|
Overensstemmelsesstandarder
|
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz
|
|
Producentgaranti
|
3 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
Synology Ekspansionsmodul 10Gbps
Synology E10G22-T1-Mini - Ekspansionsmodul - 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1
Synology E10G22-T1-Mini netværksopgraderingsmodul er designet til nemt og hurtigt at opgradere dit Synology-system med 10GbE-forbindelse. Enkel installation, lave implementeringsomkostninger og understøttelse af næsten ethvert netværksmiljø gør det til den ideelle løsning for små virksomheder og hjemmebrugere, der ønsker at maksimere ydeevnepotentialet i deres implementeringer.
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Expansion module
|
|
Form Factor
|
Plug-in module
|
|
Networking
|
|
|
Cabling Type
|
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T
|
|
Compliant Standards
|
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
|
|
Data Transfer Rate
|
10 Gbps
|
|
Features
|
Flow control, auto-negotiation, full duplex mode, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), TCP/IP checksum offload, UDP/IP checksum offload, 9 KB Jumbo Frame, generic segmentation offload (GSO), generic re
|
|
Network / Transport Protocol
|
TCP/IP, UDP/IP
|
|
Ports
|
100M/1G/2.5G/5G/10 Gigabit Ethernet x 1
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
1 x 10GBase-T - RJ-45
|
|
Dimensions & Weight
|
|
|
Depth
|
7.57 cm
|
|
Height
|
2.637 cm
|
|
Width
|
4.538 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 3 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
8 - 80% RH
|
|
Max Operating Temperature
|
40 °C
|
|
Min Operating Temperature
|
0 °C
|
Features
Enkel installation

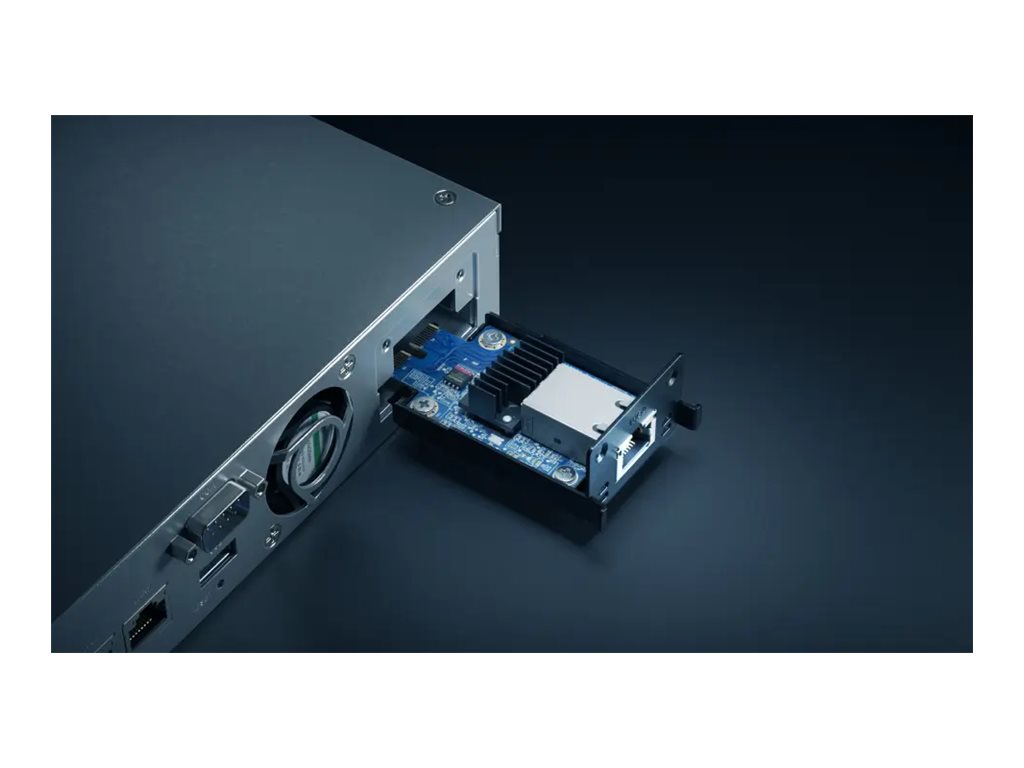

Installer E10G22-T1-Mini gennem det dedikerede og lettilgængelige netværksopgraderingsslot for øjeblikkeligt at opgradere båndbreddetilgængeligheden i Synology-servere med kompakte kabinetter.
Multi-gig understøttelse
Integrer i ethvert RJ-45-netværksmiljø med automatisk forhandling mellem 10, 5, 2,5, 1 Gbps og 100 Mbps datahastigheder baseret på faktiske netværksforhold.
Media
Support
Teknisk support: https://account.synology.com/support/support_form.php
https://account.synology.com/support/support_form.php
RMA
For håndtering og oprettelse af Synology garanti benyt.https://account.synology.com/support/support_form.php
