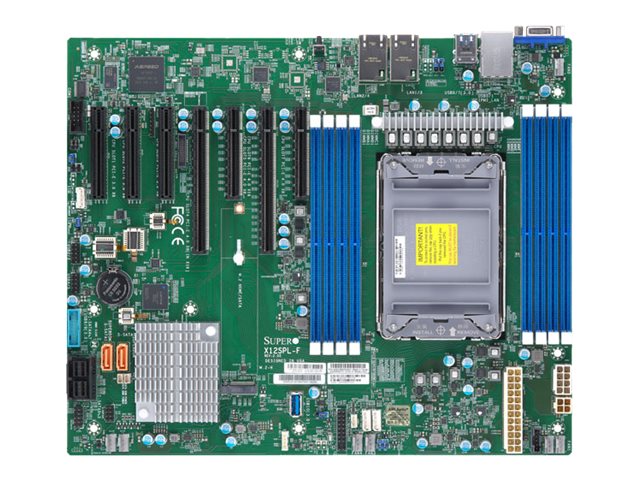

SUPERMICRO X12SPL-F ATX LGA4189 Intel C621A

SUPERMICRO X12SPL-F - Bundkort - ATX - LGA4189 sokkel - C621A Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard grafik - for SC113M; SC213; SC514; SC515; SC813M; SC825; SC825M; SC835; SCLA25TQC

Varenummer: 999514849
Model: MBD-X12SPL-F-B
EAN: 0672042428533
Brand:
Super Micro Computer
Vægt: 2 kg

Specifications

Produktbeskrivelse
SUPERMICRO X12SPL-F - bundkort - ATX - LGA4189 sokkel - C621A
Produkttype
Bundkort - ATX
Chipsættype
Intel C621A
Processor-socket
1 x LGA4189 sokkel
Kompatible processorer
Xeon (understøtter CPUer med op til 40 kerner, maksimal TDP 270 Watt)
Max RAM-størrelse
2 TB
RAM understøttet
8 DIMM åbninger - DDR4, ECC, 3DS Load-Reduced, 3DS-registreret, Optane DC Persistent
Lagringsporte
10 x SATA-600 (RAID), 1 x M.2
USB / FireWire porte
3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Grafik
ASPEED AST2600
LAN
2 x Gigabit Ethernet
Producentgaranti
3 års garanti
Designet for
SC113M FAC2-605CB, FAC2-R804CB; SC213 LT-600LPB; SC514 505; SC515 505; SC813M F2TQC-505CB; SC825 TQC-R802LPB; SC825M BTQC-R802LPB; SC835 TQC-R802B; SCLA25TQC R609LP
Specifications

Full specifications

General
Chipset Type
Intel C621A
Compatible Processors
Xeon (supports CPUs with up to 40 cores, Maximum TDP 270 Watt)
Max Processors Qty
1
Processor Socket
LGA4189 Socket
Product Type
Motherboard - ATX
Supported RAM
Bus Clock
2666 MHz, 2933 MHz, 3200 MHz
Max Size
2 TB
Registered or Buffered
3DS Load-Reduced, 3DS registered, Optane DC Persistent
Supported RAM Integrity Check
ECC
Technology
DDR4
Graphics
Graphics Controller
ASPEED AST2600
LAN
Network Controller
Intel I210
Network Interfaces
2 x Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU | 8 x DIMM 288-pin (1.2 V) | 1 x PCIe 4.0 x16 | 2 x PCIe 4.0 x8 | 1 x PCIe 4.0 x16 (x8 mode) | 3 x PCIe 3.0 x8
Interfaces
2 x LAN (Gigabit Ethernet) | 1 x VGA | 2 x USB 3.2 Gen 1 | 2 x USB 2.0
Internal Interfaces
2 x USB 3.2 Gen 1 - header | 2 x USB 2.0 - header | 1 x USB 3.2 Gen 1 - Type A | 1 x serial - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
SATA-600 -connectors: 10 x 7pin SATA - 10 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Features
BIOS Features
Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support, SMBIOS 3.0 support, ACPI 6.2 support
BIOS Type
AMI
Hardware Features
WatchDog Timer
Hardware Monitoring
CPU core temperature, system voltage, CPU core voltage
Miscellaneous
Cables Included
2 x Serial ATA cable
Compliant Standards
Plug and Play, RoHS
Depth
25.4 cm
Included Accessories
I/O back plate
Package Type
Bulk
Software Included
SuperDoctor 5
Width
30.73 cm
Manufacturer Warranty
Service & Support
Limited warranty - parts - 1 year | Limited warranty - labor - 3 years
Compatibility Information
Designed For
Supermicro SC113M FAC2-605CB, FAC2-R804CB | Supermicro SC213 LT-600LPB | Supermicro SC514 505 | Supermicro SC515 505 | Supermicro SC813M F2TQC-505CB | Supermicro SC825 TQC-R802LPB | Supermicro SC825M BTQC-R802LPB | Supermicro SC835 TQC-R802B | Superm
