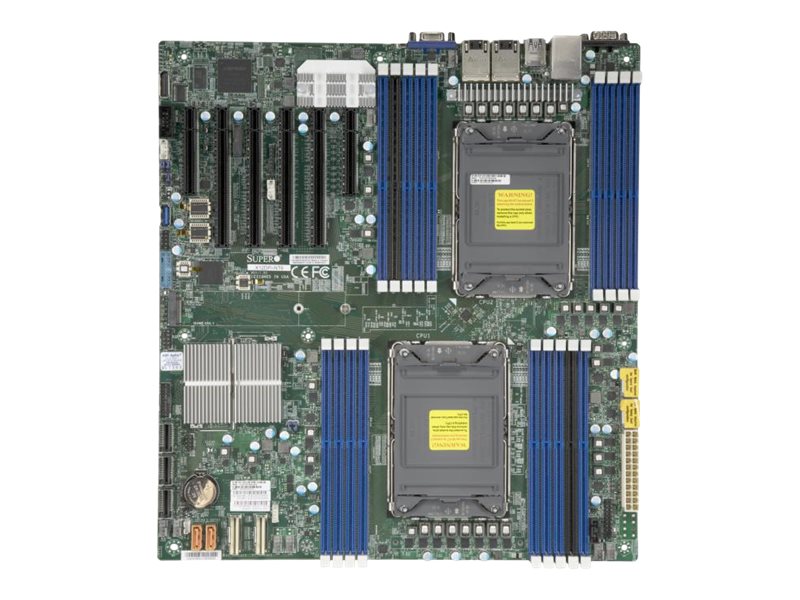

SUPERMICRO X12DPI-NT6 Udvidet ATX LGA4189 Intel C621A
SUPERMICRO X12DPI-NT6 - Bundkort - udvidet ATX - LGA4189 sokkel - 2 CPUer understøttet - C621A Chipset - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard grafik - for SC745 BAC-R1K23B; SC825 BTQC-R1K23LPB; SuperServer 620P-TRT
-
Product no 998835646
Model MBD-X12DPI-NT6-O
Brand Super Micro Computer
EAN 0672042451470
Weight 2.19 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | SUPERMICRO X12DPI-NT6 - bundkort - udvidet ATX - LGA4189 sokkel - C621A |
| Produkttype | Bundkort - udvidet ATX |
| Chipsættype | Intel C621A |
| Processor-socket | 2 x LGA4189 sokkel |
| Kompatible processorer | Xeon (understøtter CPUer med op til 40 kerner, maksimal TDP 270 Watt) |
| Max RAM-størrelse | 4 TB |
| RAM understøttet | 18 DIMM åbninger - DDR4, ECC, registreret, Load-Reduced, 3DS Load-Reduced, Optane DC Persistent |
| Lagringsporte | 14 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire porte | 5 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser) |
| Grafik | ASPEED AST2600 |
| LAN | 2 x 10 Gigabit Ethernet |
| Producentgaranti | 3 års garanti |
| Designet for | SC745 BAC-R1K23B; SC825 BTQC-R1K23LPB; SuperServer 620P-TRT |
| General | |
|---|---|
| Chipset Type | Intel C621A |
| Compatible Processors | Xeon (supports CPUs with up to 40 cores, Maximum TDP 270 Watt) |
| Max Processors Qty | 2 |
| Processor Socket | LGA4189 Socket |
| Product Type | Motherboard - extended ATX |
| Supported RAM | |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Features | Single Device Data Correction (SDDC) |
| Max Size | 4 TB |
| Registered or Buffered | Registered, Load-Reduced, 3DS Load-Reduced, Optane DC Persistent |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Controller | Intel X550 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 2 x CPU | 18 x DIMM 288-pin (1.2 V) | 4 x PCIe 4.0 x16 | 2 x PCIe 4.0 x8 |
| Interfaces | 2 x LAN (10Gigabit Ethernet) | 1 x VGA | 4 x USB 3.2 Gen 1 | 1 x serial |
| Internal Interfaces | 1 x USB 3.2 Gen 1 - Type A | 1 x serial - header | 2 x USB 2.0 - header | 1 x VGA - header |
| Storage Interfaces | SATA-600 - 14 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support |
| BIOS Type | AMI |
| Hardware Features | Chassis intrusion detection |
| Hardware Monitoring | System voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Miscellaneous | |
| Cables Included | 3 x Serial ATA cable |
| Compliant Standards | RoHS |
| Depth | 33.02 cm |
| Included Accessories | I/O back plate |
| Package Type | Retail |
| Width | 30.48 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year | Limited warranty - labor - 3 years |
| Compatibility Information | |
| Designed For | Supermicro SC745 BAC-R1K23B | Supermicro SC825 BTQC-R1K23LPB | Supermicro SuperServer 620P-TRT |
