Produktbeskrivelse
|
Startech USB 3.2 Gen 2x2 PCIe Card - USB-C 20Gbps PCI Express 3.0 x4 Controller - USB Type-C Add-On PCIe Expansion Card -Windows/Linux - USB-adapter - PCIe 3.0 x4 - USB-C 3.2 Gen 2x2 x 1
|
|
Enhedstype
|
USB-adapter
|
|
Model
|
Indstikskort - lavprofil
|
|
Grænseflade (bus) type
|
PCI Express 3.0 x4
|
|
Porte
|
USB-C 3.2 Gen 2x2 x 1
|
|
Dimensioner (B x D x H)
|
8 cm x 5.1 cm x 2.2 cm
|
|
Vægt
|
37 g
|
|
Dataforbindelsesprotokol
|
USB 3.2 Gen 2x2
|
|
Dataoverførselshastighed
|
20 Gbps
|
|
Processor
|
ASMedia ASM3242
|
|
Overensstemmelsesstandarder
|
USB 2.0, USB 3.0, USB 3.1, USB 3.1 Gen 2, xHCI 1.1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 3.2 Gen 2x2
|
|
Systemkrav
|
Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, kun Linux LTS-versioner, Linux 3.5 eller nyere, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Windows 8 / 8.1 / 10 / 11, Apple macOS 13.0
|
|
Producentgaranti
|
2 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
StarTech.com USB-adapter PCI Express 3.0 x4 20Gbps
Startech USB 3.2 Gen 2x2 PCIe Card - USB-C 20Gbps PCI Express 3.0 x4 Controller - USB Type-C Add-On PCIe Expansion Card -Windows/Linux - USB-adapter - PCIe 3.0 x4 lavprofil - USB-C 3.2 Gen 2x2 x 1
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
USB adapter
|
|
Form Factor
|
Plug-in card - low profile
|
|
Interface (Bus) Type
|
PCI Express 3.0 x4
|
|
Networking
|
|
|
Compliant Standards
|
USB 2.0, USB 3.0, USB 3.1, USB 3.1 Gen 2, xHCI 1.1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 3.2 Gen 2x2
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
USB 3.2 Gen 2x2
|
|
Data Transfer Rate
|
20 Gbps
|
|
Ports
|
USB-C 3.2 Gen 2x2 x 1
|
|
Processor / Memory
|
|
|
Processor
|
ASMedia ASM3242
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
1 x USB 3.2 Gen 2x2 - 24 pin USB-C
|
|
Miscellaneous
|
|
|
Compliant Standards
|
FCC, RoHS, UASP (USB Attached SCSI Protocol)
|
|
Included Accessories
|
Low-profile bracket
|
|
MTBF
|
3,126,209 hours
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux LTS versions only, Linux 3.5 or later, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Windows 8 / 8.1 / 10 / 11, Apple macOS 13.0
|
|
Dimensions & Weight
|
|
|
Depth
|
5.1 cm
|
|
Height
|
2.2 cm
|
|
Weight
|
37 g
|
|
Width
|
8 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
17 cm
|
|
Shipping Height
|
3 cm
|
|
Shipping Weight
|
101 g
|
|
Shipping Width
|
14.2 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
15 - 90%
|
|
Max Operating Temperature
|
85 °C
|
|
Min Operating Temperature
|
0 °C
|
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

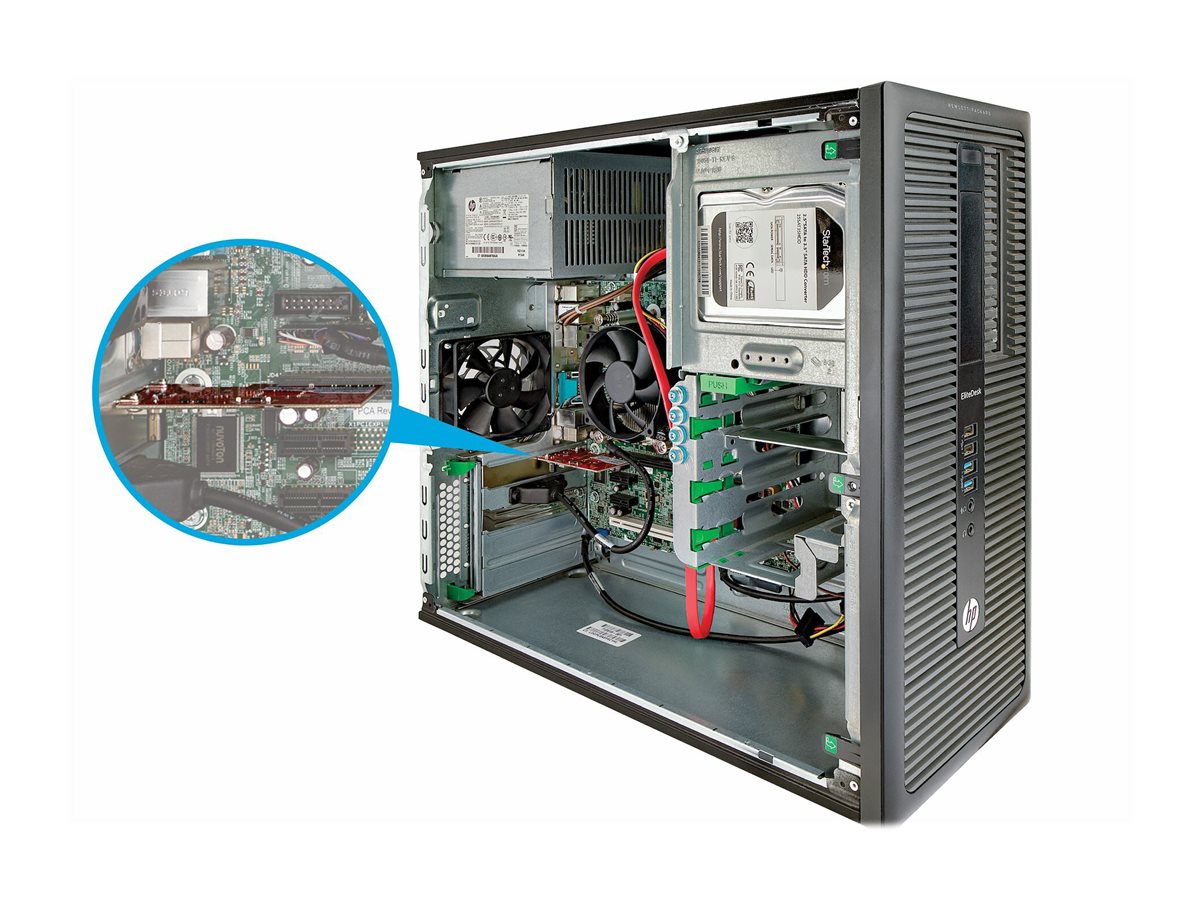

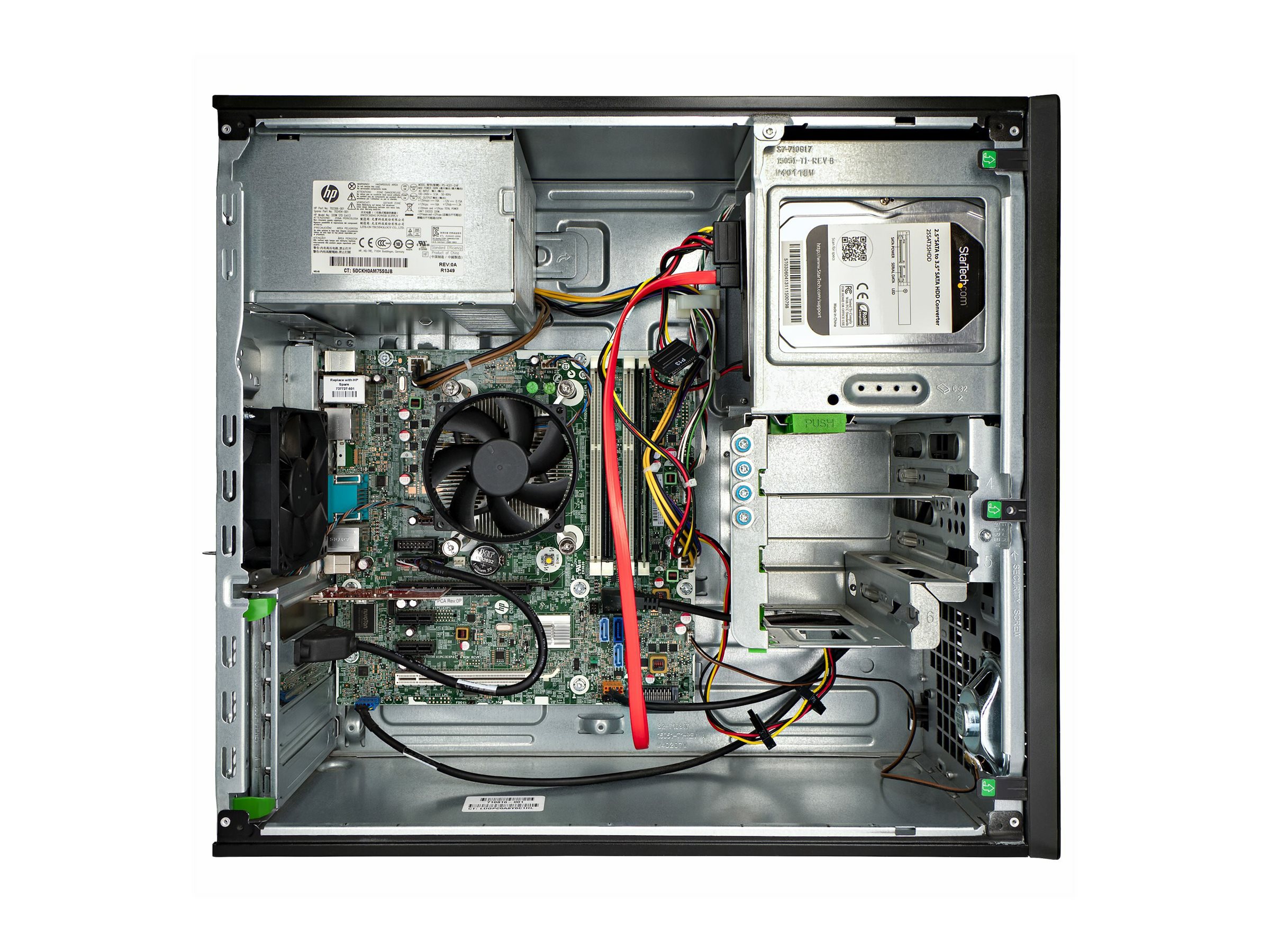

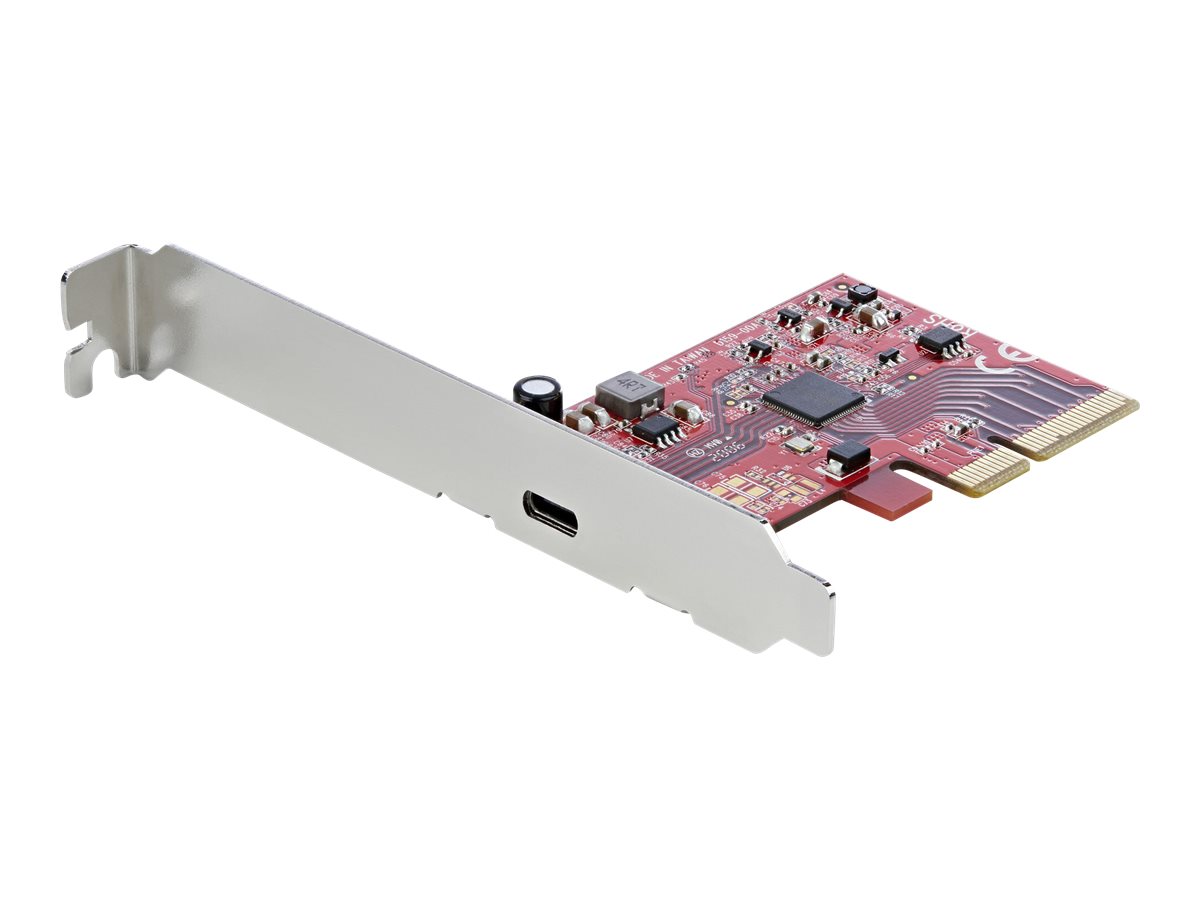

This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C™ (20 Gbps) port.
Add a 20 Gbps USB Type-C Port to Your Desktop Computer
The controller card enables you to connect USB-C Gen 2x2 (20 Gbps) devices to your desktop computer. The USB-C port is ideal for connecting USB devices such as external hard drives and solid state drives or charging and syncing your mobile devices. The USB-C port provides up to 15W (5V/3A) of power and is backward compatible with USB 3.2 Gen 2 (10 Gbps) and USB 3.2 Gen 1 (5 Gbps) devices.
Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.0 and USB 3.1 (5 Gbps).
SuperSpeed USB 3.2 Gen 2x2 (20 Gbps) Performance

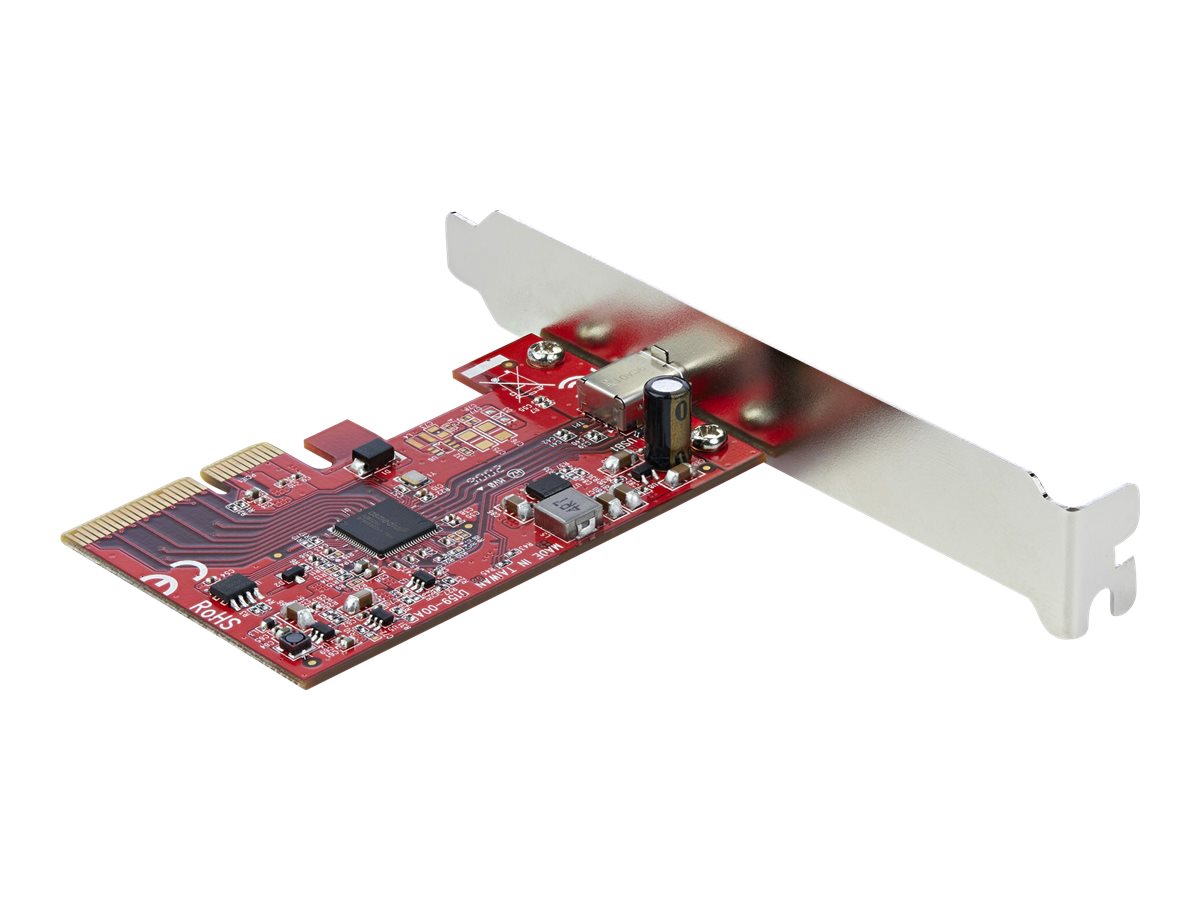

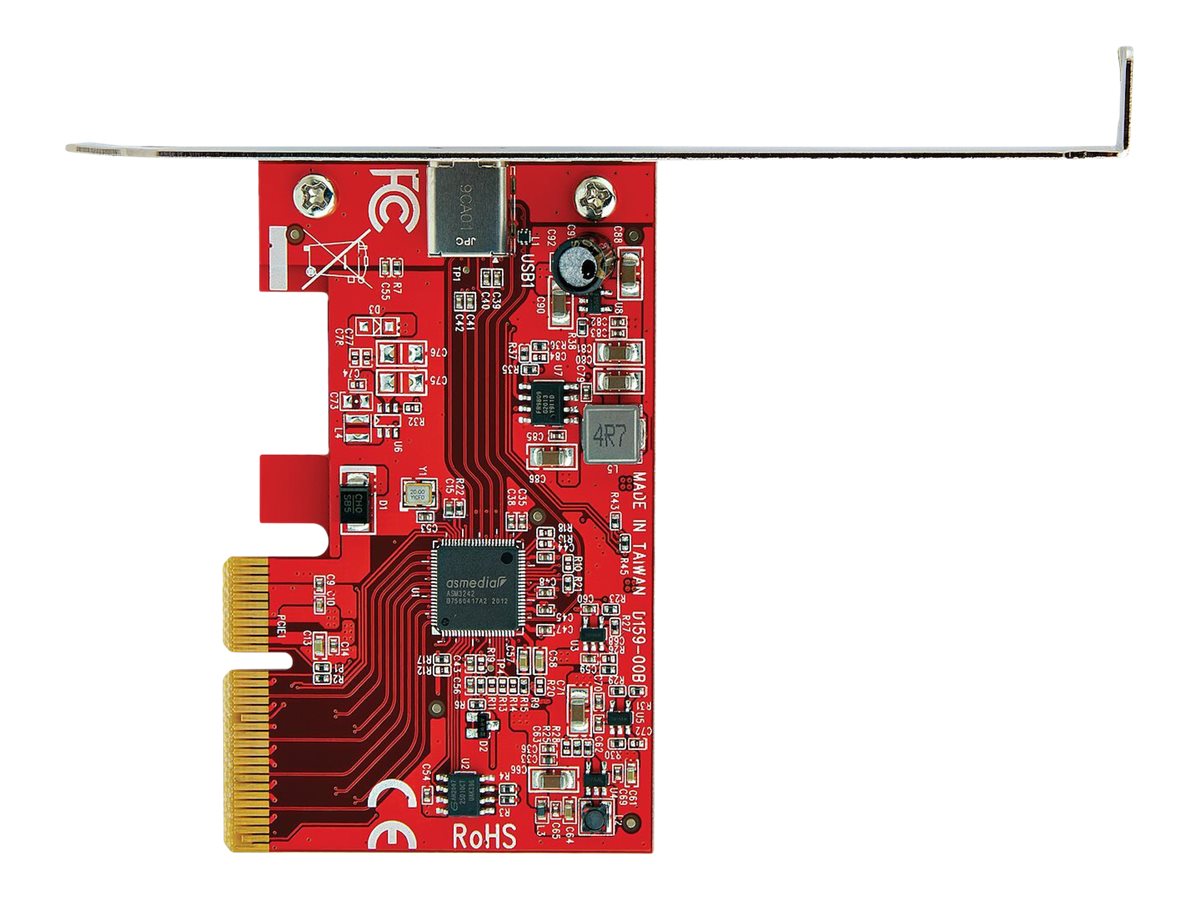

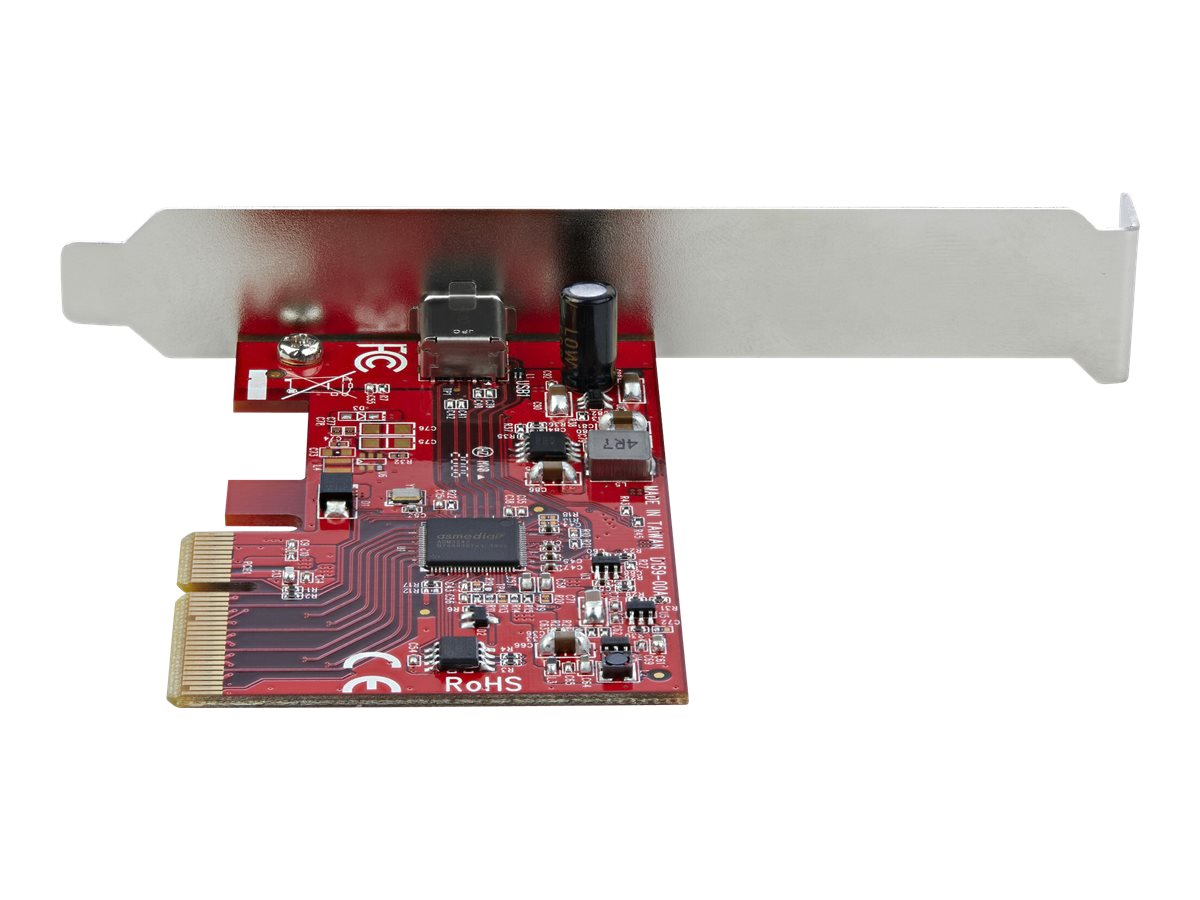

The USB 3.2 Gen 2x2 card features an ASMedia ASM3242 host controller that utilizes x4 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 20 Gbps and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.
Wide Installation Compatibility

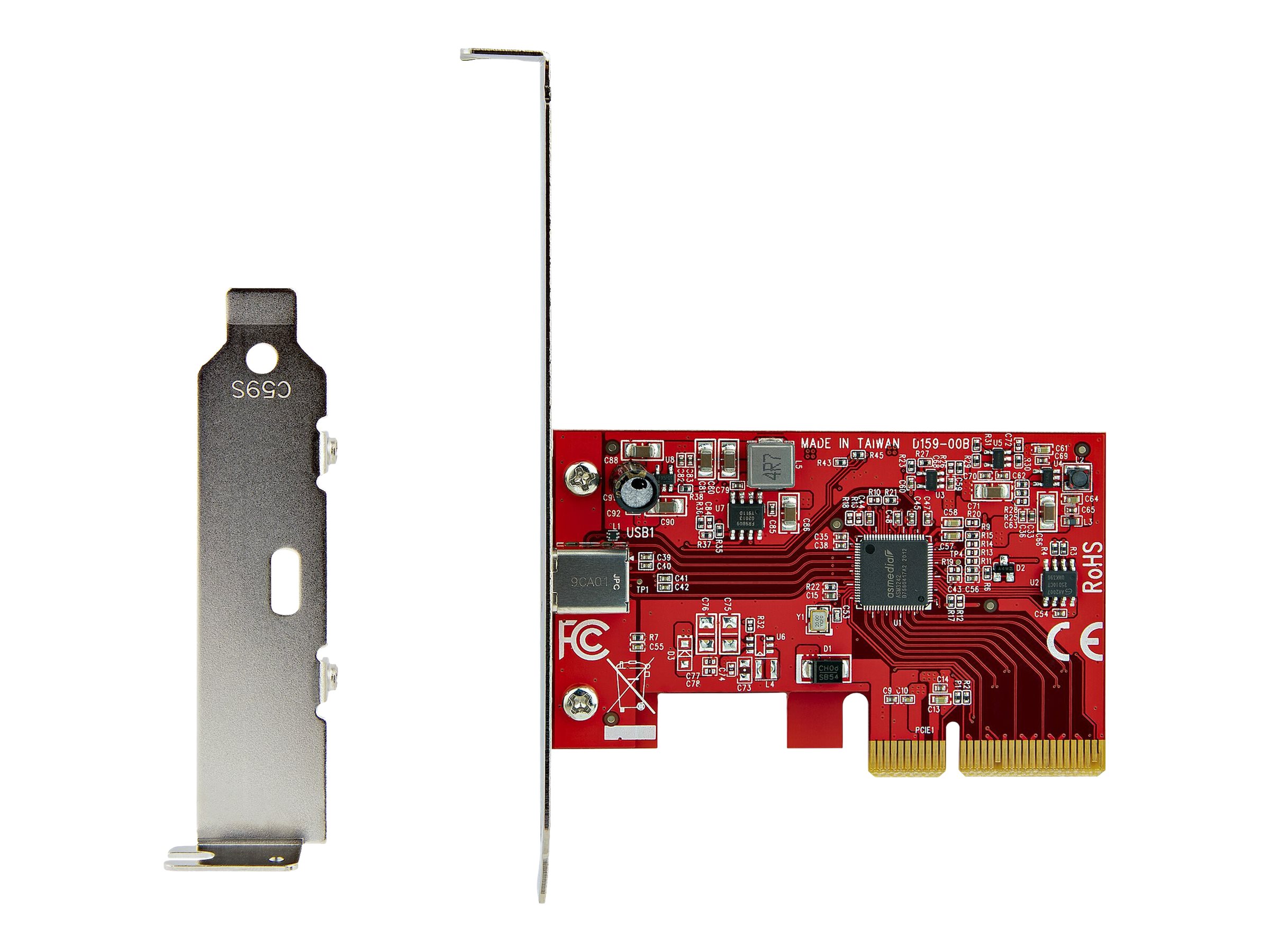

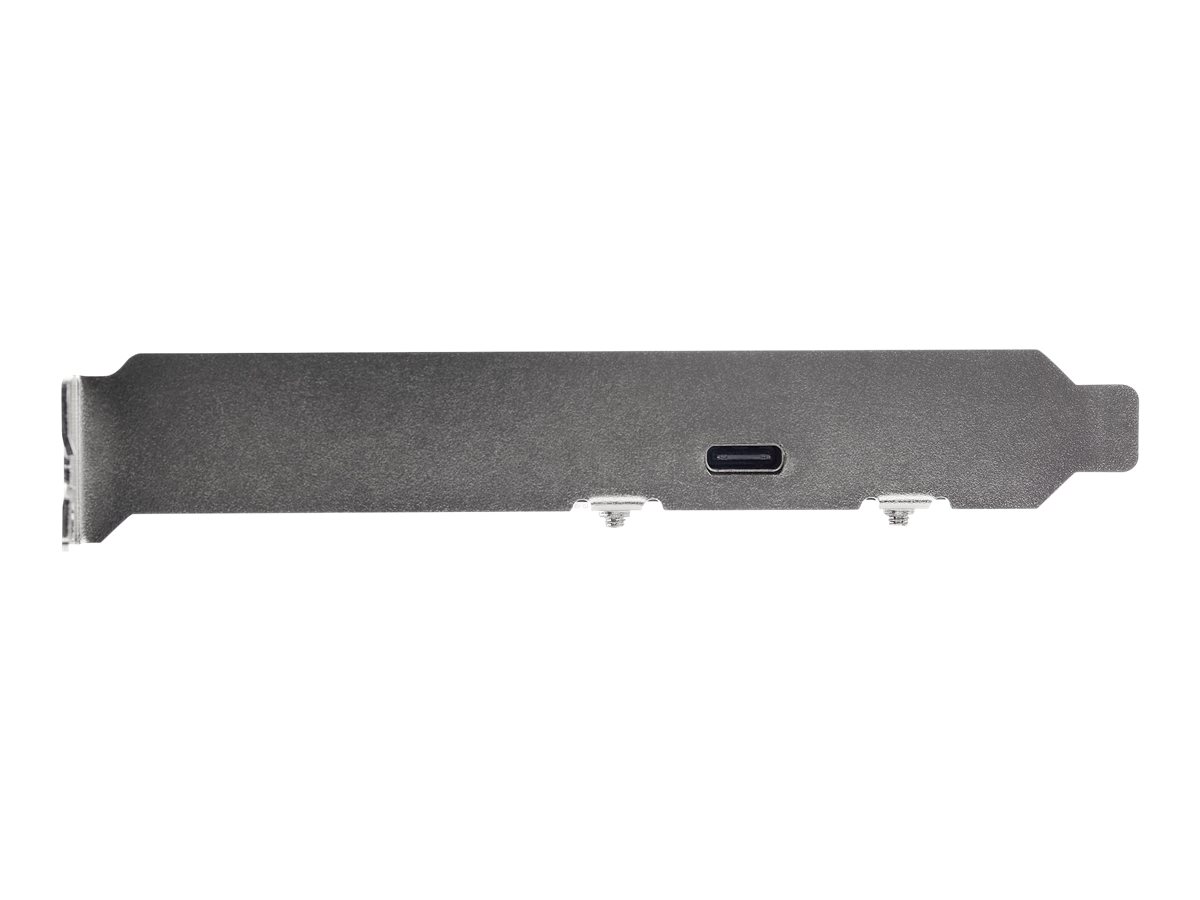

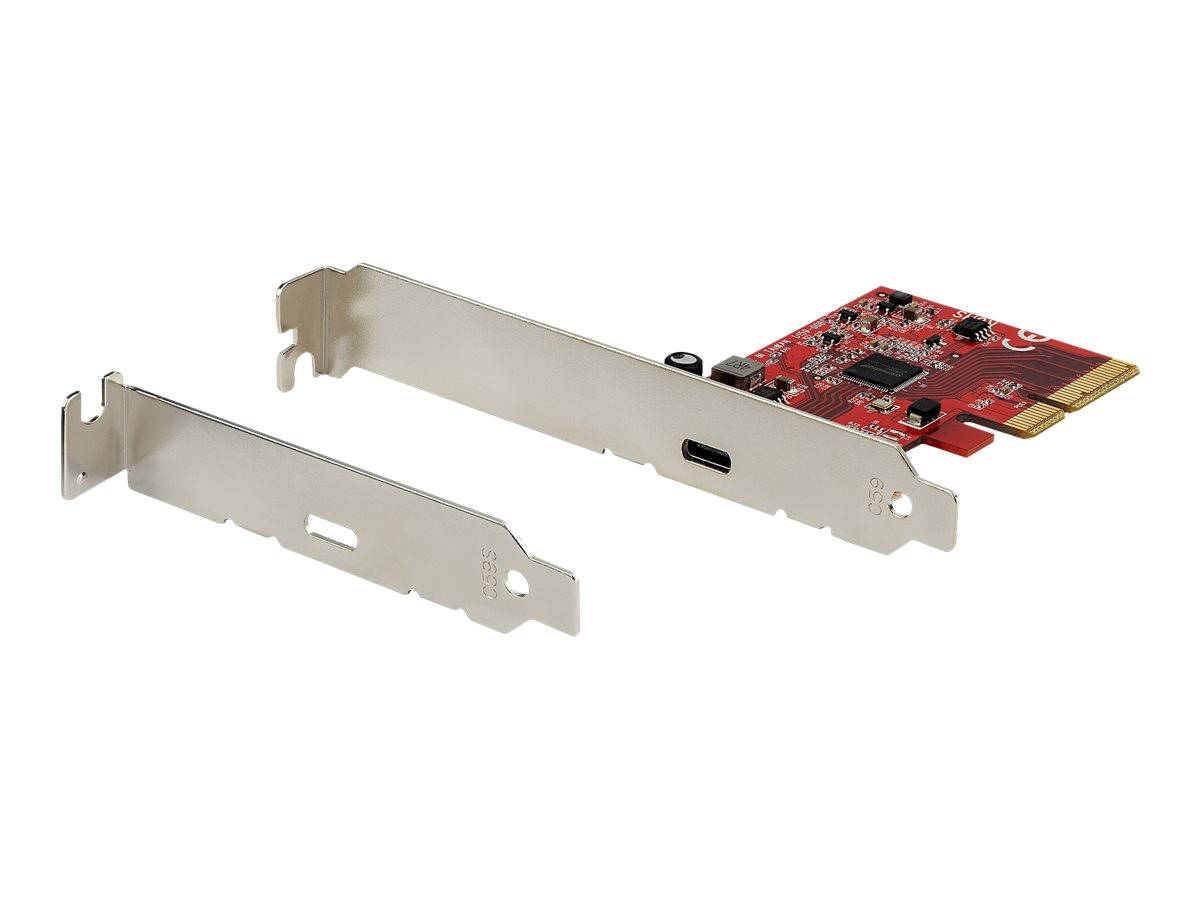

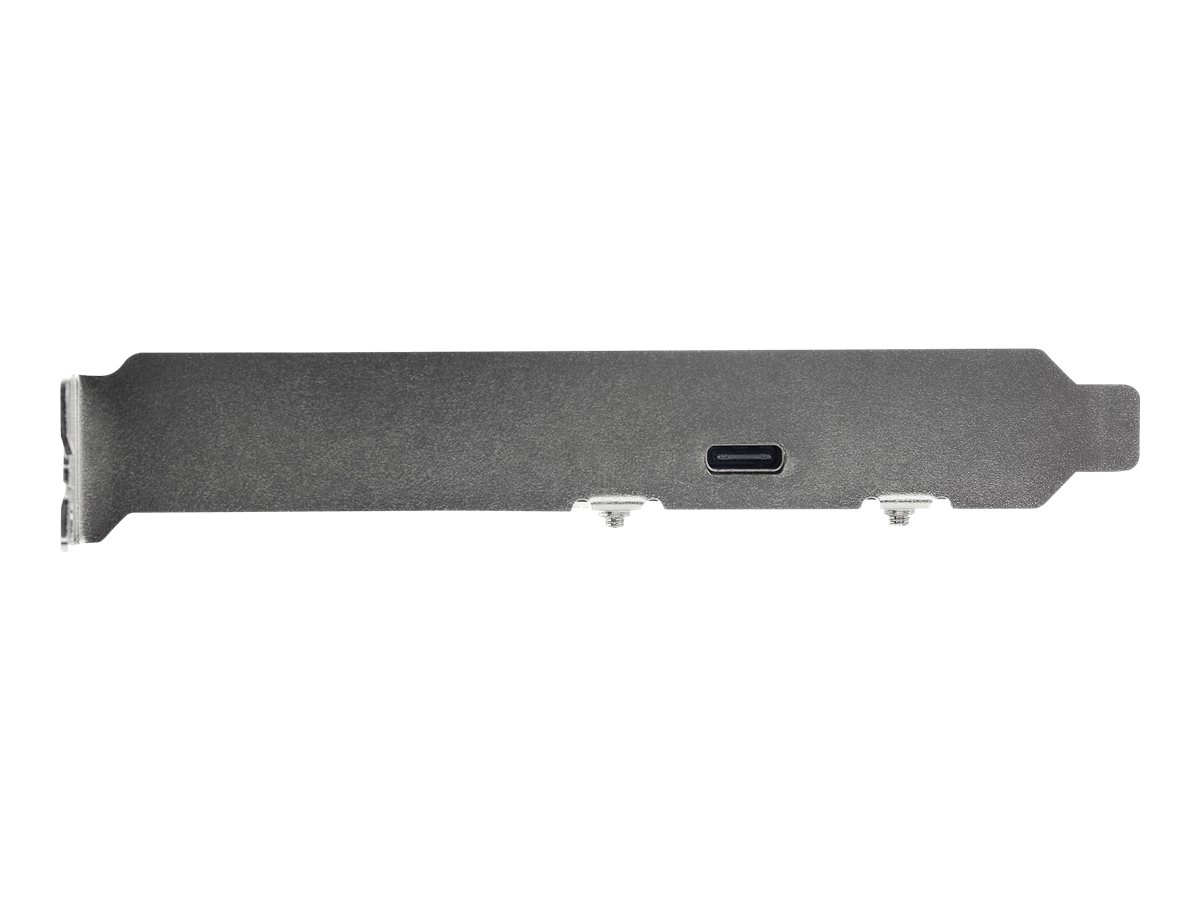

This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward compatible w/PCIe 2.0). For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.1/3.0/2.0 devices
PEXUSB321C is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
