Produktbeskrivelse
|

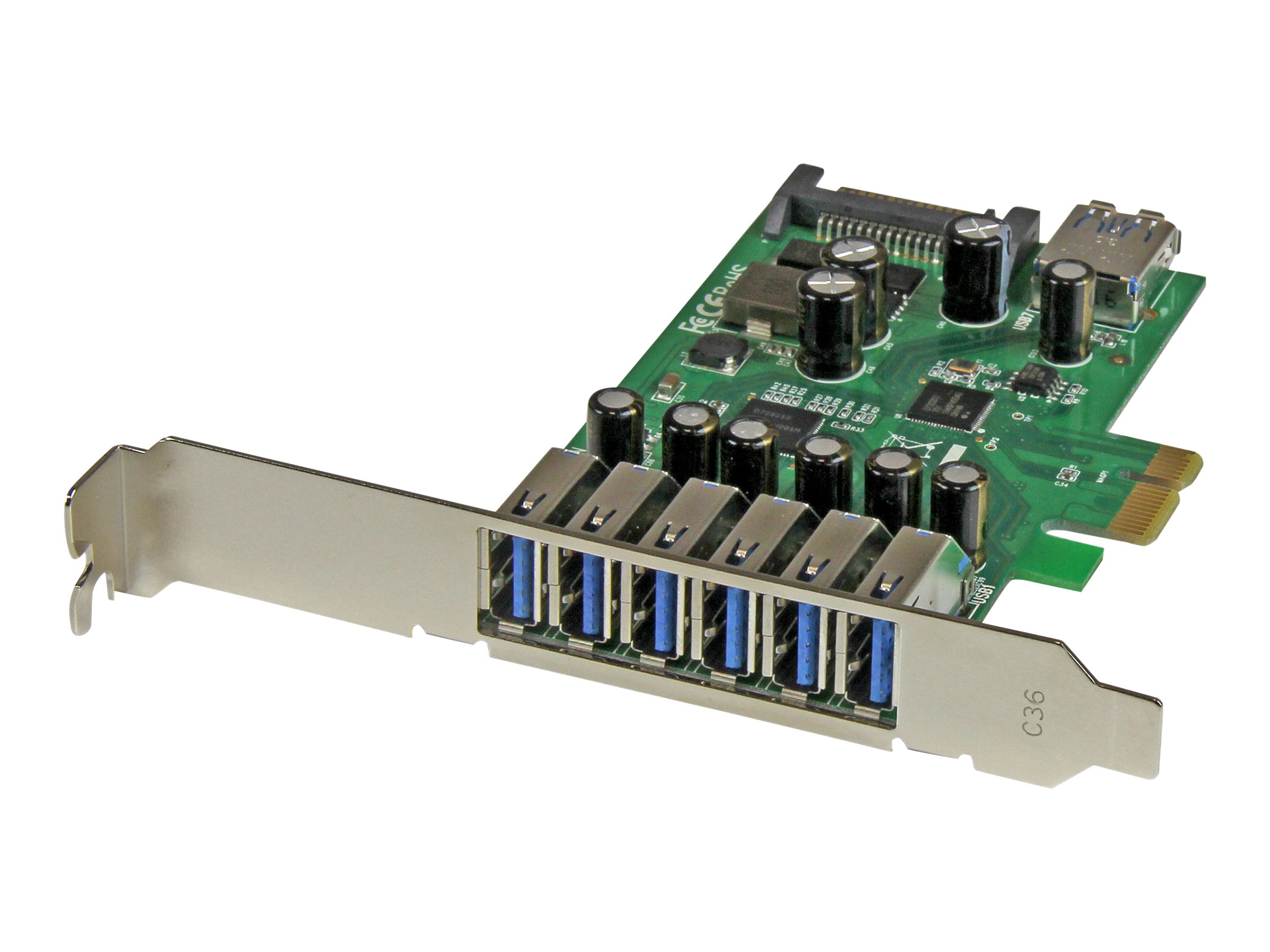

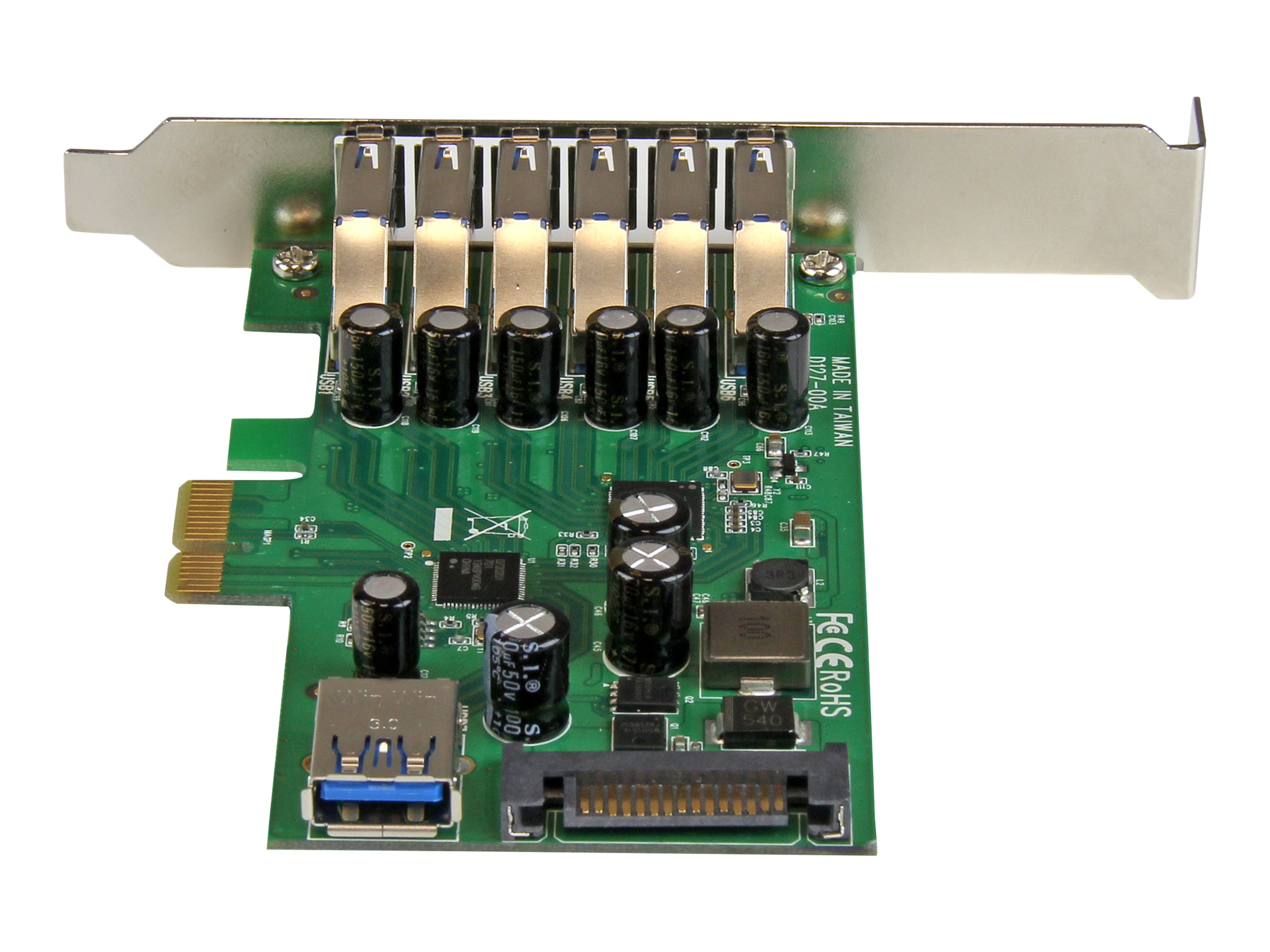

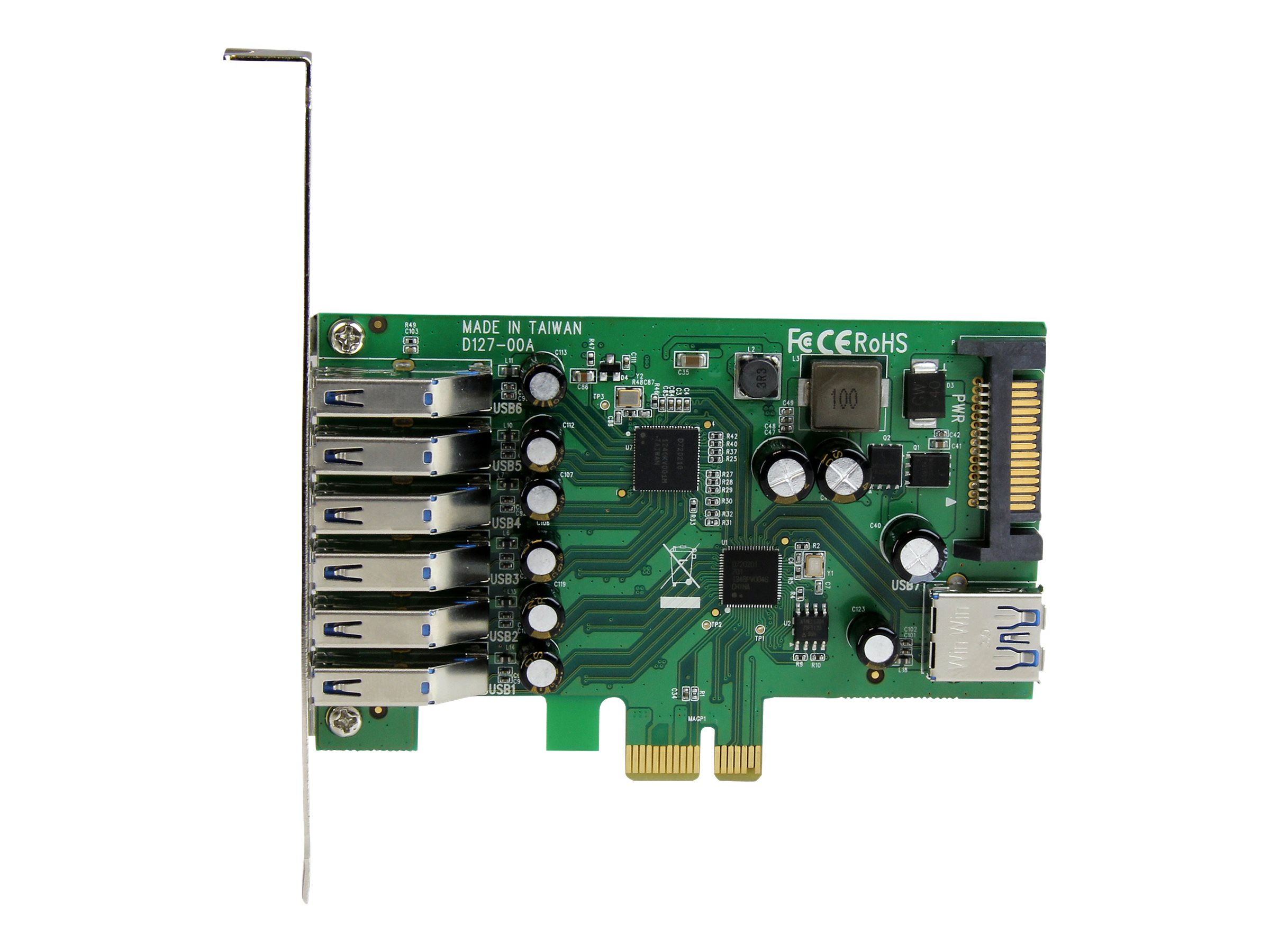

Startech 7 Port PCI Express USB 3.0 Card - Standard & Low-Profile - SATA Power - UASP Support - 1 Internal & 6 External USB 3.0 Ports (PEXUSB3S7) - USB-adapter - PCIe 2.0
|
|
Enhedstype
|
USB-adapter
|
|
Model
|
Indstikskort
|
|
Grænseflade (bus) type
|
PCI Express 2.0 x1
|
|
PCI-specifikationsrevision
|
PCIe 2.0
|
|
Dimensioner (B x D x H)
|
12 cm x 10.5 cm x 1.5 cm
|
|
Vægt
|
72 g
|
|
Dataforbindelsesprotokol
|
USB, USB 2.0, USB 3.0
|
|
Dataoverførselshastighed
|
5 Gbps
|
|
Systemkrav
|
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, kun Linux 2.6.31 - 4.11.x LTS versioner
|
|
Producentgaranti
|
2 års garanti
|
|
Designet for
|
P/N: ST1030USBM, ST7300USBME
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
StarTech.com USB-adapter PCI Express 2.0 x1 5Gbps
Startech 7 Port PCI Express USB 3.0 Card - Standard & Low-Profile - SATA Power - UASP Support - 1 Internal & 6 External USB 3.0 Ports (PEXUSB3S7) - USB-adapter - PCIe 2.0 - USB, USB 2.0, USB 3.0 - for P/N: ST1030USBM, ST7300USBME
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
USB adapter
|
|
Form Factor
|
Plug-in card
|
|
Interface (Bus) Type
|
PCI Express 2.0 x1
|
|
PCI Specification Revision
|
PCIe 2.0
|
|
Networking
|
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
USB, USB 2.0, SuperSpeed USB 3.0
|
|
Data Transfer Rate
|
5 Gbps
|
|
Features
|
USB Attached SCSI Protocol (UASP)
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
6 x USB 3.0 - 9 pin USB Type A (external) | 1 x USB 3.0 - 9 pin USB header (internal) | 1 - 15 pin Serial ATA power
|
|
Miscellaneous
|
|
|

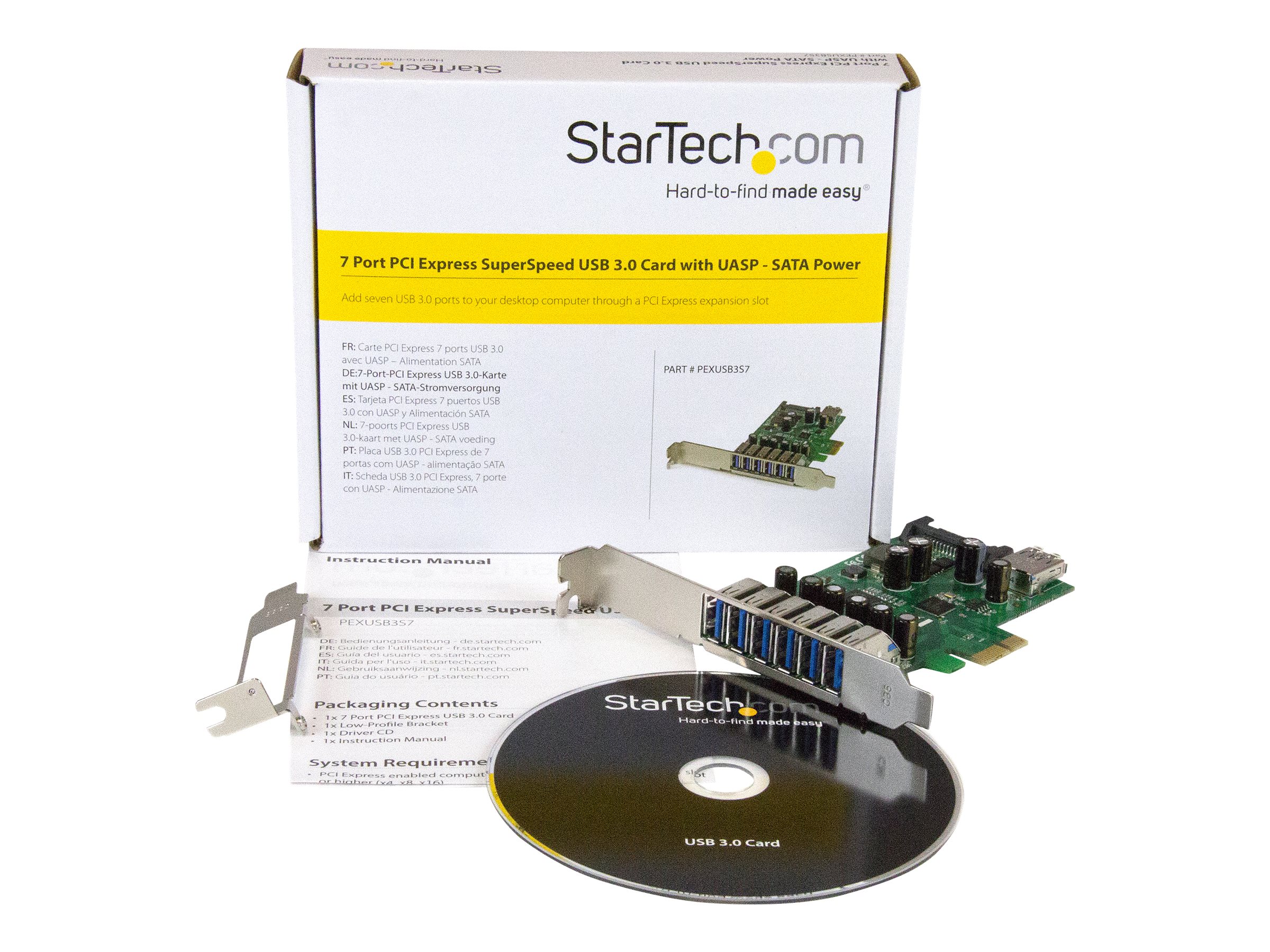

Included Accessories
|
Low-profile bracket
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 2.6.31 - 4.11.x LTS versions only
|
|
Software Included
|
Drivers & Utilities
|
|
Dimensions & Weight
|
|
|
Depth
|
10.5 cm
|
|
Height
|
1.5 cm
|
|
Weight
|
72 g
|
|
Width
|
12 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
20 - 80%
|
|
Max Operating Temperature
|
50 °C
|
|
Min Operating Temperature
|
5 °C
|
|
Compatibility Information
|
|
|
Designed For
|
P/N: ST1030USBM, ST7300USBME
|
Media
Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer
- Extend your system capabilities by adding 7 USB 3.0 ports – 6 external and 1 internal – to any PCIe compatible computer
- Unique dual-profile design fits standard and low-profile computers
- Get up and running quickly with native OS support in Windows 8.1, 8, and Linux kernel 2.6.31 or later
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Greater port count. Greater scalability.
More ports means you can add USB devices as you need them. This robust USB 3.0 card gives you seven USB 3.0 ports – six external and one internal – so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical – by being able to connect so many devices, you save the cost of extra hubs or cards.The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.
.jpg)

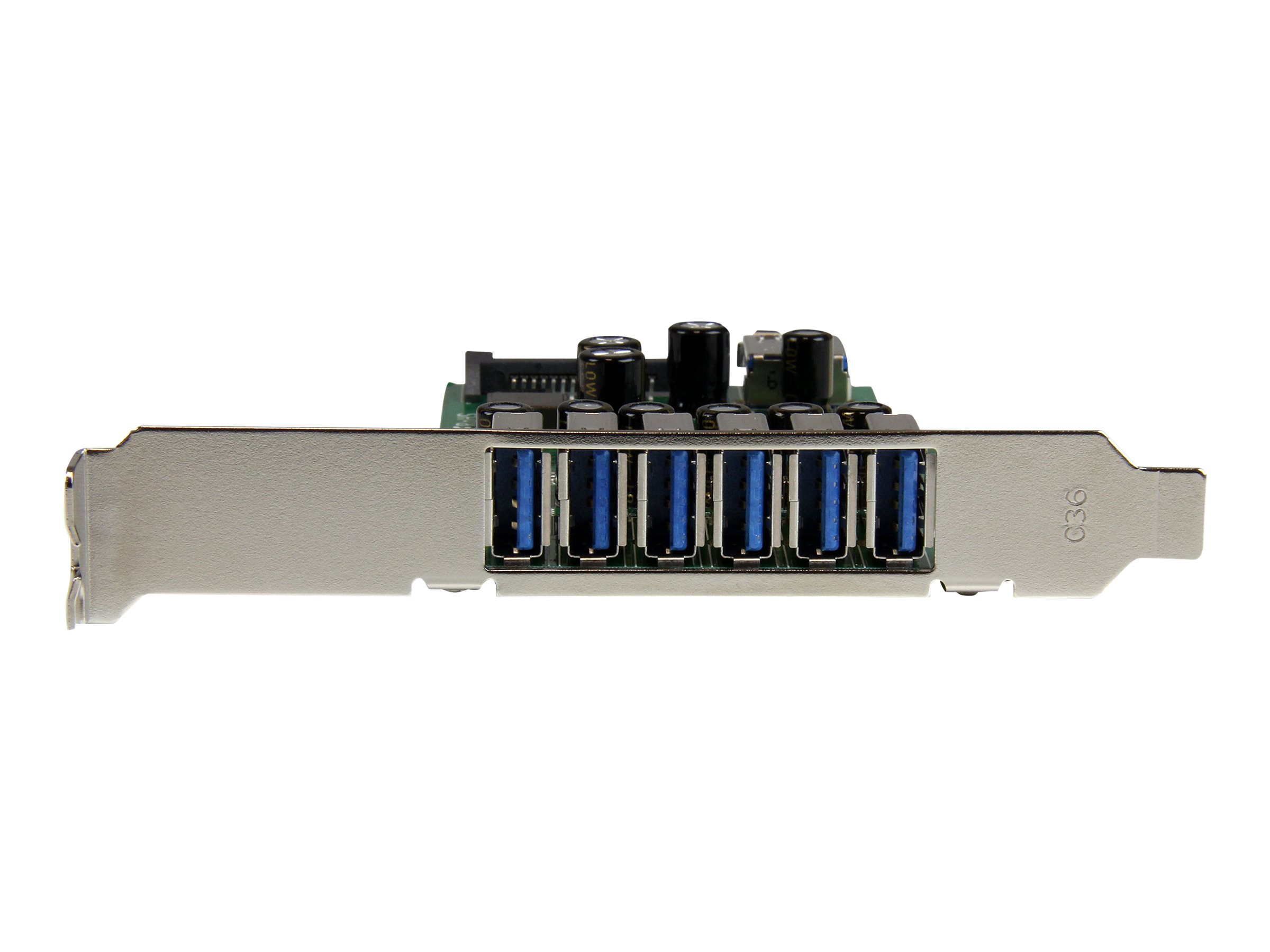

Unique dual-profile design
This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers..jpg)
Easy driver installation
You'll be up and running in no time. The card automatically installs in Windows 8.1 and 8, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.Applications
- Enhance the connectivity capabilities of your PCI Express enabled computer or server
- Connect external hard drives, tablets, smartphones, CD/DVD drives, MP3 players, printers, scanners, webcams and game controllers to your computer
.jpg)
.jpg)
