StarTech.com USB 3.0 to HDMI or VGA Adapter Dock - USB 3.0 Mini Docking Station w/ USB, GbE Ports - Portable Universal Laptop Travel Hub (USB3SMDOCKHV) USB Dockingstation

StarTech.com USB 3.0 to HDMI or VGA Adapter Dock - USB 3.0 Mini Docking Station w/ USB, GbE Ports - Portable Universal Laptop Travel Hub (USB3SMDOCKHV) - Dockingstation - USB - HDMI - 1GbE - for P/N: ARMPIVOT, ARMPIVOTE, ARMPIVSTND, ARMSLIM, ARMUNONB

  • Product no 989496207

    Model USB3SMDOCKHV

    Brand StarTech.com

    EAN 0065030858281

    Weight 0.19 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com USB 3.0 to HDMI or VGA Adapter Dock - USB 3.0 Mini Docking Station w/ USB, GbE Ports - Portable Universal Laptop Travel Hub (USB3SMDOCKHV) - dockingstation - USB - HDMI - 1GbE
Produkttype Dockingstation
Docking-interface USB
Videointerfacer HDMI
Dimensioner (B x D x H) 5.5 cm x 12.5 cm x 1.7 cm
Vægt 100 g
Farve Sort
Netværk Gigabit Ethernet
Producentgaranti 3 års garanti
Designet for P/N: ARMPIVOT, ARMPIVOTE, ARMPIVSTND, ARMSLIM, ARMUNONB
General
Depth 12.5 cm
Enclosure Color Black
Height 1.7 cm
Product Type Docking station
Weight 100 g
Width 5.5 cm
Networking
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Interfaces 1 x SuperSpeed USB 3.0 - 9 pin USB Type A | 1 x SuperSpeed USB 3.0 - 9 pin USB Type A | 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 | 1 x display / video - output - 15 pin HD D-Sub (HD-15) | 1 x video - HDMI - 19 pin HDMI Type A
Miscellaneous
Compliant Standards FCC, RoHS
System Requirements
OS Required Microsoft Windows XP (32-bit) SP3, Apple MacOS X 10.6 - 10.12, Apple macOS 11.0, Apple macOS 10.14 - 10.15, Microsoft Windows Vista / 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: ARMPIVOT, ARMPIVOTE, ARMPIVSTND, ARMSLIM, ARMUNONB

Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock

  • Create a mobile workstation using your Ultrabook or laptop USB 3.0 port
  • Travel Docking Station for Laptops
  • HDMI or VGA
  • USB 3.0
  • Compact Mobile Universal Laptop Mini Dock / BYOD Workstation
  • Compatible with HP EliteBook Folio / Lenovo X1 Carbon / Microsoft Surface Pro 4 / Surface Pro 3 / Surface 3 / Surface Book
  • Portable Laptop Docking Station / Travel Adapter for Laptops / Notebook Mini Docking Station
Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock
slide {0} of {1}, zoom in, Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock
slide {0} of {1}, zoom in, Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock
slide {0} of {1}, zoom in, Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock
slide {0} of {1}, zoom in, Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock
Portable and travel-friendly design that lets you take the adapter anywhere

Portable and travel-friendly design that lets you take the adapter anywhere

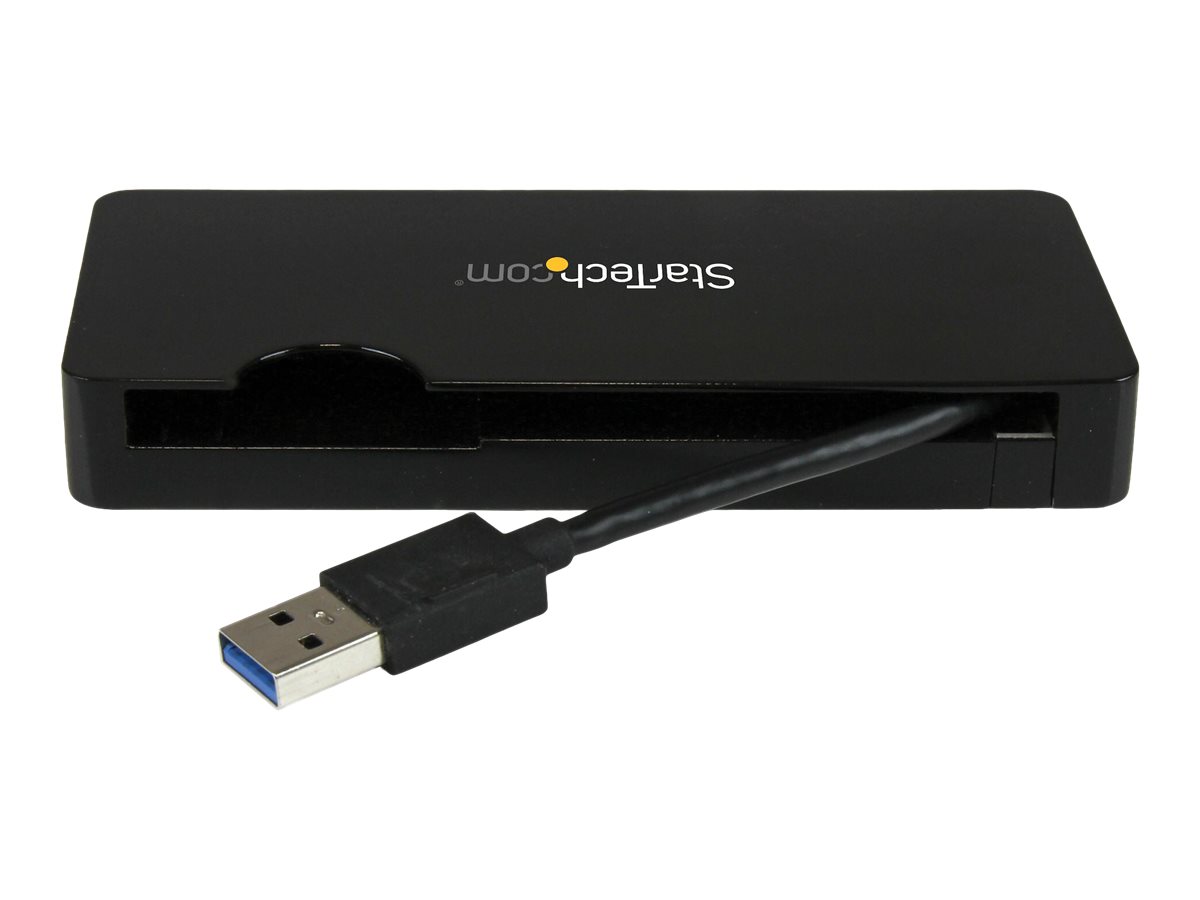

Now, you can avoid the nuisance of carrying multiple adapters. By consolidating four essential connection ports into one convenient device, the travel dock is the the perfect laptop accessory. It features a lightweight, compact design that fits nicely into your travel bag and also features an integrated host connection cable that tucks neatly into the docking stations casing.
Consolidates several connection ports into a single, multi-function adapter

Consolidates several connection ports into a single, multi-function adapter

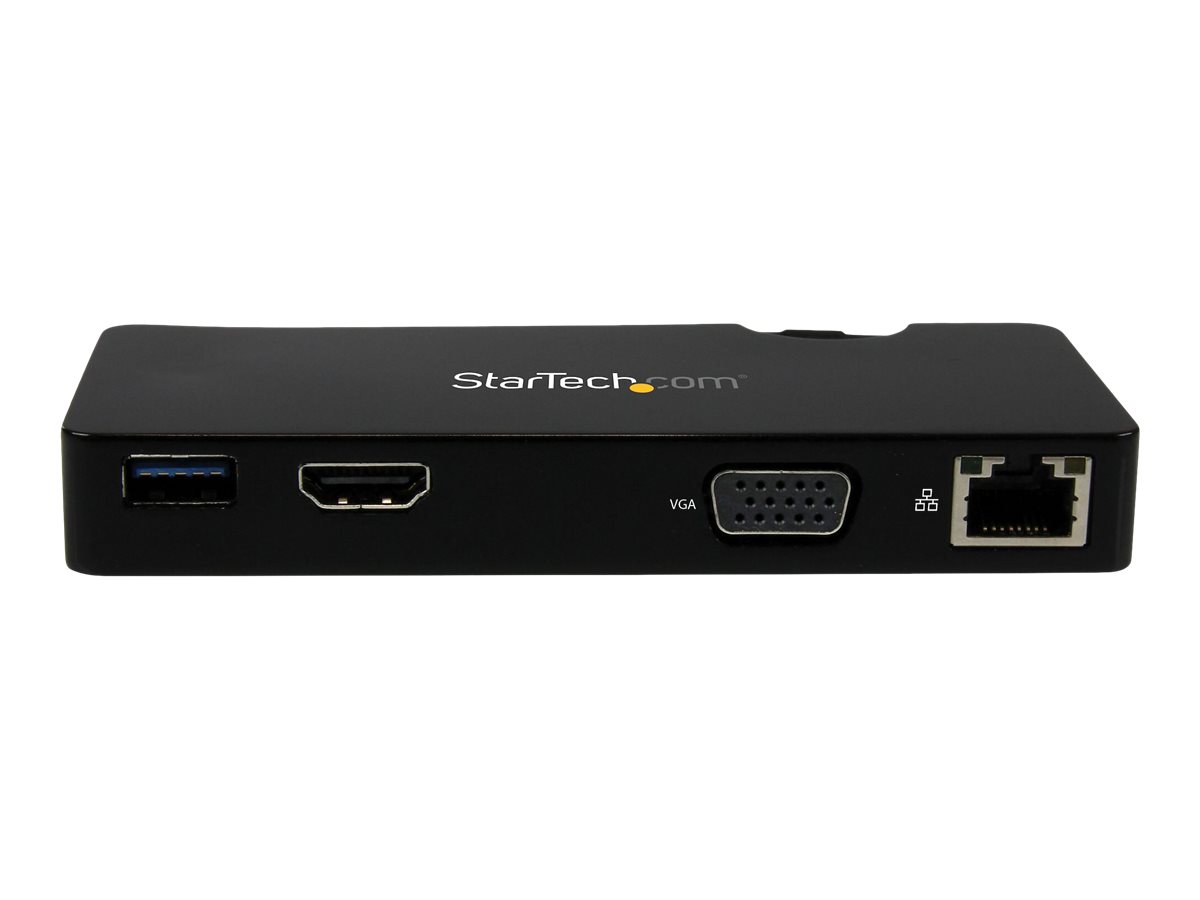

A versatile solution for connecting an additional display to your laptop, the travel docking station offers HDMI video output with audio, or VGA video output, providing two popular interfaces for connecting a television, projector, or monitor as a second display, with support for resolutions up to 2048x1152 (QWXGA). Leveraging the high-bandwidth (5Gbps) USB 3.0 interface to deliver flexible video output, a USB 3.0 hub port, and Gigabit Ethernet, you can quickly set up a multi-functional workstation while on the run, without sacrificing one of your laptop USB ports.
Fast, hassle-free setup

Fast, hassle-free setup

Setup is seamless and hassle-free; the travel dock will automatically download the latest driver when connected to a Windows system with an active network connection.

Applications

  • Work from your Ultrabook or laptop easily, while you’re on the run or on the road, by adding essential connectivity options
  • Use your Ultrabook or laptop as a multi-display workstation, through external monitor support, and run multiple applications on different screens
  • Use an HDMI port-equipped television in a hotel room as a second display when traveling
  • Add an extra display as well as wired Gigabit network access to your slimline laptop, while keeping your USB 3.0 port available for other connections
  • Connect to your HDMI or VGA-equipped projector and display multimedia content at home, or engaging presentations in boardrooms
  • Connect your laptop to a wired Gigabit network in situations where a WiFi connection isn't available, such as in classrooms, offices, and hotels
