StarTech.com Thunderbolt 3 PCIe Expansion Chassis w/ DisplayPort – PCIe x16 – External PCIe Slot for Thunderbolt 3 Devices (TB31PCIEX16) Busudvidelse til system

Startech Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA - Busudvidelse til system - DP - 65 watt - for P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU

Varenummer: 993078468
Model: TB31PCIEX16
EAN: 0065030868440
Brand:
StarTech.com
Vægt: 3.12 kg

Specifications

Produktbeskrivelse
Startech Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA - busudvidelse til system - DP
Produkttype
Busudvidelse til system
Videointerfacer
DP
Dimensioner (B x D x H)
27.3 cm x 8.2 cm x 14 cm
Vægt
1 kg
Farve
Sort
Effekt
Strømforsyningsadapter AC 100/240 V (50/60 Hz) 65 watt Strømforsyning
Producentgaranti
2 års garanti
Designet for
P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
Specifications

Full specifications

General
Depth
8.2 cm
Enclosure Color
Black
Height
14 cm
Product Type
System bus extender
Weight
1 kg
Width
27.3 cm
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x PCI Express 3.0 x16 (x4 mode)
Interfaces
2 x Thunderbolt 3 - 24 pin USB-C | 1 x display / video - DisplayPort - 20 pin DisplayPort
Miscellaneous
Cables Included
1 x Thunderbolt cable - external
Compliant Standards
FCC, RoHS, WEEE
Features
LED indicator, built-in cooling fan
Included Accessories
4 x rubber feet
Power
Power Device
Power adapter
Power Provided
65 Watt
Voltage Required
AC 100/240 V (50/60 Hz)
System Requirements
OS Required
Apple macOS 10.12 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Max Operating Temperature
35 °C
Min Operating Temperature
5 °C
Compatibility Information
Designed For
P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU

Media

Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop

  • Increasedproductivity with Thunderbolt 3 and up to 40Gbps bandwidth — twice the speed of Thunderbolt 2 (20Gbps) and eight times faster than USB 3.0 (5Gbps)
  • Supports one 4K DisplayPort monitor, and a second extended monitor display through the Thunderbolt 3 (USB-C) port
  • Daisy chain up to six Thunderbolt 3 devices
  • Supports 5K Thunderbolt displays
  • Supports half-length and dual-slot PCIe card standards at all heights, with standard profile slot brackets
  • Provides a x16 4 lane PCIe 3.0 slot or interface
  • Durable aluminum construction
Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
slide {0} of {1}, zoom in, Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop0:39
slide {0} of {1}, zoom in, Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
slide {0} of {1}, zoom in, Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
slide {0} of {1}, zoom in, Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
slide {0} of {1}, zoom in, Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
slide {0} of {1}, zoom in, Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
slide {0} of {1}, zoom in, Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
slide {0} of {1}, zoom in, Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
Expand the capabilities of your Thunderbolt 3 computer

Expand the capabilities of your Thunderbolt 3 computer

The Thunderbolt 3 PCIe chassis makes it easy to expand your system with the capabilities you need to work at peak productivity. You can addmany types of PCI Express cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards. And, with the speed and bandwidth support of Thunderbolt 3 and PCIe 3.0, you can enjoy many of the same port additions you would from the PCI Express expansion slots of a desktop system.

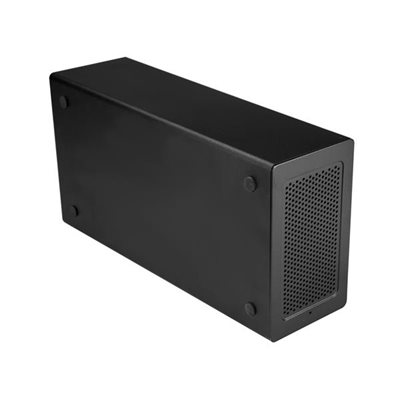

Increase productivity with faster speeds

Increase productivity with faster speeds

Thunderbolt 3 is the fastest connection available, which means you don’t have to deal with the performance bottlenecks of a slower connection, and can accomplish more in the same amount of time.

At up to 40Gbps this Thunderbolt 3 expansion chassis gives you the throughput to add displays to your laptop, access files quickly, and work without disruptions. It’s easy to access and edit large uncompressed files such as videos and images on the fly, making it idealfor dynamic on-site production.

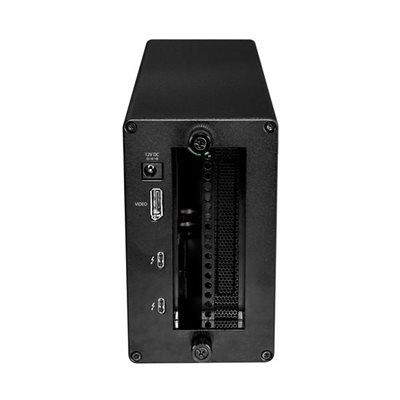

Extend your workstation

Extend your workstation

The external PCIe enclosure features a dedicated DisplayPort output that lets you add an additional display to your laptop or desktop computer. The enclosure features a second Thunderbolt 3 (USB-C) port, that you can use to connect a secondary display (a USB-C video adapter may be required). With multiple extended displays, you can work more efficiently by multitasking faster, and avoid the hassle of continually repositioning several open windows or programs.

You can also use the second Thunderbolt 3 port to connect additional Thunderbolt, USB and DisplayPort devices to your system. You can daisy chain up to six Thunderbolt 3 devices and expand your workstation to suit your specific requirements.

Applications

  • Add many types of PCIe cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards to your Thunderbolt 3 laptop
  • Add an external PCIe card to your Thunderbolt 3 equipped desktop computer
