Produktbeskrivelse
|
Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS) - seriel adapter - USB
|
|
Enhedstype
|
Seriel adapter
|
|
Model
|
Ekstern
|
|
Grænseflade (bus) type
|
USB
|
|
Dimensioner (B x D x H)
|
5.4 cm x 2.3 cm x 9.3 cm
|
|
Vægt
|
300 g
|
|
Dataforbindelsesprotokol
|
RS-422, RS-485
|
|
Dataoverførselshastighed
|
921.6 Kbps
|
|
Farve
|
Sort
|
|
Systemkrav
|
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 eller nyere, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
|
|
Producentgaranti
|
2 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
StarTech.com Seriel adapter USB 921.6Kbps Kabling
Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS) - Seriel adapter - USB - RS-422, RS-485 - sort
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Serial adapter
|
|
Form Factor
|
External
|
|
Interface (Bus) Type
|
USB
|
|
Networking
|
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
RS-422, RS-485
|
|
Data Transfer Rate
|
921.6 Kbps
|
|
Features
|
USB powered
|
|
Expansion / Connectivity
|
|
|
Connections
|
1 x USB - 4 pin USB Type B
|
|
Interfaces
|
1 x RS-422/485 - 9 pin D-Sub (DB-9) | 1 x RS-422/485 - terminal block
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x USB cable (external) - 1.8 m
|
|
Color
|
Black
|
|
Compliant Standards
|
FCC, RoHS
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsof
|
|
Software Included
|
Drivers & Utilities
|
|
Dimensions & Weight
|
|
|
Depth
|
2.3 cm
|
|
Height
|
9.3 cm
|
|
Weight
|
300 g
|
|
Width
|
5.4 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95%
|
|
Max Operating Temperature
|
55 °C
|
|
Min Operating Temperature
|
0 °C
|
Media
Add an R422/485 serial port to your laptop or desktop computer through USB
- Provides one RS422/485 port while powering the device through USB
- RS-485 mode supports Auto Transceiver Turn Around (ATTA)
- Compatible with both USB 2.0 and USB 1.1
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

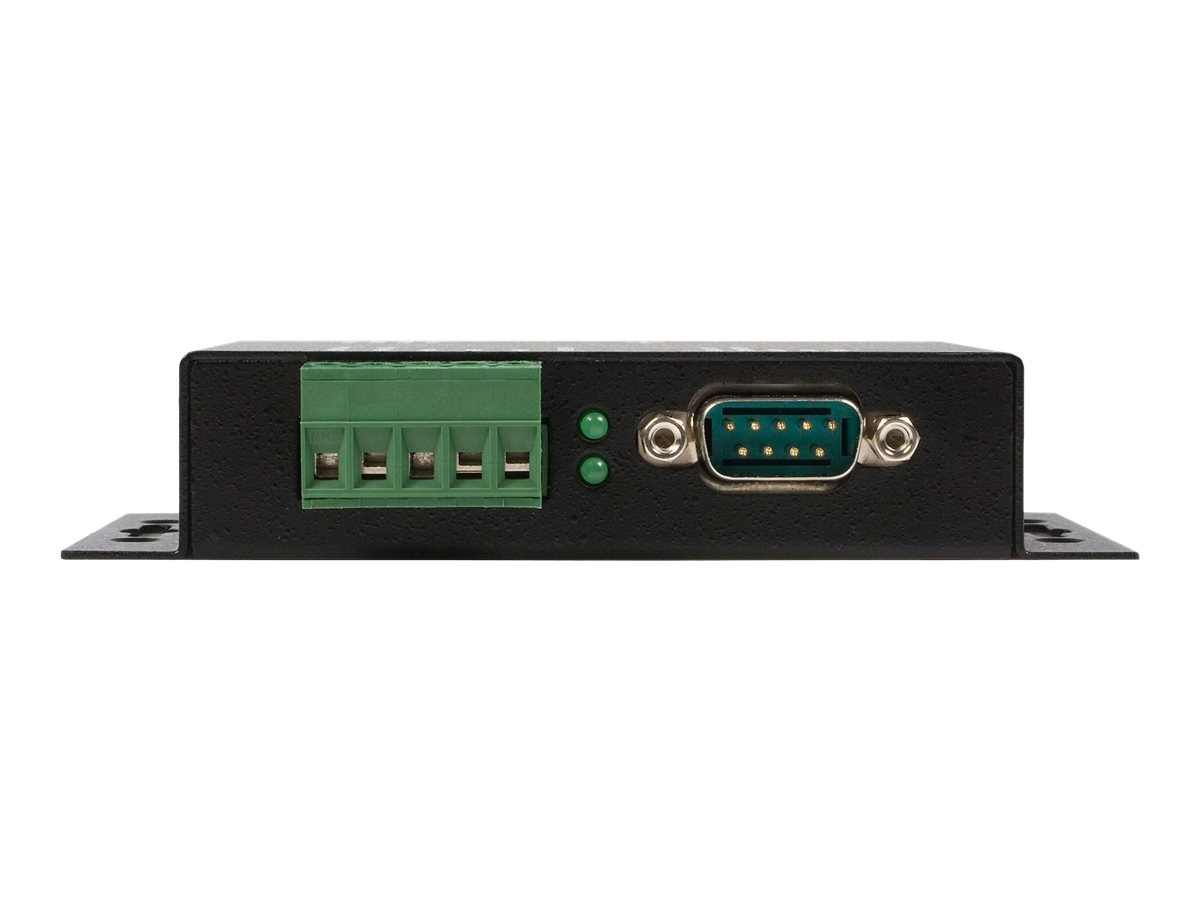

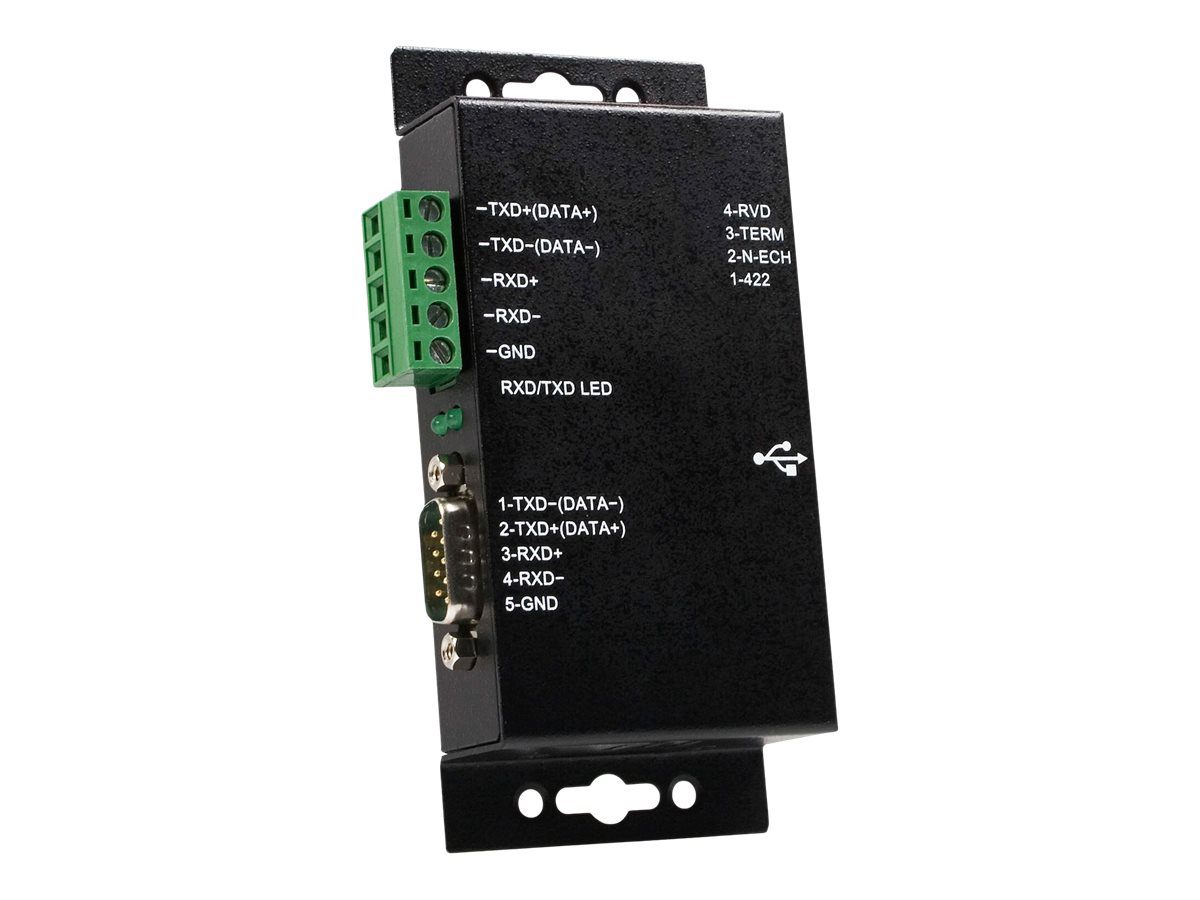

Supports RS-485 and RS-422 serial interfaces via DB9 or Terminal Block connections for versatile connection options
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block..jpg)
Circuit isolation provides electrical protection for sensitive, and often expensive industrial equipment
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices..jpg)
Rugged, USB Bus powered enclosure requiring no external power adapter for simple integration into harsh industrial environments
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.Applications
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hospital (monitoring equipment, nurses' stations)
- Security (UPS control, access key panels, video cameras, card readers)
.jpg)
.jpg)
