Produktbeskrivelse
|
Startech 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - seriel adapter - USB 2.0 - RS-232 x 8
|
|
Enhedstype
|
Seriel adapter
|
|
Model
|
Monterbar på DIN rail
|
|
Grænseflade (bus) type
|
USB 2.0
|
|
Porte
|
RS-232 x 8
|
|
Dimensioner (B x D x H)
|
9.72 cm x 17.35 cm x 4.32 cm
|
|
Vægt
|
950 g
|
|
Dataforbindelsesprotokol
|
RS-232
|
|
Dataoverførselshastighed
|
921.6 Kbps
|
|
Processor
|
FTDI FT232RL
|
|
Farve
|
Sort
|
|
Systemkrav
|
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 eller nyere, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
|
|
Producentgaranti
|
2 års garanti
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
StarTech.com Seriel adapter USB 2.0 921.6Kbps Kabling
Startech 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - Seriel adapter - USB 2.0 - RS-232 x 8 - sort
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Serial adapter
|
|
Form Factor
|
DIN rail mountable
|
|
Interface (Bus) Type
|
USB 2.0
|
|
Networking
|
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
RS-232
|
|
Data Transfer Rate
|
921.6 Kbps
|
|
Features
|
USB powered, wall mountable, DIN rail mountable
|
|
Ports
|
RS-232 x 8
|
|
Status Indicators
|
Port status, transmit, receive
|
|
Processor / Memory
|
|
|
Processor
|
FTDI FT232RL
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x RS-232 - 9 pin D-Sub (DB-9) - male
|
|
Miscellaneous
|
|
|
Cables Included
|
1 x USB-A to USB-B cable (external) - 1.83 m
|
|
Color
|
Black
|
|
Compliant Standards
|
FCC, RoHS
|
|
Mounting Kit
|
Included
|
|
Power
|
|
|
Power Device
|
Power adapter - external
|
|
Software / System Requirements
|
|
|
OS Required
|
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsof
|
|
Software Included
|
Drivers & Utilities
|
|
Dimensions & Weight
|
|
|
Depth
|
17.35 cm
|
|
Height
|
4.32 cm
|
|
Weight
|
950 g
|
|
Width
|
9.72 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
5 - 95%
|
|
Max Operating Temperature
|
55 °C
|
|
Min Operating Temperature
|
0 °C
|
Media

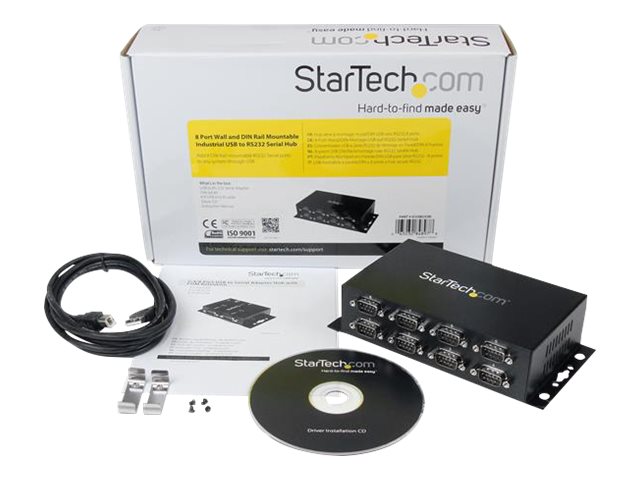

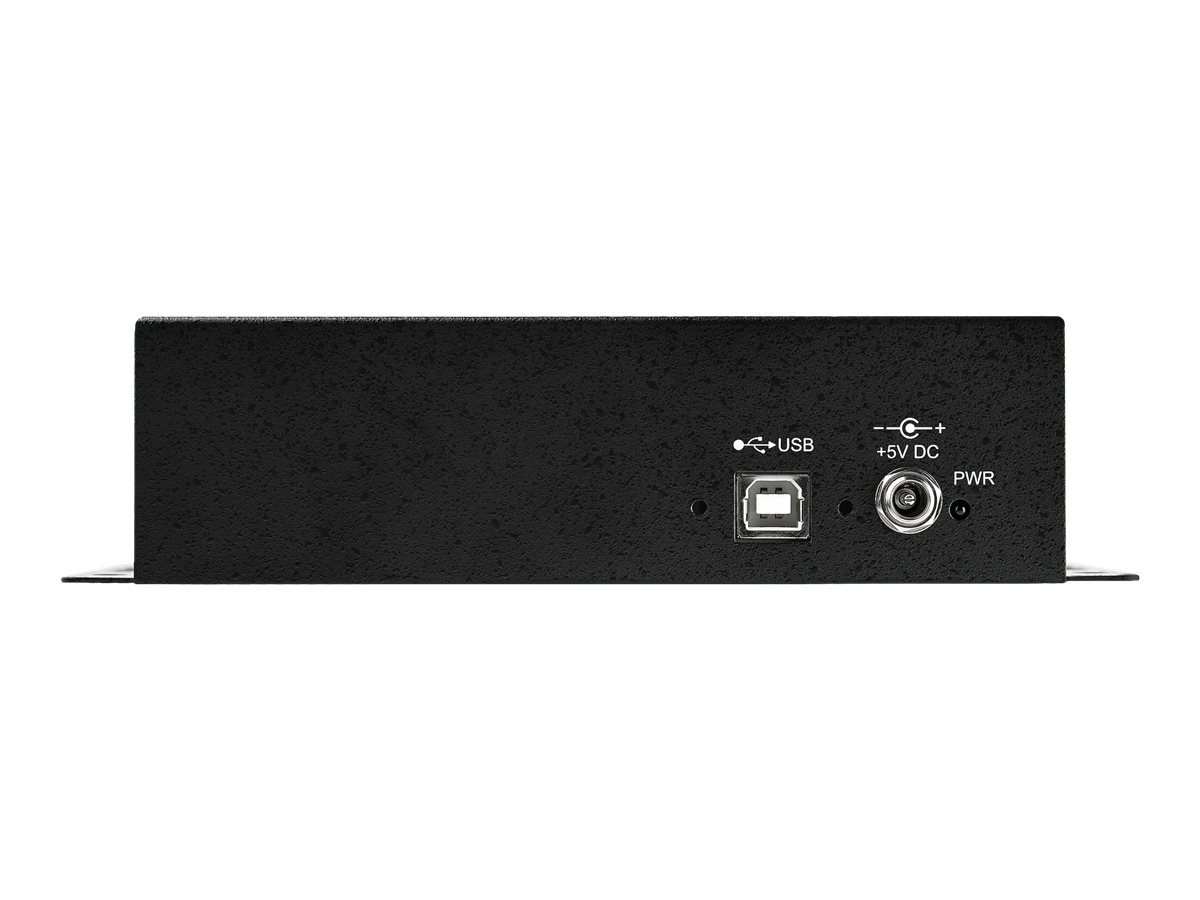

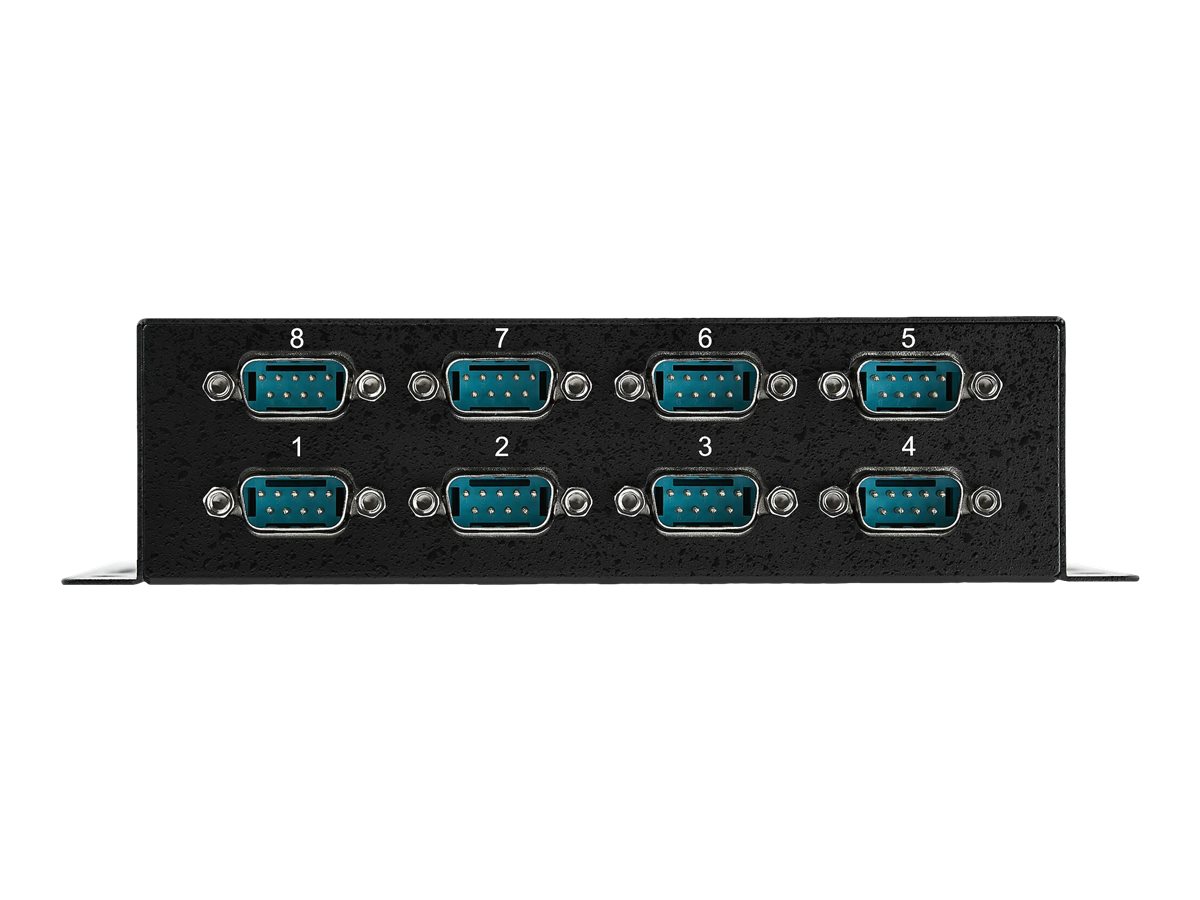

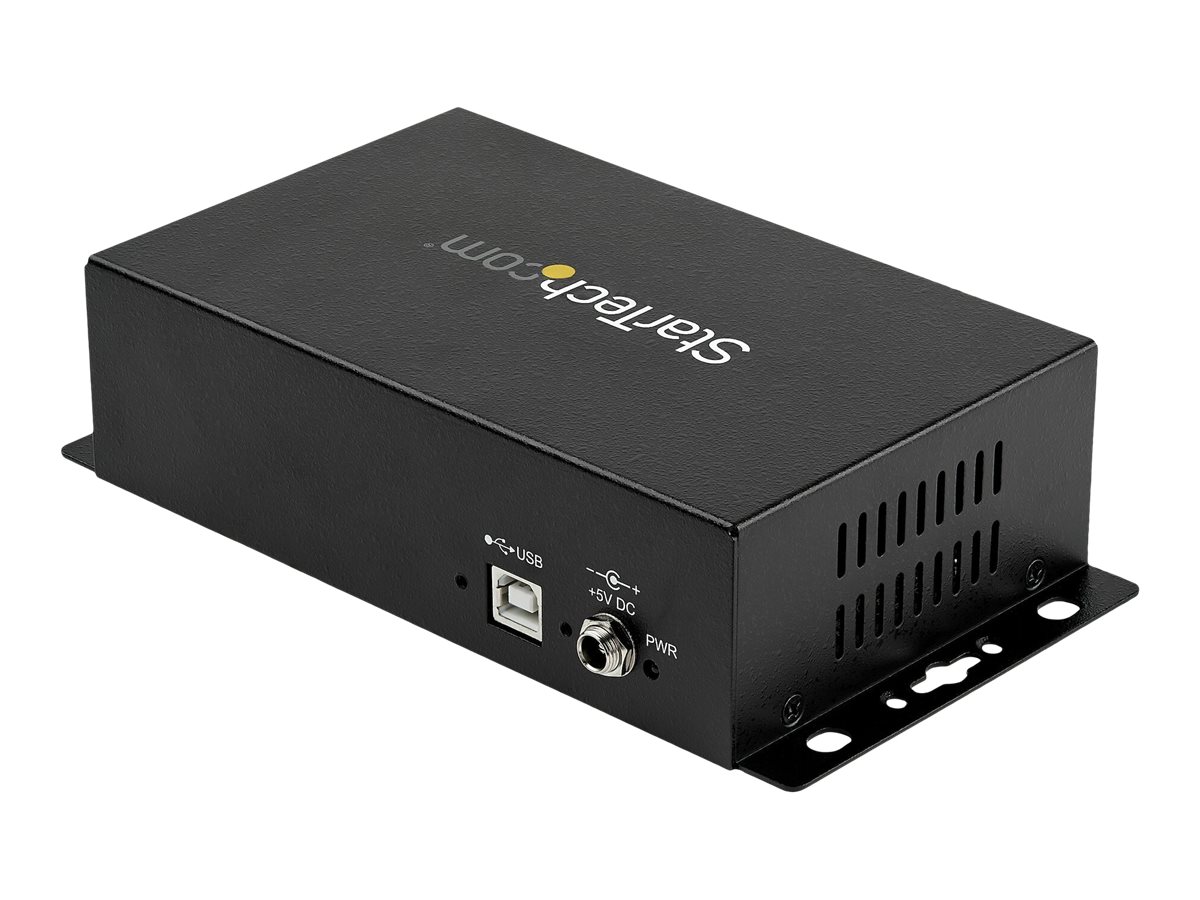

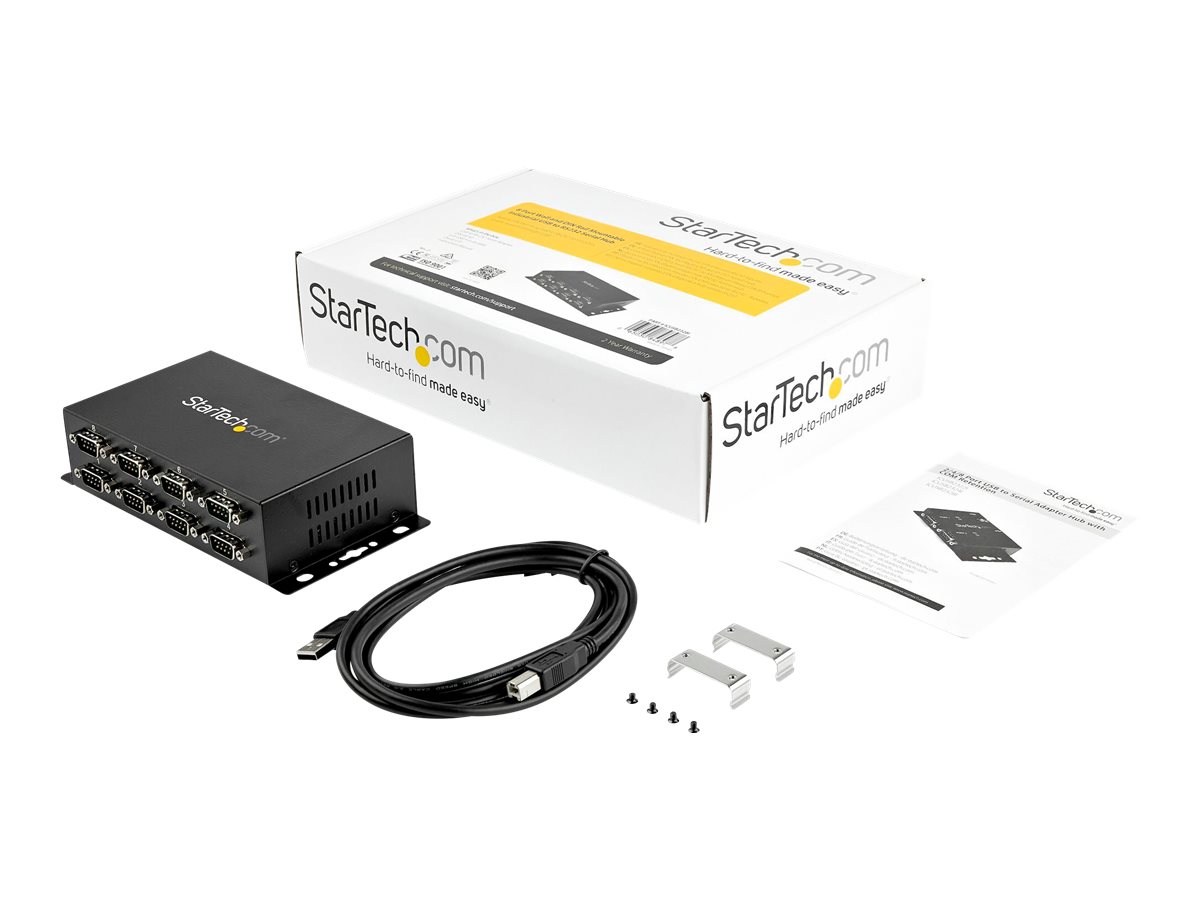

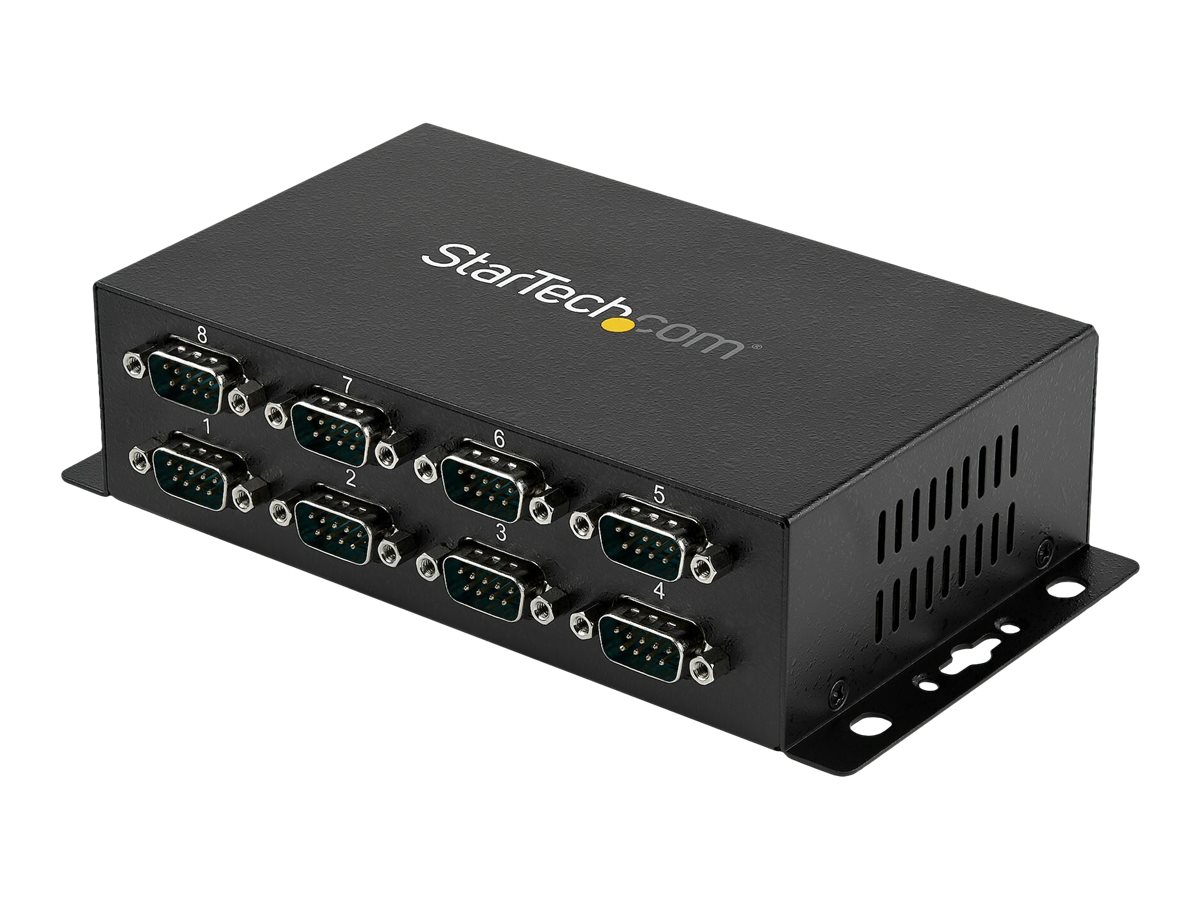

StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub – Wall Mountable
Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB.
The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
.jpg)
Product Features
- USB to 8-Port Straight-Through RS232 Serial Adapter
- Rugged metal construction
- Wall-mountable, and includes DIN Rail clips
- COM Retention: COM Port assignments maintained across reboot
- Baud Rate up to 921.6 Kbps
- Powered by an available USB port - no external power adapter required
.jpg)
Product Applications
- Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect and program LED and Digital signage boards with serial communication ports
.jpg)
.jpg)
